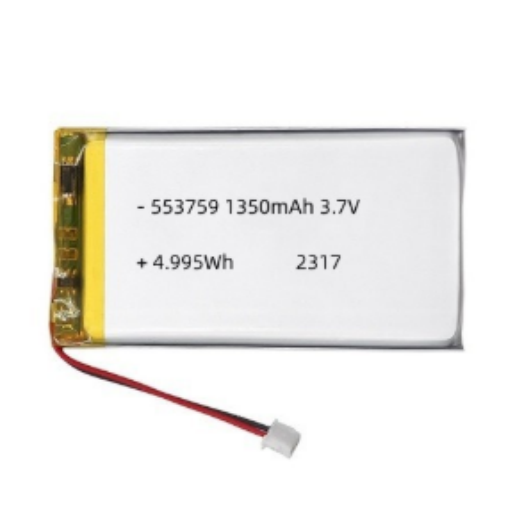

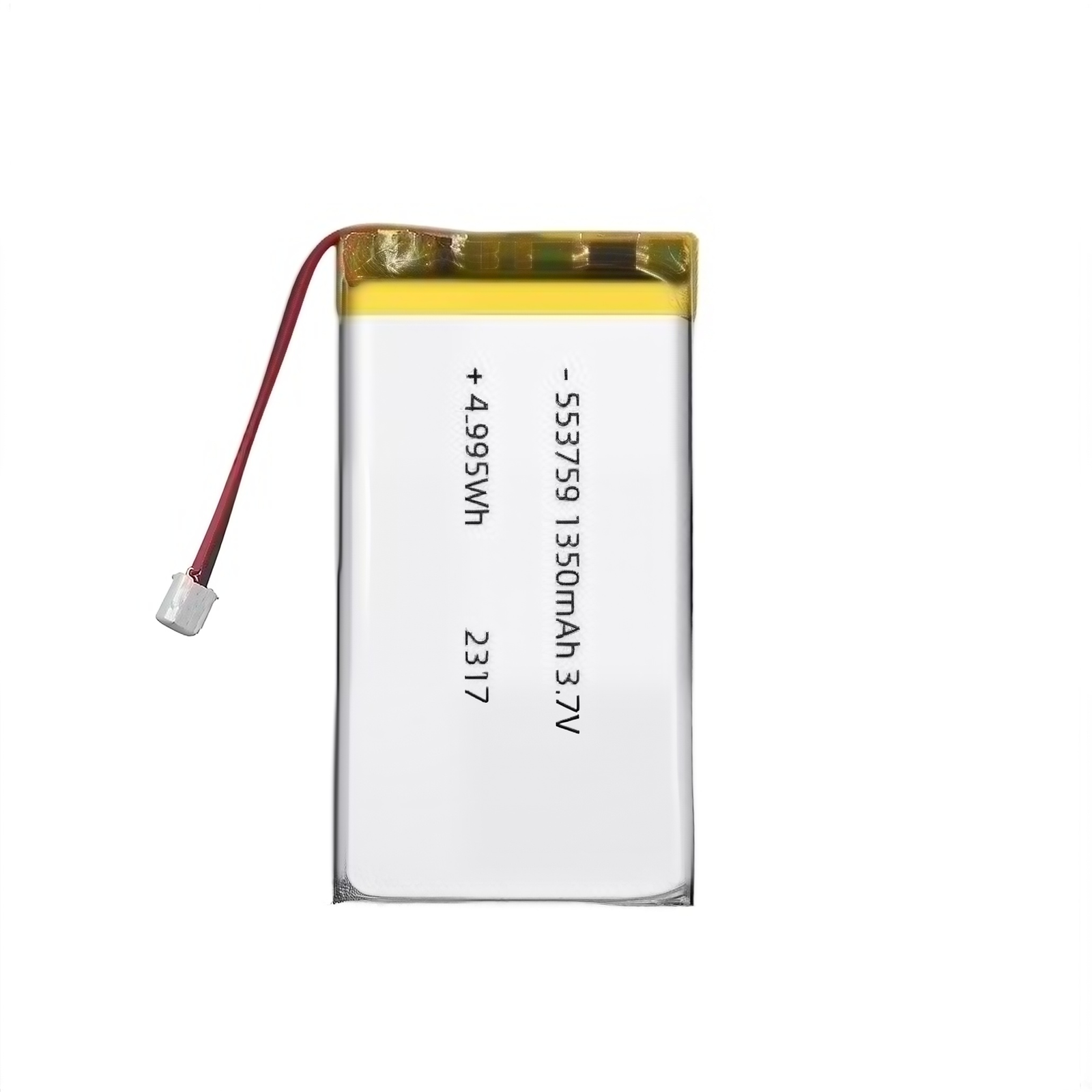

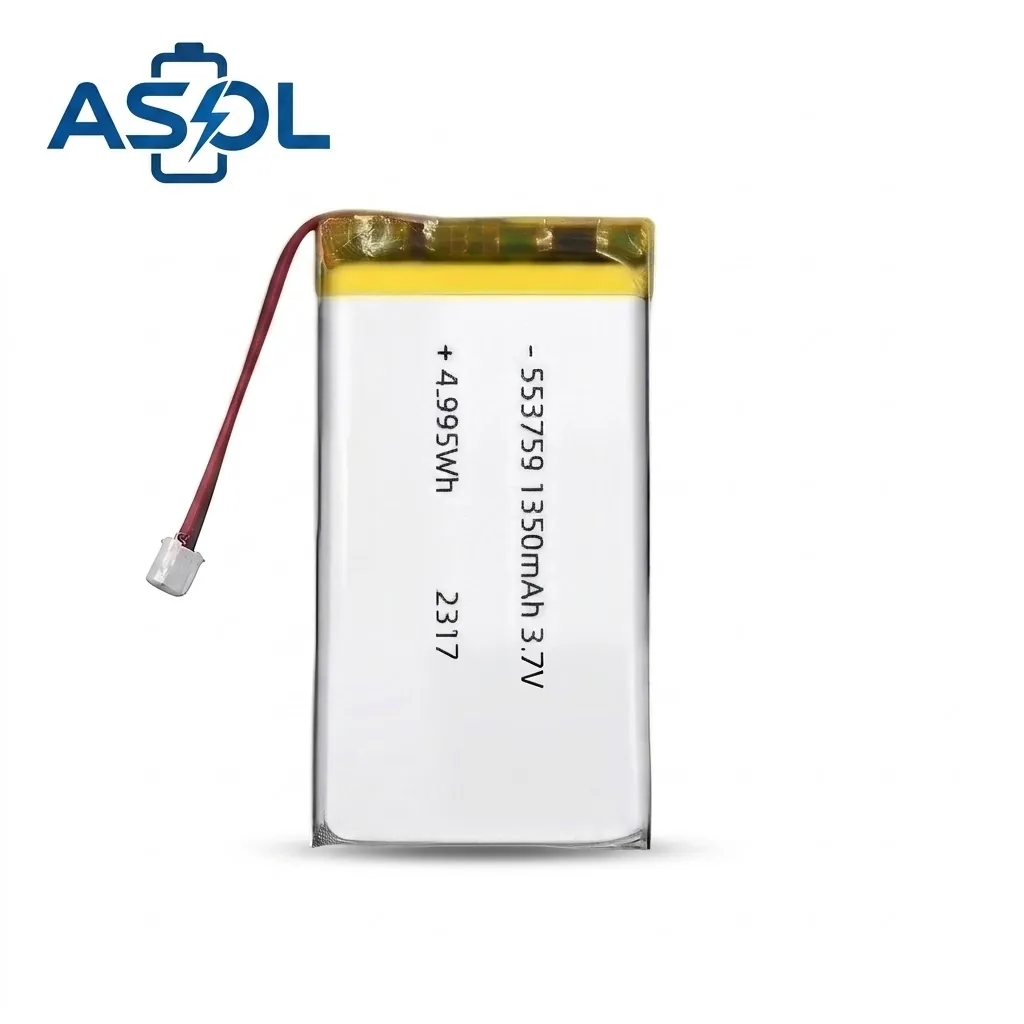

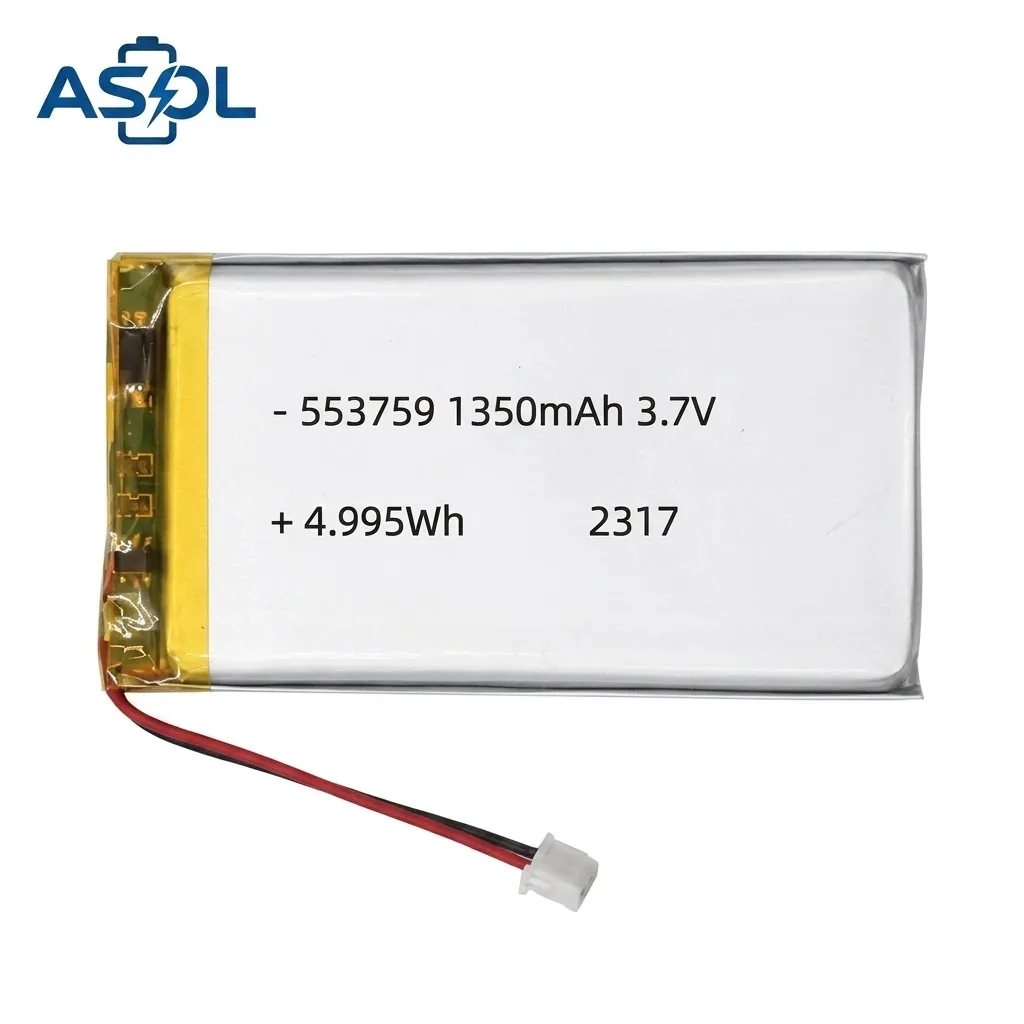

ASOL 553759 Lithium Polymer Battery — A compact 1350mAh (4.995Wh) soft-pack Lithium Polymer battery in an ultra-slim 5.6mm profile with a super-narrow 37.5×62mm rectangular footprint. Engineered for smart home security and IoT devices: smart video doorbells, GPS trackers, smart home sensors, compact indoor security cameras, and portable thermal printers.
Key Features
Ultra-slim power for compact IoT
High energy density for ultra-compact devices.
Fits ultra-thin device enclosures.
Designed for slim-form devices.
Continuous power delivery for compact devices.
Refer to the product specification table.
Reliable long-term performance.
Charge 0~45°C / Discharge -20~60°C.
UN38.3 certified for global markets.
Custom tabs, wires, connectors, protection circuits.
Specifications
| Parameter | Value |
|---|---|
| Model | 553759 |
| Chemistry | Lithium Polymer (Lithium Polymer) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1350mAh |
| Nominal Energy | 4.995Wh |
| Dimensions (T×W×H) | 5.6×37.5×62mm |
| Impedance | ≥50mΩ |
| Charge Voltage | 4.2V |
| Standard Charge Current | 270mA (0.2C) |
| Max Charge Current | 1350mA (1C) |
| Standard Discharge Current | 270mA (0.2C) |
| Max Discharge Current | 1350mA (1C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 2.5V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C |
| Cycle Life | ≥500 cycles (100% DOD, 0.2C, 25°C) |
| Weight (Approx.) | ~28g |
| Certifications | UN38.3 |
| Protection | Optional PCM/PCB protection is available according to project requirements. |
Applications
Where the 553759 is used
Suitable for compact smart doorbell designs requiring a slim rechargeable lithium polymer battery.
Suitable for compact tracking devices where battery thickness and enclosure space are important design considerations.
Suitable for connected sensor products requiring a compact rechargeable battery solution.
Suitable for compact wireless camera products requiring a thin lithium polymer battery.
Suitable for compact portable printing equipment requiring a rechargeable lithium battery solution.
Why Choose the 553759 LiPo Cell?
The 553759 is a flat lithium polymer cell designed for applications where battery thickness and enclosure space are important design constraints. Its pouch-cell format makes it suitable for compact electronic devices that require a rechargeable 3.7V battery in a slim rectangular form factor.
For OEM projects, the final battery configuration should be confirmed according to the available installation space, required runtime, load current, connector, wire length and protection requirements.
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
Optional PCM/PCB protection is available according to project requirements.
Inspection requirements and acceptance criteria are confirmed according to the product configuration and project requirements.
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Inspection requirements and acceptance criteria are confirmed for each project before order release.
UN38.3 Class 9 air & sea · Shipping arrangements and delivery terms are confirmed according to destination and project requirements.
Project Quotation
Pricing, minimum order quantity, sample availability and lead time are confirmed after the battery configuration, required quantity and destination requirements have been reviewed.
Frequently Asked Questions
What are the key specifications of the ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell?
The ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell is a 3.7V 1350mAh lithium battery, measuring 5.6×37.5×62mm, weighing ~28g.
What is the maximum discharge current of the ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell?
The ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell supports a maximum continuous discharge current of 1350mA.
How many charge cycles does the ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell last?
The ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell is rated for ≥500 cycles, retaining strong capacity across its service life.
What safety certifications does the ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell have?
It is certified to UN38.3, and full test reports can be provided on request.
Does ASOL offer OEM/ODM customization for the ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 553759 3.7V 1350mAh Lithium Polymer Battery Cell?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
