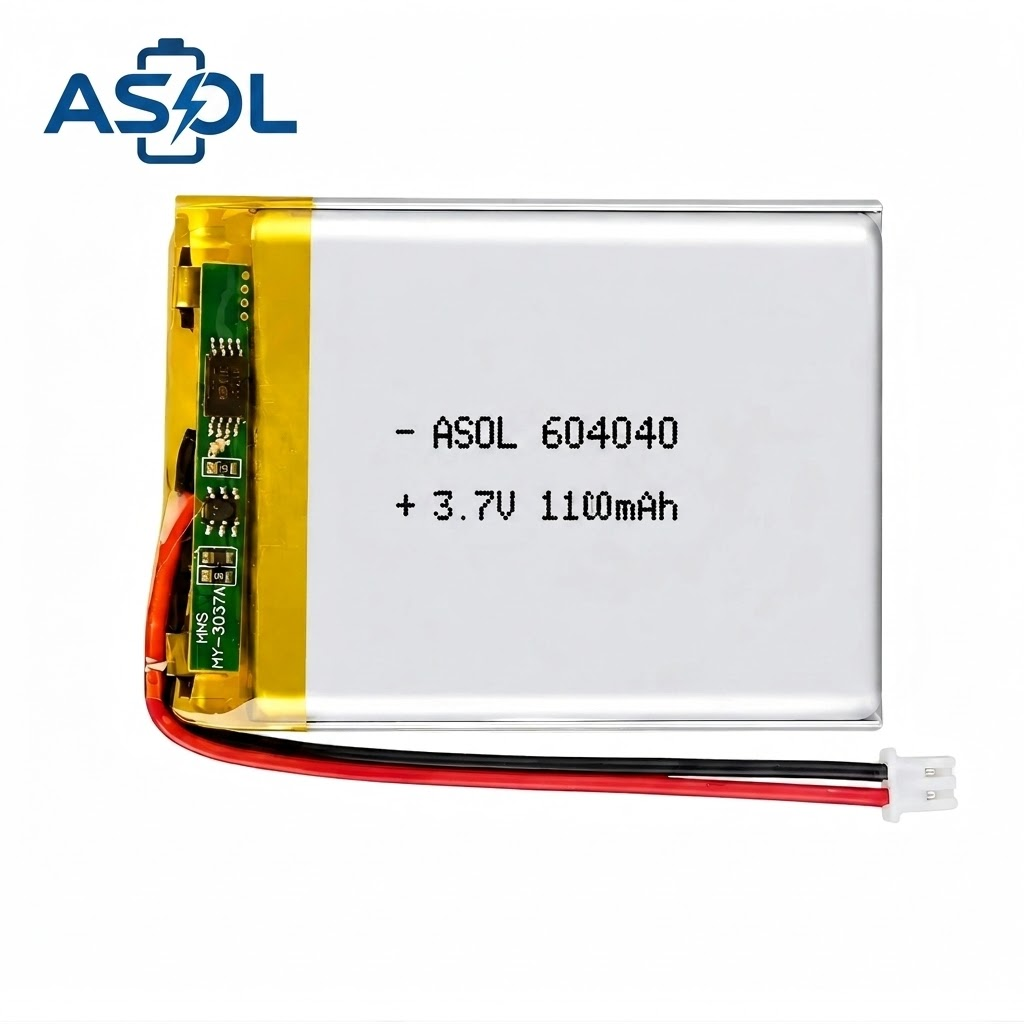

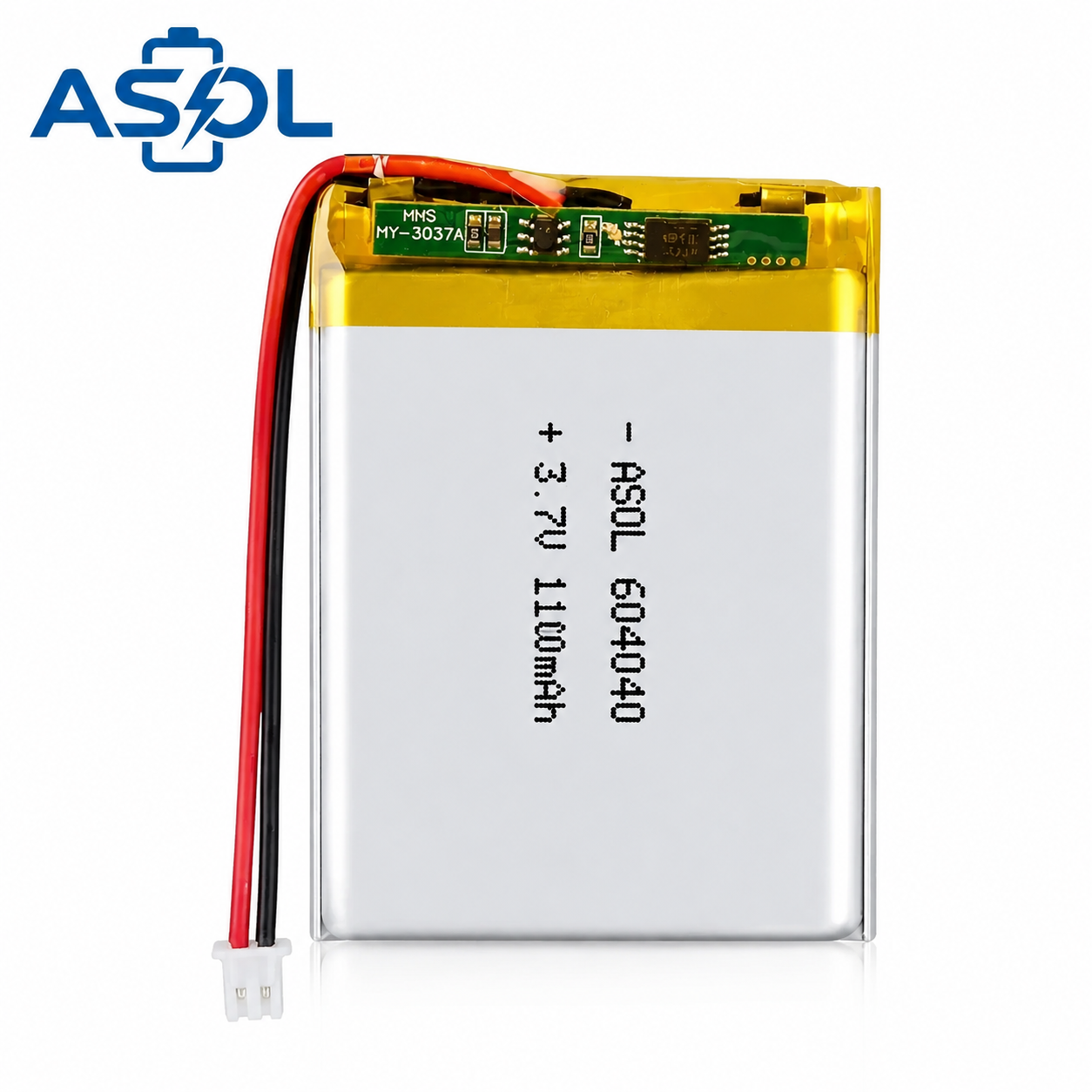

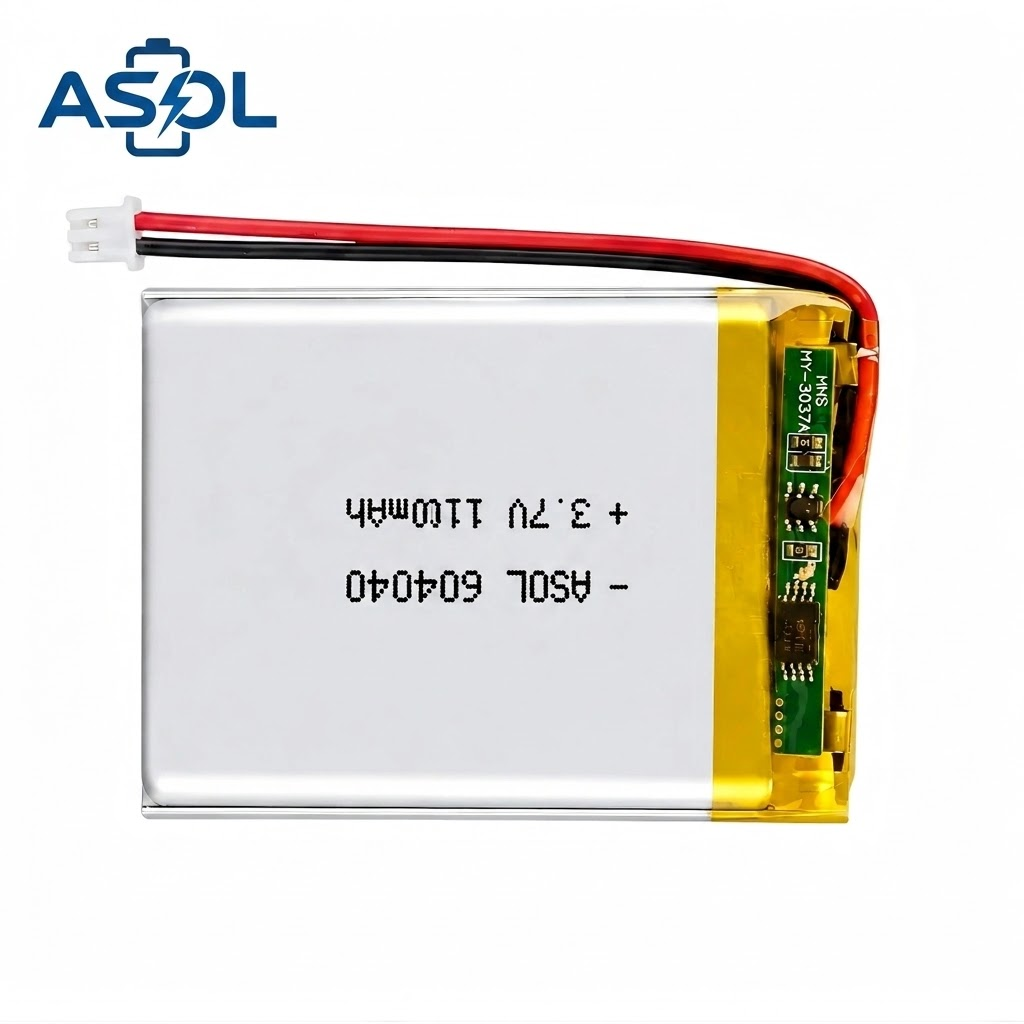

ASOL 604040 Lithium Polymer Battery — An ultra-slim 1100mAh soft-pack Lithium Polymer delivering 4.07Wh energy with 1.1A (1C) max discharge in an exceptional 6mm ultra-slim profile and 40×42mm near-square footprint.
Key advantages at a glance:
- 1100mAh capacity — outperforms most 6mm-thin batteries (typically lower capacity)
- 6mm ultra-slim — 25-40% thinner than standard 1100mAh batteries (8-10mm)
- 1.1A discharge — strong enough to drive small DC motors, RC cars, and robots
- 40×42mm near-square — maximizes internal space utilization in compact enclosures
Engineered for RC toys, programmable robots, STEM educational devices, handheld fans, mini printers, smart wearables, and wireless camera motors.
Why 6mm Ultra-Slim + 1100mAh — Comparison
| Battery Type | Capacity | Thickness | Footprint | Discharge | Best For |
|---|---|---|---|---|---|
| Standard 1100mAh | 1100mAh | 8~10mm | 35×45mm | 1C | Standard devices |
| ASOL 604040 | 1100mAh | 6mm | 40×42mm | 1C | Slim motor-driven devices |
| Standard 800mAh | 800mAh | 5~6mm | 30×35mm | 0.5C | Less capacity |
| Standard 1500mAh | 1500mAh | 10~12mm | 40×50mm | 1C | Too thick for slim devices |
Most 1100mAh batteries are 8~10mm thick. The 604040 delivers 1100mAh at 6mm — 25-40% thinner than competitors — while maintaining full 1C (1100mA) discharge to power small DC motors. The near-square 40×42mm footprint is ideal for compact RC toy and robot enclosures.
Key Features
Ultra-slim power for compact RC builds
Outperforms most 6mm-thin batteries, typically ≤800mAh.
25–40% thinner than standard 1100mAh cells (8–10mm).
Maximizes internal space in compact RC and robot enclosures.
Drives small DC motors, RC vehicles, and robotic actuators.
Reliable long-term performance (100% DOD, 0.2C, 25°C).
Charge 0–45°C, discharge −20–60°C.
Safety documentation for product compliance.
Minimal impact on RC handling and robot balance.
Custom tabs, wires, connectors & PCM protection circuits.
Specifications
| Parameter | Value |
|---|---|
| Model | 604040 |
| Chemistry | Lithium Polymer (Lithium Polymer) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1100mAh |
| Nominal Energy | 4.07Wh |
| Dimensions (T×W×H) | 6×40×42mm |
| Charge Voltage | 4.2V |
| Standard Charge Current | 550mA (0.5C) |
| Max Charge Current | 1100mA (1C) |
| Standard Discharge Current | 550mA (0.5C) |
| Max Discharge Current | 1100mA (1C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 2.75V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~60°C (recommended) |
| Cycle Life | ≥500 cycles (100% DOD, 0.2C, 25°C) |
| Weight (Approx.) | ~22g |
| Certifications | MSDS |
Applications
Where the 604040 is used
1100mAh extends playtime in RC cars, boats & mini drones.
Powers servos plus MCU boards in coding robots & kits.
6mm-slim form factor for compact fans, mini pumps & printers. Runtime depends on the target device, operating load, duty cycle, system efficiency, environmental conditions and system configuration, and should be verified in the actual application.
Multi-day smartwatches, trackers & heart-rate patches.
1.1A drives camera pan-tilt servos & small actuators.
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
PCM/PCB protection can be customized according to application requirements.
Inspection requirements and acceptance criteria are confirmed according to the product configuration and project requirements.
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Inspection requirements and acceptance criteria are confirmed for each project before order release.
UN38.3 Class 9 air & sea · Shipping arrangements and delivery terms are confirmed according to destination and project requirements.
Project Quotation
Pricing, minimum order quantity, sample availability and lead time are confirmed after the battery configuration, required quantity and destination requirements have been reviewed.
Frequently Asked Questions
What are the key specifications of the ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell?
The ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell is a 3.7V 1100mAh lithium battery, measuring 6×40×42mm, weighing ~22g.
What is the maximum discharge current of the ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell?
The ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell supports a maximum continuous discharge current of 1100mA.
How many charge cycles does the ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell last?
The ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell is rated for ≥500 cycles, well beyond the lifespan of a comparable standard cell.
What safety certifications does the ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell have?
It is supported by MSDS safety documentation; certification documents are available to verified buyers.
Does ASOL offer OEM/ODM customization for the ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell?
Yes. ASOL is a battery manufacturer, so capacity, voltage, cell configuration, connectors, wire length and custom labeling can all be built to your specification and order volume under OEM or ODM terms.
Can I get a sample or a quote for the ASOL 604040 3.7V 1100mAh Lithium Polymer Battery Cell?
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Reach us at info@asolbattery.com or +86 15779858703 on WhatsApp for pricing; we usually reply within 24 hours on working days.
Contact Us
| Channel | Information |
|---|---|
| info@asolbattery.com | |
| +86 157 7985 8703 | |
| Website | www.asolbattery.com |
| Response Time | Within 24 hours on working days |
Need a different size or capacity? Explore ASOL’s full lithium polymer battery range →
