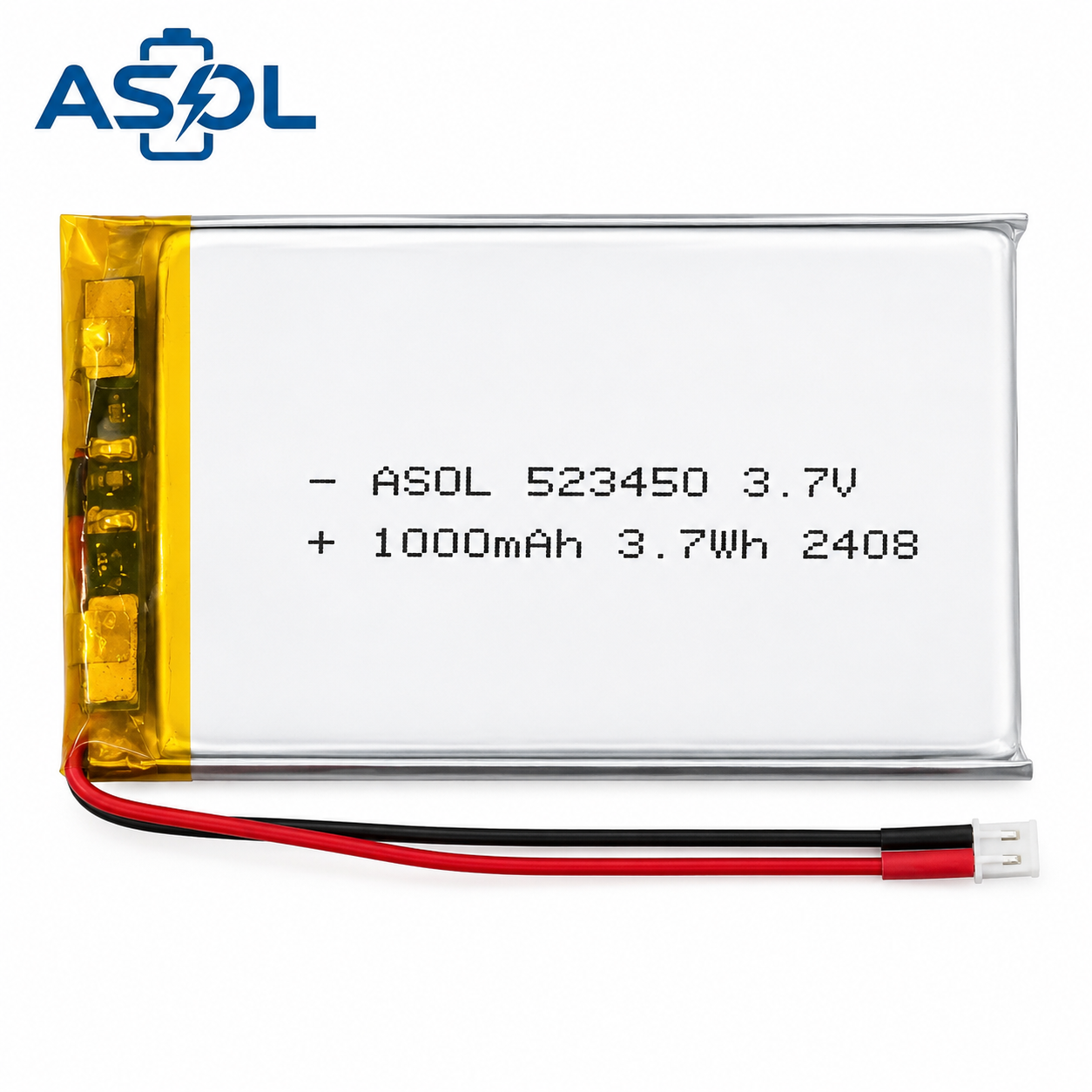

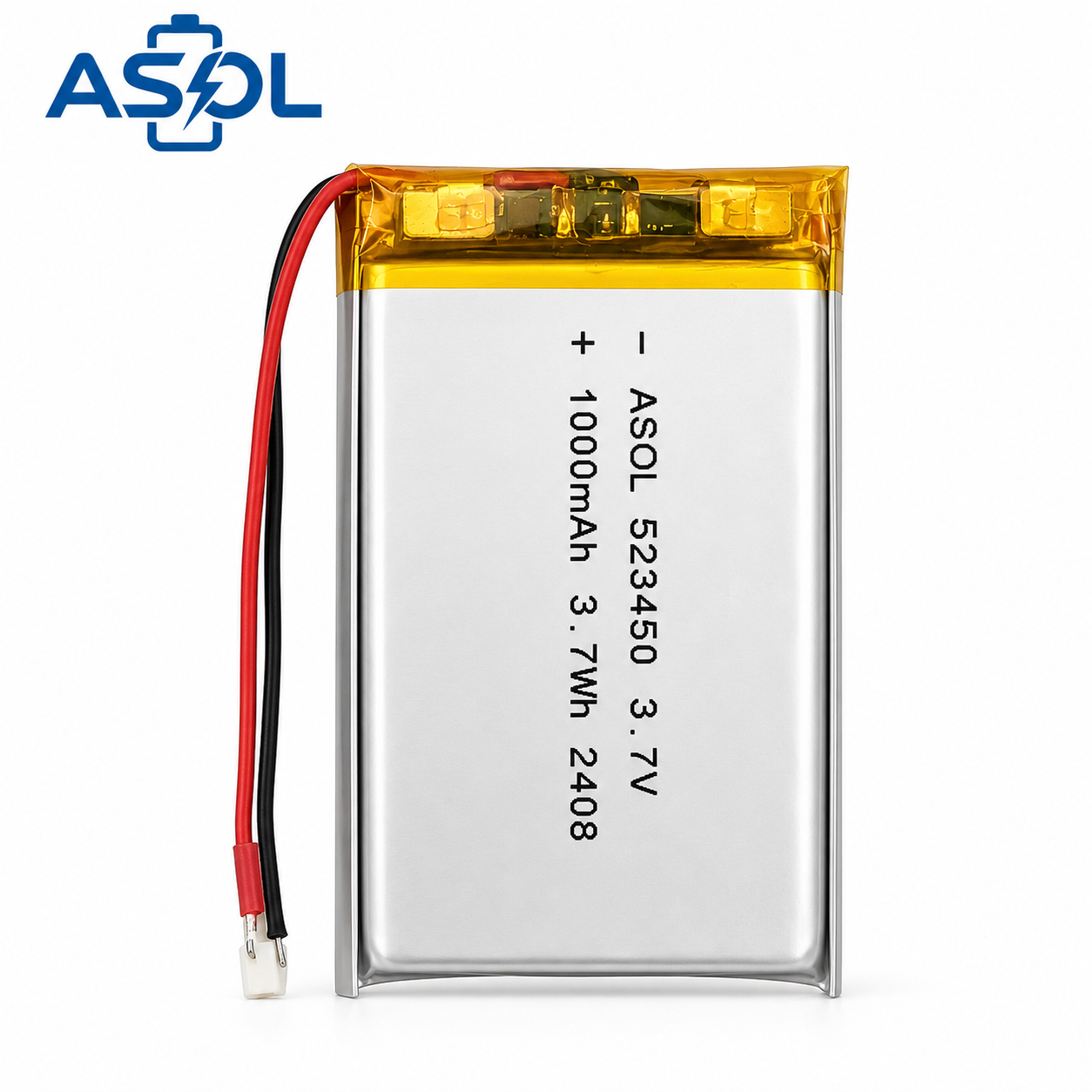

The ASOL 523450 is a 1000mAh ultra-flat lithium polymer battery engineered specifically for instrumentation, smart cards, and portable medical devices. With a distinctive flat-wide form factor (52.5mm long × 34.5mm wide × only 5.3mm thick), this cell fills a unique niche between standard prismatic cells and custom-shaped batteries — offering a naturally flat profile that aligns with the internal cavity dimensions of digital meters, diagnostic instruments, and card-form electronic devices.
At 1000mAh (3.7Wh) with a clean 200mΩ internal resistance, the 523450 delivers stable, low-noise power essential for precision measurement equipment and medical diagnostics where voltage stability directly impacts accuracy. Its -20°C to +60°C discharge temperature range exceeds standard Lithium Polymer expectations, making it suitable for field-deployed instruments and medical devices that must operate reliably across diverse environmental conditions.
Form Factor Comparison — Why the Flat-Wide Shape Matters
| Feature | ASOL 523450 | Standard 1000mAh Round Cell | Standard Prismatic (e.g., 703048) |
|---|---|---|---|
| Dimensions | 52.5 × 34.5 × 5.3 mm | Dia.20×H3.2mm (coin) or larger | 48×30×7 mm typical |
| Thickness | 5.3mm (ultra-flat) | N/A (cylindrical) | 6~8 mm |
| Width | 34.5mm (wide-flat) | N/A | 25~30 mm |
| Shape Profile | Flat rectangular slab | Cylinder / Coin | Block / Brick |
| Best For | Meters, Cards, Instruments | Wearables, small IoT | General portable electronics |
| Cavity Match | ✓Wide instrument bays | Too small / wrong shape | May not fill wide cavities |
Key Insight: Most 1000mAh Lithium Polymer cells are designed in “tall-narrow” configurations (~25mm wide). The 523450’s 34.5mm width makes it uniquely suited for wide-shallow device cavities found in digital multimeters, clamp meters, smart card enclosures, and handheld diagnostic tools.
Temperature Capability Comparison
| Operating Range | Typical Use Case | 523450 Support |
|---|---|---|
| 0°C ~ +45°C (Charge) | Indoor consumer charging | ✓Full support |
| -20°C ~ +60°C (Discharge) | Field instruments, outdoor medical, cold-chain logistics | Exceeds standard (-20~+55°C) |
| >+45°C ambient (Hot climate) | Desert / tropical deployment | ✓Up to +60°C safe discharge |
Key Features
Flat-wide power for precision devices
200mΩ low internal resistance gives clean voltage for analog circuits.
−20 to 60°C range suits clinics, ambulances and field diagnostics.
5.3mm thin, 34.5mm flat width fits cards, badges and credentials.
1000mA continuous charge/discharge for backlights, sensors and printer pulses.
52.5×34.5×5.3mm fills wide-shallow cavities narrow cells leave empty.
1000mAh (3.7Wh) powers a multimeter for weeks of use.
Customizable PCM/PCB for overcharge, overdischarge, overcurrent and short-circuit protection.
UN38.3 and CE certified for global shipment and medical integration.
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Model Number | 523450 | - |
| Chemistry | Lithium Polymer (Lithium Polymer) | - |
| Nominal Voltage | 3.7V | - |
| Nominal Capacity | 1000mAh / 3.7Wh | @ 0.2C discharge |
| Dimensions | 52.5 × 34.5 × 5.3 mm (max) | Tolerance ±0.5mm |
| Alternative Size Notation | 5.2 × 34 × 50 mm | Compact notation |
| Internal Resistance | ≤100 mΩ | Fresh cell, low ripple |
| Charge Cut-off Voltage | 4.2V | Standard CC/CV |
| Discharge Cut-off Voltage | 3.0V | - |
| Standard Charging Current | 500mA (0.5C) | Recommended |
| Max Continuous Charge Current | 1000mA (1C) | Fast charge capable |
| Standard Discharge Current | 200mA (0.2C) | Optimal for longevity |
| Max Continuous Discharge Current | 1000mA (1C) | Sustained load limit |
| Charge Temperature | 0°C ~ +45°C | Do not charge below 0°C |
| Discharge Temperature | -20°C ~ +60°C | Extended range |
| Storage Temperature | <1 month: -5~+30°C | <3 months: -5~+20°C |
| Cycle Life | ≥500 cycles | To 80% capacity @ 0.5C/1C |
| Weight | Approx. 19~21 g | Estimated |
| Certifications | UN38.3, CE | Available on request |
| PCM Option | Available | PCM/PCB protection can be customized according to application requirements. |
| Wire / Connector | Custom available | certified wiring |
Applications
Where the 523450 is used
Powers multimeters, clamp meters & data loggers with long standby.
Slim profile fits display ID cards, badges & payment tokens.
Runs glucose meters, pulse oximeters & handheld ECG monitors.
Drives mPOS terminals and 58mm Bluetooth receipt printers.
Real-time location, geofence alerts & SOS button.
LED desk lamps with touch dimming & color temperature.
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
PCM/PCB protection can be customized according to application requirements.
Inspection requirements and acceptance criteria are confirmed according to the product configuration and project requirements.
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Inspection requirements and acceptance criteria are confirmed for each project before order release.
UN38.3 Class 9 air & sea · Shipping arrangements and delivery terms are confirmed according to destination and project requirements.
Project Quotation
Pricing, minimum order quantity, sample availability and lead time are confirmed after the battery configuration, required quantity and destination requirements have been reviewed.
Frequently Asked Questions
What connector does the ASOL 523450 3.7V 1000mAh Lithium Polymer Battery Cell use?
It ships pre-wired with a certified wire connector. ASOL can customize the connector type, wire length, and labeling to match your device.
What safety certifications does the ASOL 523450 3.7V 1000mAh Lithium Polymer Battery Cell have?
It is certified to Available on request, and full test reports can be provided on request.
Does ASOL offer OEM/ODM customization for the ASOL 523450 3.7V 1000mAh Lithium Polymer Battery Cell?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 523450 3.7V 1000mAh Lithium Polymer Battery Cell?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
