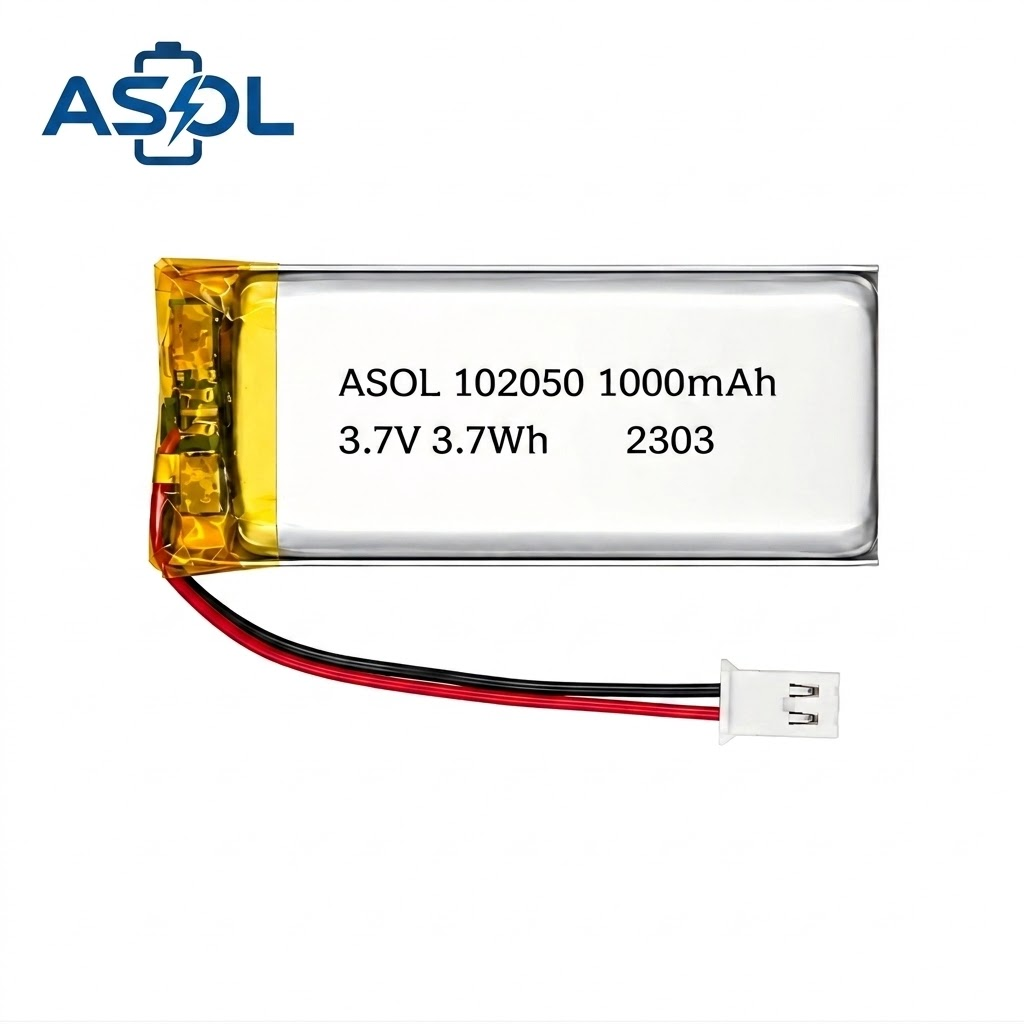

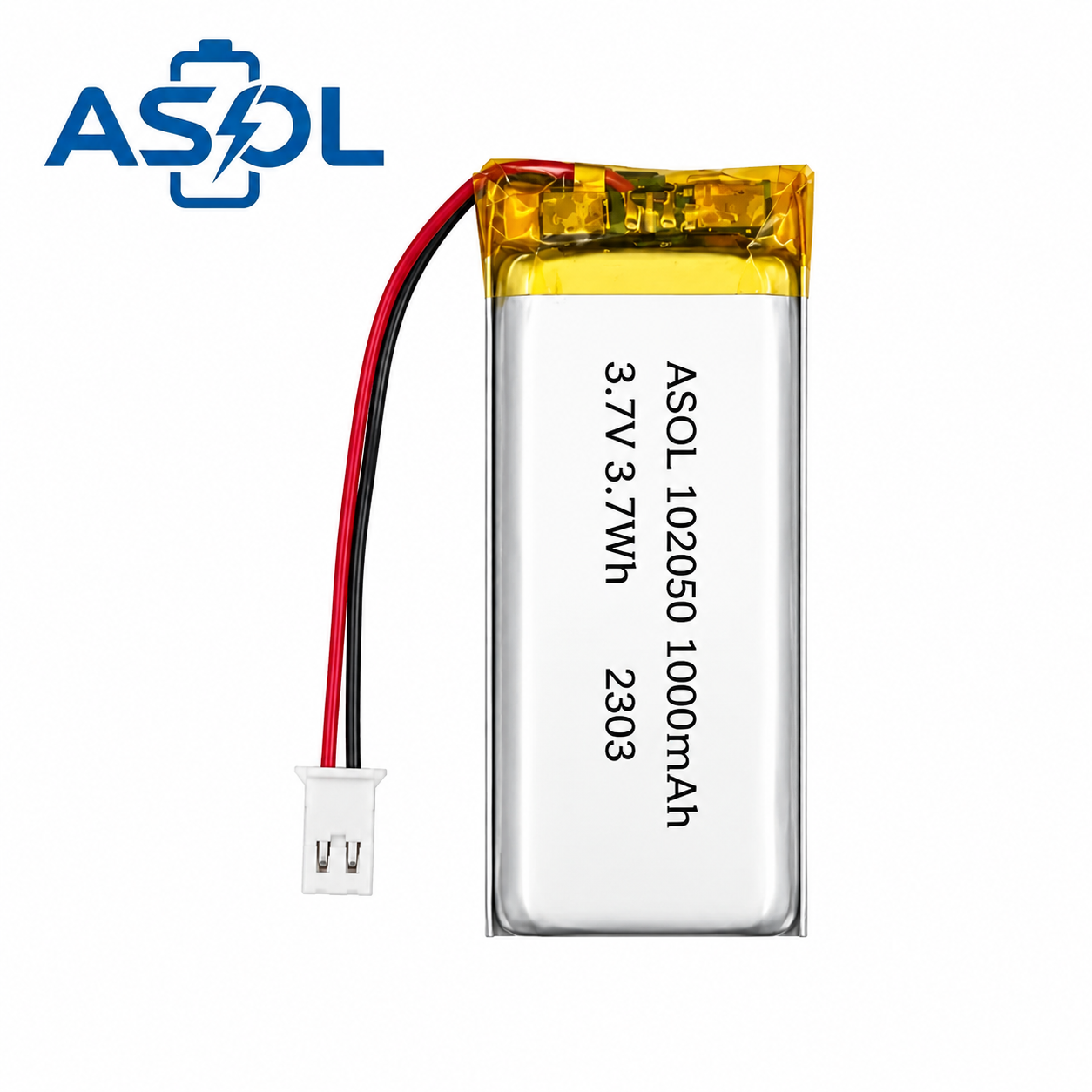

ASOL 102050 Lithium Polymer Battery — A compact 1000mAh (3.7Wh) soft-pack Lithium Polymer battery in a slim 10mm × narrow 20mm × elongated 50mm form factor. Engineered specifically for GPS tracking devices, vehicle recorders, and portable monitoring electronics. The 0°C to +60°C wide temperature range ensures reliable performance across outdoor, vehicle, and industrial environments — from cold-chain logistics to summer fleet dashboards and dash camera continuous recording.
Key Features
Slim GPS power, built to last
Ideal balance for multi-day GPS standby and dash camera recording.
Enables thin, lightweight tracker and camera industrial design.
Fits standard GPS collar housings and slim recorder enclosures.
Covers GPS module and camera peaks with ample headroom.
Reliable in outdoor, vehicle, and dash camera environments.
Long-term reliability for embedded tracking and recording.
Efficient energy delivery for GPS and camera bursts.
Custom tabs, wires, connectors, PCM protection.
Specifications
| Parameter | Value |
|---|---|
| Model | 102050 |
| Chemistry | Lithium Polymer (Lithium Polymer) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1000mAh |
| Nominal Energy | 3.7Wh |
| Dimensions (T×W×H) | 10×20×50mm |
| Impedance | ≤100mΩ |
| Charge Voltage | 4.2V |
| Standard Charge Current | 200mA (0.2C) |
| Max Charge Current | 1000mA (1C) |
| Standard Discharge Current | 200mA (0.2C) |
| Max Discharge Current | 1000mA (1C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 2.5V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C |
| Cycle Life | ≥500 cycles (80% capacity retention) |
| Weight (Approx.) | ~22g |
| Certifications | UN38.3 |
| Protection | Built-in PCM |
Applications
Where the 102050 is used
Actual runtime depends on device load, reporting frequency, recording mode, wireless activity and system conditions.
20mm width fits collar modules · lightweight ~22g.
Actual runtime depends on device load, reporting frequency, recording mode, wireless activity and system conditions.
Actual runtime depends on device load, reporting frequency, recording mode, wireless activity and system conditions.
Actual runtime depends on device load, reporting frequency, recording mode, wireless activity and system conditions.
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
Integrated PCB against overcharge, over-discharge, overcurrent & short circuit.
Inspection requirements and acceptance criteria are confirmed according to the product configuration and project requirements.
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Inspection requirements and acceptance criteria are confirmed for each project before order release.
UN38.3 Class 9 air & sea · Shipping arrangements and delivery terms are confirmed according to destination and project requirements.
Pricing depends on quantity, battery configuration and project requirements. Contact us for a quotation.
Frequently Asked Questions
What are the key specifications of the ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell?
The ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell is a 3.7V 1000mAh lithium battery, measuring 10×20×50mm, weighing ~22g.
What is the maximum discharge current of the ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell?
The ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell supports a maximum continuous discharge current of 1000mA.
How many charge cycles does the ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell last?
The ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell is rated for ≥500 cycles, for years of dependable performance in your device.
What safety certifications does the ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell have?
It is certified to UN38.3, with test reports supplied on request for compliance.
Does ASOL offer OEM/ODM customization for the ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell?
Absolutely. As the manufacturer, ASOL tailors the cell — voltage, capacity, connector, wiring and private-label printing — to match your device and production volume through our OEM/ODM service.
Can I get a sample or a quote for the ASOL 102050 3.7V 1000mAh Lithium Polymer Battery Cell?
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. For a quote, email info@asolbattery.com or WhatsApp +86 15779858703 — replies typically arrive within 24 hours on working days.
