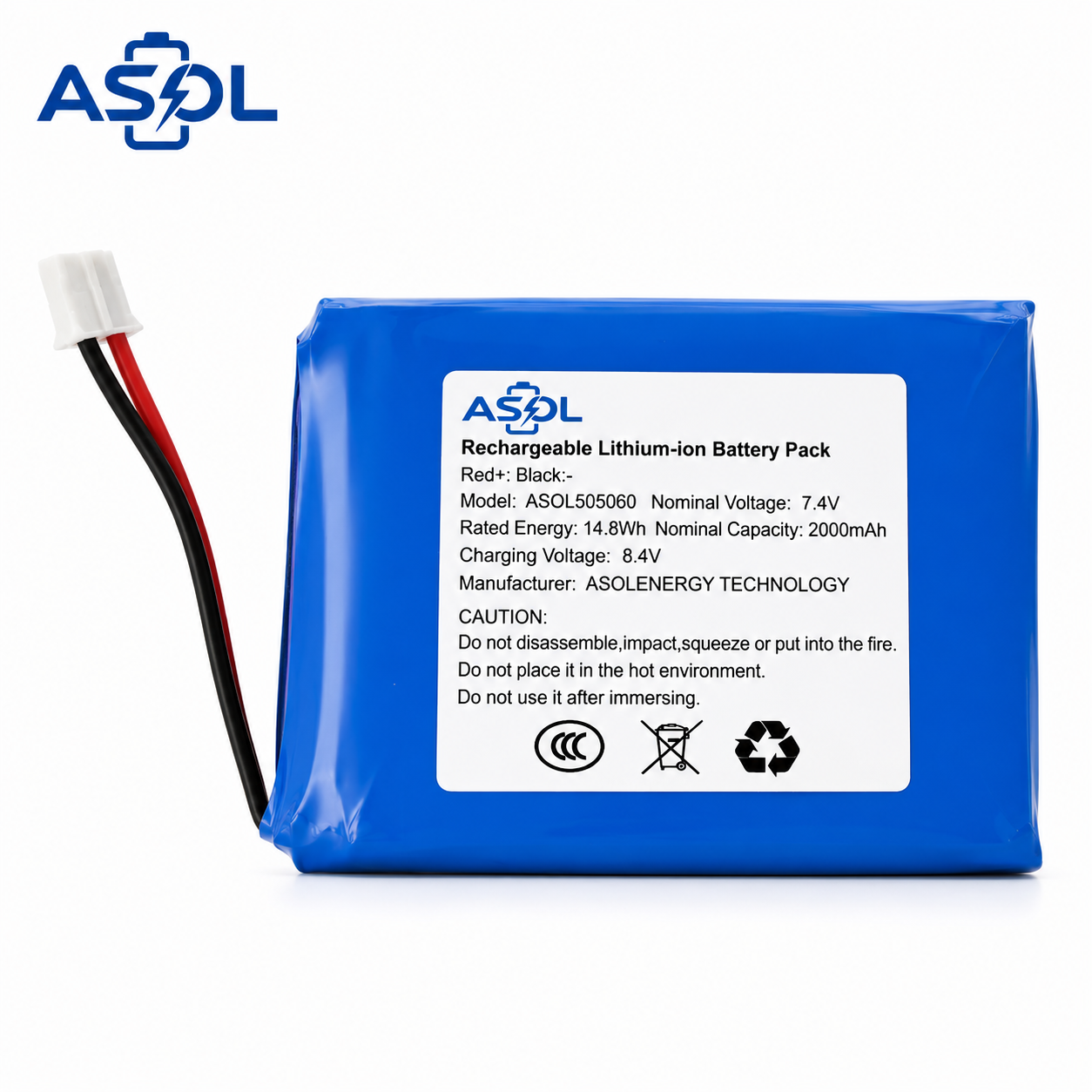

The ASOL505060 is a premium Li-ion rechargeable battery pack using two flat 505060 soft-pouch cells in a 2S1P series configuration, delivering a stable 7.4V nominal voltage and 2000mAh capacity (14.8Wh). Each 505060 cell is approximately 5 × 50 × 60 mm (T × W × L). The two cells are stacked vertically, producing a finished pack approximately 10 × 50 × 62–63 mm (T × W × L), including the assembly allowance for the protection board, wiring and insulation.
7.4V is the standard operating voltage for many small-to-medium RC vehicles, FPV micro drones and robotic toys. With 2000mAh capacity, the ASOL505060 provides a balanced combination of runtime and pack weight for RC cars, RC trucks, FPV racing drones, nano quadcopters, RC boats, STEM educational robots and programmable smart toys. The flat Li-ion cell construction also allows for flexible placement within device housings: the slim profile can fit under circuit boards, inside narrow battery compartments or flush against device walls where cylindrical batteries cannot be accommodated.
Each pack incorporates a built-in PCB protection circuit (or optional full BMS with 2S cell balancing) guarding against overcharge, over-discharge, overcurrent and short circuit. Inspection requirements and acceptance criteria are confirmed for each project before order release.
Technical Specifications
| Parameter | Value |
|---|---|
| Chemistry | Lithium-ion Polymer (Soft Pouch Cell, 505060 format) |
| Model | ASOL505060 |
| Configuration | 2S1P (2 Series, 1 Parallel) |
| Nominal Voltage | 7.4V |
| Capacity | 2000mAh |
| Energy | 14.8Wh |
| Charging Voltage | 8.4V (CC/CV) |
| Standard Discharge Current | 0.2C (400mA) |
| Max Continuous Discharge | 1C-2C (2A-4A) |
| Burst Discharge (10s) | 3C (6A) |
| Internal Resistance | ≤80mOhm (per pack) |
| Protection Circuit | PCB: overcharge / over-discharge / overcurrent / short circuit (BMS with 2S balance charging optional) |
| Standard Connector | JST-PH 2.0 (custom: Tamiya, Deans T-plug, XT30, XT60, Molex, etc.) |
| Balance Connector | JST-XH 3-pin (for 2S balance charging, optional) |
| Cycle Life | ≥500 cycles @ 80% capacity retention (0.5C, 25°C) |
| Operating Temperature | 0°C to +60°C (charge: 0°C to +45°C) |
| Storage Temperature | 0°C to +45°C (store at 50-80% SOC for long life) |
| Cell Dimensions | Approx. 5 × 50 × 60 mm (T × W × L per cell) |
| Pack Dimensions | Approx. 10 × 50 × 62–63 mm (T × W × L, excluding wires & connector) |
| Weight | Approx. 75-85g |
| Certifications | CE, RoHS, UN38.3, MSDS |
| Finished Battery Pack Certification | China CCC / 3C (GB 31241-2022) |
| Shipping Class | UN38.3 — Class 9 Dangerous Goods (air & sea compliant) |
| Manufacturer | ASOLENERGY TECHNOLOGY (Dongguan, China) |
Available Connector Options
| Connector | Description | Best For |
|---|---|---|
| JST-PH 2.0 (Default) | 2-pin, white connector | Toy-grade RC, small electronics |
| JST-XH 3-pin | Balance charge connector | 2S Li-ion balance charging |
| Tamiya | Mini / Standard | Entry-level RC cars |
| Deans T-Plug | High-current banana | Hobby RC vehicles |
| XT30 | Small gold bullet | Small ESC, up to 30A |
| XT60 | Mid-size gold bullet | Mid-range ESC, up to 60A |
| Molex | Consumer electronics | Audio devices, IoT products |
| H100 / H102 Plug | RC boat specific | RC speedboats, watercraft |
| Custom | Your specification | OEM/ODM projects (MOQ applies) |
Applications
Where the 505060 is used
Flat 7.4V 2S pack fits tight RC chassis where 18650 won't.
Lightweight 2S power for nano quads and tiny whoop racers.
Slim form factor balances hulls in 7.4V RC speedboats.
Compact runtime for servos, sensors and programmable kits.
505060-2S Li-ion vs 18650-2S Li-ion Comparison
| Feature | 505060-2S Li-ion (This Product) | 18650-2S Li-ion |
|---|---|---|
| Thickness | ~10mm | ~36mm (2 cells side by side) |
| Weight | ~80g | ~90g |
| Shape | Flat — fits slim compartments | Cylindrical — needs round cell holders |
| Form Factor Flexibility | Custom dimensions possible | Fixed 18×65mm cell size |
| Internal Resistance | ≤80mΩ | ~100-150mΩ |
| Capacity | 2000mAh | 2600-3500mAh (higher) |
| Energy | 14.8Wh | 19.2-25.9Wh (higher) |
| Cycle Life | ≥500 cycles | ≥500 cycles |
| Cost | Lower | Moderate |
Choose 505060-2S Li-ion when: Space and weight are critical design constraints (compact RC chassis, small drone frames, slim toy housings).
Choose 18650-2S Li-ion when: Maximum runtime and energy density are the priority, and form factor flexibility is less important.
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
Integrated PCB against overcharge, over-discharge, overcurrent & short circuit.
Inspection requirements and acceptance criteria are confirmed according to the product configuration and project requirements.
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Inspection requirements and acceptance criteria are confirmed for each project before order release.
UN38.3 Class 9 air & sea · Shipping arrangements and delivery terms are confirmed according to destination and project requirements.
Packaging & Shipping
| Item | Details |
|---|---|
| Packaging | Export-safe battery packaging; packing configuration depends on model and quantity |
| Packing Quantity | Confirmed according to battery model and order quantity |
| Shipping | Shipping method is confirmed according to battery type, quantity, destination and applicable transport requirements |
| Trade Terms | EXW / FOB / CIF / DDP subject to order and destination |
| Lithium Battery Documents | UN38.3 and relevant lithium battery shipping documentation available as applicable |
Frequently Asked Questions
Is the ASOL505060 compatible with RC cars, FPV drones, and robot toys?
Compatibility should be confirmed against the target RC, FPV or other 7.4V system requirements, including operating current, peak current, connector, polarity, dimensions and charging requirements.
What is the minimum order quantity (MOQ)?
MOQ is confirmed after specification review. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Can I use this battery for my FPV drone or micro quadcopter?
Yes. The 7.4V 2S Li-ion format is widely used in FPV micro drones, nano quadcopters, and tiny whoop racing drones. The flat 505060 Li-ion cell format provides a compact, lightweight power solution that integrates well into small drone frames.
What connector options are available?
We support all standard RC and consumer electronics connectors: JST-PH 2.0, JST-XH, Tamiya, Deans T-plug, XT30, XT60, Molex, and custom connectors. Balance charge connectors (JST-XH 3-pin) can be included for 2S balance charging.
What certifications does the ASOL505060 have?
The finished ASOL505060-2S 7.4V 2000mAh battery pack has China CCC / 3C certification to GB 31241-2022. Other certification and test-document requirements depend on the selected configuration and destination market; please confirm requirements during project review.
What is a 505060 Li-ion cell?
505060 refers to the single cell's nominal dimensions: approximately 5mm thick × 50mm wide × 60mm long (T × W × L). The finished 2S1P pack is larger, at approximately 10 × 50 × 62–63 mm (T × W × L).
How does 505060-2S Li-ion compare with 18650-2S for RC applications?
The 505060-2S Li-ion is 60%+ thinner and 10%+ lighter than an equivalent 18650-2S pack, making it ideal for compact RC chassis and small drone frames. Li-ion cells also have lower internal resistance for less voltage sag under acceleration. 18650-2S offers higher total capacity for longer runtime but in a larger, heavier form factor. Choose 505060-2S when space and weight are critical; choose 18650-2S when maximum runtime is the priority.
