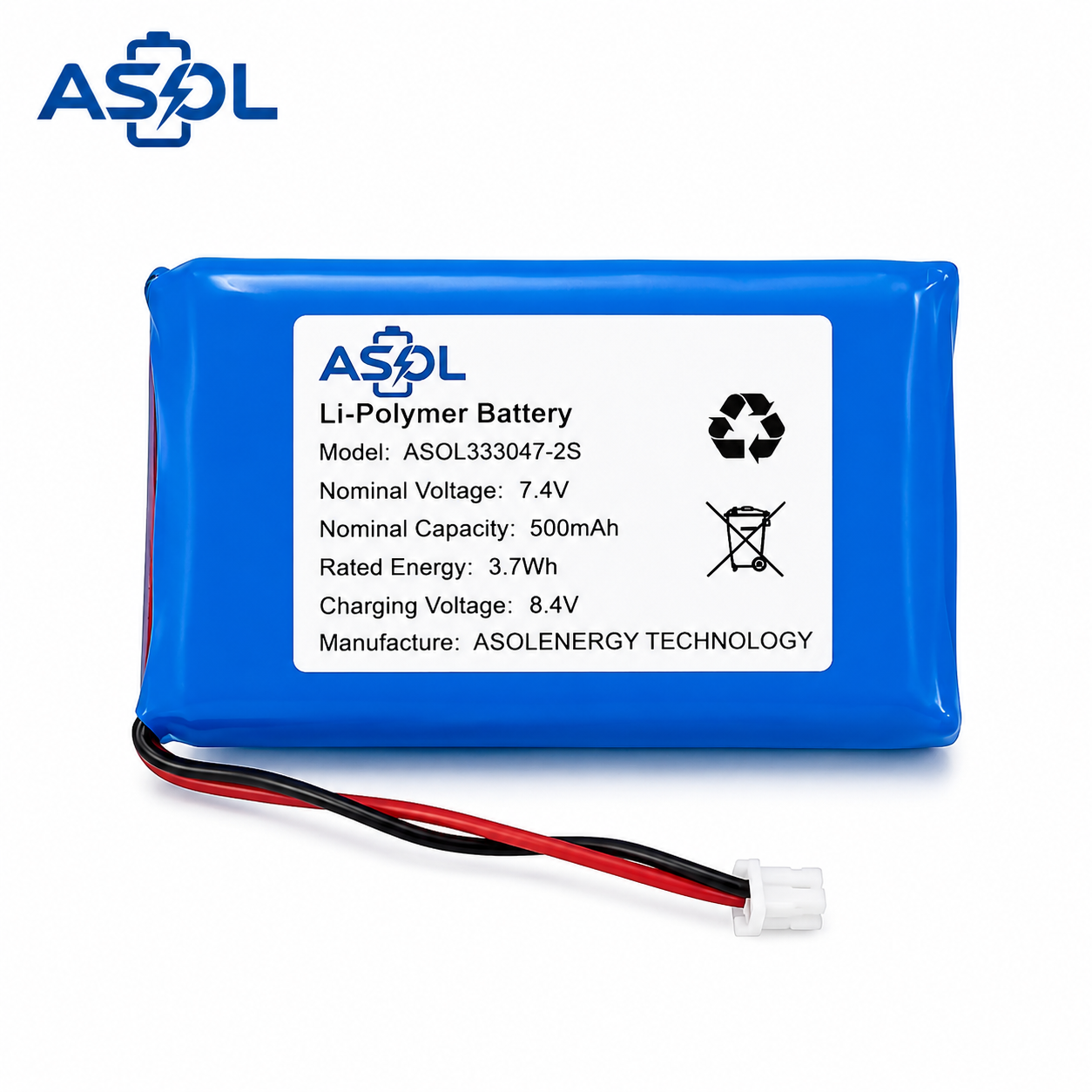

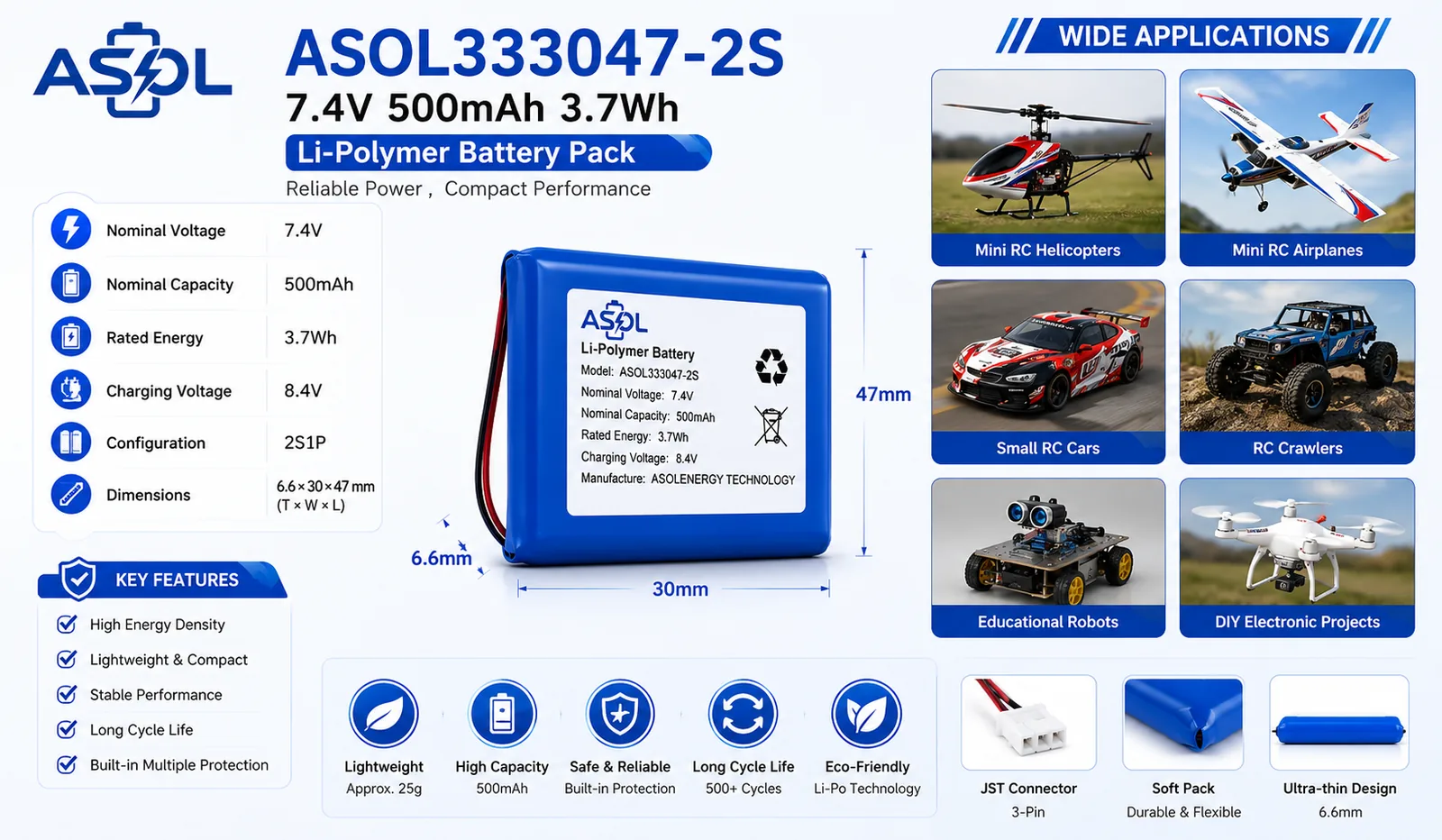

The ASOL333047-2S is a premium Li-Polymer (LiPo) battery pack using two flat 333047 soft cells in 2S1P series configuration, delivering a stable 7.4V nominal voltage and 500mAh capacity (3.7Wh). The 333047 LiPo cell format (3.3mm thick × 30mm wide × 47mm long) is one of the smallest standard soft-cell sizes available, enabling an ultra-compact and featherweight pack design at just ~18g — making it the go-to choice for micro aerial vehicles, mini RC toys, and tiny robotic devices where every gram matters.
7.4V (2S LiPo) is the standard operating voltage for the majority of micro and mini RC vehicles, toy-grade drones, and small electronic devices. With 500mAh capacity and 1C–2C discharge rate, the ASOL333047-2S delivers reliable power for micro FPV drones, nano quadcopters, mini RC cars, micro RC boats, and small educational robots. The incredibly thin 3.3mm cell profile allows flexible mounting in the tightest device enclosures — behind PCBs, under chassis plates, or inside hollow frame arms of micro drones — where no other battery format can fit.
Each pack incorporates a built-in PCB protection circuit (or optional full BMS with 2S cell balancing) guarding against overcharge, over-discharge, overcurrent, and short circuit. Every unit is manufactured at our ISO-certified facility and passes 100% outgoing QC: open-circuit voltage verification, capacity discharge testing, and protection circuit function check before shipment. Grade-A LiPo cells are voltage-matched within ±10mV to ensure stable series operation and uniform cycle aging.
Technical Specifications
| Parameter | Value |
|---|---|
| Chemistry | Li-Polymer (soft-cell, 333047 format) |
| Model | ASOL333047-2S |
| Configuration | 2S1P (2 Series, 1 Parallel) |
| Nominal Voltage | 7.4V |
| Capacity | 500mAh |
| Energy | 3.7Wh |
| Charging Voltage | 8.4V (CC/CV) |
| Standard Discharge Current | 0.2C (100mA) |
| Max Continuous Discharge | 1C–2C (0.5A–1A) |
| Burst Discharge (10s) | 3C (1.5A) |
| Internal Resistance | ≤120mΩ (per pack) |
| Protection Circuit | PCB: overcharge / over-discharge / overcurrent / short circuit (BMS with 2S balance charging optional) |
| Standard Connector | JST-PH 2.0 (custom: Molex, XT30, JST-XH, etc.) |
| Balance Connector | JST-XH 3-pin (for 2S balance charging, optional) |
| Cycle Life | ≥300 cycles @ 80% capacity retention (0.5C, 25°C) |
| Operating Temperature | −20°C to +60°C (charge: 0°C to +45°C) |
| Storage Temperature | −20°C to +45°C (store at 50–60% SOC for long life) |
| Cell Dimensions | 3.3 × 30 × 47 mm (T × W × L per cell) |
| Pack Dimensions | Approx. 30 × 30 × 7 mm (excluding wires & connector) |
| Weight | Approx. 15–20g |
| Certifications | CE, RoHS, UN38.3, MSDS (UL / IEC 62133 available for bulk orders) |
| Shipping Class | UN38.3 — Class 9 Dangerous Goods (air & sea compliant) |
| Manufacturer | ASOLENERGY TECHNOLOGY (Dongguan, China) |
Available Connector Options
| Connector | Description | Best For |
|---|---|---|
| JST-PH 2.0 (Default) | 2-pin, white connector | Micro RC, toy-grade devices |
| JST-XH 3-pin | Balance charge connector | 2S LiPo balance charging |
| Molex | 1.25mm pitch | Micro electronics, IoT products |
| XT30 | Small gold bullet | Small ESC, up to 30A |
| PH 2.0 (Molex-style) | Micro plug | Mini RC vehicles & toys |
| Custom | Your specification | OEM/ODM projects (MOQ applies) |
Application Scenarios
1. Micro FPV Drone & Nano Quadcopter
7.4V 2S LiPo is the standard power platform for micro FPV drones (65mm–85mm wheelbase), nano quadcopters, and tiny whoop drones. The 333047-2S at just ~18g provides the perfect balance of thrust-to-weight ratio and flight duration. Its ultra-thin 3.3mm cell profile mounts flush inside hollow frame arms or under compact flight controllers, maximizing aerodynamic efficiency.
- Micro FPV Drones
- Nano Quadcopters
- Tiny Whoop Drones
- Indoor Racing Drones
- 65–85mm FPV
- Brushed / Brushless
- Pocket Drones
2. Mini RC Car & Micro RC Vehicles
Micro and mini RC cars, RC trucks, and crawler vehicles rely on compact 7.4V LiPo packs for responsive acceleration and controllable speed. The 333047-2S pack fits into the smallest battery compartments of 1:64 to 1:28 scale RC vehicles, delivering consistent voltage throughout the run without the bulk of larger cell formats.
- Mini RC Cars
- Micro RC Trucks
- RC Crawlers (Mini)
- 1:64 – 1:28 Scale
- Desktop RC Cars
- Toy RC Vehicles
3. RC Boat & Micro Watercraft
Ultra-lightweight LiPo packs are critical for micro RC boats where every gram affects waterline balance and speed. The 7.4V 2S voltage drives standard micro boat ESCs and motors efficiently. The flat, waterproof-friendly form factor of the 333047 cell installs easily in narrow hull compartments.
- Micro RC Boats
- Mini Racing Boats
- RC Submarines
- RC Catamarans
- Pool RC Boats
- Desktop RC Boats
4. Small Robot & STEM Educational Toys
STEM educational robot kits, programmable micro-robots, and smart interactive toys require tiny batteries that fit inside compact enclosures. The 333047-2S provides reliable 7.4V power for servo motors, sensors, LEDs, and microcontrollers in small robotic platforms while keeping the overall weight manageable for young learners and desktop operation.
- STEM Robot Kits
- Educational Toys
- Micro Robots
- Programmable Robots
- DIY Robot Kits
- Smart Interactive Toys
333047-2S LiPo vs 103450-2S vs 18650-2S Comparison
| Feature | 333047-2S LiPo (This Product) | 103450-2S LiPo | 18650-2S Li-ion |
|---|---|---|---|
| Thickness | ~7mm (ultra-thin) | ~22mm | ~36mm |
| Weight | ~18g | ~60g | ~90g |
| Best For | Micro drones, mini RC, tiny robots | Medium RC cars, toys, speakers | Power tools, large RC, high-capacity |
| Capacity | 500mAh | 2000mAh | 2600–3500mAh (highest) |
| Energy | 3.7Wh | 14.8Wh | 19.2–25.9Wh (highest) |
| Internal Resistance | ≤120mΩ | ≤80mΩ | ~100–150mΩ |
| Form Factor | Nano-flat (3.3mm cells) | Ultra-thin (10mm cells) | Cylindrical (fixed 18mm) |
| Cycle Life | ≥300 cycles | ≥500 cycles | ≥500 cycles (highest) |
Choose 333047-2S LiPo when: Space and weight are the absolute top priority — micro drones (65–85mm), mini RC cars (1:64–1:28), micro RC boats, and tiny robotic/STEM devices.
Choose 103450-2S LiPo when: You need higher capacity (2000mAh) in a still-compact flat form factor for medium RC vehicles, robot toys, and portable speakers.
Choose 18650-2S Li-ion when: Maximum runtime and energy density are the priority, and the device can accommodate the larger cylindrical form factor.
Why Choose ASOL?
- Factory-Direct Pricing — No distributor markups. Competitive wholesale rates directly from the manufacturer in Dongguan, China, with volume-based pricing tiers for bulk orders.
- Flexible OEM Customization — Connector type, wire gauge & length, cell stacking orientation, heat-shrink color, custom label printing with your brand logo, and foam/housing options — all configurable for your product.
- Proven Protection Circuit — Integrated PCB guards against all major failure modes: overcharge, over-discharge, overcurrent, short circuit. Optional BMS with 2S balance charging for extended cycle life and maximum safety.
- Consistent Cell Quality — Grade-A 333047 LiPo cells with capacity grading and voltage matching (±10mV per cell) ensure stable series operation and uniform cycle aging across production batches.
- Fast Sample Turnaround — Custom prototype samples in 5–7 business days for fit, form, and function validation before committing to volume production.
- 100% Outgoing QC — Every pack individually tested for open-circuit voltage, discharge capacity, and protection circuit function before shipment. Defect rate <0.3%.
- Free Samples Available — Sample orders of 1–10 pcs accepted for evaluation. Technical datasheet, MSDS, and UN38.3 test report provided.
- Global Shipping Support — UN38.3 Class 9 certified for international air and sea transport. DHL/FedEx/UPS express, air freight, and sea freight with EXW/FOB/CIF/DDP terms.
Packaging & Shipping
| Item | Details |
|---|---|
| Individual Packaging | Anti-static bag + foam cushion inside individual box |
| Inner Box | 50 pcs / inner box |
| Carton | 200 pcs / carton (customizable) |
| Carton Dimensions | Approx. 32 × 24 × 18 cm (subject to final packing) |
| Carton Weight | Approx. 4–5 kg |
| Shipping Options | Express (DHL / FedEx / UPS), Air freight, Sea freight |
| Shipping Terms | EXW, FOB, CIF, DDP available |
| Dangerous Goods | UN38.3 certified — compliant for air and sea transport (Class 9) |
| Lead Time (Samples) | 5–7 business days after payment |
| Lead Time (Bulk) | 15–25 business days after sample confirmation |
| Payment Terms | T/T, PayPal, Western Union |
Frequently Asked Questions
Q: Is the ASOL333047-2S suitable for micro FPV drones and nano quadcopters? A: Yes. The ASOL333047-2S outputs 7.4V (2S LiPo) with 500mAh capacity, which is an ideal size for micro FPV drones (65mm–85mm wheelbase), nano quadcopters, and tiny whoop drones. The ultra-lightweight design (~18g) maximizes flight time without adding unnecessary weight. We can customize connector and wire length for your specific drone frame.
Q: What is the minimum order quantity (MOQ)? A: Standard configurations start at 50 pcs. For fully custom designs, MOQ is 100–500 pcs depending on complexity. Sample orders of 1–10 pcs are welcome for evaluation.
Q: Can I use this battery for mini RC cars and RC boats? A: Yes. The 7.4V 2S LiPo format is widely used in mini and micro RC cars, RC trucks, and RC boats. The compact 333047 cell format (3.3mm thick) easily fits into small battery compartments of micro RC vehicles. Connector options include JST-PH 2.0, Molex, XT30, and custom connectors.
Q: What connector options are available? A: We support all standard connectors: JST-PH 2.0, JST-XH, Molex, XT30, XT60, Tamiya, Deans T-plug, and custom connectors. Balance charge connectors (JST-XH 3-pin) can be included for 2S balance charging.
Q: What certifications does the ASOL333047-2S have? A: All standard packs ship with CE, RoHS, UN38.3, and MSDS compliance. Additional certifications (UL, IEC 62133) can be arranged for volume orders upon request.
Q: What is a 333047 Li-Polymer cell? A: 333047 refers to the cell’s physical dimensions: 3.3mm thick × 30mm wide × 47mm long. This is one of the smallest standard soft-cell LiPo formats, designed for ultra-compact devices like micro drones, mini RC toys, and tiny robots where space is extremely limited.
Q: How does 333047-2S compare with larger LiPo or 18650 packs? A: The 333047-2S is the smallest and lightest option: ~18g vs ~60g (103450-2S) vs ~90g (18650-2S). Its 3.3mm thickness makes it uniquely suited for micro RC and nano drone applications. 103450-2S offers higher capacity (2000mAh) for medium RC vehicles and toys. 18650-2S provides the highest energy density (2600–3500mAh) for larger devices.
