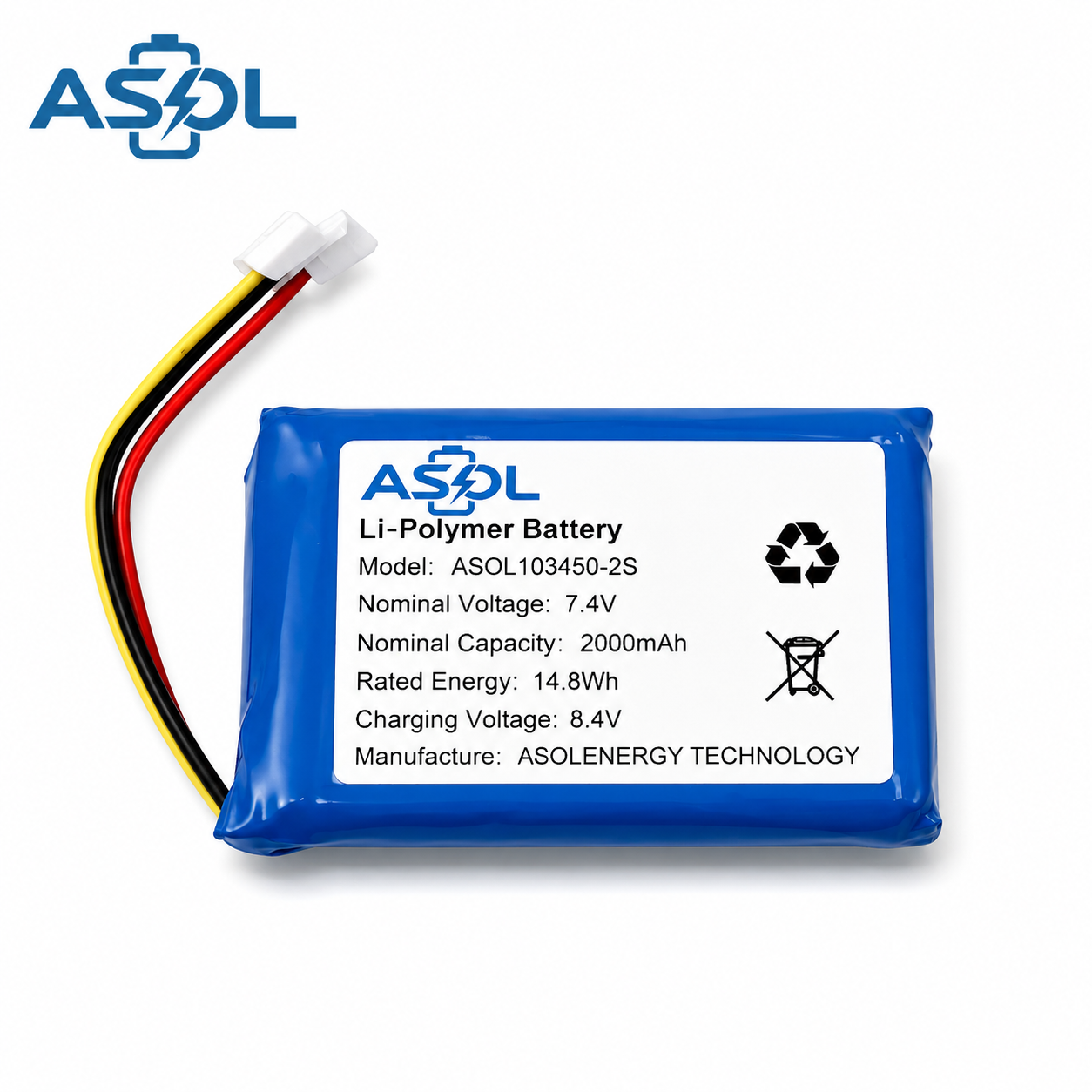

The ASOL103450-2S is a premium Li-Polymer (LiPo) battery pack using two flat 103450 soft cells in 2S1P series configuration, delivering a stable 7.4V nominal voltage and 2000mAh capacity (14.8Wh). The 103450 LiPo cell format (10mm thick × 34mm wide × 50mm long) enables an exceptionally compact and lightweight pack design — significantly thinner and lighter than equivalent 18650 cylindrical cell packs — making it the preferred choice for handheld electronics, POS terminals, IoT devices, and portable medical equipment where every millimeter counts.
7.4V is the standard operating voltage for a wide range of handheld electronics, POS systems, IoT devices, and portable medical equipment. With 2000mAh capacity, the ASOL103450-2S provides a well-balanced combination of runtime and pack weight for handheld terminals, mobile payment devices, smart door locks, GPS trackers, and portable diagnostic devices. The flat LiPo cell construction also allows for flexible placement within device housings — the slim profile can fit under circuit boards, behind LCD panels, or inside narrow battery compartments where cylindrical batteries cannot be accommodated.
Each pack incorporates a built-in PCB protection circuit (or optional full BMS with 2S cell balancing) guarding against overcharge, over-discharge, overcurrent, and short circuit. Every unit is manufactured at our ISO-certified facility and passes 100% outgoing QC: open-circuit voltage verification, capacity discharge testing, and protection circuit function check before shipment. Grade-A LiPo cells are voltage-matched within ±10mV to ensure stable series operation and uniform cycle aging.
Technical Specifications
| Parameter | Value |
|---|---|
| Chemistry | Li-Polymer (soft-cell, 103450 format) |
| Model | ASOL103450-2S |
| Configuration | 2S1P (2 Series, 1 Parallel) |
| Nominal Voltage | 7.4V |
| Capacity | 2000mAh |
| Energy | 14.8Wh |
| Charging Voltage | 8.4V (CC/CV) |
| Standard Discharge Current | 0.2C (400mA) |
| Max Continuous Discharge | 1C–2C (2A–4A) |
| Burst Discharge (10s) | 3C (6A) |
| Internal Resistance | ≤80mΩ (per pack) |
| Protection Circuit | PCB: overcharge / over-discharge / overcurrent / short circuit (BMS with 2S balance charging optional) |
| Standard Connector | JST-PH 2.0 (custom: Tamiya, Deans T-plug, XT30, XT60, Molex, etc.) |
| Balance Connector | JST-XH 3-pin (for 2S balance charging, optional) |
| Cycle Life | ≥500 cycles @ 80% capacity retention (0.5C, 25°C) |
| Operating Temperature | −20°C to +60°C (charge: 0°C to +45°C) |
| Storage Temperature | −20°C to +45°C (store at 50–60% SOC for long life) |
| Cell Dimensions | 10 × 34 × 50 mm (T × W × L per cell) |
| Pack Dimensions | Approx. 62 × 34 × 22 mm (excluding wires & connector) |
| Weight | Approx. 55–65g |
| Certifications | CE, RoHS, UN38.3, MSDS (UL / IEC 62133 available for bulk orders) |
| Shipping Class | UN38.3 — Class 9 Dangerous Goods (air & sea compliant) |
| Manufacturer | ASOLENERGY TECHNOLOGY (Dongguan, China) |
Available Connector Options
| Connector | Description | Best For |
|---|---|---|
| JST-PH 2.0 (Default) | 2-pin, white connector | Toy-grade RC, small electronics |
| JST-XH 3-pin | Balance charge connector | 2S LiPo balance charging |
| Tamiya | Mini / Standard | Entry-level devices |
| Deans T-Plug | High-current banana | Hobby RC vehicles |
| XT30 | Small gold bullet | Small ESC, up to 30A |
| XT60 | Mid-size gold bullet | Mid-range ESC, up to 60A |
| Molex | Consumer electronics | Audio devices, IoT products |
| H100 / H102 Plug | Waterproof connector | Outdoor electronics, water-resistant devices |
| Custom | Your specification | OEM/ODM projects (MOQ applies) |

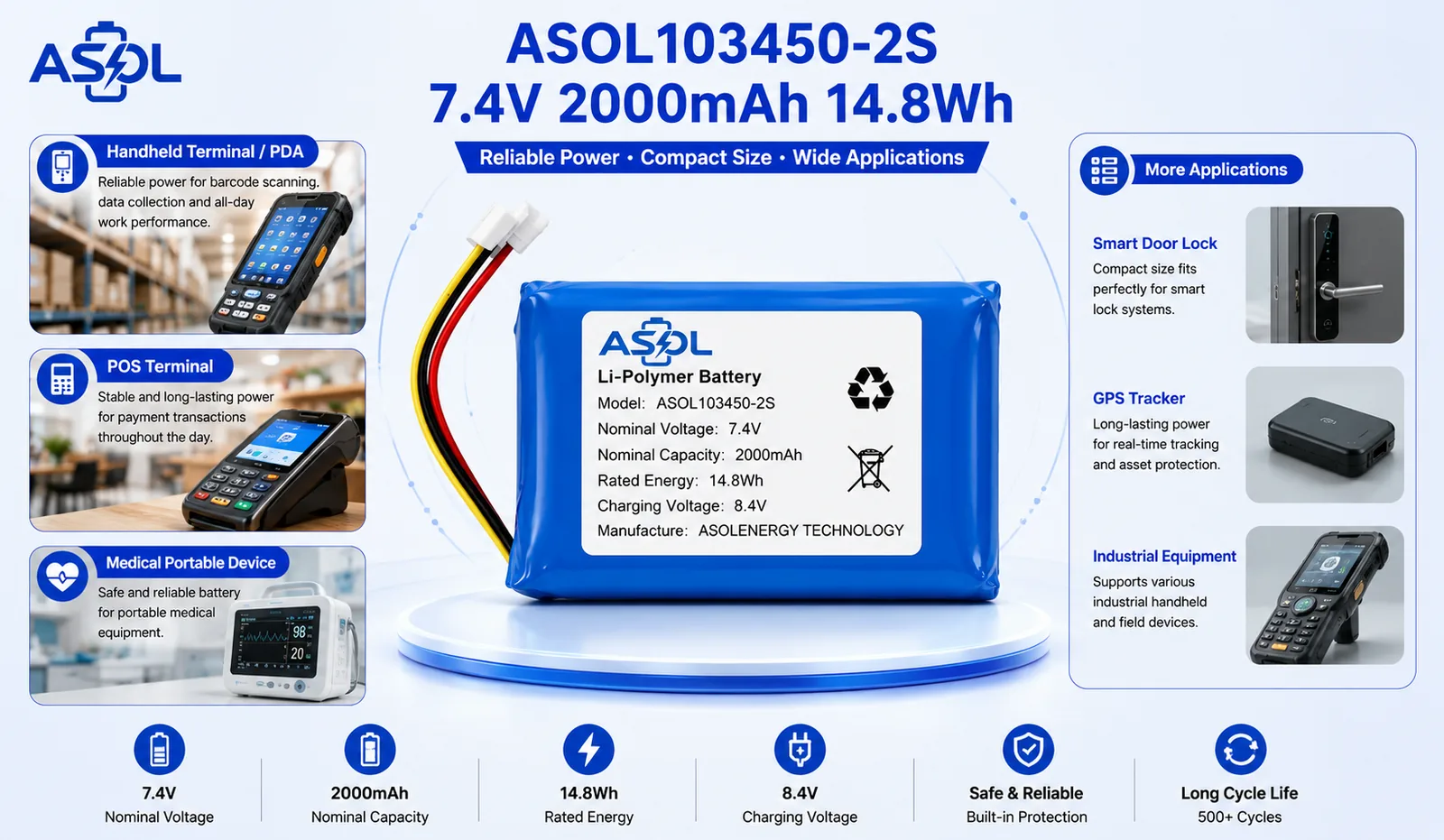

Application Scenarios
1. Handheld Terminal / PDA
7.4V (2S LiPo) is the standard voltage for industrial handheld terminals, PDAs, and portable data collection devices. The 2000mAh capacity supports a full 8–10 hour work shift of continuous barcode scanning, data entry, and wireless communication. The ultra-thin 103450 soft-cell pack fits comfortably inside handheld device grips and back-mounted battery compartments without adding bulk — keeping the device ergonomic for warehouse staff, logistics crews, and retail inventory teams throughout their entire shift.
2. POS Terminal / Mobile Payment Device
7.4V powers the touchscreen display, thermal receipt printer, barcode scanner, and wireless communication modules in modern POS terminals and mobile payment devices. At 2000mAh, the ASOL103450-2S delivers enough runtime for a full business day of transactions — typically 10–12 hours of active use. The flat LiPo profile enables slim, countertop-friendly POS designs and portable payment terminals that can be carried table-to-table in restaurants and retail stores.
3. Smart Door Lock
Smart door locks require a compact, reliable power source for motorized deadbolts, fingerprint sensors, keypad backlights, and Wi-Fi / Zigbee / Bluetooth connectivity modules. The 7.4V output drives lock motors with sufficient torque for smooth operation, while 2000mAh capacity provides months of standby time with normal daily use. The slim soft-cell pack fits neatly inside standard lock housings behind the interior escutcheon plate.
4. GPS Tracker / Asset Tracking Device
GPS trackers and portable asset tracking devices need lightweight, long-lasting batteries to power GPS receivers, cellular GSM/LTE modems, and motion sensors in the field. The 7.4V 2000mAh configuration delivers days of continuous location reporting on a single charge. The ultra-thin flat-cell design allows trackers to be mounted discreetly on vehicles, packages, or equipment without protruding profiles.
5. Medical Portable Device / Handheld Diagnostic Equipment
Portable medical devices such as pulse oximeters, handheld patient monitors, portable nebulizers, and diagnostic testers rely on stable 7.4V power for accurate sensor readings and display operation. The 2000mAh capacity supports extended clinical use between charges, while the Li-Po soft-cell construction meets the compact, lightweight requirements of medical equipment designed for bedside, home care, and field diagnostics.
103450-2S LiPo vs 18650-2S Li-ion Comparison
| Feature | 103450-2S LiPo (This Product) | 18650-2S Li-ion |
|---|---|---|
| Thickness | ~22mm (ultra-thin) | ~36mm (2 cells side by side) |
| Weight | ~60g | ~90g |
| Shape | Flat — fits slim compartments | Cylindrical — needs round cell holders |
| Form Factor Flexibility | Custom dimensions possible | Fixed 18×65mm cell size |
| Internal Resistance | ≤80mΩ | ~100–150mΩ |
| Capacity | 2000mAh | 2600–3500mAh (higher) |
| Energy | 14.8Wh | 19.2–25.9Wh (higher) |
| Cycle Life | ≥500 cycles | ≥500 cycles |
| Cost | Lower | Moderate |
Choose 103450-2S LiPo when: Space and weight are critical design constraints (compact RC chassis, slim toys, thin speaker housings).
Choose 18650-2S Li-ion when: Maximum runtime and energy density are the priority, and form factor flexibility is less important.
Why Choose ASOL?
- Factory-Direct Pricing — No distributor markups. Competitive wholesale rates directly from the manufacturer in Dongguan, China, with volume-based pricing tiers for bulk orders.
- Flexible OEM Customization — Connector type, wire gauge & length, cell stacking orientation, heat-shrink color, custom label printing with your brand logo, and foam/housing options — all configurable for your product.
- Proven Protection Circuit — Integrated PCB guards against all major failure modes: overcharge, over-discharge, overcurrent, short circuit. Optional BMS with 2S balance charging for extended cycle life and maximum safety.
- Consistent Cell Quality — Grade-A 103450 LiPo cells with capacity grading and voltage matching (±10mV per cell) ensure stable series operation and uniform cycle aging across production batches.
- Fast Sample Turnaround — Custom prototype samples in 5–7 business days for fit, form, and function validation before committing to volume production.
- 100% Outgoing QC — Every pack individually tested for open-circuit voltage, discharge capacity, and protection circuit function before shipment. Defect rate <0.3%.
- Free Samples Available — Sample orders of 1–10 pcs accepted for evaluation. Technical datasheet, MSDS, and UN38.3 test report provided.
- Global Shipping Support — UN38.3 Class 9 certified for international air and sea transport. DHL/FedEx/UPS express, air freight, and sea freight with EXW/FOB/CIF/DDP terms.
Packaging & Shipping
| Item | Details |
|---|---|
| Individual Packaging | Anti-static bag + foam cushion inside individual box |
| Inner Box | 20 pcs / inner box |
| Carton | 100 pcs / carton (customizable) |
| Carton Dimensions | Approx. 36 × 26 × 20 cm (subject to final packing) |
| Carton Weight | Approx. 8–10 kg |
| Shipping Options | Express (DHL / FedEx / UPS), Air freight, Sea freight |
| Shipping Terms | EXW, FOB, CIF, DDP available |
| Dangerous Goods | UN38.3 certified — compliant for air and sea transport (Class 9) |
| Lead Time (Samples) | 5–7 business days after payment |
| Lead Time (Bulk) | 15–25 business days after sample confirmation |
| Payment Terms | T/T, PayPal, Western Union |
Frequently Asked Questions
Q: Is the ASOL103450-2S compatible with handheld terminals and POS devices from different manufacturers?
A: The ASOL103450-2S outputs standard 7.4V (2S LiPo) which is compatible with most handheld terminals, PDAs, and POS devices designed for 2S Li-Polymer power. Connector compatibility depends on your device model — we can supply JST-PH, JST-XH, Molex, or any custom connector to match your device’s wiring harness.
Q: What is the minimum order quantity (MOQ)?
A: Standard configurations start at 50 pcs. For fully custom designs, MOQ is 100–500 pcs depending on complexity. Sample orders of 1–10 pcs are welcome for evaluation.
Q: Can I use this battery for smart home devices and IoT products?
A: Yes. The 7.4V 2S LiPo format is suitable for smart door locks, GPS trackers, and various IoT devices that require compact 7.4V power. The lightweight flat-cell design is especially beneficial for space-constrained installations where slim profile and low weight are critical.
Q: What connector options are available?
A: We support all standard RC and consumer electronics connectors: JST-PH 2.0, JST-XH, Tamiya, Deans T-plug, XT30, XT60, Molex, and custom connectors. Balance charge connectors (JST-XH 3-pin) can be included for 2S balance charging.
Q: What certifications does the ASOL103450-2S have?
A: All standard packs ship with CE, RoHS, UN38.3, and MSDS compliance. Additional certifications (UL, IEC 62133) can be arranged for volume orders upon request.
Q: What is a 103450 Li-Polymer cell?
A: 103450 refers to the cell’s physical dimensions: 10mm thick × 34mm wide × 50mm long. This is a standard soft-cell LiPo format that enables flat, compact battery pack designs — ideal for slim RC vehicle chassis, toy bodies, and portable speaker housings where cylindrical cells are too large or too heavy.
Q: How does 103450-2S LiPo compare with 18650-2S for handheld electronics?
A: The 103450-2S LiPo is 40–60% thinner and 30–40% lighter than an equivalent 18650-2S pack, making it ideal for handheld terminals, POS devices, and compact IoT products with tight battery compartments. LiPo cells also have lower internal resistance for stable voltage output during peak current demand. 18650-2S offers higher total capacity for longer runtime but in a larger, heavier form factor. Choose 103450-2S when space and weight are critical; choose 18650-2S when maximum runtime is the priority.
