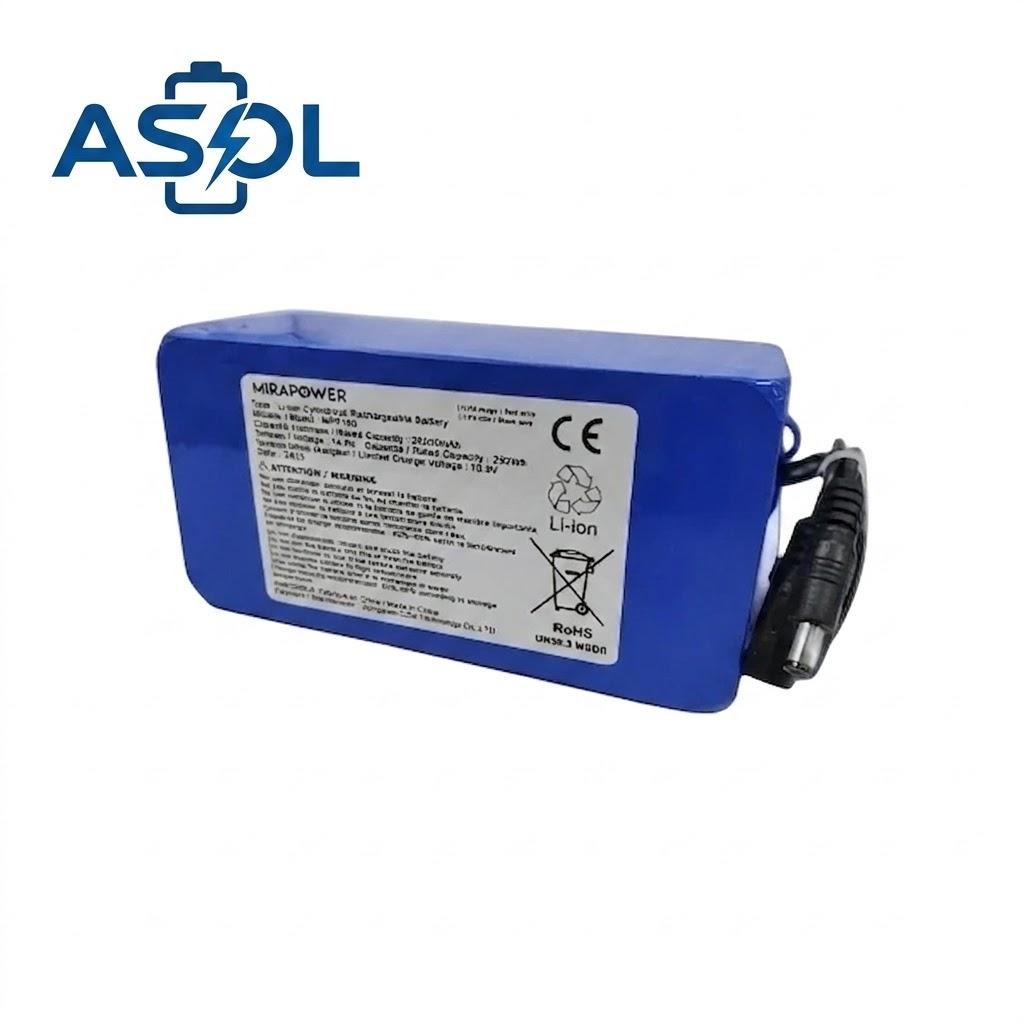

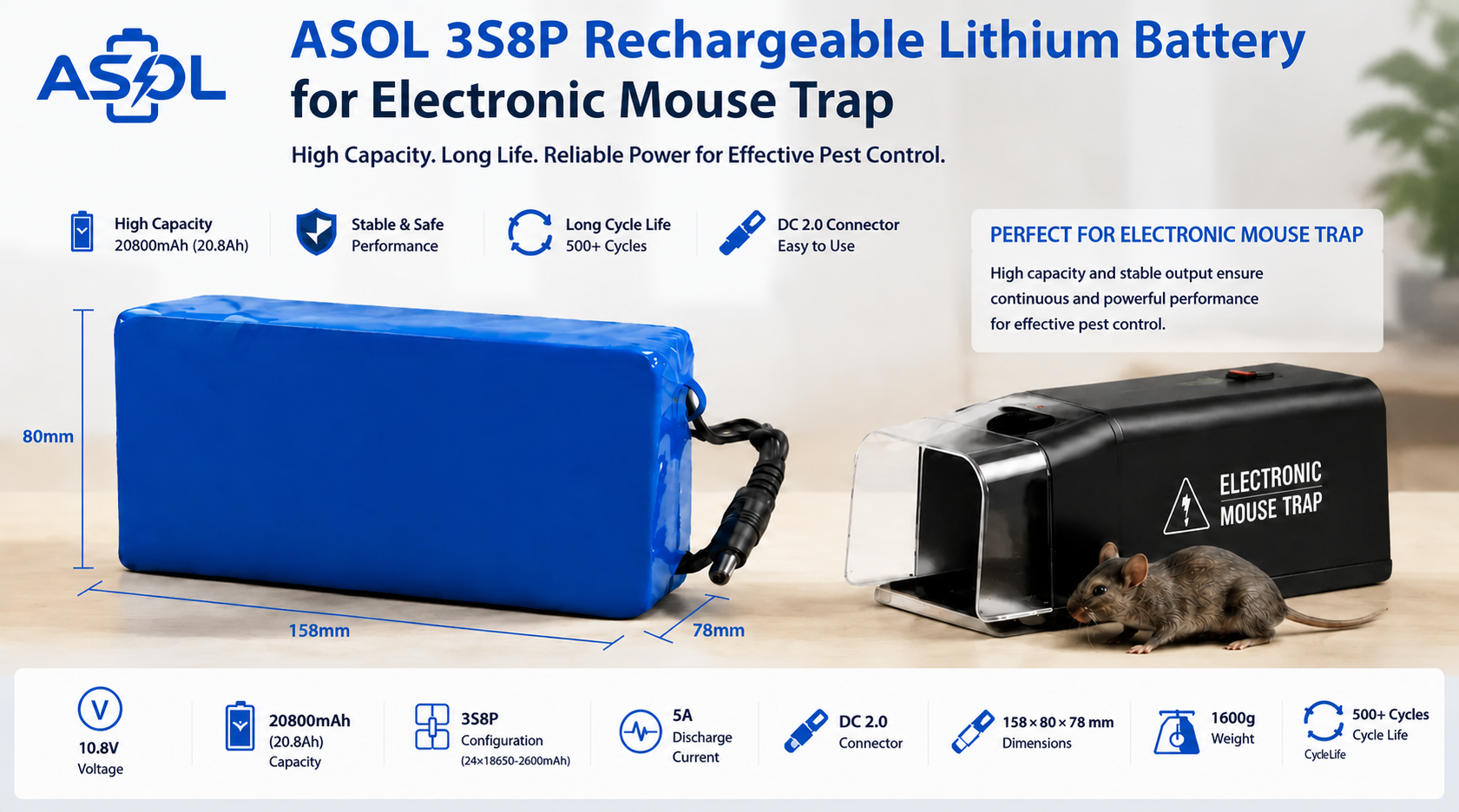

The ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap is a lithium battery rated at 10.8V / 20800mAh (224.64Wh) in a 3S8P configuration measuring 158 × 80 × 78 mm and weighing 1600g. It is engineered to power Electronic Mouse Trap and similar devices, with a stable discharge curve and dependable cycle life. An integrated protection circuit guards against overcharge, over-discharge, and short circuit, and full OEM/ODM customization is available.
Key Features
Rugged power for pest control
Powers electronic mouse traps and zappers for extended field operation.
Consistent power for high-voltage zap circuits, sensors, and mechanisms.
24 matched 18650-2600mAh cells for voltage and substantial capacity.
Connector option for electronic trap projects, subject to polarity and electrical compatibility review.
Over-charge, over-discharge, over-current, short-circuit, and over-temperature protection.
80% capacity retention after 500 full cycles for lasting service.
Durable 158×80×78mm enclosure built for outdoor and commercial use.
Compliant with international safety, environmental, and transport standards.
Product Specifications
| Specification | Details |
|---|---|
| Brand | ASOL |
| Model | 3S8P 18650-20800mAh |
| Nominal Voltage | 10.8V |
| Capacity | 20800mAh (20.8Ah) |
| Configuration | 3S8P (3 Series, 8 Parallel) |
| Cell Type | 18650-2600mAh |
| Dimensions | 158 × 80 × 78 mm |
| Weight | 1600g |
| Max Discharge Current | 5A |
| Connector | DC 2.0 (Pre-Wired) |
| Protection | Over-Charge / Over-Discharge / Over-Current / Short-Circuit / Over-Temperature |
| Cycle Life | ≥500 cycles |
| Charging Temperature | 0°C ~ 45°C |
| Discharging Temperature | -20°C ~ 60°C |
| Certifications | CE · RoHS · UN38.3 · MSDS |
Applications
Where the 3S8P is used
Powers high-voltage zap circuits for quick rodent elimination.
Sustained high-voltage output for larger rodent control devices.
Long-lasting power for warehouses, factories & facilities.
Runs IoT traps with sensors and wireless reporting.
Why Choose ASOL for Pest Control Batteries
- Pre-Shipment Testing — Capacity, voltage and internal resistance checks are included in the inspection process
- Consistent Cell Matching — All 24 cells matched within tight tolerances for balanced performance across the 3S8P array
- Built-In BMS — Battery Management System prevents over-discharge during extended standby periods between trap activations
- Standard DC 2.0 Connector — Compatibility should be confirmed against the target device voltage, dimensions, connector, polarity, load profile and electrical requirements
- Cycle-Life Target — Cycle-life expectations are reviewed against the selected cell, load profile and operating conditions.
- UN38.3 — Transport test status and documentation
Runtime Considerations
Actual runtime depends on standby consumption, activation frequency, load profile, system efficiency, BMS settings and operating conditions. Runtime should be evaluated with the target device during sample validation.
Frequently Asked Questions
What are the key specifications of the ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap?
The ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap is a 10.8V 20800mAh lithium battery, built in a 3S8P configuration, measuring 158 × 80 × 78 mm, weighing 1600g.
What is the ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap used for?
The ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap is designed to power Electronic Mouse Trap and similar devices. ASOL can also tailor the battery pack to other applications on request.
What connector does the ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap use?
It ships pre-wired with a DC 2.0 connector. ASOL can customize the connector type, wire length, and labeling to match your device.
What is the maximum discharge current of the ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap?
The ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap supports a maximum continuous discharge current of 5A.
How many charge cycles does the ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap last?
The ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap is rated for ≥500 cycles, for years of dependable performance in your device.
What safety certifications does the ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap have?
It is supported by existing CE, RoHS and UN38.3 documentation; MSDS safety documentation is available, with test reports supplied on request for compliance.
Does ASOL offer OEM/ODM customization for the ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap?
Absolutely. As the manufacturer, ASOL tailors the battery pack — voltage, capacity, connector, wiring and private-label printing — to match your device and production volume through our OEM/ODM service.
Can I get a sample or a quote for the ASOL 18650 3S8P 10.8V 20800mAh Lithium-ion Battery Pack for Electronic Mouse Trap?
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. For a quote, email info@asolbattery.com or WhatsApp +86 15779858703 — replies typically arrive within 24 hours on working days.
