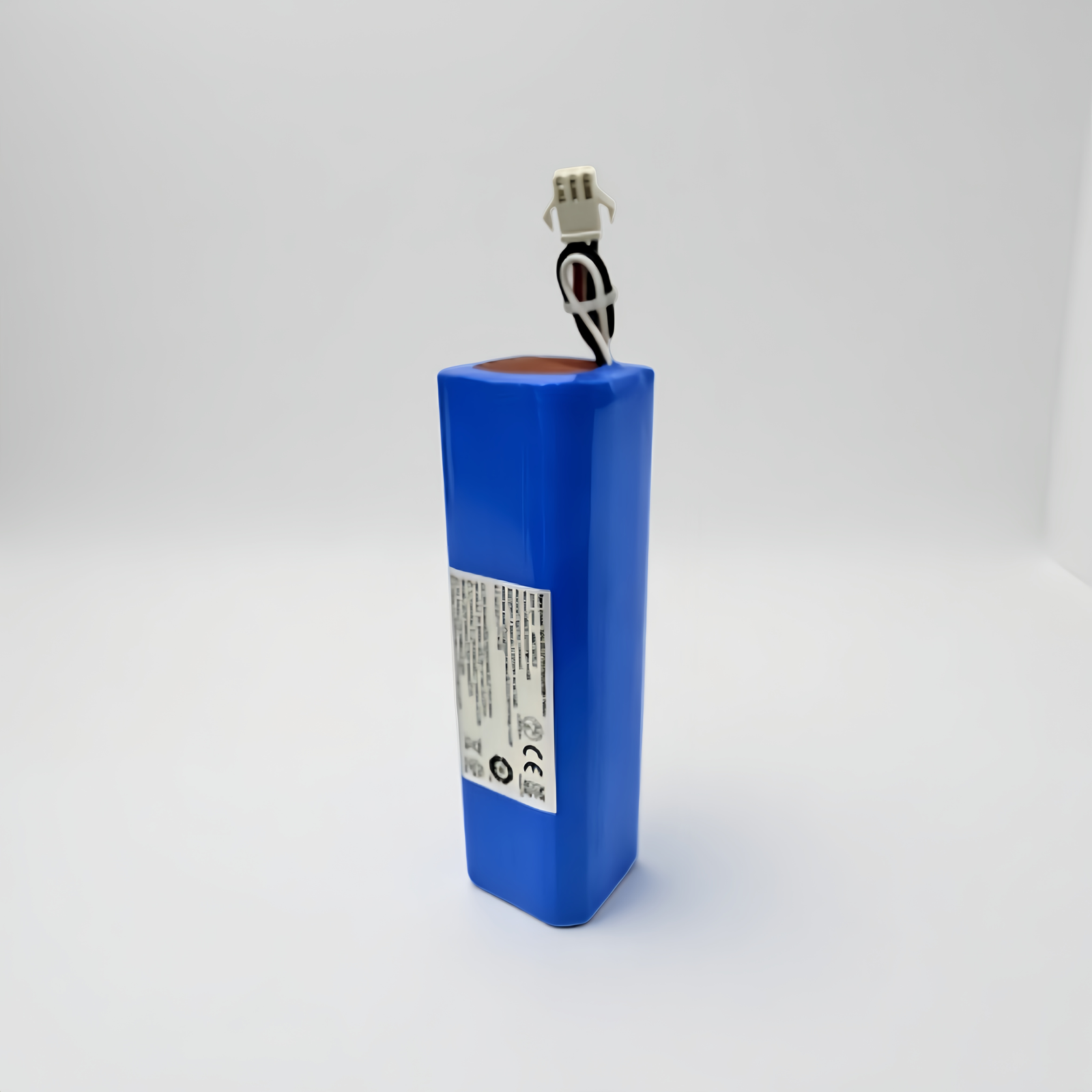

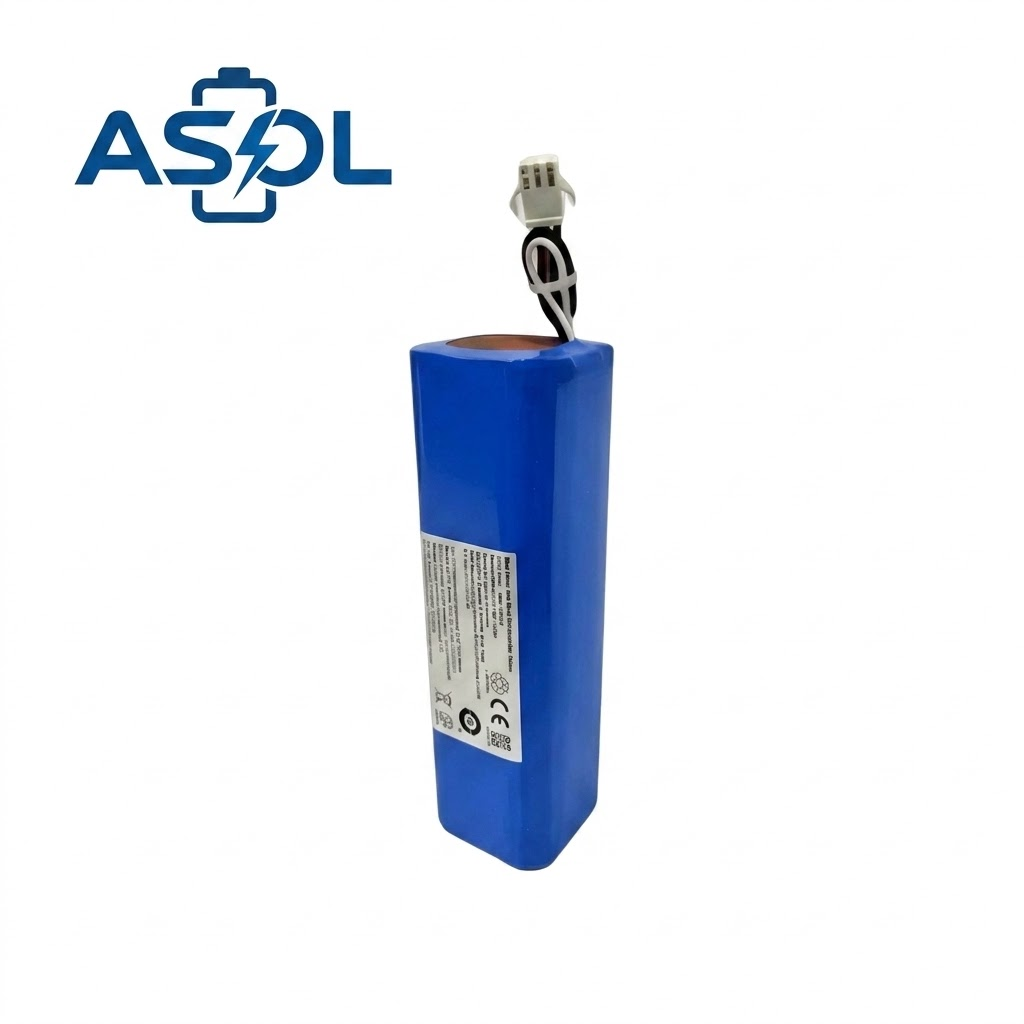

Keep robot vacuum cleaners running with the ASOL 4S1P 10.8V 2600mAh Li-ion battery pack. This pack uses four 18650 cylindrical cells in a 4S1P configuration, delivering stable voltage and dependable current for suction motors, brush systems, sensors and control boards.
The pre-wired JST-SM-3P connector supports simple replacement and production-line assembly. Connector type, wire length, housing, label and BMS/PCM settings can be customized for the target robot vacuum cleaner model.
With a 5A standard discharge rating and integrated protection design, this pack is suitable for residential robot vacuums, floor cleaning robots, mopping robots and OEM replacement battery projects.
Product Highlights
- 10.8V output: stable power for robot vacuum suction motors and rotating brush modules.
- 2600mAh capacity: balanced runtime for compact 4S1P robot vacuum battery compartments.
- 5A standard discharge: supports motor load during floor transitions, carpet cleaning and docking cycles.
- Pre-wired connector: JST-SM-3P plug for convenient replacement and OEM assembly.
- Protection ready: BMS/PCM support for over-charge, over-discharge, over-current, short-circuit and temperature protection.
Applications
Where the 4S1P robot vacuum battery is used
10.8V power pack for residential robotic vacuum cleaners.
Supports floor-cleaning, mopping and sweeping robot platforms.
Battery option for WiFi-connected smart cleaning devices.
JST-SM-3P pre-wired pack for compatible replacement projects.
Custom connector, wire length, housing and label for production.
Sample support for compatibility checks before batch production.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ASOL |
| Model | 18650-2600mAh 4S1P |
| Nominal Voltage | 10.8V |
| Capacity | 2600mAh |
| Rated Energy | 28.08Wh |
| Configuration | 4S1P 18650 Li-ion cylindrical cells |
| Dimensions | 71.5 × 37.8 × 37.8 mm |
| Discharge Current | 5A standard discharge |
| Weight | 200g |
| Connector | JST-SM-3P (pre-wired) |
| Protection | Over-charge / over-discharge / over-current / short-circuit / over-temperature |
| Cycle Life | ≥500 cycles |
| Charging Temperature | 0°C to 45°C |
| Discharging Temperature | -20°C to 60°C |
| Certifications | CE / RoHS / UN38.3 / MSDS |
Frequently Asked Questions
What are the key specifications of the ASOL 18650-4S1P 10.8V 2600mAh Lithium-ion Battery Pack for Robot Vacuum Cleaners?
It is a 10.8V 2600mAh Li-ion battery pack with 28.08Wh rated energy, a 4S1P 18650 cylindrical cell configuration, 5A standard discharge and a JST-SM-3P pre-wired connector.
What applications is this battery suitable for?
It is built for compatible robot vacuum cleaners, mopping robots, floor cleaning robots and OEM replacement battery projects that require a 10.8V 4S1P Li-ion pack.
Can ASOL customize the connector or wiring?
Yes. Connector type, wire length, pack housing, label, cell matching and BMS/PCM settings can be customized for the target device.
Does the pack include safety protection?
The pack can be supplied with BMS/PCM protection for over-charge, over-discharge, over-current, short-circuit and temperature protection.
Can I get a sample before production?
Yes. ASOL supports sample validation before batch production, including connector and wiring confirmation.
Contact
Ready to source 4S1P robot vacuum battery packs?
Send your target model, connector photo, wire length, quantity and label requirements. ASOL will reply with a compatible factory-direct quote and sample arrangement.
Need a different size or capacity? Explore ASOL’s full cylindrical battery range →
