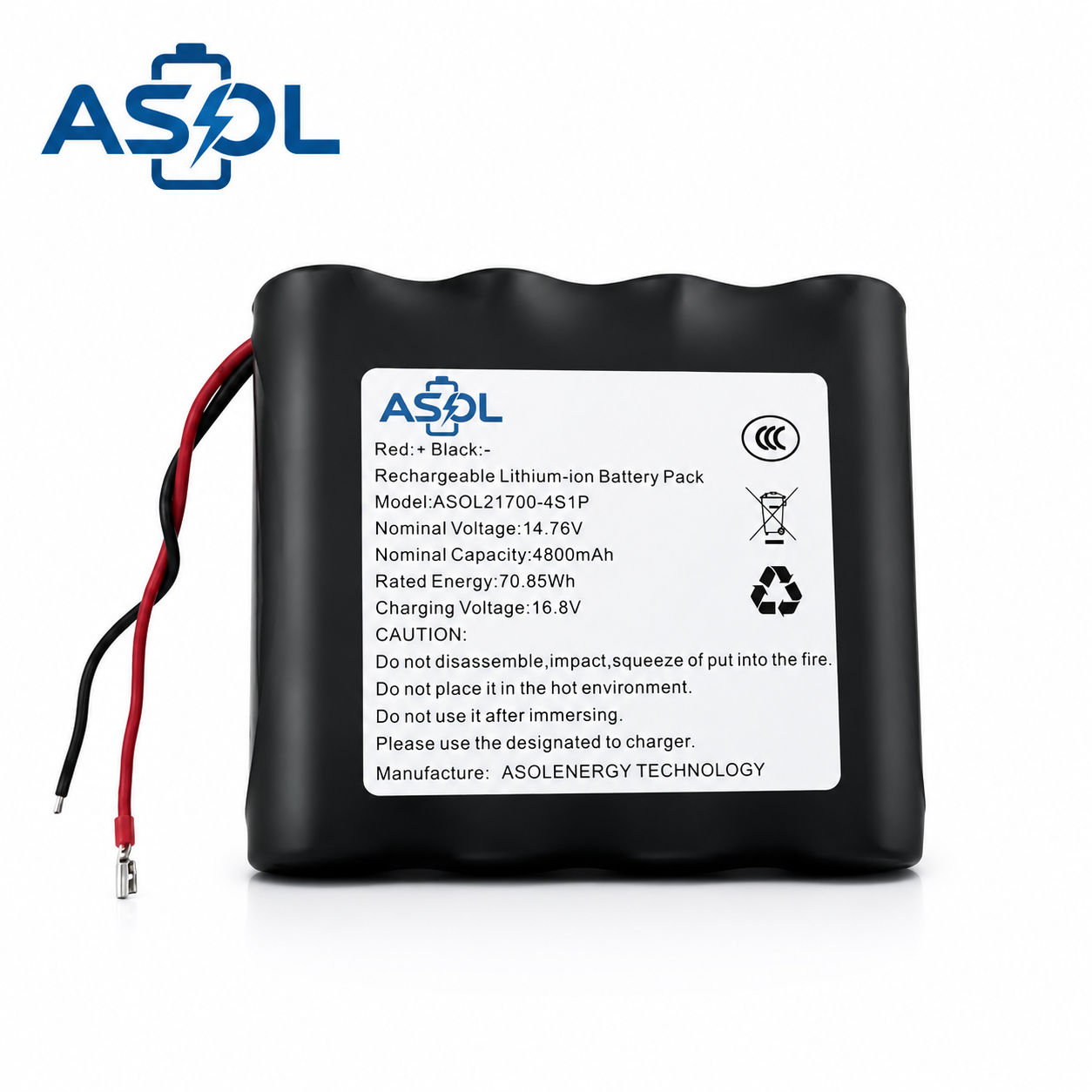

The ASOL 21700-4S1P delivers 14.76V nominal voltage and 4800mAh capacity (70.85Wh) through a proven 4-series, 1-parallel (4S1P) 21700 cell architecture. The larger 21700 cell format delivers approximately 35% more energy density compared to standard 18650 cells – translating to longer runtime and fewer battery swaps in the field.
Every pack integrates a multi-layer BMS protection board guarding against overcharge, over-discharge, overcurrent, and short circuit – ensuring safe operation even under heavy load or extreme temperatures.
Backed by ASOLENERGY TECHNOLOGY’s production capability, each unit undergoes full charge/discharge cycle testing, voltage matching, and BMS function verification before shipment. From cell grading to final packing, quality is built into every step.
Specifications
| Parameter | Details |
|---|---|
| Chemistry | Li-ion (21700 cylindrical cells) |
| Model | 21700-4S1P |
| Nominal Voltage | 14.76V |
| Capacity | 4800mAh |
| Energy | 70.85Wh |
| Charging Voltage | 16.8V |
| Configuration | 4S1P (4 Series, 1 Parallel) |
| BMS Protection | Overcharge / Over-discharge / Overcurrent / Short circuit |
| Standard Connector | JST (custom connectors available) |
| Cycle Life | ≥500 cycles @ 80% capacity retention |
| Operating Temperature | −20°C to +60°C (charge: 0°C to +45°C) |
| Dimensions | Approx. 72 × 37 × 37 mm (excluding wires & connector) |
| Weight | Approx. 185g |
| Manufacturer | ASOLENERGY TECHNOLOGY (ASOL) |
Applications
1. Industrial Handheld Devices
- PDA scanners & handheld data terminals
- Warehouse & inventory management terminals
- Industrial barcode scanners
- QR code scanners
- Industrial inspection & patrol devices
- Field service & maintenance handhelds
Why 21700: More durable than 18650, longer runtime, ideal for extended work shifts.
2. Robotics / AGV
- AGV (Automated Guided Vehicles)
- Service robots
- Inspection & patrol robots
- Cleaning robots
- Robot charging stations
- Educational & research robotics
Why 21700: More stable output, lower heat generation, more advanced than 18650.
3. Portable Medical Equipment
- Patient monitors & vital-sign monitors
- Portable diagnostic devices
- Infusion pumps & therapeutic equipment
- Emergency & field medical kits
- Mobile medical workstations
Why 21700: 14.8V system compatibility, high stability, long cycle life.
4. Security & Surveillance
- Mobile surveillance systems
- Wireless camera systems
- Security power supplies
- Temporary monitoring devices
- Remote trail cameras
- Perimeter security sensors
5. Outdoor Portable Equipment
- Outdoor testing & detection instruments
- Outdoor meters & gauges
- Emergency preparedness equipment
- Portable field terminals
- Camping & RV power accessories
- Portable radios & communication devices
6. Smart Cleaning Equipment
- Commercial cleaning robots
- Vacuum cleaning equipment
- Smart cleaning systems
- Floor scrubbers & polishers
- Industrial cleaning machines
What Sets Us Apart
- Factory-Direct Pricing – Eliminate distributor markups. Competitive rates directly from the source, with transparent quoting for any volume.
- Full OEM & ODM Flexibility – Connector type, wire gauge & length, heat-shrink or plastic housing, custom labeling, and branded packaging – all configurable to your specs.
- Built-In BMS Safety – Multi-layer electronic protection ensures every pack operates safely, reducing field failures and warranty claims.
- 500+ Cycle Durability – Grade-A 21700 cells with matched internal resistance deliver consistent capacity retention across hundreds of charge cycles.
- Rapid Sample Delivery – Custom prototype samples ready in 5–7 business days for fit, performance, and compatibility validation.
- 100% Outgoing QC – Every single pack tested for voltage, capacity, and BMS function before it leaves our facility.
Packaging & Shipping
| Item | Details |
|---|---|
| Individual Packaging | Anti-static bag + foam cushion inside individual box |
| Box Quantity | 20 pcs / carton (customizable) |
| Carton Dimensions | Approx. 42 × 28 × 22 cm (subject to final packing) |
| Carton Weight | Approx. 9–11 kg |
| Shipping Options | Express (DHL / FedEx / UPS), Air freight, Sea freight |
| Shipping Terms | EXW, FOB, CIF, DDP available |
| Certifications | CE, RoHS, UN38.3, MSDS (available upon request) |
Frequently Asked Questions
Can I customize the connector and wire specifications? Yes. We support JST, Molex, JST-PH, XT60, and other standard connectors. Wire gauge, length, and polarity can all be customized to match your device’s requirements.
What is the minimum order quantity (MOQ)? Standard configurations start at 50 pcs. Fully custom designs require 100–500 pcs MOQ depending on complexity. Sample orders (1–10 pcs) are welcome for evaluation.
Do you provide engineering support for device integration? Yes. Our technical team can provide pinout diagrams, charge/discharge characteristic curves, mechanical dimension drawings, and BMS communication protocol details to accelerate your integration.
What certifications are available? All standard packs ship with CE, RoHS, UN38.3, and MSDS compliance. For high-volume orders, additional certifications such as UL or IEC 62133 can be arranged.
Contact Us
| Channel | Information |
|---|---|
| info@asol-battery.com | |
| +86 157 7985 8703 | |
| Website | www.asol-battery.com |
| Response Time | Within 24 hours on working days |
Sample lead time: 5–7 business days | Bulk production: 15–25 business days
Ready to power your next product? Send us your application details, connector spec, and target quantity – we’ll respond within 24 hours with a factory-direct quote.
