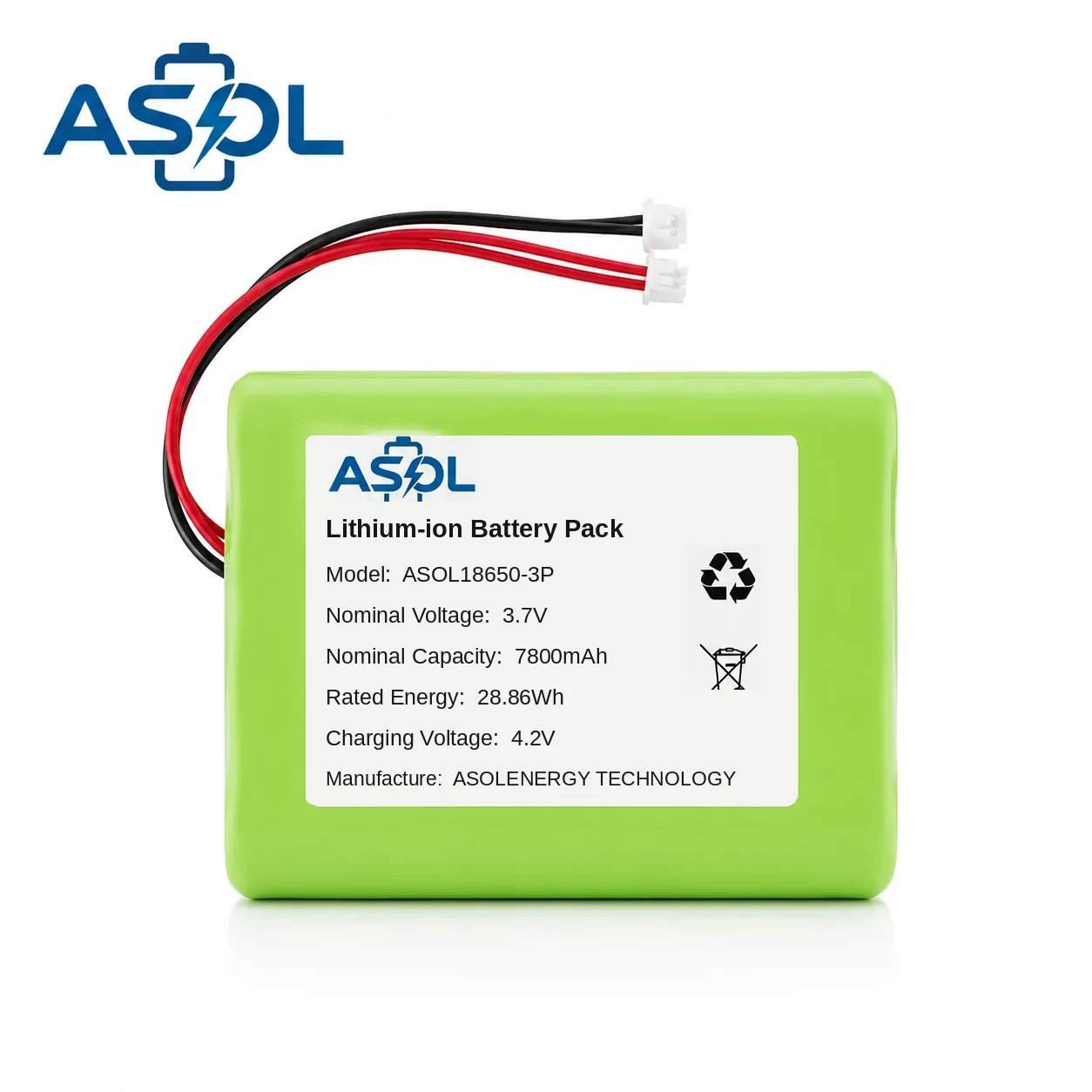

The ASOL 18650-3P uses three cylindrical Li-ion cells in a 3-parallel (3P) configuration to deliver 7800mAh at a stable 3.7V. This pack format is suitable for thermal printers, industrial handhelds, medical monitors and backup systems requiring a rechargeable battery pack.
For B2B projects, connector, wire, protection-circuit, packaging and labeling requirements can be evaluated according to the finished device and project specification.
Key Highlights
- 7800mAh / 28.86Wh — rated capacity and energy; actual runtime depends on the device load profile and operating conditions.
- 3P Parallel Configuration — three cylindrical cells connected in parallel.
- 3.7V Nominal Output — confirm charging method, system voltage compatibility and load requirements during project review.
- Pack Integration — assess enclosure space, mounting method and wire routing against the finished pack dimensions.
- Protection Options — protection circuit options are available depending on the required battery configuration.
- Project Review — connector, wire, packaging and labeling requirements can be evaluated according to the project specification.
Why This Battery?
| Your Problem | ASOL18650-3P Solution |
|---|---|
| Thermal printer has a defined duty cycle and runtime requirement? | 7800mAh / 28.86Wh rated capacity; actual printer runtime depends on duty cycle, temperature and load. |
| Industrial PDA or barcode scanner has a defined duty cycle and runtime requirement? | 3P parallel configuration should be evaluated against the scanner load profile, charging method and required runtime. |
| Portable medical equipment requires a project-specific battery review? | Protection and pack configuration should be reviewed against the device safety, performance and validation requirements. |
| Mini UPS battery self-discharges and is dead when a power outage finally hits? | Standby use — storage and standby performance should be validated for the selected cell, pack design and operating conditions |
| Generic battery pack doesn’t fit your device’s connector or power requirements? | Project configuration review — connector, wire, protection-circuit and label requirements are confirmed against the finished device. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 18650-3P |
| Type | Cylindrical Li-ion Battery Pack — 3P Configuration |
| Configuration | 3 Parallel |
| Nominal Voltage | 3.7V |
| Capacity | 7800mAh (0.2C discharge) |
| Energy | 28.86Wh |
| Charge Voltage | 4.2V CC/CV |
| Cut-off Voltage | 3.0V |
| Max Charge Current | 3.9A (0.5C) |
| Max Continuous Discharge | 7.8A (1C) |
| Cycle Life | ≥500 cycles (to 80% capacity) |
| Charge Temperature | 0°C ~ +45°C |
| Discharge Temperature | -20°C ~ +60°C |
| Protection | PCM — overcharge, over-discharge, over-current, short-circuit, temperature |
| Cell Chemistry | cylindrical Li-ion cell |
| Connector Options | JST, Molex, Micro-USB, USB-C, bare leads (custom spec available) |
Features in Detail
- 7800mAh / 28.86Wh Rated Energy — use the published capacity as a starting point; actual runtime depends on the device load profile and operating conditions.
- 3P Parallel Configuration — three cylindrical cells connected in parallel. Confirm the required current, thermal conditions and expected runtime for the finished device.
- 3.7V Nominal Output — confirm charging method, system voltage compatibility and load requirements during project review.
- Cylindrical Pack Layout — assess the final enclosure space, mounting method and wire routing against the finished pack dimensions.
- Protection-Circuit Review — required protection functions and thresholds are confirmed against the selected cell, load profile and finished-device requirements.
- Standby-use review — storage and standby performance depend on the selected cell, pack design, storage conditions and system load. Confirm the required backup performance during project review.
- Project-matched OEM Solution — Connector, wire, protection, cell arrangement, wrap and label requirements are reviewed against the project specification. Sample availability and timing are confirmed after technical review.
Applications
Where the 18650 3P is used
Mobile receipt and label printers; runtime depends on printer duty cycle, temperature and load.
Industrial PDAs and RFID handhelds; runtime should be evaluated against the device load profile.
Patient monitors & portable diagnostics with redundant 3P cells.
Router and CCTV backup; required backup time should be evaluated against the system load profile.
ASOL Battery — Factory-Direct OEM Battery Pack Manufacturer
ASOL Battery supports B2B cylindrical battery-pack projects with configuration and technical requirements reviewed for the finished device.
Project quality review:
- Cell selection and matching requirements confirmed for the project
- Assembly and inspection requirements agreed before order release
- Protection-circuit requirements confirmed against the finished-device load profile
- Documentation requirements reviewed for the destination market
What you get working with ASOL:
- Factory-Direct Pricing — no middlemen, no distributor markup, competitive at every OEM quantity
- Custom BOM to Your Spec — connector, wire, PCM, packaging, labeling — your exact requirements
- Consistent Batch Quality — matched cells, sequential lot traceability, test data per shipment
- Engineering Support — pre-sales integration advice and post-sales technical support via email and WhatsApp
- Global Logistics — fast shipping to North America, Europe, Southeast Asia, and the Middle East
- Sample Evaluation Support — Sample availability, quantity and timing are confirmed after project review and material readiness are checked.
Frequently Asked Questions
What devices is the 18650-3P compatible with?
Any 3.7V cylindrical Li-ion device with standard charging (4.2V CC/CV) protocol. We customize connectors to match your specific device — JST, Molex, Micro-USB, USB-C, or bare leads. Tell us your existing connector model and we match it.
What's the minimum order quantity (MOQ)?
MOQ is confirmed after specification review. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
How is charging suitability confirmed?
Confirm the charging method, required current and finished-device electrical requirements during project review.
Can a protection circuit be evaluated?
Protection circuit options can be evaluated according to the selected cell, load profile and finished-device requirements.
Can documentation requirements be reviewed?
Documentation requirements can be reviewed according to the selected configuration and destination market.
