ASOL 706090 Lithium Polymer Battery — A premium 5000mAh soft-pack LiPo delivering 18.5Wh of energy in a slim 7.0mm profile with a large 60×90mm rectangular footprint. The 60×90mm form factor is the industry-standard power bank cell size — widely adopted for its excellent balance of capacity, slim profile, and ease of integration. The large surface area also enables excellent thermal management during continuous discharge. Whether serving as the energy core of a power bank, powering a portable Bluetooth speaker through a full day of music playback, extending a tablet PC’s usage between charges, tracking vehicles as a GPS tracker, or supporting a handheld POS terminal and barcode scanner through a full shift, the 706090 delivers reliable, sustained performance.
Why 706090 Form Factor — Shape Comparison
| Battery Model | Thickness | Width | Length | Capacity | Best For |
|---|---|---|---|---|---|
| ASOL 706090 | 7.0mm | 60mm | 90mm | ⭐ 5000mAh | ⭐ Large-area high-capacity devices |
| ASOL 106090 | 10.0mm | 60mm | 90mm | ~4000mAh | Thicker high-capacity devices |
| ASOL 606080 | 6.0mm | 60mm | 80mm | ~3000mAh | Slim medium-capacity devices |
| ASOL 506080 | 5.0mm | 60mm | 80mm | ~2500mAh | Ultra-slim devices |
The 706090’s 60×90mm large footprint combined with 7.0mm slim profile creates an optimal balance — enough capacity (5000mAh) for full-day operation while remaining thin enough to fit into modern portable device enclosures. The large surface area also enables excellent thermal management during continuous discharge.
Why Lithium Polymer?
- 📐 7.0mm Slim Profile — Fits into modern slim device enclosures without adding bulk
- 📏 60×90mm Industry-Standard Form — The most widely adopted power bank cell size for easy integration and reliable supply chain
- 🔋 5000mAh High Capacity — Powers devices all day on a single charge; ideal for power banks, music playback, video streaming, and extended operation
- ⚡ 5000mA Continuous Discharge (1C) — Sufficient current for power banks, speakers, tablets, POS terminals, GPS trackers, and barcode scanners
- 🪶 Lightweight Soft Pack — Aluminum-laminated pouch construction minimizes device weight vs. cylindrical cells
- 🔧 Flexible Form Factor — Adapts to various enclosure designs with custom tabs, wires, and connectors
- 🏭 OEM-Friendly — Full customization available: PCM protection, NTC thermistor, custom wire harness, connector options
Key Features
- 🔋 5000mAh / 18.5Wh High Capacity — All-day power for demanding portable devices
- 📐 7.0mm Slim × 60mm Wide × 90mm Long — Large-area slim profile for modern enclosures
- 📏 60×90mm Rectangular Footprint — Stable mounting, excellent thermal management
- ⚡ 5000mA Max 1C Discharge — Continuous power delivery for speakers, tablets, and LED devices
- 🔄 ≥500 Cycle Life — Reliable long-term performance with minimal degradation
- 🌡️ Wide Temperature Range— Charge: 0~45°C / Discharge: -20~60°C
- 🛡️ UN38.3 / CE / KC Certified — Safe for global air transport and market compliance
- 🔧 OEM/ODM Ready — Custom tabs, wires, connectors, PCM, NTC available
Specifications
| Parameter | Value |
|---|---|
| Model | 706090 |
| Chemistry | Lithium Polymer (Li-Po) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 5000mAh |
| Nominal Energy | 18.5Wh |
| Dimensions (T×W×H) | 7.0×60×90mm |
| Charge Voltage | 4.2V |
| Standard Charge Current | 1000mA (0.2C) |
| Max Charge Current | 5000mA (1C) |
| Standard Discharge Current | 1000mA (0.2C) |
| Max Discharge Current | 5000mA (1C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 2.5V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C (recommended) |
| Cycle Life | ≥500 cycles (100% DOD, 0.2C, 25°C) |
| Weight (Approx.) | ~85g |
| Certifications | UN38.3 · CE · KC |
| Internal Resistance | ≤80mΩ |
Applications
🔋 Power Bank / Portable Charger
- Power Bank / Portable Charger — The #1 application for 706090. The 60×90mm form factor is the industry-standard power bank cell size; 5000mAh delivers reliable all-day portable charging for smartphones (2–3 full charges), tablets, and other devices. Compatible with 1S, 2S, or 3S power bank configurations
- Power Bank Core Cell — High-capacity OEM cell for power bank manufacturing lines; standard 60×90mm footprint simplifies PCB and enclosure design

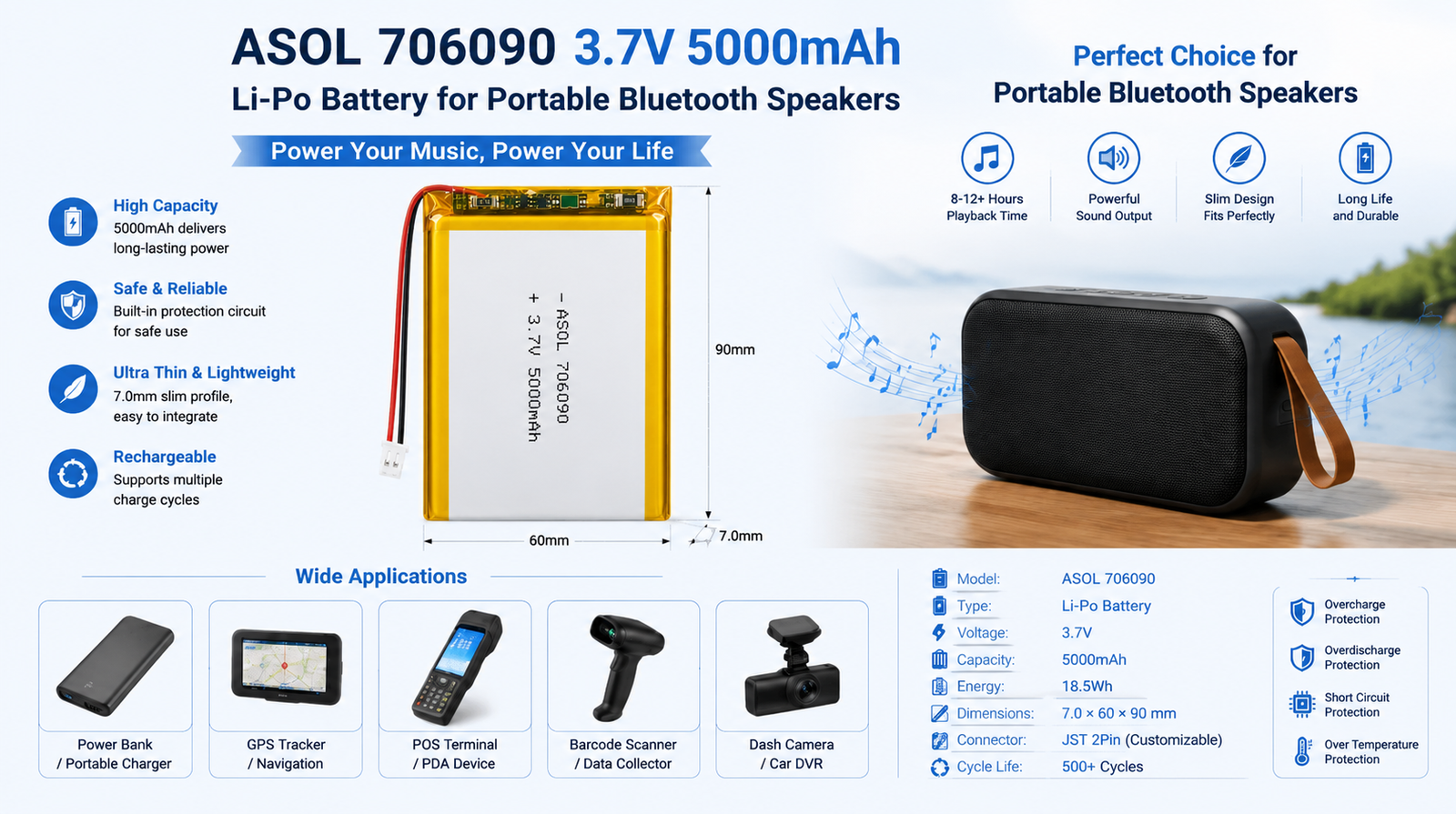

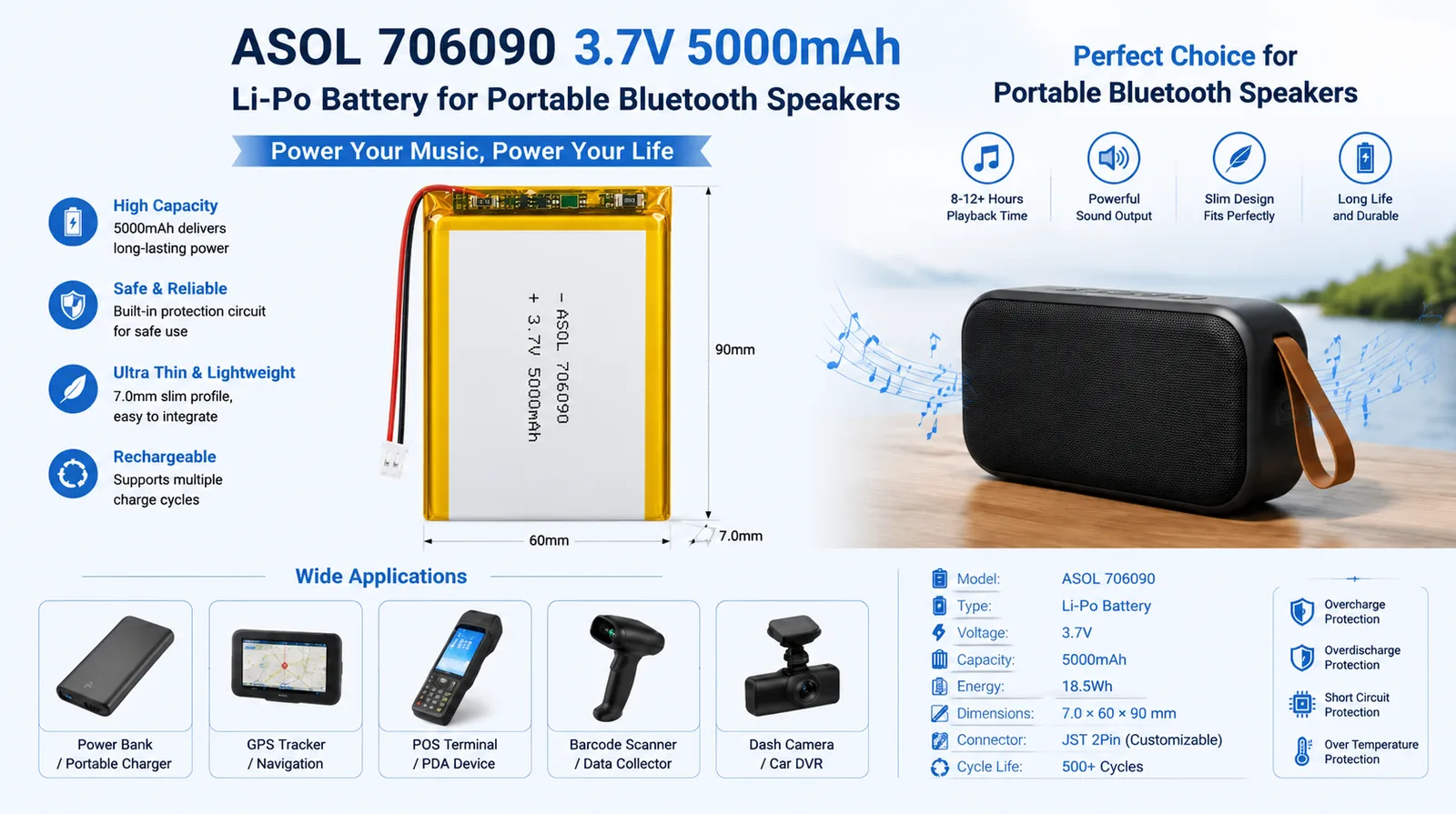

🔊 Portable Bluetooth Speaker
- Portable Bluetooth Speaker — 5000mAh delivers 10–14 hours of continuous music playback at moderate volume (10W driver); large 60×90mm footprint fits speaker cavity perfectly and provides excellent heat dissipation during sustained audio output
- Outdoor / Party Speaker — High capacity supports powerful drivers and LED light effects simultaneously; 1C discharge sustains peak audio power without voltage sag
💻 Tablet PC
- Tablet PC Battery — 7.0mm slim profile fits modern tablet chassis; 5000mAh (18.5Wh) extends productivity sessions by 6–10 hours; large footprint maximizes space utilization within flat enclosures
📍 GPS Tracker / Vehicle GPS
- Vehicle GPS Tracker — 5000mAh supports weeks of GPS reporting in low-frequency tracking mode or 3–5 days in real-time continuous tracking; compact flat profile fits behind dashboards and under seats
- Fleet Management Tracker — High capacity ideal for commercial vehicle GPS requiring long intervals between charges
🖨️ Handheld POS Terminal
- Handheld POS Terminal — 5000mAh supports full-shift operation (8–12 hours) with card reader, receipt printer, touchscreen display, and 4G/WiFi wireless connectivity active simultaneously
- Mobile Payment Device — Reliable multi-day standby for retail, restaurant, and field payment applications
📟 PDA / Data Collector
- PDA / Data Collector — 5000mAh supports extended field data collection across multiple shifts without recharging; large area provides stable power for high-brightness display and wireless data sync (WiFi/BT/4G)
- Industrial Handheld Terminal — Robust sustained power for warehouse management, logistics scanning, and field service applications
📦 Barcode Scanner
- Industrial Barcode Scanner — 5000mAh eliminates mid-shift battery swaps; supports continuous scanning for 10–16 hours on a single charge; 1C discharge handles high-frequency laser/imaging scan bursts reliably
- Handheld 2D/QR Scanner — Extended battery life ideal for retail checkout, warehouse picking, and delivery confirmation applications
Why Choose ASOL 706090?
Industry-standard power bank cell with proven reliability — The ASOL 706090 delivers 5000mAh (18.5Wh) in a 7.0mm slim profile with the industry-standard 60×90mm footprint — the most widely adopted form factor for power bank cells worldwide. The large surface area provides excellent thermal management while the proven form factor ensures seamless integration and a stable supply chain. Whether you’re a power bank manufacturer, a portable Bluetooth speaker brand, a GPS tracker OEM, or an industrial POS/barcode scanner supplier, the 706090 is engineered for reliable, high-volume production.
Fully certified for global markets — The 706090 carries UN38.3, CE, and KC certifications, ensuring safe air transport worldwide and compliance with major international market requirements. ASOL’s OEM/ODM team supports complete customization including PCM protection circuits, NTC temperature sensors, custom wire gauges, connector selection (JST, Molex, PH2.0, etc.), and tailored packaging solutions.
Wholesale Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 100–499 pcs | Contact us | — |
| 500–999 pcs | Contact us | 8% off |
| 1,000–4,999 pcs | Contact us | 15% off |
| 5,000+ pcs | Contact us | 20%+ off |
📌 Wholesale Note: Sample orders and custom specifications welcome. Full certification documentation provided with shipment. PCM/NTC/wire customization available at MOQ 200pcs.
