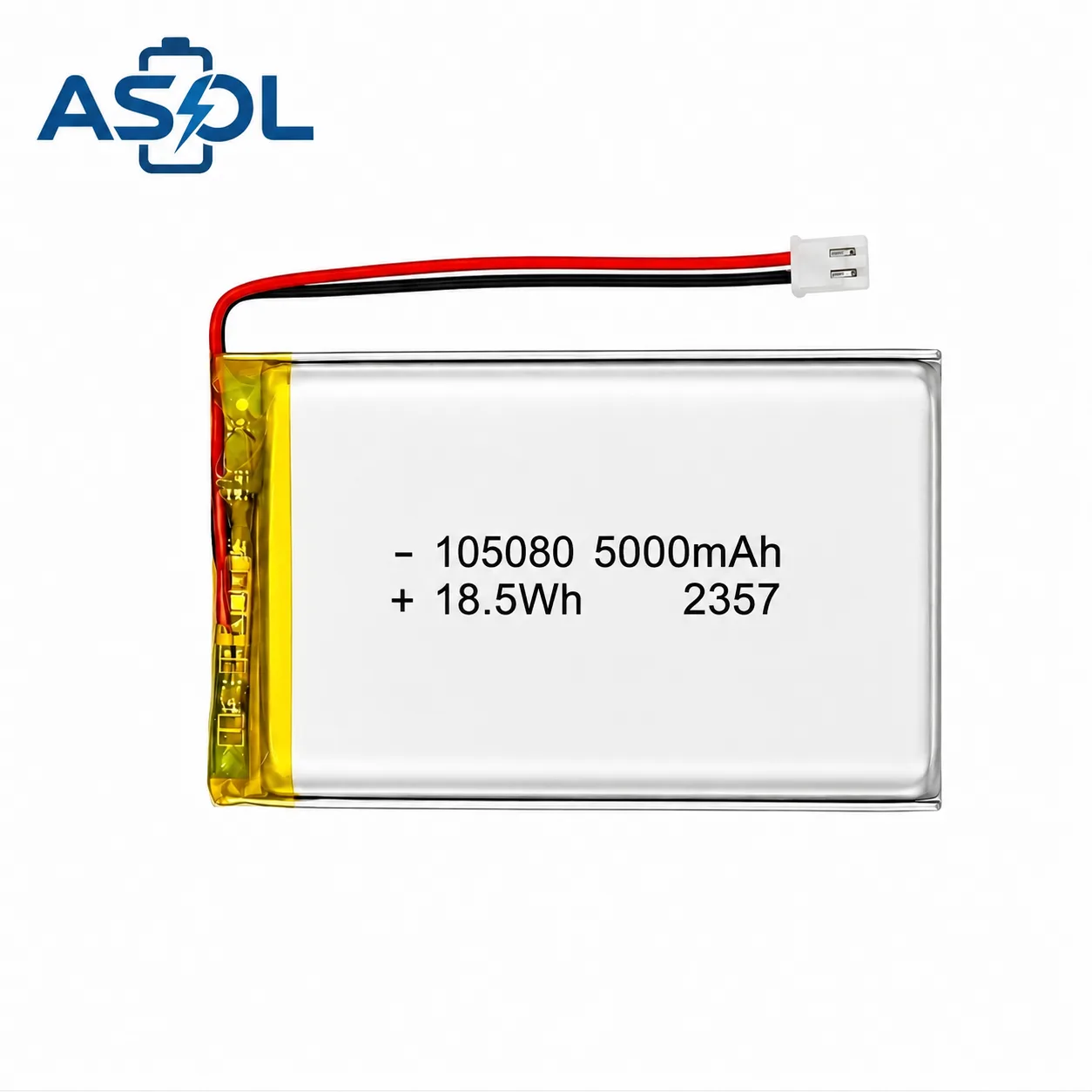

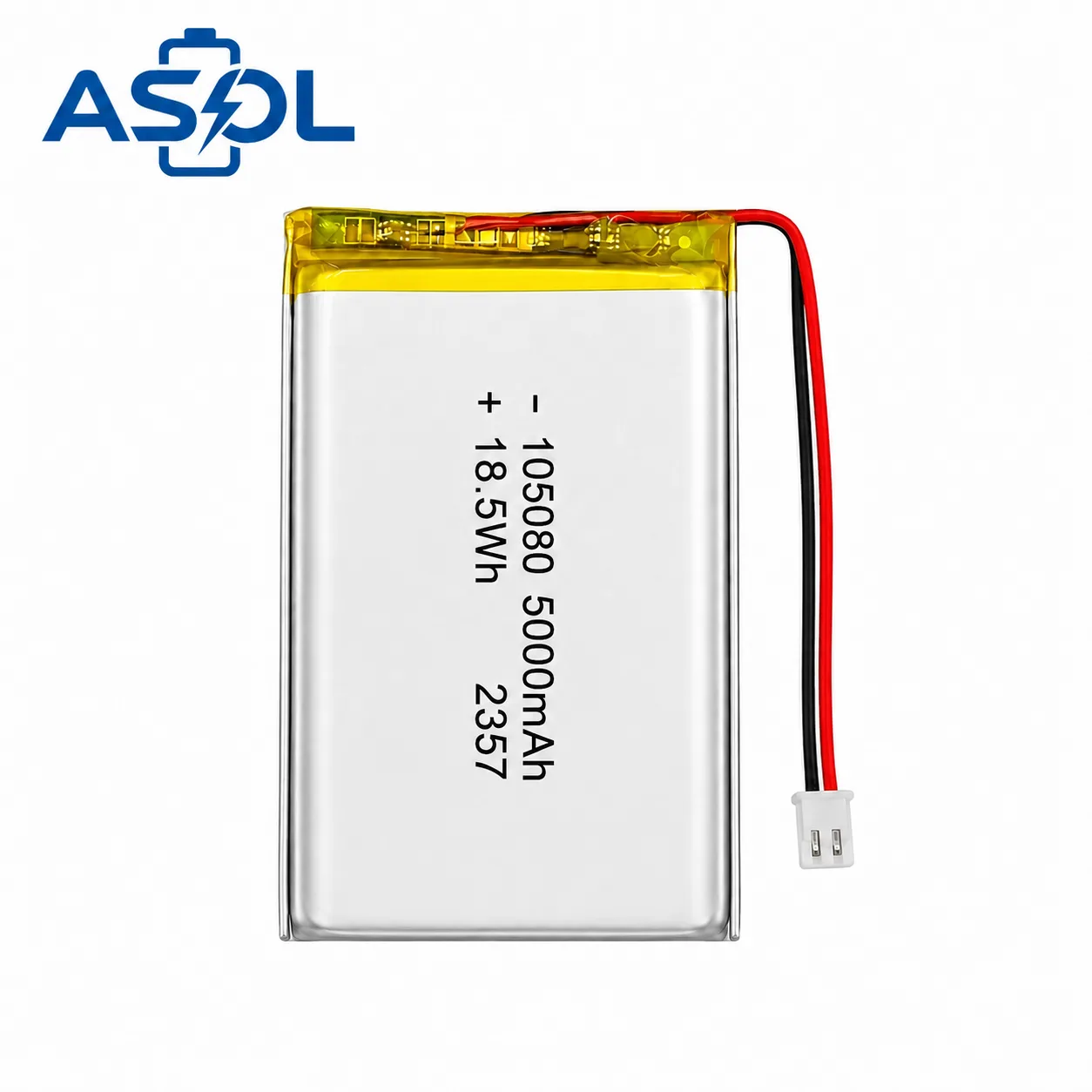

The ASOL 105080 is a 3.7V 5000mAh lithium polymer pouch cell with 18.5Wh nominal energy and dimensions of approximately 10.2 × 50.5 × 82 mm (T × W × L).
Lithium polymer model numbers are commonly based on nominal cell dimensions and may not always correspond exactly to the final listed dimensions. For product design and battery selection, please refer to the dimensions stated in the product specifications or confirmed drawing.
This compact format can be evaluated for portable power banks, portable Bluetooth speakers, mini projectors, portable monitors and other compatible electronic devices.
With 5000mAh per cell and a nominal voltage of 3.7V, two ASOL 105080 cells wired in parallel can support a 10,000mAh @ 3.7V power bank configuration when the protection circuit, charging method and enclosure design are confirmed.
Key Specifications
| Parameter | Value |
|---|---|
| Model Number | ASOL 105080 |
| Battery Chemistry | Lithium Polymer / Li-Polymer Pouch Cell |
| Nominal Voltage | 3.7V |
| Rated Capacity | 5000mAh (5.0Ah) |
| Nominal Energy | 18.5Wh |
| Dimensions (T×W×L) | Approx. 10.2mm × 50.5mm × 82mm |
| Approximate Weight | ~90g |
| Discharge Cut-off Voltage | 3.0V |
| Standard Charging Voltage | 4.2V ± 0.05V |
| Max. Continuous Discharge | 1C (5A) typical; up to 2C (10A) on request |
| Operating Temperature | 0°C to +60°C (discharge) / 0°C to +45°C (charge) |
| Storage Temperature | 0°C to +25°C (long-term); <1 year @ <40% SOC recommended |
| Cycle Life | ≥500 cycles @ 0.5C to 80% capacity retention |
| Protection | PCM / PCB protection options available according to project requirements |
| Connector | JST XH 2.54mm 2-pin; custom connector, wire length and polarity configurations available |
| Certifications & Compliance | UL1642, CE, RoHS, UN38.3, PSE (TÜV) |
| Transport Compliance | IATA PI965 (2025) |
| Warranty | 12 months from shipment date |
| MOQ | 100 pcs (negotiable for standard models) |
Applications
Where the 105080 is used
Suitable for compatible power-bank projects after the protection circuit, charging method and enclosure are confirmed.
Suitable where the listed voltage, capacity and installation space match the equipment requirements.
Final suitability should be confirmed against the device load profile and charging method.
Final suitability should be confirmed against the device load profile and electrical requirements.
Can be evaluated against the device load, charging circuit, installation space and required runtime.
1. Portable Power Banks
The ASOL 105080 is a lithium polymer cell for portable power bank applications. Two cells in parallel deliver approximately 10,000mAh total. The approximately 10.2mm thickness can be evaluated against the available enclosure space.
Power bank integration considerations:
- Approximately 10.2mm thickness with 5000mAh rated capacity
- 82mm length × 50.5mm width — evaluate against the confirmed device drawing
- 1S2P (two cells in parallel) configuration for selected power bank designs
- Compatible with built-in Type-C cable, dual USB-A, and USB-C PD power bank designs
- PCM/BMS integration can be reviewed against protection circuit requirements
2. Portable Bluetooth Speakers
The ASOL 105080 can be evaluated for portable Bluetooth speakers where the listed voltage, capacity, dimensions and device load requirements match.
Design advantages:
- Approximately 10.2mm profile for compatible speaker enclosures
- Stable 3.7V output maintains consistent audio quality throughout the discharge cycle
- Storage conditions and required standby performance should be reviewed for the finished device
- No memory effect — top up the battery at any level without capacity loss
- Wide temperature range (0°C to +60°C) handles outdoor use in varying climates
3. Mini Projectors
Compact mini projectors and pocket DLP/LCD projectors can be evaluated against the listed capacity, dimensions, load profile and charging requirements.
Projector fit:
- High energy density (18.5Wh) powers LED/Laser light sources efficiently
- Approximately 10.2mm profile for compatible projector chassis designs
- Stable voltage output prevents flickering or brightness drops during extended projection
- Storage conditions and required standby performance should be reviewed for the finished device
- Wide operating temperature range supports both indoor and outdoor usage scenarios
4. Portable Monitors
Portable monitors, secondary displays and touch-screen panels can be evaluated against the listed capacity, dimensions, load profile and charging requirements.
Monitor fit:
- Approximately 10.2mm cell thickness must be checked against the monitor enclosure
- Stable 3.7V output ensures consistent brightness and color accuracy throughout the discharge cycle
- 5000mAh capacity sufficient to drive 1080p/4K portable panels for extended work sessions
- Flat pouch design maximizes space behind thin LCD/OLED panels
- Compatible with USB-PD charging circuits common in modern portable monitors
5. POS Terminals & Payment Devices
The ASOL 105080 can be evaluated for handheld POS machines, mobile card readers and smart payment terminals against the device load, charging circuit, required runtime and installation space.
Payment device fit:
- Slim form factor matches the ergonomic requirements of handheld EDC (everyday carry) devices
- UL1642, CE, RoHS, UN38.3 and PSE (TÜV) documentation is available for project review
- Stable voltage plateau maintains reliable transaction processing throughout the battery cycle
- Storage conditions and required standby performance should be reviewed for the finished device
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
PCM/PCB protection can be customized according to application requirements.
Inspection requirements and acceptance criteria are confirmed according to the product configuration and project requirements.
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Inspection requirements and acceptance criteria are confirmed for each project before order release.
UN38.3 Class 9 air & sea · Shipping arrangements and delivery terms are confirmed according to destination and project requirements.
Technical Highlights
- Electrical specification — 3.7V nominal voltage, 5000mAh rated capacity and 18.5Wh nominal energy
- Compact pouch-cell format — approximately 10.2 × 50.5 × 82 mm
- Certifications & compliance — UL1642, CE, RoHS, UN38.3 and PSE (TÜV)
- Transport compliance — IATA PI965 (2025)
- Integration options — PCM/protection, connector and wiring configurations can be evaluated for each project
- OEM / ODM support — custom specifications are reviewed according to project requirements
Frequently Asked Questions
What does the 105080 battery model number mean?
Lithium polymer model numbers are commonly based on nominal cell dimensions and may not correspond exactly to the final listed dimensions. The ASOL 105080 specification is approximately 10.2 × 50.5 × 82 mm (T × W × L). Use the confirmed drawing for product integration.
What voltage does the ASOL 105080 operate at?
The nominal voltage is 3.7V. The full charge voltage is 4.2V, and the discharge cut-off is 3.0V. This is standard for single-cell Lithium Polymer batteries.
How many cycles does the ASOL 105080 last?
The 105080 is rated for ≥500 cycles at 0.5C charge/discharge to 80% of original capacity. With proper battery management (staying within 20%-80% SOC), cycle life can extend significantly beyond this rating.
Can I wire two 105080 cells together for a 10000mAh power bank?
Yes. Two ASOL 105080 cells in parallel (2P configuration) yield approximately 10,000mAh @ 3.7V when the protection circuit, charging method and enclosure design are confirmed. A BMS/PCM is required to manage balancing and safety.
What connectors are available for the ASOL 105080?
Standard connector is JST XH 2.54mm 2-pin. Custom connectors (Molex, Tab, custom injection-molded plugs), wire lengths (20-200mm), and polarity configurations are available for OEM orders.
Does the ASOL 105080 comply with IATA PI965?
The cell has UN38.3 documentation and complies with IATA PI965 (2025) requirements for standalone lithium battery transportation. Final arrangements depend on quantity, packaging, destination and carrier requirements.

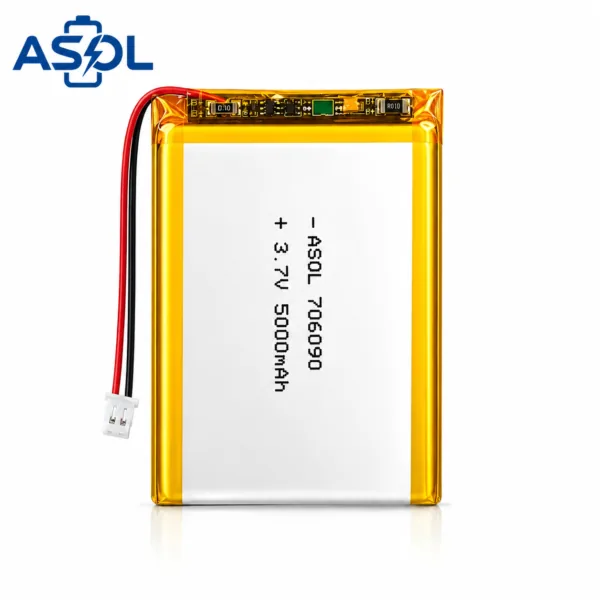

What is the difference between the 706090 and 105080?
Both are 5000mAh cells with different dimensions. The 105080 is approximately 10.2 × 50.5 × 82 mm; compare the confirmed drawings, available installation space and electrical requirements before selection.
Do you offer custom battery packs or just bare cells?
ASOL offers both bare cells (for integration by your EMS/Power Bank manufacturer) and custom battery packs with integrated PCM, connector, and enclosure. Contact our team for a custom pack quotation.
Is the ASOL 105080 lithium polymer battery UL1642 certified?
Yes. The ASOL 105080 cell has UL1642 certification. CE, RoHS, UN38.3 and PSE (TÜV) documentation is also available, together with IATA PI965 (2025) transport compliance.
