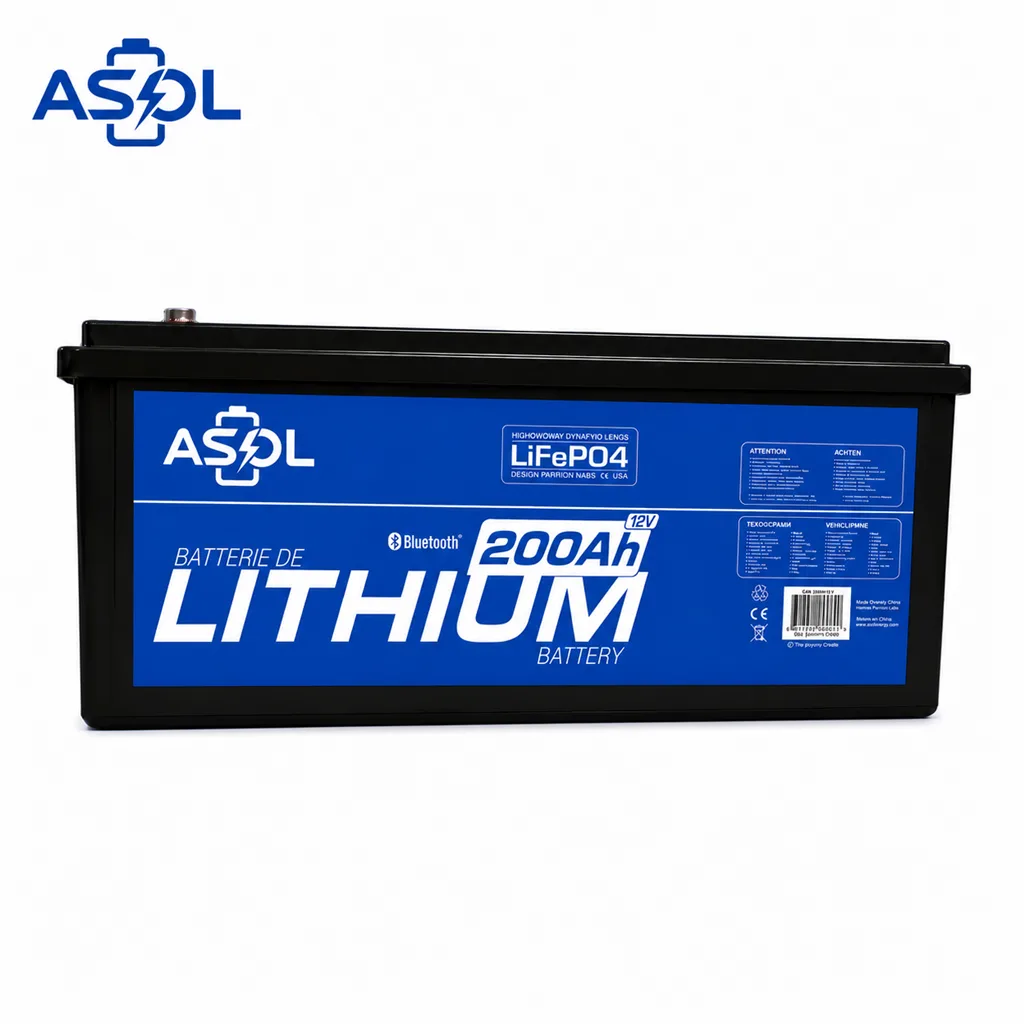

Need more capacity and real-time control? The ASOL 12V 200Ah LiFePO4 Smart Bluetooth Battery doubles the runtime of a 100Ah pack and adds live Bluetooth monitoring. With 2560Wh of usable energy, a smart BMS with active balancing, an IP65-rated ABS case and 4500+ cycles backed by a 5-year warranty, it is purpose-built for solar storage, large RVs, off-grid cabins and light industrial equipment — yet weighs only ~19.1 kg.
π² Live Bluetooth Monitoring
A built-in Bluetooth 4.0 module streams voltage, current, state of charge and fault alerts straight to your phone, so you can track and troubleshoot the bank in real time — no extra display or shunt to fit.
- β Real-time state of charge, voltage & current in the app
- β Instant over-charge, over-heat & short-circuit alerts
- β No external monitor or wiring required
π 2560Wh High-Capacity Bank
With 2560Wh on tap — double a 100Ah pack — the 4S2P LiFePO4 cells run larger loads and far longer autonomy, suiting solar storage, big rigs and off-grid sites a standard battery can't sustain.
- β 2560Wh usable — twice a 12V 100Ah battery
- β 200A continuous discharge for high-draw inverters
- β Flat LiFePO4 curve for stable output to the last amp-hour
π‘οΈ Rugged IP65 Housing & Smart BMS
A sealed IP65 ABS case shrugs off dust, splashes and vibration, while the smart BMS protects every cell against over-charge, over-discharge, over-current and short circuit with active balancing.
- β IP65-rated, vibration-resistant ABS enclosure
- β Four-way BMS protection plus active cell balancing
- β Safe LiFePO4 chemistry — no thermal runaway
π Scalable to 48V Banks
Wire up to 4 in series and 4 in parallel to build 24V, 36V or 48V banks of much greater capacity — expand the system as your power demand grows.
- β Up to 4S4P configuration (to 48V)
- β M8 terminals for high-current interconnects
β»οΈ 4500+ Cycles & 5-Year Warranty
Rated for over 4500 cycles at 90% depth of discharge and backed by a 5-year warranty, it is built for a decade of daily off-grid duty at a low cost per cycle.
Applications
Where the 12V 200Ah is used
12.8V 2560Wh house power for motorhomes, campers and van life.
Reliable 12V deep-cycle power for towable trailers and caravans.
Stores solar energy for off-grid and home backup power banks.
Day-and-night energy storage for remote cabins and tiny homes.
2560Wh LiFePO4 core for portable power stations and mobile setups.
Dependable 12V power for AGVs, robotics and light industrial gear.
π Specifications
| Parameter | Specification |
|---|---|
| Model | ASOL-12-200-P · 12V 200Ah |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Energy | 2560Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cell Configuration | 4S2P |
| Cycle Life | >4500 cycles @ 90% DoD |
| Operating Voltage Range | 10 – 14.6V |
| Charging Method | CC-CV / IU |
| Recommended Charge Voltage | 14.6V |
| Recommended Charge Current | 60A |
| Max Charge Current | 100A |
| Max Continuous Discharge Current | 200A |
| Peak Discharge Current | 600A (200–500 ms) |
| BMS Protection | Over-charge / over-discharge / over-current / short-circuit + active balancing |
| Smart Monitoring | Built-in Bluetooth 4.0 app monitoring |
| Charge Temperature | 0 – 50°C |
| Discharge Temperature | -20 – 75°C |
| Storage Temperature | -5 – 35°C |
| Terminals | M8 (torque 9–11 N·m) |
| Case Material | ABS |
| Ingress Protection | IP65 |
| Dimensions (L×W×H) | 502 × 186 × 243 mm |
| Weight | ~19.1 kg |
| Series / Parallel | Up to 4 in series & 4 in parallel |
| Warranty | 5 years |
| Certifications | CE, RoHS, UN38.3, UL |
π§ Custom LiFePO4 Batteries β Built to Your Spec
This 12V 200Ah model is just one option. As a manufacturer, ASOL designs and builds custom LiFePO4 batteries to your exact requirements β whatever capacity, voltage or size your project needs:
- π Any capacity β 50Ah, 200Ah, 150Ah, 200Ah, 300Ah and beyond
- β‘ Any voltage β 12V, 24V, 36V and 48V systems
- π Custom size & terminals to fit your battery bay
- π‘οΈ Tailored BMS β with options such as Bluetooth monitoring, low-temperature heating and RS485/CAN communication
- π·οΈ Full OEM / ODM β your own label, branding and packaging
Send us your target capacity, voltage, dimensions and application, and our engineers will design the right pack for your RV, camper, marine or solar system.
β Frequently Asked Questions
What are the key specifications of the ASOL 12V 200Ah LiFePO4 Smart Bluetooth Battery?
It is a 12V 200Ah (2560Wh) LiFePO4 deep cycle battery in a 4S2P configuration, with a 14.6V charge voltage, 100A max charge and 200A max discharge current, M8 terminals, a built-in BMS with active balancing, Bluetooth 4.0 monitoring, and a 5-year warranty.
Does the ASOL 12V 200Ah Smart Bluetooth Battery have an app, and what can I monitor?
Yes. The built-in Bluetooth 4.0 module pairs with a free smartphone app showing real-time state of charge, voltage, current and temperature, plus instant alerts for over-charge, over-heating and short circuit, with no separate monitor or shunt to install.
Is the ASOL 12V 200Ah Smart Bluetooth Battery waterproof?
It is rated IP65 in a rugged ABS case, so it resists dust, water splashes and vibration for mobile, marine and outdoor installations. IP65 is splash-proof; the battery should not be fully submerged.
Can I connect several ASOL 12V 200Ah batteries to build a 24V or 48V bank?
Yes. You can wire up to 4 in series and 4 in parallel to build 24V, 36V or 48V banks with much larger capacity. Contact ASOL for the recommended configuration for your system.
How long does the ASOL 12V 200Ah LiFePO4 Smart Bluetooth Battery last?
It is rated for 4500+ cycles at 90% depth of discharge, many times the life of lead-acid, and is backed by a 5-year warranty for a decade of dependable daily use.
Is the ASOL 12V 200Ah LiFePO4 Smart Bluetooth Battery safe?
Yes. It uses safe LiFePO4 chemistry (no thermal runaway) with a built-in BMS that guards against over-charge, over-discharge, over-current and short circuit, plus active cell balancing for long pack life.
Does ASOL offer OEM/ODM customization for the ASOL 12V 200Ah LiFePO4 Smart Bluetooth Battery?
Yes. As a manufacturer, ASOL can tailor capacity, voltage, BMS, terminals, casing, and labeling to your specification and order volume.
How do I order or request a quote for the ASOL 12V 200Ah LiFePO4 Smart Bluetooth Battery?
Email info@asolbattery.com or message +86 15779858703 on WhatsApp for pricing, minimum order quantity and lead times. ASOL typically responds within 4 hours on business days.
