Compact 12.8V Deep-Cycle LiFePO4 Battery

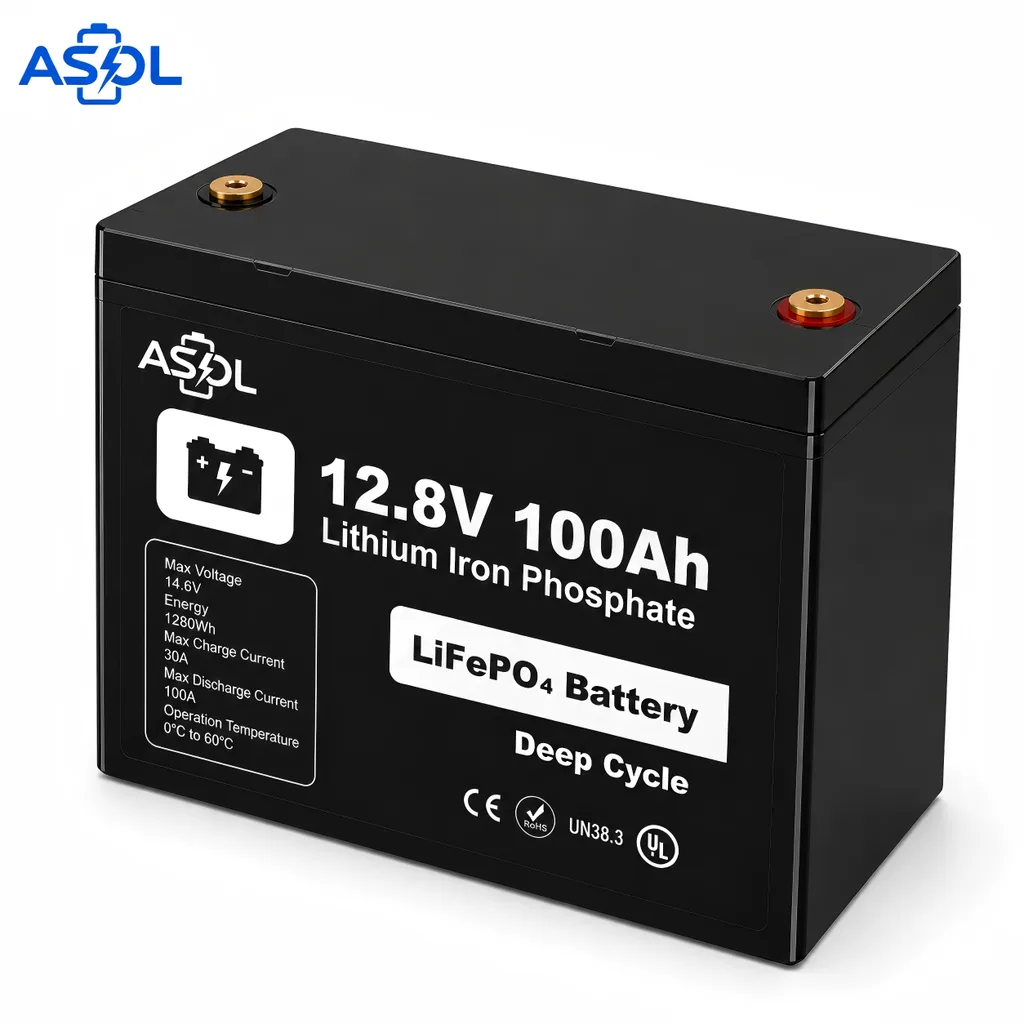

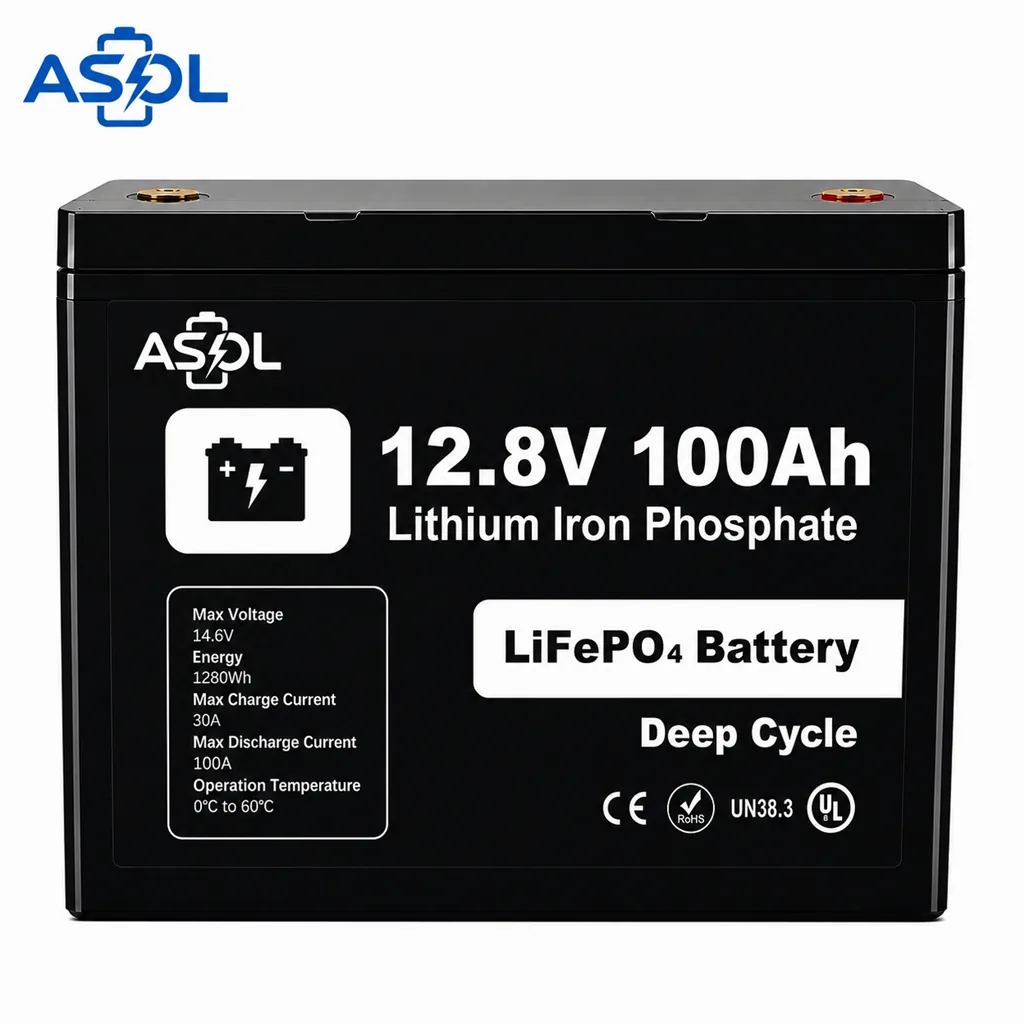

12.8V 100Ah LiFePO4 Battery
Compact 1280Wh power with built-in BMS protection. This 100Ah model combines 4000+ deep cycles, stable output and a lightweight, maintenance-free design for long-term auxiliary, mobile and backup power projects.
Product Features
Built-in BMS Protection
Helps protect against over-charge, over-discharge, over-current and short circuit.
Maintenance-Free Operation
No water filling, acid leakage or routine lead-acid maintenance.
Lightweight Design
Approx. one third the weight of lead-acid for easier handling.
Stable Power Output
Delivers reliable power for long-term equipment and backup applications.
Deep-Cycle Performance
Rated for 4000+ cycles under the stated operating conditions.
Technical Specifications — Standard Configuration
| Item | Specification |
|---|---|
| Model | ASOL 12.8V 100Ah |
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Rated Energy | 1280Wh |
| Max Charge Voltage | 14.6V |
| Max Charge Current | 30A |
| Max Discharge Current | 100A |
| Operation Temperature | Charge: 0°C to +60°C / Discharge: -20°C to +60°C |
| Dimensions | 330 x 172 x 216mm (standard configuration) |
| Weight | Approx. 11.5kg |
| Terminal | M8 |
| Warranty | 3 Years |
Project Configuration Options
The specifications above describe the standard 12.8V 100Ah configuration shown on this page. Project-specific electrical and mechanical configurations can be evaluated for OEM/ODM requirements.
Need a different footprint? Custom enclosure dimensions and terminal layout can be evaluated based on available installation space and project requirements.
Available project options may include:
- Higher-current BMS and discharge requirements
- APP or Bluetooth monitoring, depending on the selected BMS
- Low-temperature charging protection
- Self-heating for selected project configurations
- Enclosure dimensions and terminal layout
- Series / parallel requirements, wiring and connectors
Final specifications depend on cell selection, BMS configuration, enclosure design, thermal requirements and project validation.
Need a different configuration?
Share your required voltage, capacity, installation space, continuous discharge current and application. We can evaluate a project-specific battery configuration.
REQUEST PRICINGCompatible Applications
These examples describe common project uses. Final suitability depends on the electrical and mechanical requirements of the host system.
RV, Camper & Caravan
Deep-cycle house and auxiliary power for RV, camper, caravan and motorhome projects.
Marine & Boat Systems
Marine LiFePO4 battery option for compatible onboard, service and auxiliary power systems.
Golf Cart & Mobility
Replacement power for compatible golf carts, mobility equipment and mobile utility platforms.
Solar & Off-grid Storage
Deep-cycle storage for solar energy systems and off-grid power projects.
UPS & Emergency Backup
Battery support for compatible UPS, emergency backup and standby power systems.
Industrial & Remote Monitoring
Project-based standby power for compatible industrial equipment, remote monitoring and unattended installations.
Lead-Acid Replacement Applications
Designed as a LiFePO4 replacement option for compatible lead-acid, AGM and GEL battery applications, subject to system voltage, charging profile, load current, dimensions, installation space and terminal requirements.
Available Voltage & Capacity Options
ASOL also provides a wider range of LiFePO4 lead-acid replacement batteries for different system requirements.
| Nominal Voltage | Available Capacities | Market Reference |
|---|---|---|
| 12.8V | 100Ah, 200Ah, 300Ah, 400Ah | 12V lead-acid replacement |
| 25.6V | 100Ah, 200Ah | 24V / 25.6V LiFePO4 battery (24V lead-acid replacement) |
| 38.4V | 100Ah | 36V-class lead-acid replacement |
| 51.2V | 100Ah | 48V-class lead-acid replacement |
Other configurations can be evaluated based on voltage, capacity, dimensions, discharge current and application requirements.
