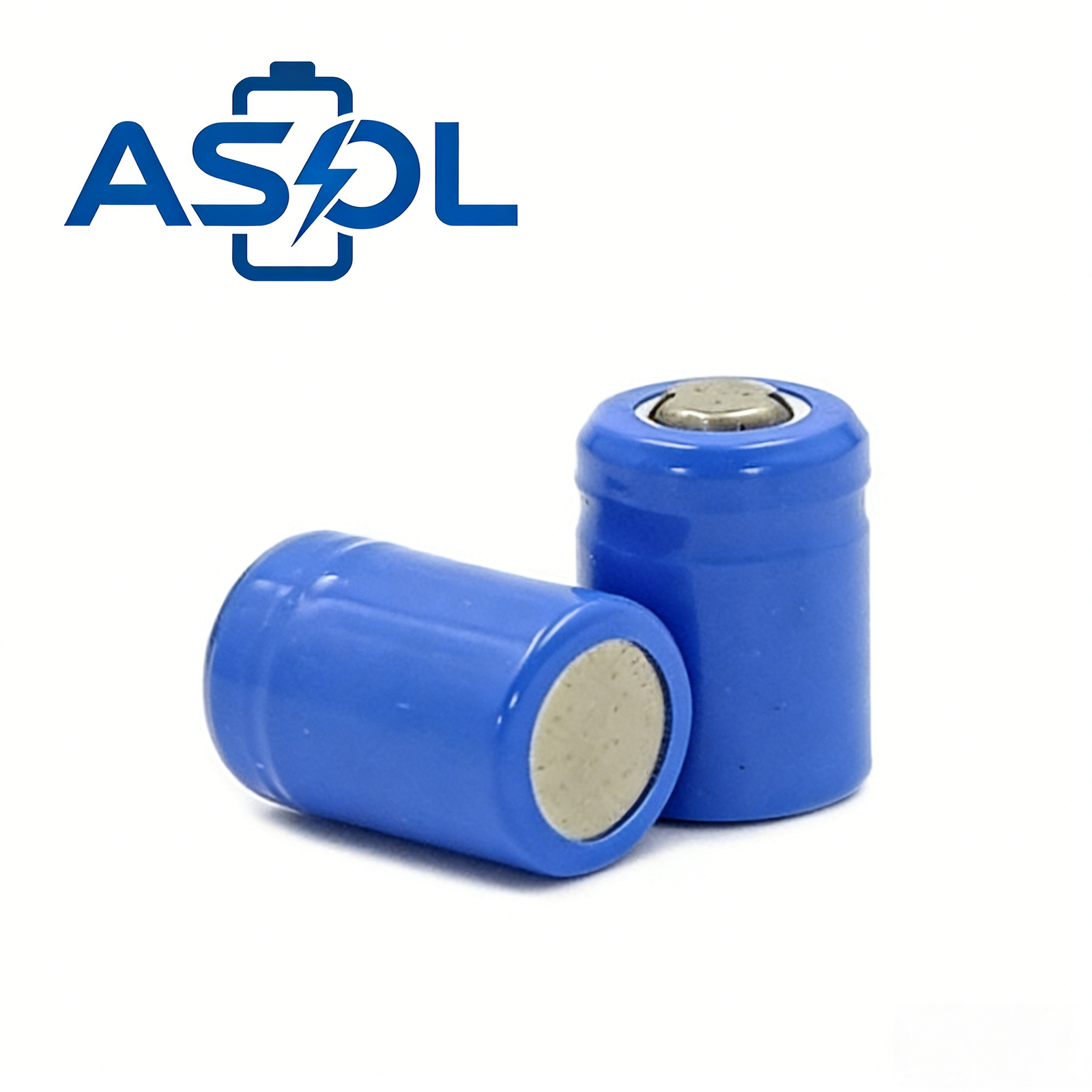

The ASOL 10300 is a 3.7V 200mAh cylindrical lithium-ion cell in a 10×30mm format for wearables, IoT devices and compact electronics. Final suitability should be confirmed against the available installation space, device load and charging method. Wire, connector, labeling and PCM/PCB protection requirements are available upon request for project evaluation.
Features
- Short 10 × 30 mm cylindrical format with a protective metal can for slim, embedded designs
- 3.7 V / 200 mAh nominal specification in a compact cylindrical format
- Final electrical and mechanical compatibility should be reviewed for the finished device
- Protection circuit options are available depending on the required battery configuration
Applications
Where the 10300 is used
Slim cell for earbuds & charging-case power.
Wireless sensors and low-power IoT modules.
Fitness bands and compact wearable devices.
Portable diagnostic and handheld medical devices.
Characteristics
| Parameter | Specification |
|---|---|
| Nominal Capacity | 200mAh |
| Nominal Voltage | 3.7V |
| AC Impedance | ≥150mΩ |
| Cell Diameter | 10.0 ± 0.1mm |
| Cell Height | 30.0 ± 0.2mm |
| Cell Weight | ~4.0-4.2g |
| End-of-charge Voltage | 4.2V |
| Charging Method | ≥0.5C (100mA) at CC/CV |
| End-of-discharge Voltage | 3.0V |
| Max. Continuous Discharge Current | 0.2C (40mA) / 0.5C (100mA) |
| Max. Pulse Discharge Current | 1C (200mA) |
| Cycle Life | 300-500 cycles (≥80% capacity) |
| Charging | 0°C ~ 45°C |
| Discharging | -20°C ~ 60°C |
| Storage | -10°C ~ 35°C |
Frequently Asked Questions
What are the key specifications of the ASOL 10300 3.7V 200mAh Lithium-ion Battery Cell?
The ASOL 10300 3.7V 200mAh Lithium-ion Battery Cell is a 3.7V 200mAh lithium battery, weighing ~4.0-4.2g.
How many charge cycles does the ASOL 10300 3.7V 200mAh Lithium-ion Battery Cell last?
The ASOL 10300 3.7V 200mAh Lithium-ion Battery Cell is rated for 300-500 cycles, for years of dependable performance in your device.
Does ASOL offer OEM/ODM customization for the ASOL 10300 3.7V 200mAh Lithium-ion Battery Cell?
Absolutely. As the manufacturer, ASOL tailors the cell — voltage, capacity, connector, wiring and private-label printing — to match your device and production volume through our OEM/ODM service.
Can I get a sample or a quote for the ASOL 10300 3.7V 200mAh Lithium-ion Battery Cell?
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. For a quote, email info@asolbattery.com or WhatsApp +86 15779858703 — replies typically arrive within 24 hours on working days.
Get a Sample Evaluation or Quote Today
Email: info@asolbattery.com
WhatsApp: +86 15779858703
Response: Within 24 hours on working days
Need a different size or capacity? Explore ASOL’s full cylindrical battery range →
