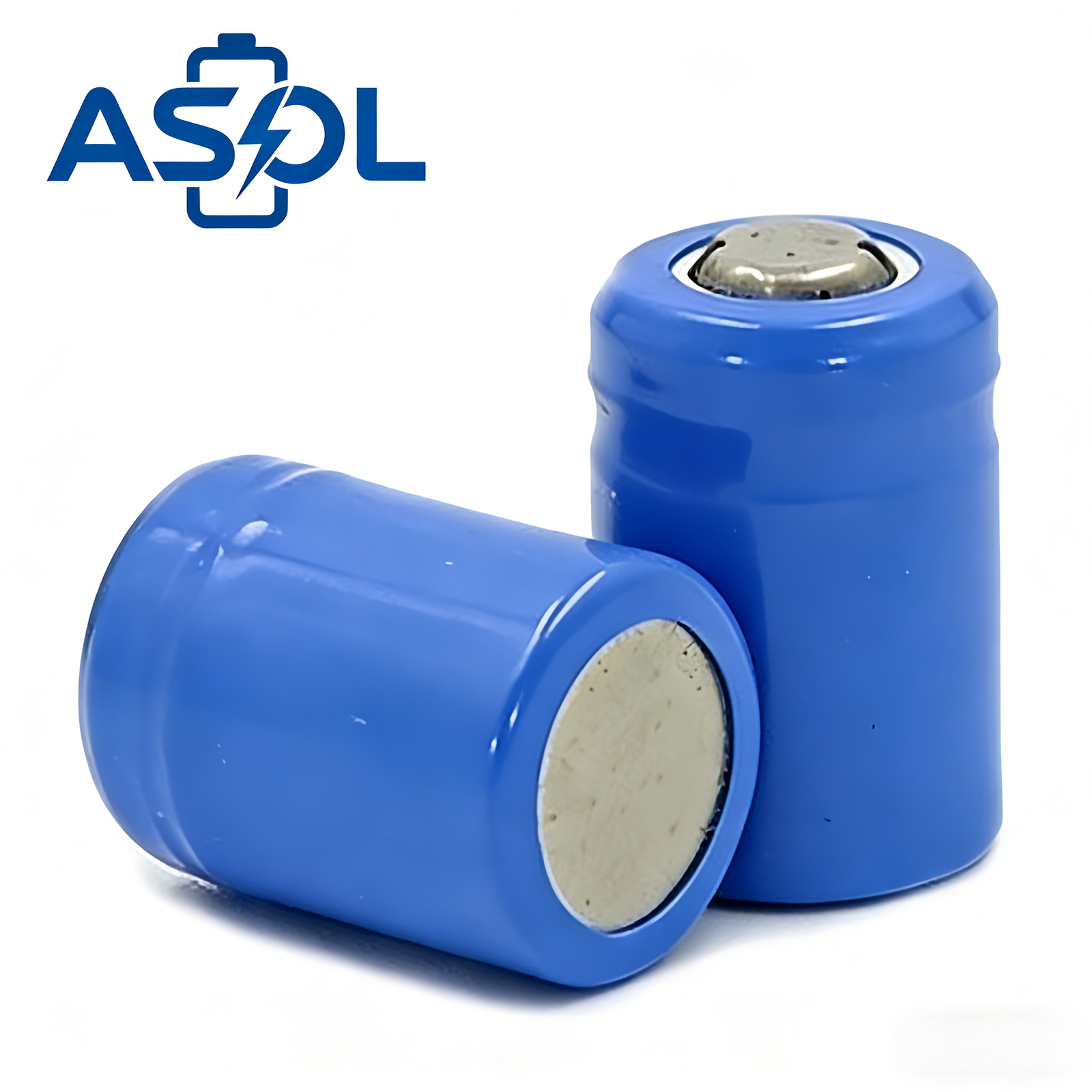

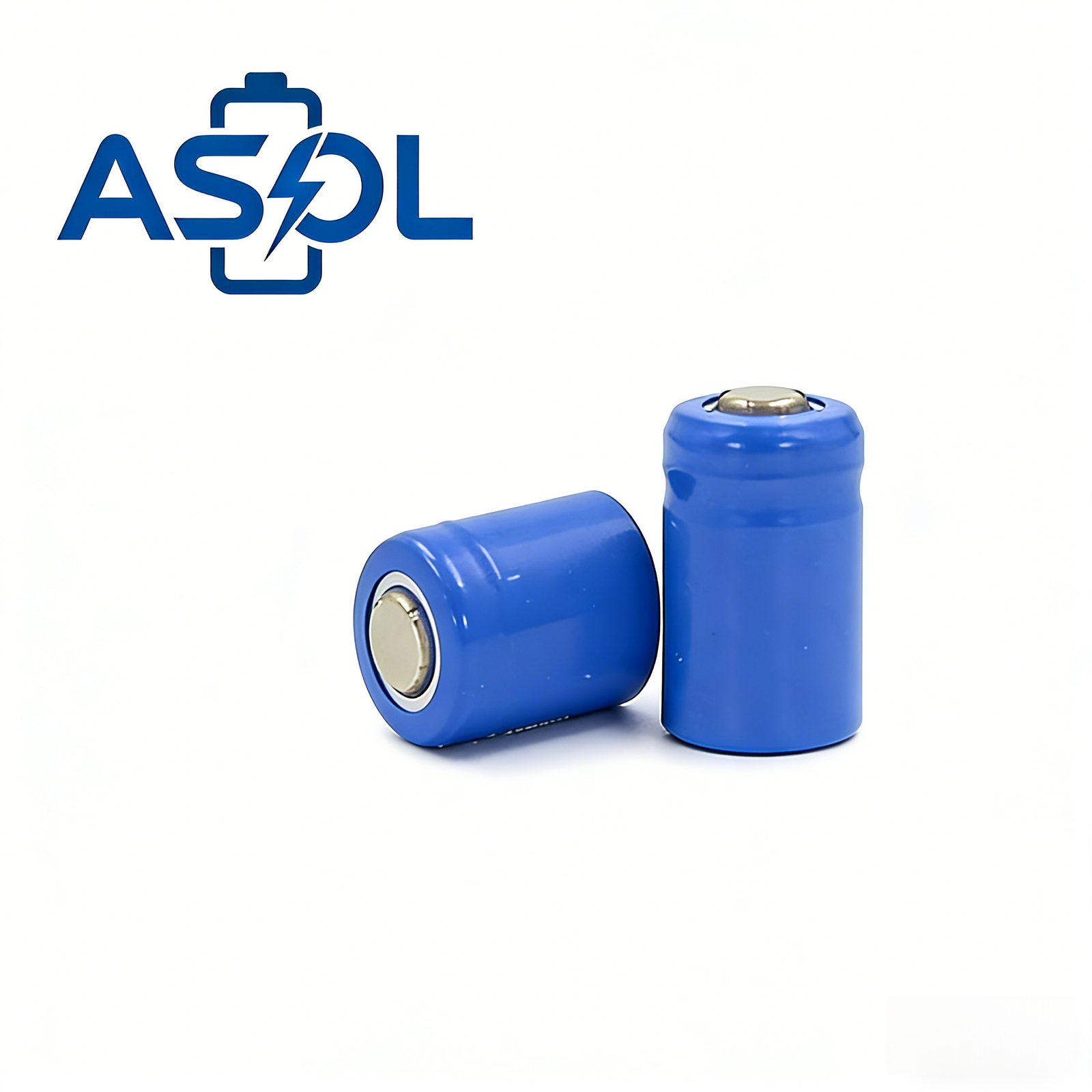

ASOL 10150 Cylindrical Lithium-ion Battery

This compact 10×15mm 3.7V 80mAh cylindrical lithium-ion cell adopts large-scale production for stable quality and high cost performance. Tailored for low-power applications, it features steady discharge, reliable cycle life with standard 3.7V voltage and 80mAh capacity, perfect for small electronics, wearables and IoT sensors.

Large scale production makes the 10150 3.7V 80mAh cell become the most cost-effective power solution for miniaturized electronics. With compact dimensions and stable output, it ensures reliable performance for small wearable devices and IoT sensors, making it an ideal choice for cost-sensitive low-power applications.

Features

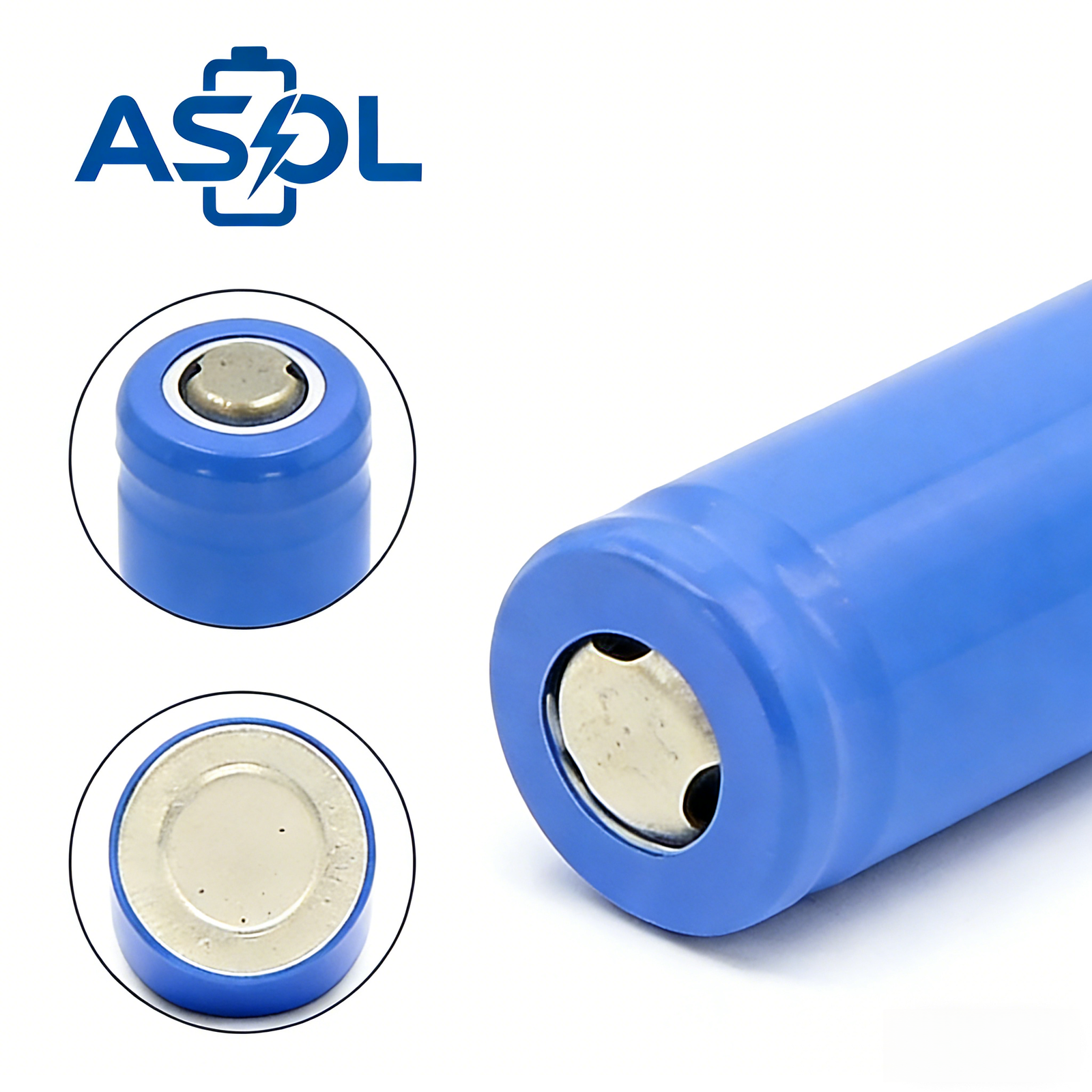

  • Compact & Robust Structure: Miniaturized 10×15mm form factor with durable metal casing, ensuring structural integrity under pressure.
  • Stable Electrical Performance: Consistent 3.7V nominal voltage output with low internal resistance, delivering reliable power for long-term use.
  • Long-lasting Reliability: Equipped with decent cycle life and low self-discharge rate, ensuring capacity retention even during standby.
  • Comprehensive Safety: Integrated basic safety protections against overcharge and overdischarge, ensuring safe operation.
  • Wide Compatibility: Suitable for various low-power electronic devices, meeting the energy supply needs of compact applications.

Applications

Ideal for small, battery-powered devices including:
  • Smart wearables (e.g., small earbuds, fitness trackers)
  • IoT sensors and wireless modules
  • Portable medical devices
  • Miniature electronic toys and gifts
  • Custom battery packs for low-power IoT solutions

Characteristics

Item Condition / Note Specification
Nominal Capacity 0.2C Discharge Capacity 80mAh
Nominal Voltage 3.7V
AC Impedance At AC 1000Hz ≤ 80mΩ

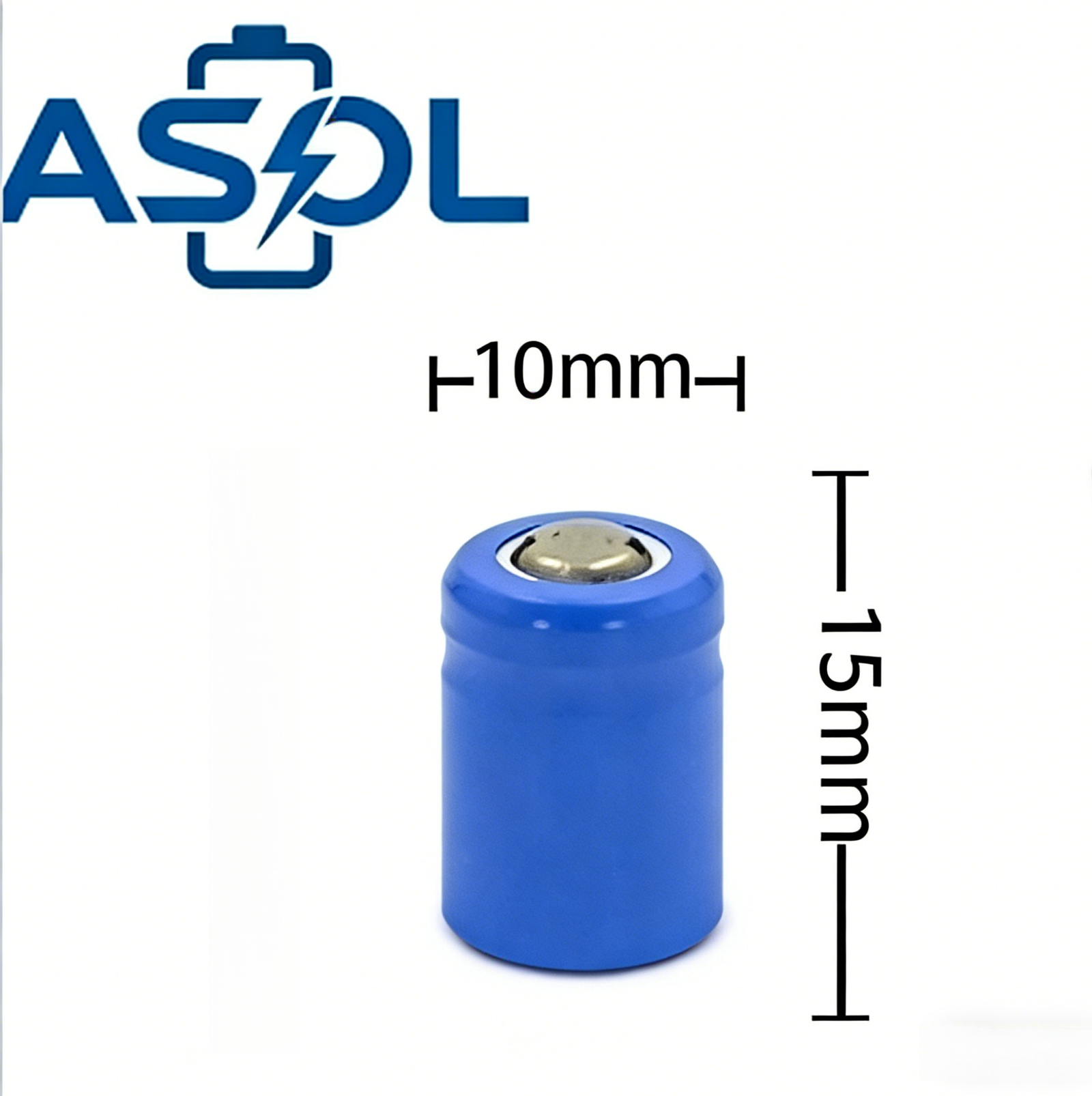

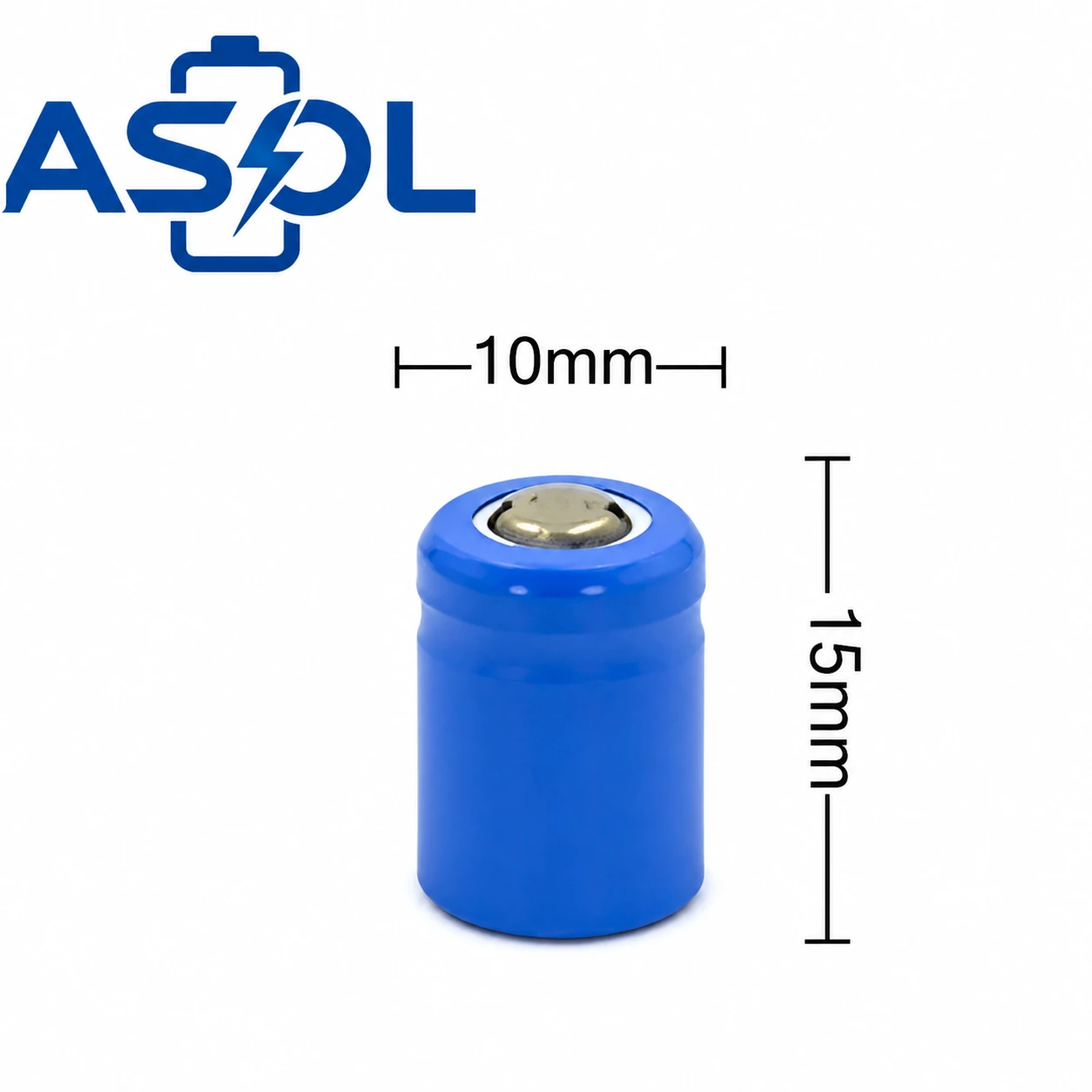

Cell Size Cell Diameter 10.0 ± 0.1mm
Cell Height 15.0 ± 0.2mm
Cell Weight Approx. 2.5±0.3g
End-of-charge Voltage CC/CV Mode 4.2V
End-of-charge Current CV mode 0.01C
Charging Method Standard Charging ≤ 0.5C at CC/CV
End-of-discharge Voltage CC Mode 2.75V
Max continuous Discharging Current 40mA (0.5C)
Max Pulse Discharging Current 3s Pulse 80mA (1C)
Cycle Life 0.2C / 100% DOD ≥ 300 cycles
Operating Temperature Range Charging Temperature 0~45℃
Discharging Temperature -20~60℃
Storage Temperature -10~35℃
