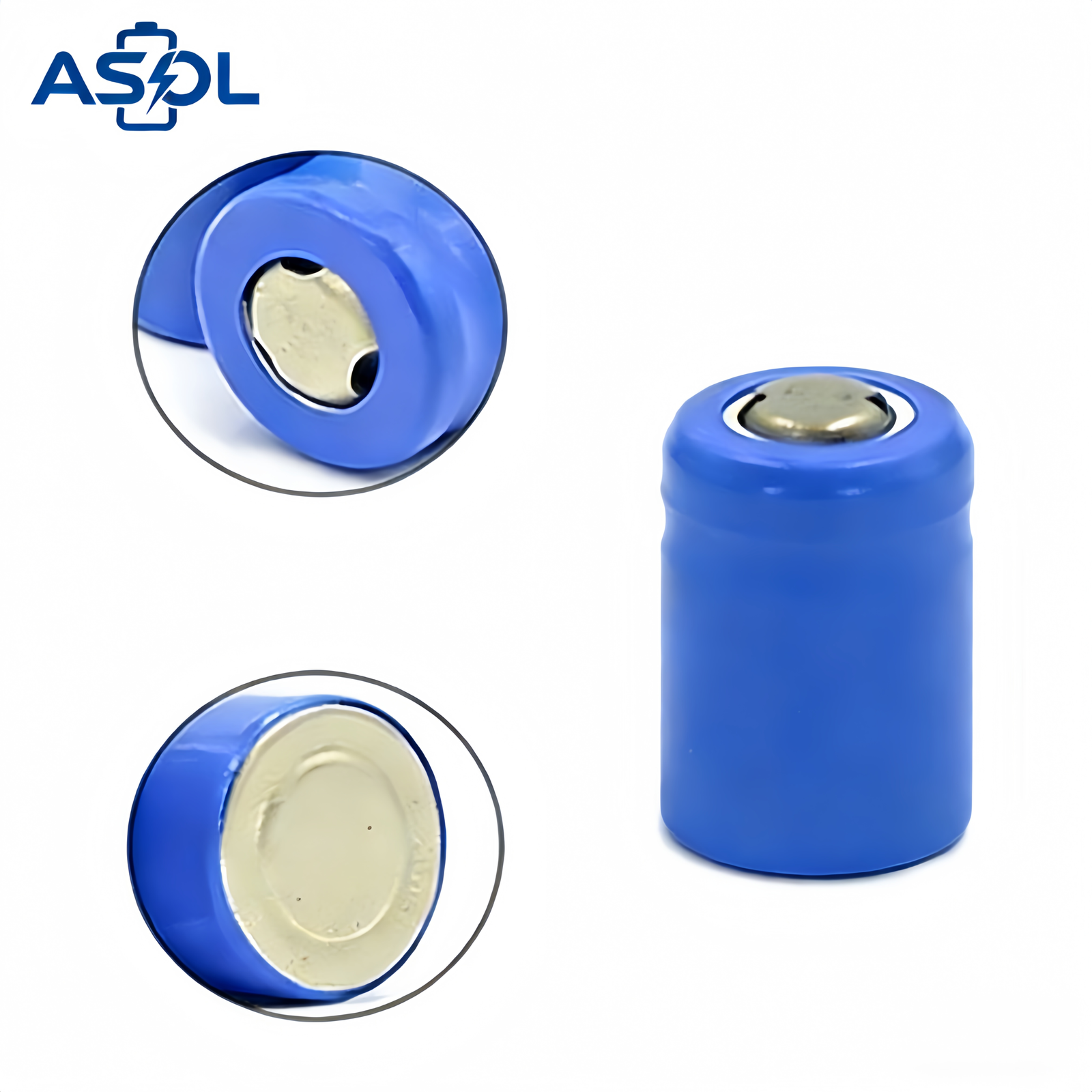

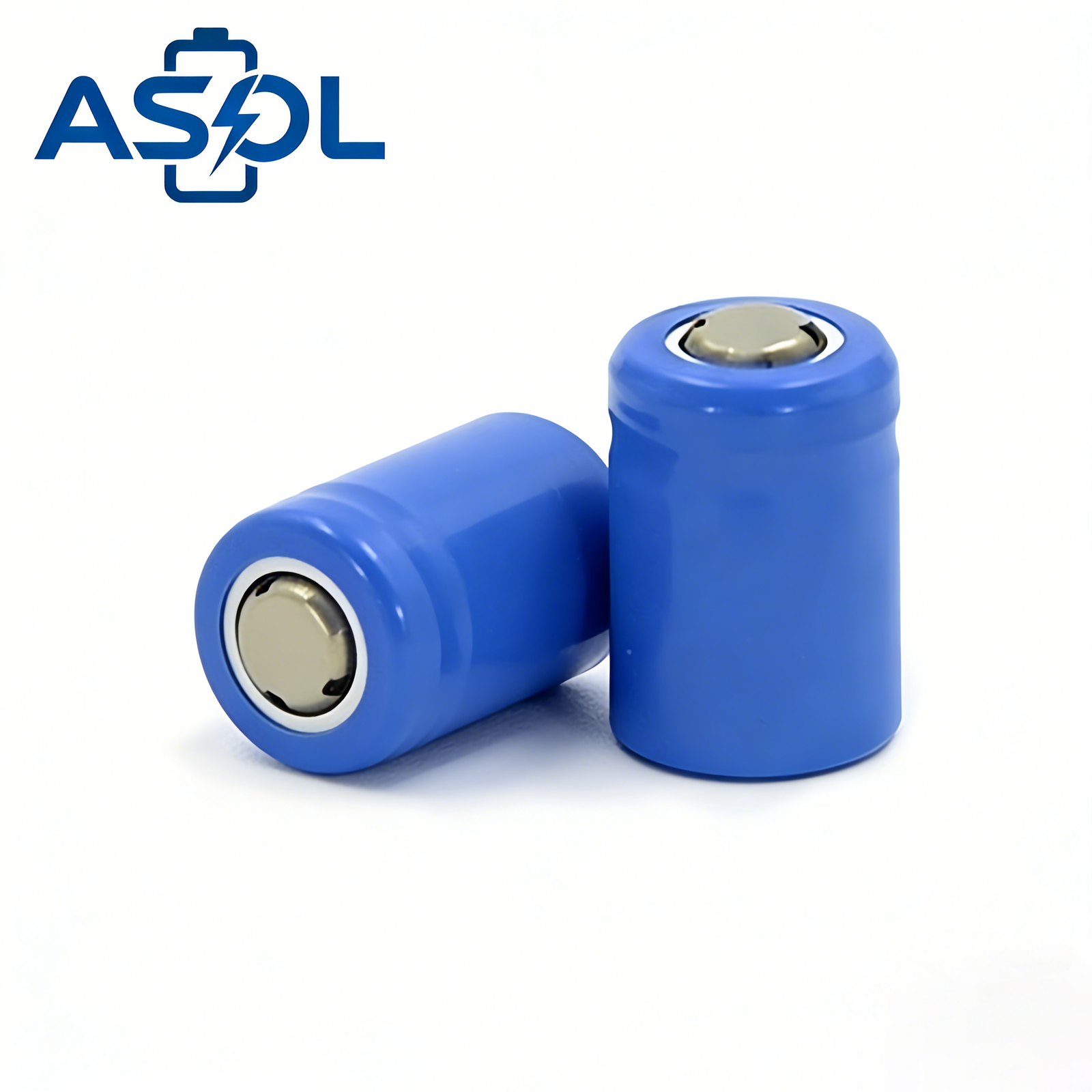

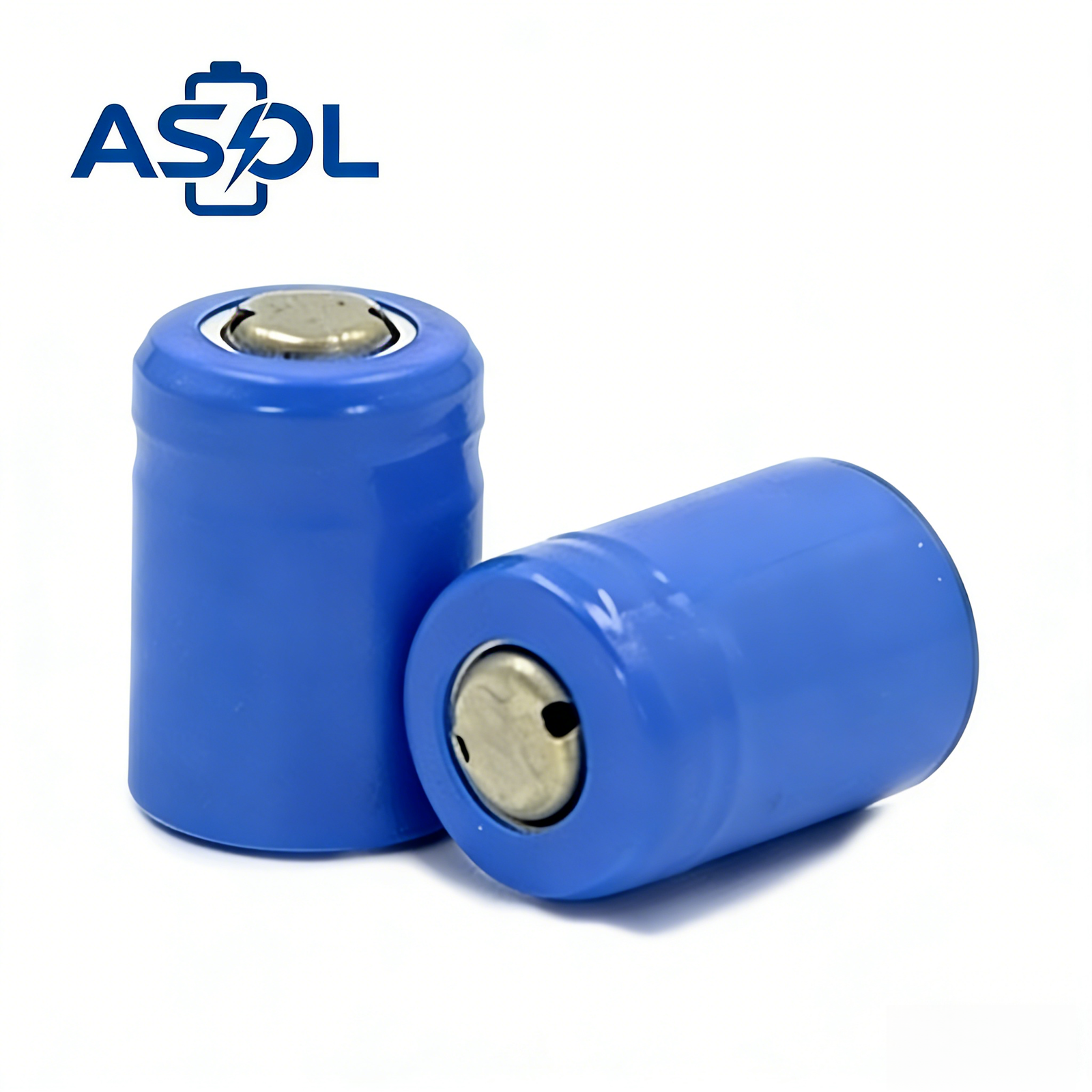

The ASOL 10180 is a compact 3.7V 120mAh cylindrical Li-ion battery cell for Bluetooth earphones, IoT sensors and small wearable devices. The 10 x 18 mm format supports slim enclosures while delivering steady voltage, reliable cycle life and OEM/ODM options for wire leads, connector type, PCM protection and labeling.
Features
- Compact 10×18mm cylindrical design with durable metal casing, suitable for small-sized applications
- Stable 3.7V nominal voltage with low internal resistance for consistent power output
- Reliable cycle life of 300-500 cycles under standard conditions (≥80% capacity retention)
- Low self-discharge rate to maintain performance during long-term storage
- Excellent temperature adaptability for both charging and discharging scenarios
- Built-in basic safety protection against overcharge, overdischarge, and short circuit
Applications
Where the 10180 is used
Powers TWS earbuds & charging cases in a tiny 10×18mm can.
Miniature wireless modules with low self-discharge for long standby.
Compact 0.44Wh cell for lightweight wrist & body devices.
Stable output for portable, low-power medical equipment.
Characteristics
| Parameter | Specification |
|---|---|
| Nominal Capacity | 120mAh |
| Nominal Voltage | 3.7V |
| AC Impedance | ≥180mΩ |
| Cell Diameter | 10.0 ± 0.1mm |
| Cell Height | 18.0 ± 0.2mm |
| Cell Weight | ~2.2-2.3g |
| End-of-charge Voltage | 4.2V |
| Charging Method | ≥0.5C (60mA) at CC/CV |
| End-of-discharge Voltage | 3.0V |
| Max. Continuous Discharge Current | 0.2C (24mA) / 0.25C (30mA) |
| Max. Pulse Discharge Current | 0.5C (60mA) |
| Cycle Life | 300-500 cycles (≥80% capacity) |
| Charging | 0°C ~ 45°C |
| Discharging | -20°C ~ 60°C |
| Storage | -10°C ~ 35°C |
Frequently Asked Questions
What are the key specifications of the ASOL 10180 3.7V 120mAh Lithium-ion Battery Cell?
The ASOL 10180 3.7V 120mAh Lithium-ion Battery Cell is a 3.7V 120mAh lithium battery, weighing ~2.2-2.3g.
How many charge cycles does the ASOL 10180 3.7V 120mAh Lithium-ion Battery Cell last?
The ASOL 10180 3.7V 120mAh Lithium-ion Battery Cell is rated for 300-500 cycles, retaining strong capacity across its service life.
Does ASOL offer OEM/ODM customization for the ASOL 10180 3.7V 120mAh Lithium-ion Battery Cell?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 10180 3.7V 120mAh Lithium-ion Battery Cell?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
