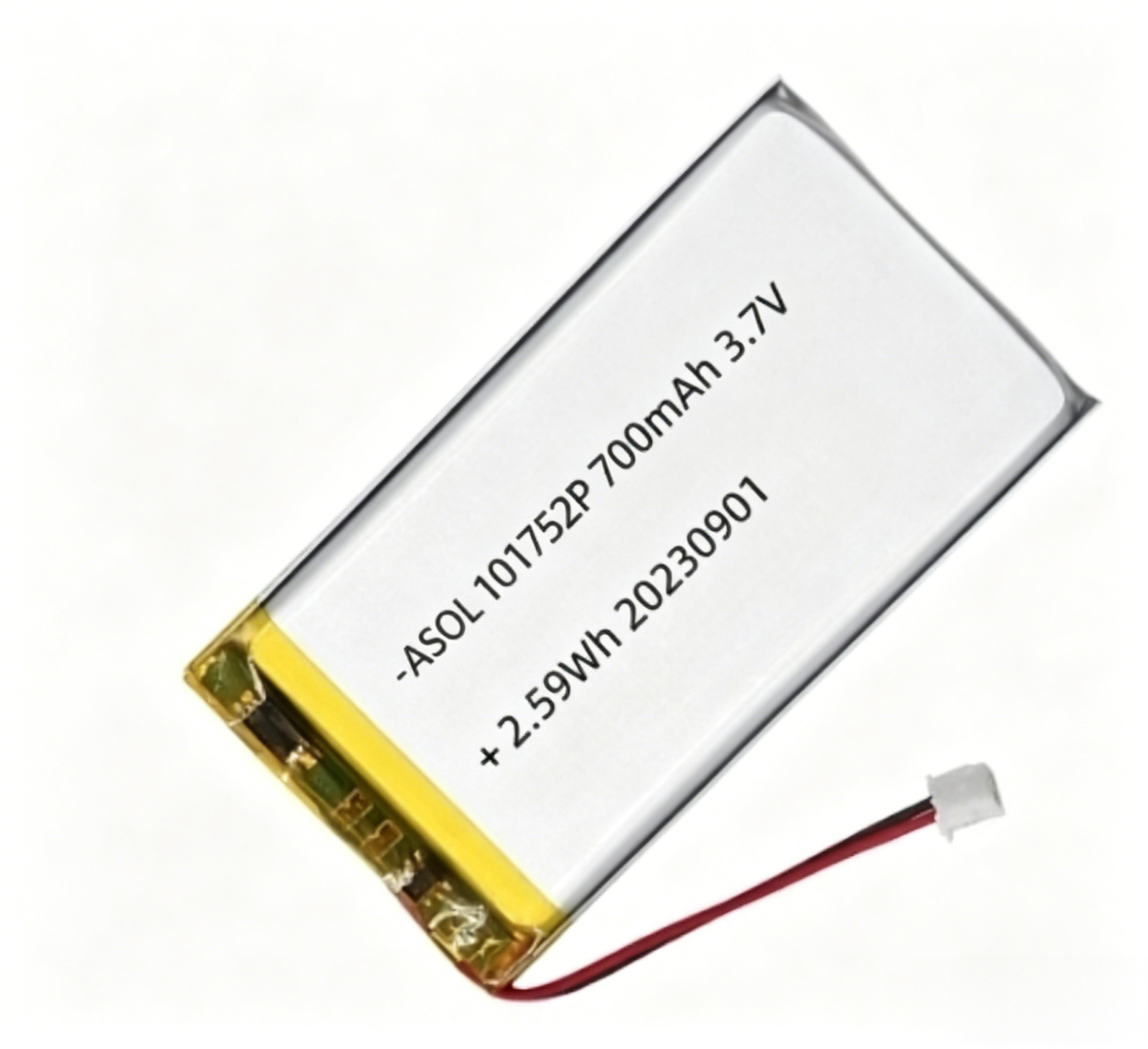

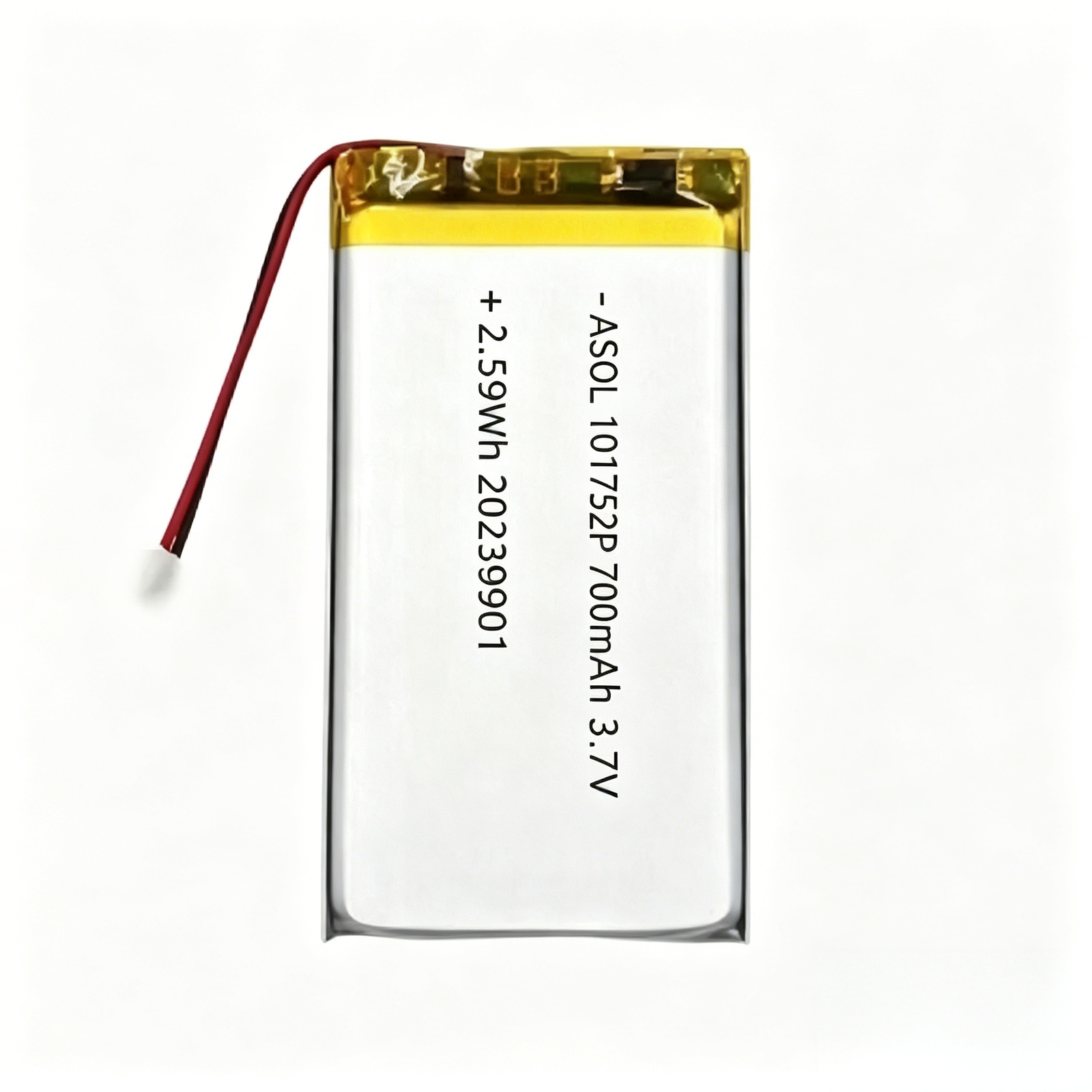

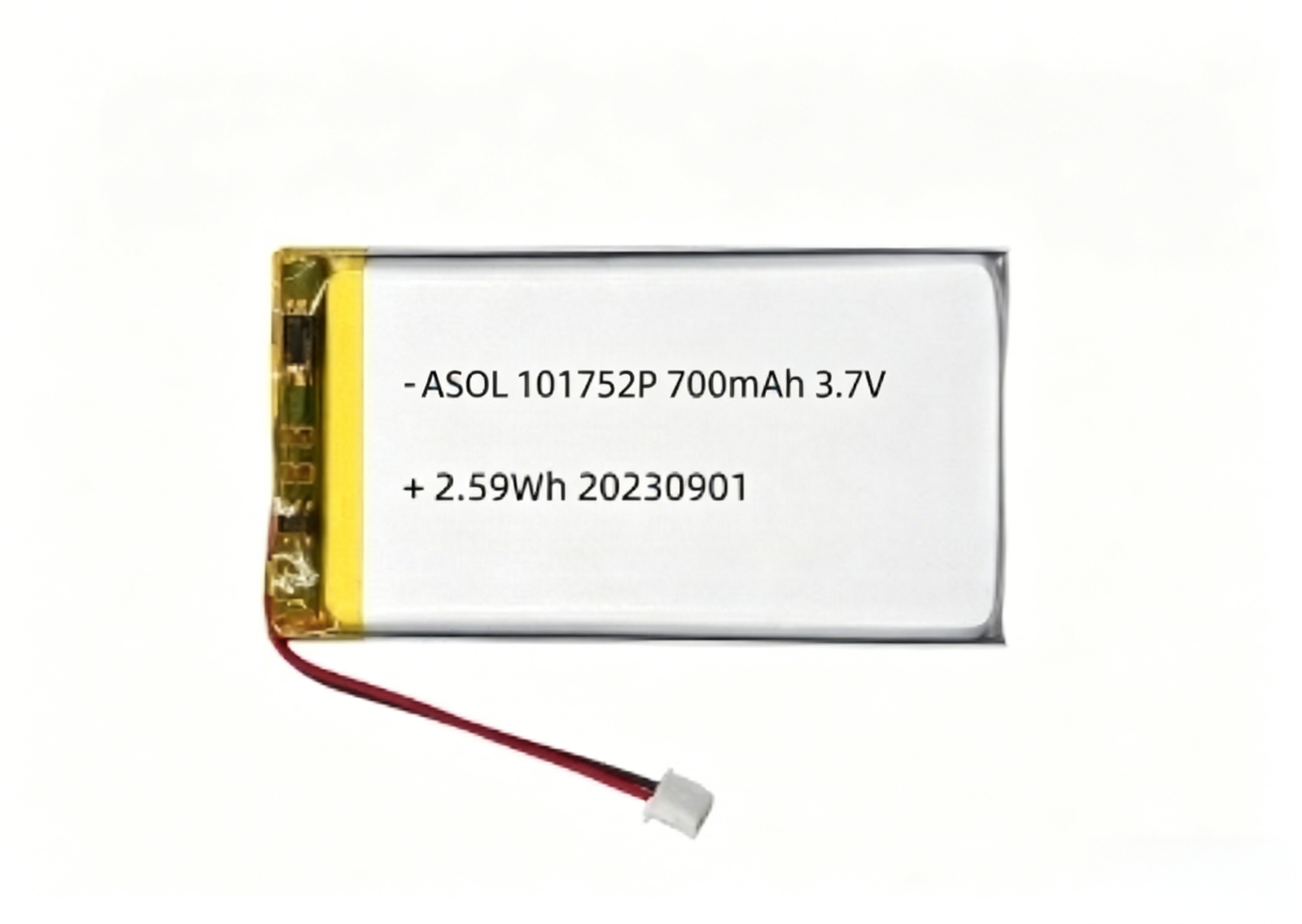

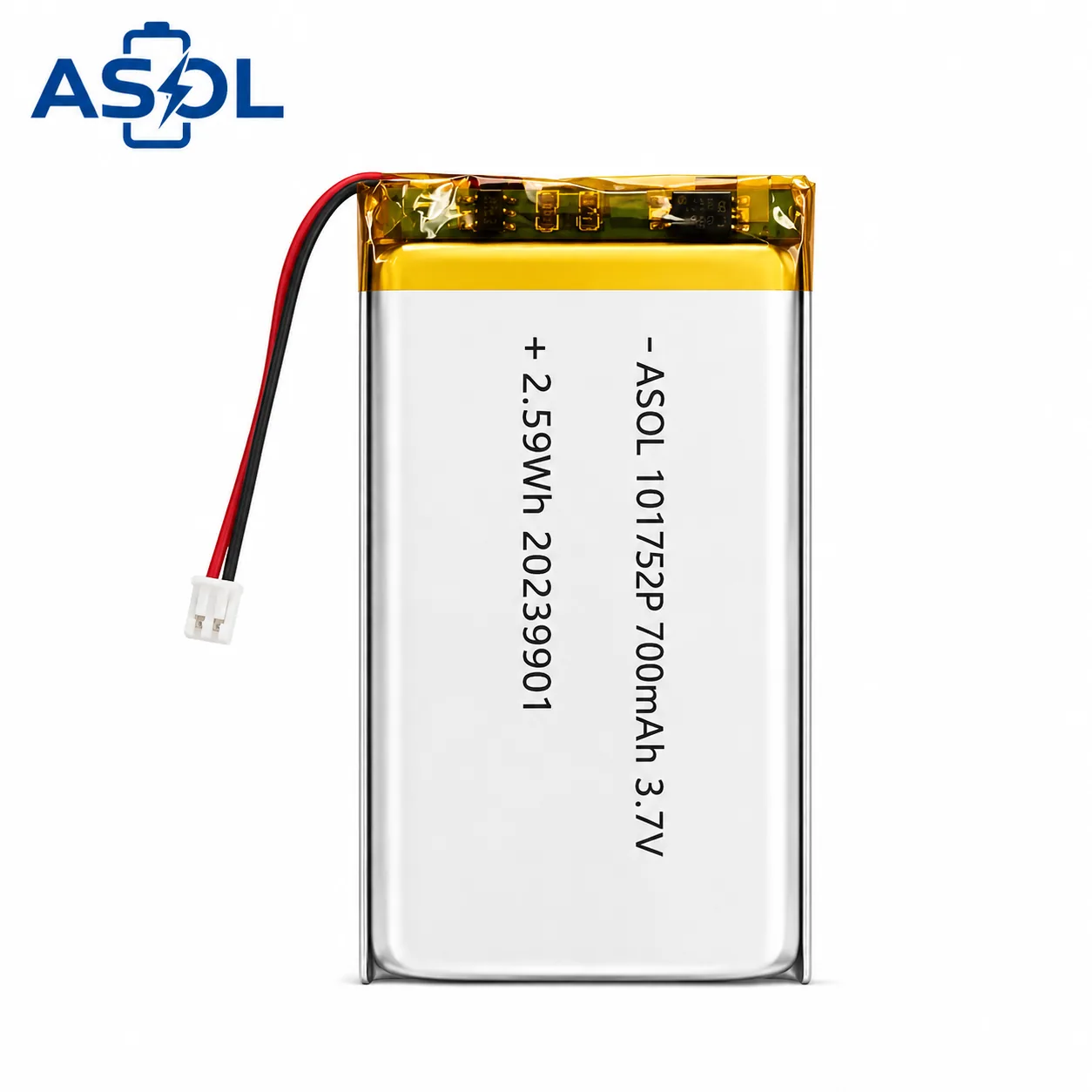

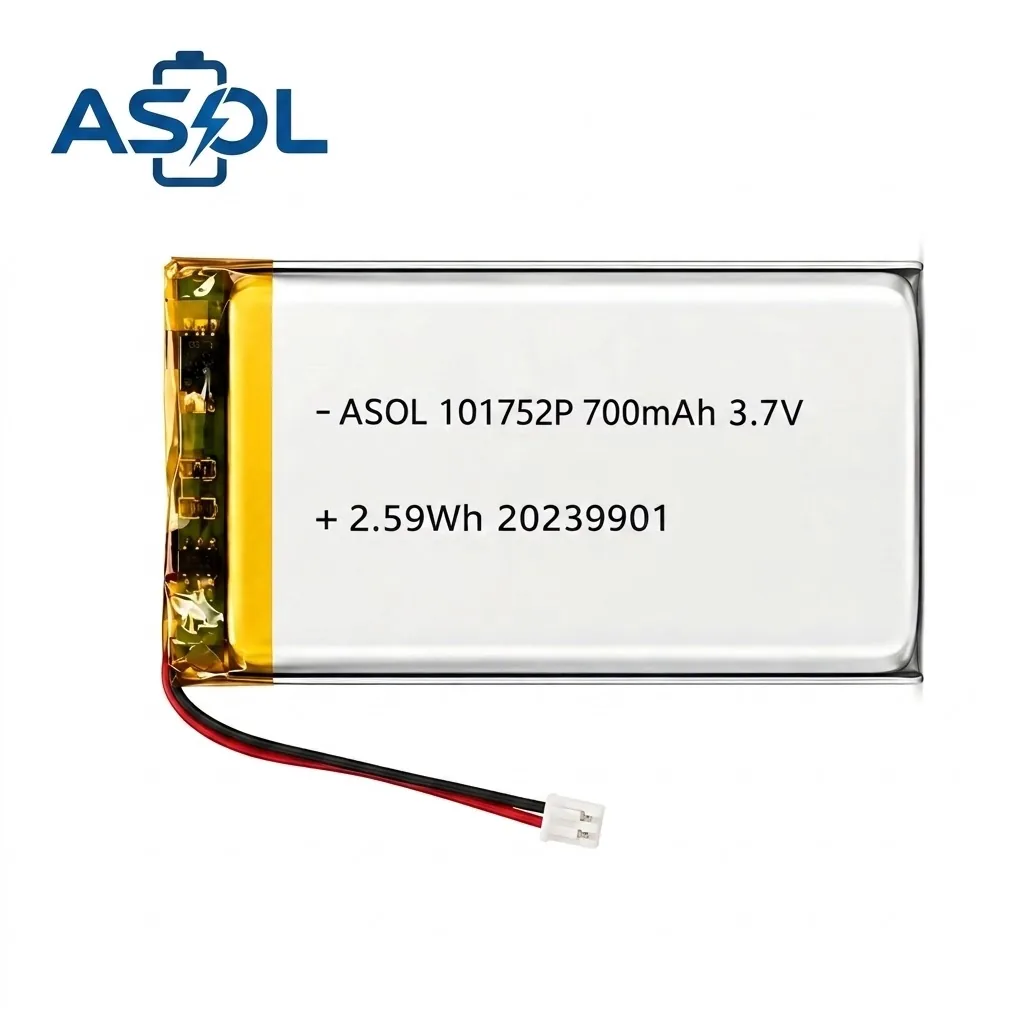

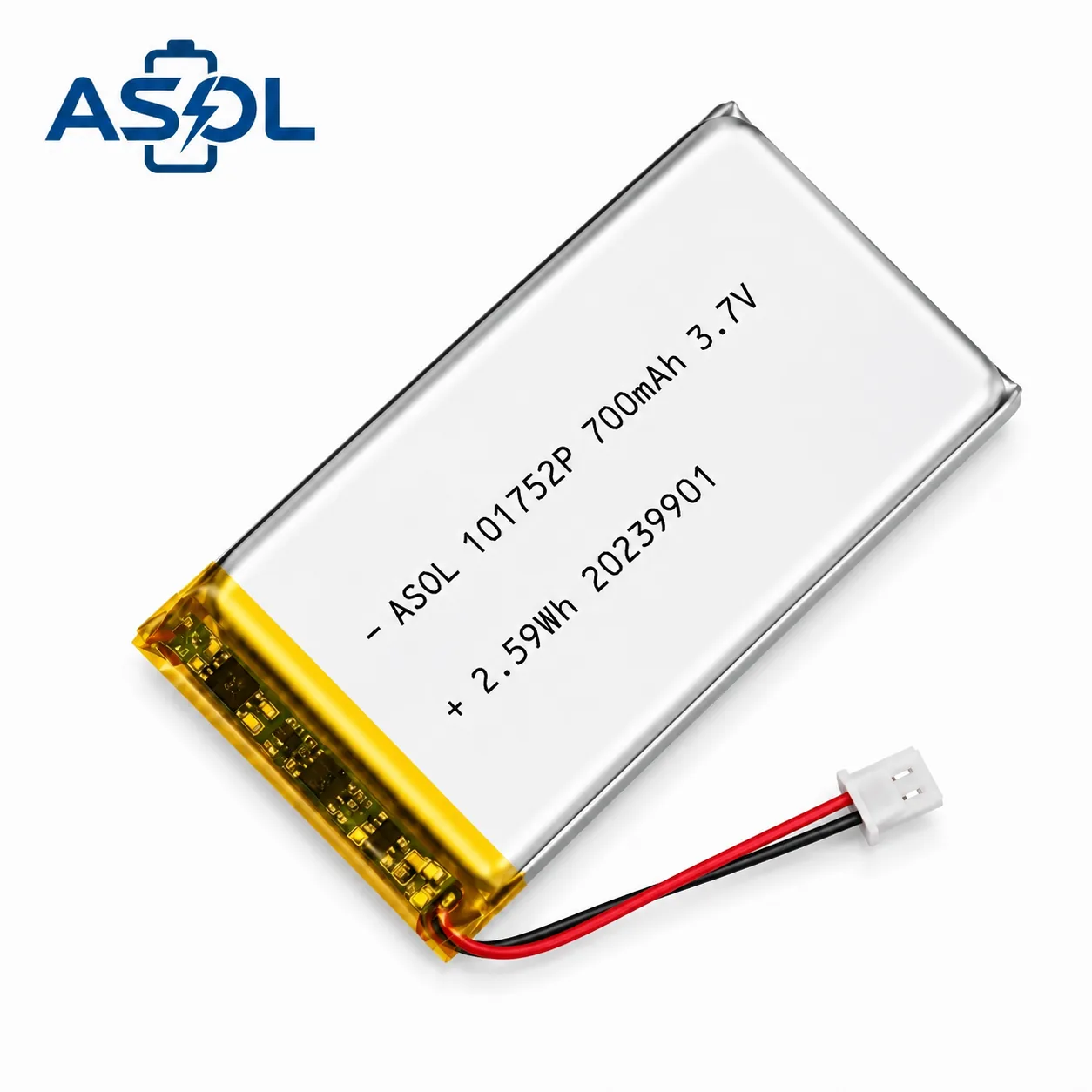

ASOL 101752P Lithium Polymer Battery — A high-rate 700mAh soft-pack Lithium Polymer delivering 2.59Wh energy with a 10C maximum discharge rate (7000mA peak). Built-in PCM protection and a compact 10×17.5×27mm form factor make it suitable for FPV micro drones, mini quadcopters, RC helicopters, indoor drones, educational robots, DIY electronics projects, and small GPS/asset trackers.
Why 10C vs Standard 1C — FPV Drone Discharge Comparison
| Battery Type | Max Discharge | FPV Suitability | Verdict |
|---|---|---|---|
| Standard 1C Lithium Polymer | 700mA | Too weak | Cannot sustain motor RPM |
| Mid-Rate 3C Lithium Polymer | 2100mA | Marginal | Voltage sag on hard maneuvers |
| 101752P — 10C | 7000mA | Perfect | Instant throttle response |
| High-End 15C Lithium Polymer | 10500mA | ✓Excellent | Overkill for micro builds |
FPV drone and RC helicopter motors draw 5~20A during hard maneuvers. Standard batteries can’t deliver this. The 101752P’s 10C (7000mA) hits the sweet spot for micro FPV, RC helicopters, and indoor drones — enough burst current for aggressive flight without the weight and cost of 15C+ batteries.
Why Lithium Polymer for FPV & RC?
- 10C Real Discharge Rate — No voltage sag under hard throttle; instant motor response for FPV drones and RC helicopters
- Compact 10×17.5×27mm — Fits micro whoop frames, tight battery bays, and small robot chassis; leaves room for 2S builds
- 700mAh for Micro Builds — Actual runtime depends on the device load, discharge profile and operating conditions
- PCM Protection — Over-charge, over-discharge, and over-current protection built in — safe for students and hobbyists
- Aluminum-Laminated Pouch — Lightweight yet durable — ideal for crash-prone FPV and indoor drone use
- 500+ Cycles — Reliable for repeated race sessions, classroom use, and DIY project prototyping
- Compliance & Documentation — UN38.3 transport test status
- OEM-Friendly — JST PH 2.0 connector available. Final connector type, polarity and electrical compatibility should be confirmed against the target device before production.
Key Features
Compact power for micro flight
Delivers the punch FPV drones and RC helicopters need.
Actual runtime depends on the device load, discharge profile and operating conditions.
Fits whoop frames, heli fuselages, robots, and trackers.
Over-charge, over-discharge, and over-current protection built in.
Reliable for repeated races, classrooms, and DIY prototyping.
~18g minimizes total drone and robot weight.
UN38.3 transport test status and documentation.
JST PH 2.0 connector available; confirm connector type, polarity and electrical compatibility before production.
Specifications
| Parameter | Value |
|---|---|
| Model | 101752P |
| Chemistry | Lithium Polymer (Lithium Polymer) Soft Pack |
| Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.2V |
| Discharge Cut-off | 3.0V |
| Nominal Capacity | 700mAh |
| Nominal Energy | 2.59Wh |
| Max Discharge Rate | 10C (7000mA) |
| Max Charge Rate | 1C (700mA) |
| Standard Charge | 0.2C (140mA) |
| Dimensions (T×W×H) | 10×17.5×27mm (±0.5mm) |
| Weight (Approx.) | ~18g |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Cycle Life | ≥500 cycles (80% capacity retention) |
| Shell Material | Aluminum-Laminated Film |
| Connector | JST PH 2.0 / Customizable |
| Built-in Protection | PCM (over-charge, over-discharge, over-current) |
| Certifications | UN38.3 |
Applications
Where the 101752P is used
10C burst capability supports compact FPV applications. Runtime depends on the target device, operating load, duty cycle, system efficiency, environmental conditions and system configuration, and should be verified in the actual application.
Burst current drives micro rotor motors in narrow bays.
10C power for obstacle racing and tight-space maneuvering.
Powers STEM kits & servos via JST PH 2.0 connector.
2.59Wh runs prototypes, wearables, and IoT sensor nodes.
Runtime depends on reporting frequency, device load and operating conditions.
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
The protection configuration is confirmed against the selected battery and application requirements.
Inspection requirements and acceptance criteria are confirmed according to the product configuration and project requirements.
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Inspection requirements and acceptance criteria are confirmed for each project before order release.
UN38.3 Class 9 air & sea · Shipping arrangements and delivery terms are confirmed according to destination and project requirements.
Project Quotation
Pricing, minimum order quantity, sample availability and lead time are confirmed after the battery configuration, required quantity and destination requirements have been reviewed.
Frequently Asked Questions
What are the key specifications of the ASOL 101752P 3.7V 700mAh Lithium Polymer Battery Cell?
The ASOL 101752P 3.7V 700mAh Lithium Polymer Battery Cell is a 3.7V 700mAh lithium battery, measuring 10×17.5×27mm, weighing ~18g.
What connector does the ASOL 101752P 3.7V 700mAh Lithium Polymer Battery Cell use?
It ships pre-wired with a JST PH 2.0 connector. ASOL can customize the connector type, wire length, and labeling to match your device.
How many charge cycles does the ASOL 101752P 3.7V 700mAh Lithium Polymer Battery Cell last?
The ASOL 101752P 3.7V 700mAh Lithium Polymer Battery Cell is rated for ≥500 cycles, retaining strong capacity across its service life.
What safety certifications does the ASOL 101752P 3.7V 700mAh Lithium Polymer Battery Cell have?
It is certified to UN38.3, and full test reports can be provided on request.
Does ASOL offer OEM/ODM customization for the ASOL 101752P 3.7V 700mAh Lithium Polymer Battery Cell?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 101752P 3.7V 700mAh Lithium Polymer Battery Cell?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
Contact Us
| Channel | Information |
|---|---|
| info@asolbattery.com | |
| +86 157 7985 8703 | |
| Website | www.asolbattery.com |
| Response Time | Within 24 hours on working days |
Need a different size or capacity? Explore ASOL’s full lithium polymer battery range →
