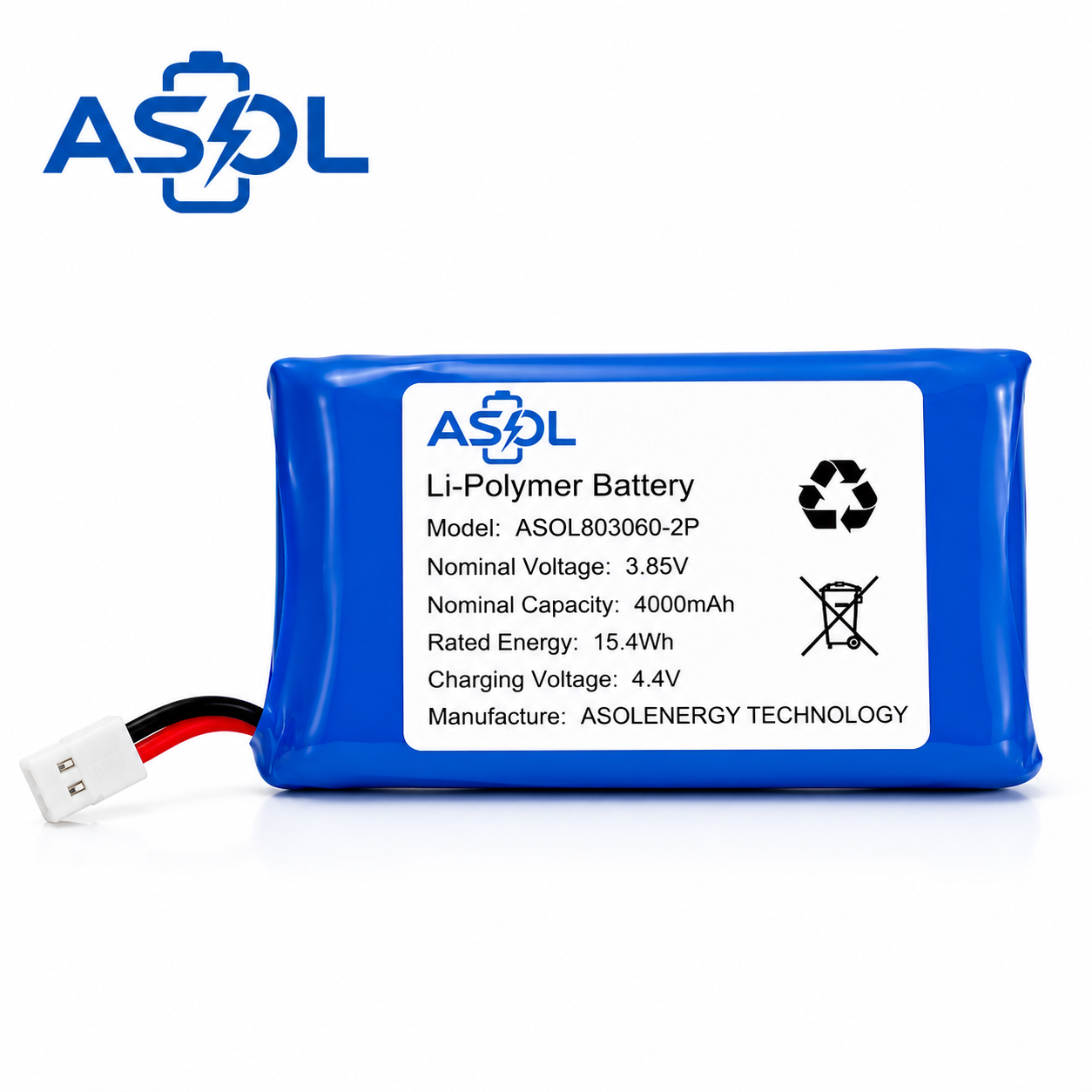

The ASOL803060-2P is a premium LiHV (High Voltage) Li-Polymer battery pack using two 803060 Soft Pouch Cells in 1S2P parallel configuration, delivering a nominal 3.85V voltage and 4000mAh capacity (15.4Wh). The 803060 LiHV cell format (8.0mm thick × 30mm wide × 60mm long) provides an outstanding balance of high energy density, slim profile, and flexible form factor — making it the preferred single-cell power solution for compact electronics and micro RC models where space is tight and extended runtime matters.
Unlike standard 3.7V Li-Po cells, the LiHV chemistry operates at a higher nominal voltage (3.85V vs 3.7V) and accepts charging up to 4.4V, providing approximately 4% more usable energy density for the same physical cell size. This makes the 803060-2P an excellent upgrade for any device designed around a single-cell lithium battery where every extra minute of runtime counts — from handheld POS terminals and portable thermal printers to handheld gaming consoles and industrial barcode scanners.
Each pack incorporates a built-in PCM protection circuit guarding against overcharge, over-discharge, overcurrent, and short circuit. Every unit is manufactured at our quality-controlled facility and passes 100% outgoing QC: open-circuit voltage verification, capacity discharge testing, and protection circuit function check before shipment. Defect rate is controlled below 0.3%.
Technical Specifications
| Parameter | Value |
|---|---|
| Chemistry | Li-Polymer (LiHV – High Voltage, Soft Pouch Cell, 803060 format) |
| Model | ASOL803060-2P |
| Configuration | 1S2P (1 Series, 2 Parallel) |
| Nominal Voltage | 3.85V |
| Nominal Capacity | 4000mAh |
| Rated Energy | 15.4Wh |
| Charging Voltage | 4.4V (LiHV standard) |
| Discharge Cut-off | 3.0V |
| Max Continuous Discharge | 1C-2C (4A-8A typical, customizable) |
| Protection Circuit | PCM: overcharge / over-discharge / overcurrent / short circuit |
| Standard Connector | JST-PH (custom: JST-XH, Molex, JST-SM, XT30, GH1.25, etc.) |
| Cycle Life | ≥500 cycles @ 80% capacity retention (0.5C, 25°C) |
| Operating Temperature | 0°C to +60°C (charge: 0°C to +45°C) |
| Storage Temperature | 0°C to +45°C (store at 50-80% SOC for long life) |
| Cell Dimensions | 8.0 × 30 × 60 mm (T × W × L per cell) |
| Approx. Pack Dimensions | ~16mm × 30mm × 60mm (T × W × L, excluding wires) |
| Approx. Weight | 65-75g |
| Certifications | CE, RoHS, UN38.3, MSDS |
| Manufacturer | ASOLENERGY TECHNOLOGY (Dongguan, China) |
Available Connector Options
| Connector | Description | Best For |
|---|---|---|
| JST-PH (Default) | 2.0mm pitch | Consumer electronics, drones |
| JST-XH | 2.54mm pitch | Balance charging, general purpose |
| Molex | 51005/51006 | Consumer electronics, IoT |
| JST-SM | 2.54mm | Micro connectors |
| XT30 | High current gold bullet | Micro drones, RC |
| GH1.25 | Ultra micro | Ultra-compact devices |
| Custom | Your specification | OEM/ODM projects (MOQ applies) |
Applications
Where the 803060 2P is used
All-day 3.85V power for mobile payment & smart POS devices.
4000mAh for hours of Bluetooth receipt & label printing.
Slim 16mm pouch fuels long retro-console gameplay.
Stable shifts for barcode, RFID & data-collection terminals.
High-density power for portable speakers & media players.
Why Choose the 803060-2P LiHV Over Alternatives?
For compact electronics and micro RC models, the choice of battery format directly impacts device size, weight, and runtime. Here is a side-by-side comparison:
| Feature | 803060-2P LiHV (This Product) | 18650 Single Cell | Standard 3.7V 1S Li-Po |
|---|---|---|---|
| Nominal Voltage | 3.85V (LiHV, higher) | 3.7V | 3.7V |
| Capacity | 4000mAh | 2000-3500mAh | 2000-3000mAh |
| Energy | 15.4Wh | 7.4-12.95Wh | 7.4-11.1Wh |
| Cell Form Factor | Soft Pouch Cell (ultra-thin) | Cylindrical (18mm dia) | Soft Pouch Cell |
| Charging Voltage | 4.4V | 4.2V | 4.2V |
| Typical Pack Thickness | ~16mm | 18mm | Varies |
| Shape Flexibility | Flat, conformable | Rigid cylinder | Flat, conformable |
| Weight | ~65-75g | 45-60g | Varies |
| Best For | High-capacity compact devices | Standard tube-style housings | General compact devices |
Choose 803060-2P LiHV when: Maximum single-cell capacity in a slim, flat form factor is critical — ideal for handheld POS terminals, portable thermal printers, handheld gaming devices, and portable consumer electronics where runtime is the top priority.
Choose 18650 when: Your device uses standard cylindrical cell holders and the 18mm diameter form factor is not a constraint.
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
Integrated PCB against overcharge, over-discharge, overcurrent & short circuit.
Grade-A cells, voltage-matched ±10mV for stable, reliable performance.
Custom prototype samples in 5–7 business days before volume production.
Every unit tested for OCV, capacity & protection. Defect rate <0.3%.
UN38.3 Class 9 air & sea · DHL/FedEx/UPS · EXW/FOB/CIF/DDP.
Packaging & Shipping
| Item | Details |
|---|---|
| Individual Packaging | Anti-static bag + bubble wrap + carton |
| Inner Box | 20 pcs / inner box (customizable) |
| Carton | 100 pcs / carton (customizable) |
| Shipping Options | Express (DHL / FedEx / UPS), Air freight, Sea freight |
| Shipping Terms | EXW, FOB, CIF, DDP available |
| Dangerous Goods | UN38.3 certified — compliant for air and sea transport (Class 9) |
| Lead Time (Samples) | 3–5 business days after payment |
| Lead Time (Bulk) | 15-25 business days after sample confirmation |
| Payment Terms | T/T, PayPal, Western Union |
Frequently Asked Questions
What devices is the ASOL803060-2P battery suitable for?
The ASOL803060-2P is ideal for handheld POS terminals, portable thermal printers, handheld gaming devices, industrial handheld devices (barcode scanners, RFID readers, data collection terminals), and portable consumer electronics. Its 3.85V LiHV output and 4000mAh capacity make it a versatile single-cell power solution for compact commercial and consumer devices.
Is this a standard LiPo or high-voltage LiHV battery?
The ASOL803060-2P is a LiHV (High Voltage) Li-Polymer battery with a nominal voltage of 3.85V and a charging voltage of 4.4V. This provides approximately 4% more energy density compared to standard 3.7V Li-Po cells.
What is the cell configuration of the 803060-2P?
The configuration is 1S2P — one cell in series with two cells in parallel. This means it operates at a single-cell voltage (3.85V) while delivering 4000mAh capacity from two parallel 803060 cells.
What connectors are available for this battery?
We offer JST-PH, JST-XH, Molex, JST-SM, XT30, GH1.25, and custom connector options. We can match any standard or proprietary connector for your product.
Can I customize the battery with my own label and connector?
Yes. We provide full OEM/ODM services including custom labels, connectors, wire lengths, and protective cases. MOQ applies for fully custom designs.
What is the defect rate of ASOL batteries?
Our factory defect rate is controlled below 0.3%, supported by pre-shipment testing and applicable CE, RoHS, UN38.3 compliance materials and MSDS documentation.
How long does shipping take for international orders?
Sample orders ship within 3–5 business days. Bulk production lead time is 15-25 business days. We support express (DHL/FedEx/UPS), air freight, and sea freight.
Get a Factory-Direct Quote
Whether you need 50 pcs for a pilot run or 10,000+ pcs for mass production, ASOL delivers competitive factory-direct pricing with reliable quality and fast turnaround.
| Contact | Details |
|---|---|
| info@asolbattery.com | |
| +86 157 7985 8703 | |
| Website | www.asolbattery.com |
| Response Time | Within 24 hours on working days |
Sample lead time: 3–5 business days
Bulk production: 15-25 business days
Payment terms: T/T, PayPal, Western Union
Looking for a reliable 3.85V LiHV Li-Polymer battery supplier for your POS terminals, thermal printers, handheld devices, or portable electronics?
Send us your application details, required connector, target quantity, and any custom requirements — we will respond within 24 hours with a competitive factory-direct quote and sample development arrangement.
Need a different size or capacity? Explore ASOL’s full lithium polymer battery range →
