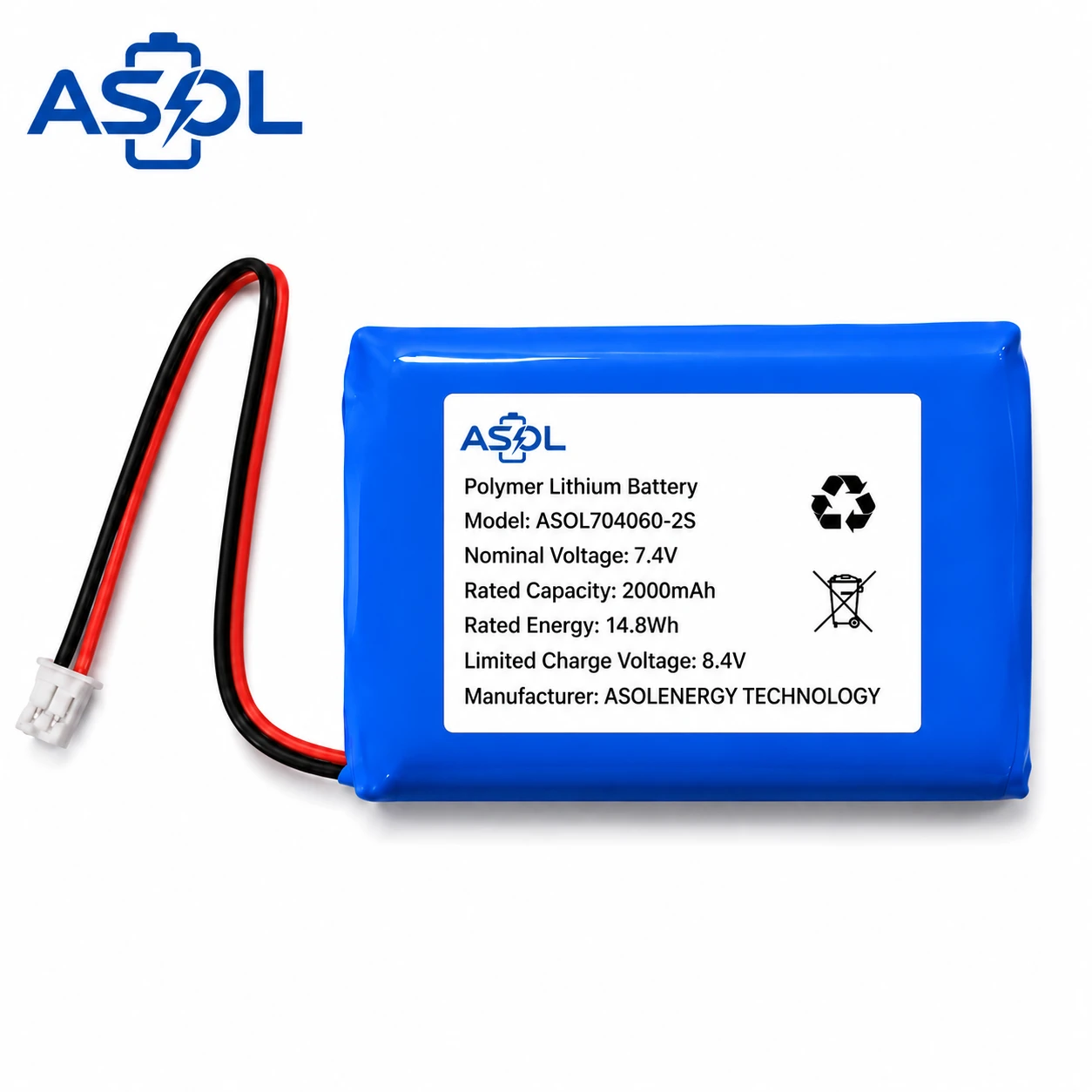

What Is the ASOL 704060-2S?
The ASOL 704060-2S is a rechargeable 2S1P lithium-ion polymer battery pack built from two 704060 soft-pouch cells connected in series. It delivers 7.4V nominal voltage, 2000mAh capacity and 14.8Wh rated energy for compact 7.4V equipment that needs a slim, lightweight battery format.
Each cell measures approximately 7 × 40 × 60mm. The finished pack is approximately 14 × 40 × 63mm, excluding custom lead length and connector. The flat construction helps product teams use enclosure space more efficiently than with cylindrical cells.
Designed for Portable Equipment
The specified 2A charge and discharge current supports controlled portable-electronics loads. Typical uses include power banks, payment terminals, portable receipt and thermal printers, barcode scanners, portable medical instruments and surveying equipment. Actual runtime depends on the load profile, duty cycle, protection design and charging settings.
Integration and Customization
The connector shown is a reference configuration. ASOL can match connector type, pinout, wire length, polarity, wire gauge, PCM/BMS protection, labeling and packaging to the finished device. For sampling or quotation, share the enclosure space, target runtime, continuous and peak current, charger details, connector drawing or photo, and target quantity.
Key Specifications
| Parameter | Specification |
|---|---|
| Model Number | ASOL 704060-2S |
| Battery Chemistry | Lithium-ion Polymer (Li-Po) |
| Cell Configuration | 2S1P lithium-ion polymer soft-pouch cells |
| Nominal Voltage | 7.4V |
| Rated Capacity | 2000mAh |
| Rated Energy | 14.8Wh |
| Cell Size | 7mm × 40mm × 60mm |
| Finished Product Dimensions | 14mm × 40mm × 63mm |
| Charge Voltage | 8.4V |
| Charging Current | 2A |
| Discharge Current | 2A |
| Charging Temperature | 0°C to +45°C |
| Discharge Temperature | -10°C to +60°C |
| Connector | Connector shown; JST, Molex, bare wire and custom connectors available |
| Protection | PCM/BMS protection available for project requirements |
| OEM / ODM Options | Connector, wire length, label, packaging and protection circuit customization |
Applications
Where the 704060-2S is used
Why ASOL
Factory-direct lithium polymer battery customization
Technical Highlights
- 7.4V nominal output — suited to two-series (2S) LiPo device designs.
- 2000mAh capacity — 14.8Wh rated energy for compact equipment runtime.
- Compact finished size — 14mm × 40mm × 63mm for embedded and portable devices.
- Charge and discharge rating — 2A charge and 2A discharge current.
- Custom connector support — JST, Molex, bare wire and customer-specified terminals available.
Packaging & Logistics
| Item | Details |
|---|---|
| Individual Package | Anti-static bag and bubble-wrap protection |
| Outer Carton | Carton size and packing quantity can be customized |
| Documentation | MSDS, UN38.3 test report and product specification support |
| MOQ | 100 pcs for standard models; custom configurations require case-by-case review |
| Lead Time | Stock models: 3–5 working days; custom models: 15–20 working days |
Frequently Asked Questions
What are the key specifications of the 704060-2S battery pack?
It is a 7.4V 2000mAh lithium polymer battery pack with 14.8Wh rated energy, 8.4V charging voltage and approximately 14mm × 40mm × 63mm finished dimensions.
What applications is the 704060-2S suitable for?
Typical applications include power banks, handheld POS terminals, portable thermal printers, barcode scanners, portable medical devices and portable surveying instruments.
Can ASOL customize the connector and wire length?
Yes. ASOL can support connector matching, wire length, polarity, wire gauge and terminal customization based on device requirements.
Can this battery include PCM or BMS protection?
PCM/BMS protection can be configured for over-charge, over-discharge, over-current and short-circuit protection according to project requirements.
How do I request a quote for the 704060-2S?
Please send your target voltage, capacity, size limit, connector type, application and estimated quantity. ASOL will review the project and recommend a suitable battery solution.
Contact Us
For product inquiries, custom specifications, sample requests and bulk pricing, ASOL typically responds within 24 hours on working days.
