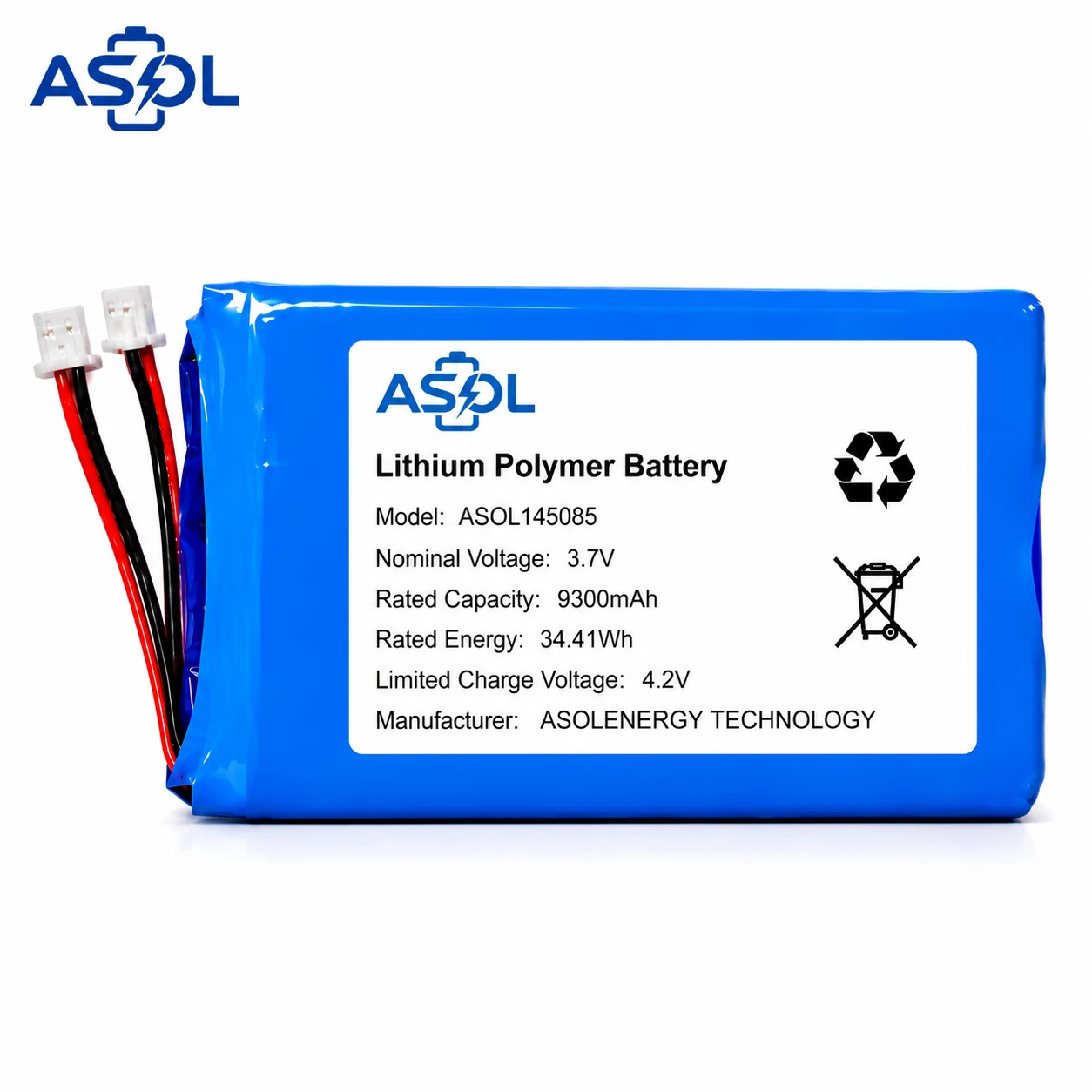

What Is the ASOL 145085?
The ASOL 145085 is a rechargeable lithium polymer battery pack for compact and medium-power OEM devices that need long runtime in a flat, space-efficient format. It combines 3.7V nominal voltage, 9300mAh rated capacity and 34.41Wh energy in a finished pack size of approximately 14 × 50 × 88mm.
The pack can be supplied with connector, wire length, polarity, PCM/BMS protection, label and packaging options to match your device layout and production requirements.
Key Specifications
| Parameter | Specification |
|---|---|
| Model Number | ASOL 145085 |
| Battery Chemistry | Lithium Polymer (Li-Po) / Li-ion Polymer |
| Nominal Voltage | 3.7V |
| Rated Capacity | 9300mAh (9.3Ah) |
| Rated Energy | 34.41Wh |
| Cell Size | 7.0mm × 50mm × 85mm |
| Finished Product Dimensions | 14mm × 50mm × 88mm |
| Charge Voltage | 4.2V |
| Charging Current | 4.6A |
| Discharge Current | 4.6A |
| Charging Temperature | 0°C to +45°C |
| Discharge Temperature | -10°C to +60°C |
| Connector | 2-pin connector shown; JST, Molex, bare wire and custom connectors available |
| Protection | PCM/BMS protection available for over-charge, over-discharge, over-current and short-circuit control |
| OEM / ODM Options | Capacity, connector, wire length, label, packaging and protection circuit customization |
Applications
Where the 145085 is used
Why ASOL
Factory-direct lithium polymer battery customization
Technical Highlights
- High-capacity 9300mAh pack — 34.41Wh energy output for longer device runtime.
- Compact finished size — approximately 14 × 50 × 88mm for embedded product designs.
- 4.6A charge and discharge rating — suitable for medium-power portable electronics and terminals.
- Wide discharge temperature range — -10°C to +60°C for outdoor and mobile equipment use.
- Custom connector support — JST, Molex, bare wire and customer-specified terminals available.
Packaging & Logistics
| Item | Details |
|---|---|
| Individual Package | Anti-static bag and bubble-wrap protection |
| Outer Carton | Carton size and packing quantity can be customized |
| Documentation | MSDS, UN38.3 test report and product specification support |
| MOQ | 100 pcs for standard models; custom configurations require case-by-case review |
| Lead Time | Stock models: 3–5 working days; custom models: 15–20 working days |
Frequently Asked Questions
What are the key specifications of the ASOL 145085 lithium polymer battery?
It is a 3.7V 9300mAh lithium polymer battery pack with 34.41Wh rated energy, 4.2V charge voltage and approximately 14 × 50 × 88mm finished dimensions.
What applications is the 145085 suitable for?
Typical applications include portable medical devices, handheld POS terminals, wireless security cameras, GPS trackers, portable printers and industrial handheld terminals.
Can ASOL customize the connector and wire length?
Yes. ASOL can support connector matching, wire length, polarity, wire gauge and terminal customization based on your device requirements.
Can this battery include PCM or BMS protection?
Yes. PCM/BMS protection can be configured for over-charge, over-discharge, over-current and short-circuit protection.
How do I request a quote for the ASOL 145085?
Please send your target voltage, capacity, size limit, connector type, application and estimated quantity. ASOL will review the project and recommend a suitable lithium polymer battery solution.
Contact Us
For product inquiries, custom specifications, sample requests and bulk pricing, ASOL typically responds within 24 hours on working days.
Need a different size or capacity? Explore ASOL’s full Lithium Polymer Battery range →
