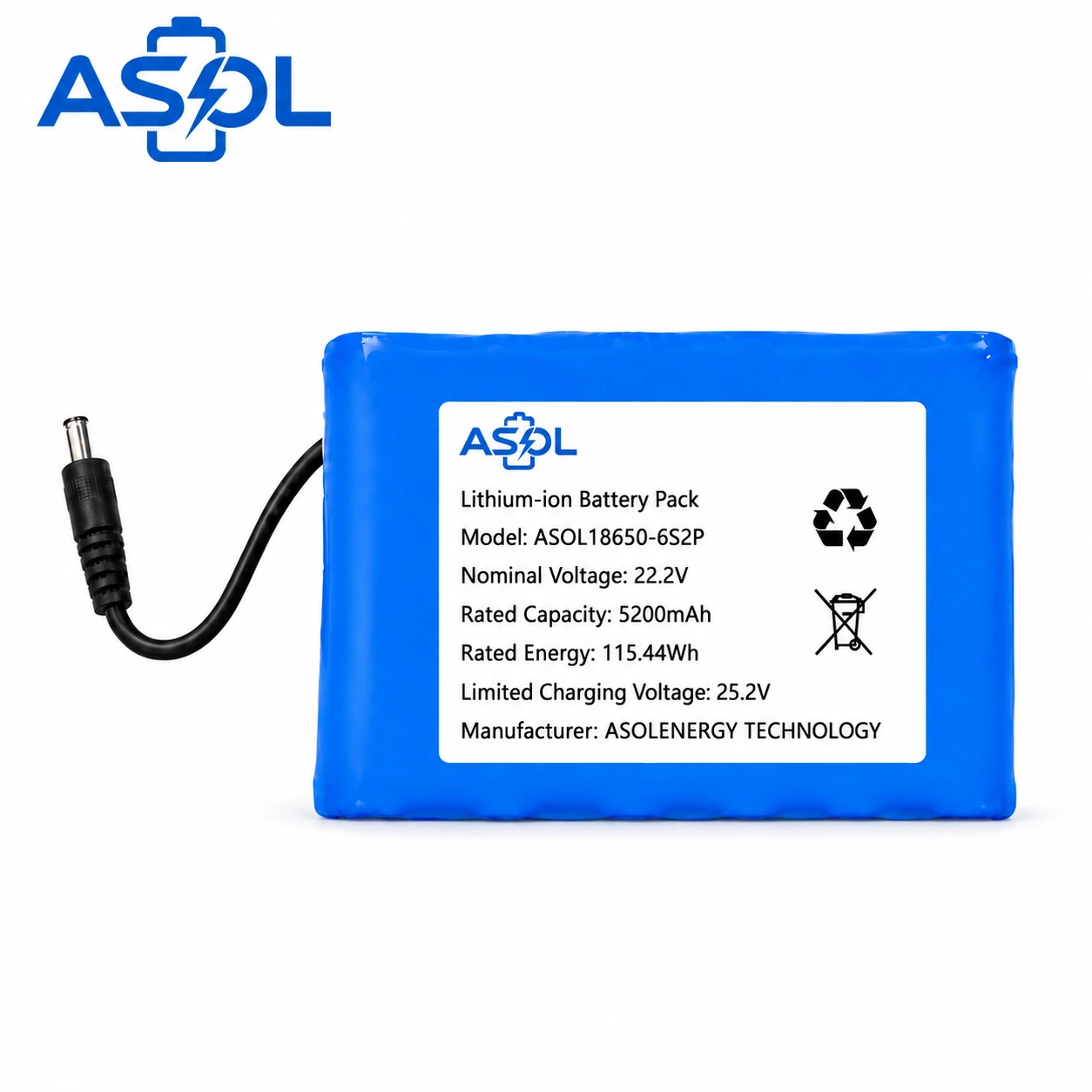

The ASOL 18650 6S2P 22.2V 5200mAh cylindrical Li-ion battery pack uses 18650 cells in a 6S2P configuration. Its documented nominal voltage is 22.2V, nominal capacity is 5200mAh, and rated energy is 115.44Wh.
The finished pack dimensions are T37 × W110 × L68mm. It uses a DC barrel connector and has documented 25.2V charging voltage with 5A charge and discharge current ratings. Confirm the device space, connector and electrical requirements before sample production.

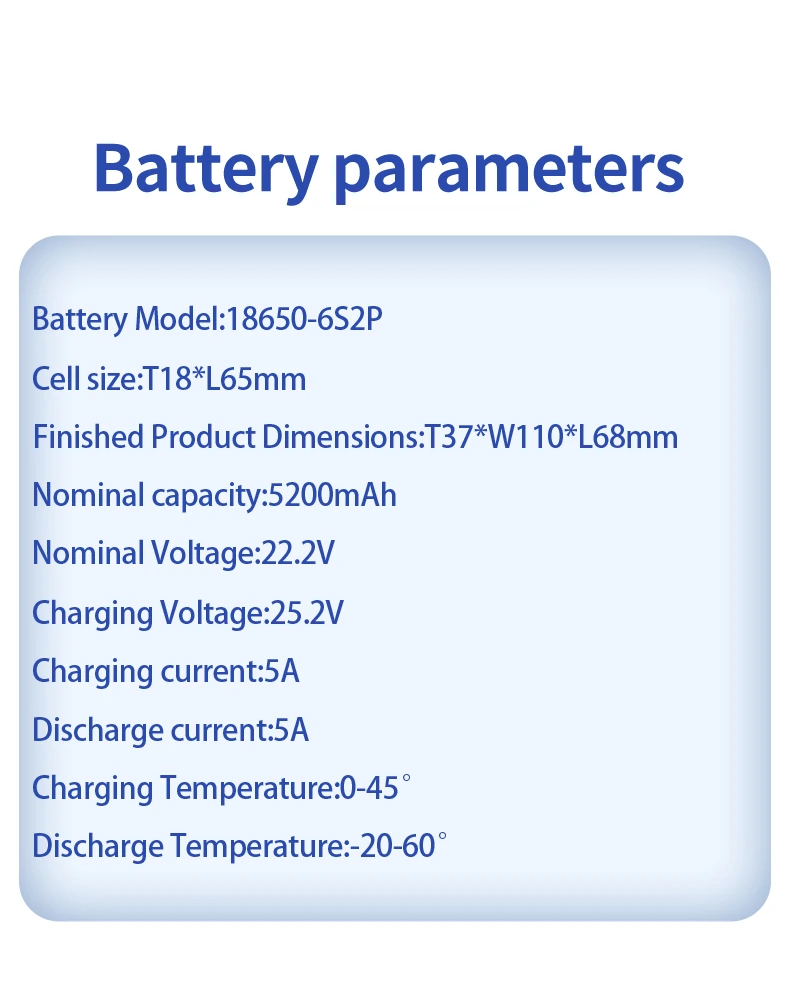

Technical Specifications
| Parameter | Value |
|---|---|
| Battery Model | 18650-6S2P |
| Battery Chemistry | Lithium-ion |
| Cell Type | 18650 |
| Cell Configuration | 6S2P |
| Cell Size | T18 × L65mm |
| Finished Product Dimensions | T37 × W110 × L68mm |
| Nominal Voltage | 22.2V |
| Nominal Capacity | 5200mAh |
| Rated Energy | 115.44Wh |
| Charging Voltage | 25.2V |
| Charging Current | 5A |
| Discharge Current | 5A |
| Charging Temperature | 0-45°C |
| Discharge Temperature | -20-60°C |
| Connector | DC barrel connector |
| Customization | Connector, wire length, polarity, PCM/BMS, label and packaging options |
Available for OEM / B2B Orders
This battery model is available for OEM and B2B inquiries. Contact us with your required quantity and application for pricing and sample availability.
Need a Different Specification?
Connector type, wire length, labeling, PCM/BMS, voltage, capacity and pack configuration can be adjusted according to project requirements.
If this model does not match your requirements, send us your target voltage, capacity, configuration and application, and we can evaluate another suitable cylindrical battery solution.
Product Advantages
22.2V cylindrical pack in a 6S2P format
The supplied specification lists a 6S2P configuration with 22.2V nominal voltage and 5200mAh nominal capacity.
The specification lists 115.44Wh rated energy for this 22.2V 5200mAh battery pack.
T37 × W110 × L68mm finished dimensions support equipment with a compatible battery compartment.
Connector, harness, polarity, PCM/BMS, label and packaging details can be confirmed for the project.
Applications
Equipment shown for this 18650 6S2P pack
Battery option shown for cleaning robot equipment.
Battery option shown for service robot equipment.
Battery option shown for medical equipment projects.
Battery option shown for inspection instruments.
Battery option shown for LED lighting equipment.
Battery option shown for portable audio equipment.
Electrical And Mechanical Notes
This 6S2P pack has a documented nominal voltage of 22.2V and charging voltage of 25.2V. The documented charge and discharge current are both 5A. Operating temperature range is 0-45°C for charging and -20-60°C for discharge.
Please confirm the available T37 × W110 × L68mm battery space, DC barrel connector fitment, cable outlet position and clearance before sampling. ASOL can confirm the connector, wire direction, polarity, PCM/BMS, label and packaging requirements with the project.
Customization Options
- Connector matching for DC barrel connectors, JST, Molex, bare wire or customer-specified terminals.
- Wire length, polarity, cable exit direction, insulation sleeve and label customization.
- PCM/BMS selection for over-charge, over-discharge, over-current and short-circuit protection.
- Outer wrapping, barcode label, warning label and customer part-number label support.
- Sample confirmation before bulk production for fit, charging compatibility and installation clearance.
Ordering Information
To quote this 18650 6S2P 22.2V 5200mAh pack accurately, please send the required quantity, target battery-space dimensions, connector photo or model, wire length, polarity, normal working current, peak current and charging method. For replacement projects, photos of the original battery label and installation direction help us check mechanical and electrical compatibility.
Frequently Asked Questions
What is the voltage and configuration of this battery pack?
This is an 18650-6S2P lithium-ion battery pack with 22.2V nominal voltage, 25.2V charging voltage and 5200mAh nominal capacity.
Is the pack suitable for a 25.2V charger?
The documented charging voltage is 25.2V. The charger must be designed for a 6S lithium-ion battery pack and be compatible with the project requirements.
What finished dimensions should be allowed for installation?
The documented finished product dimensions are T37 × W110 × L68mm. Please also allow clearance for the DC barrel connector, cable outlet and installation method.
Which applications are shown for this product?
The supplied application material shows cleaning robots, service robots, medical equipment, inspection instruments, LED lighting and portable audio equipment.
What information is needed for a quotation?
Please send target quantity, application, working current, battery compartment size, connector type, wire length, charging method, label requirement and any destination or documentation needs.
