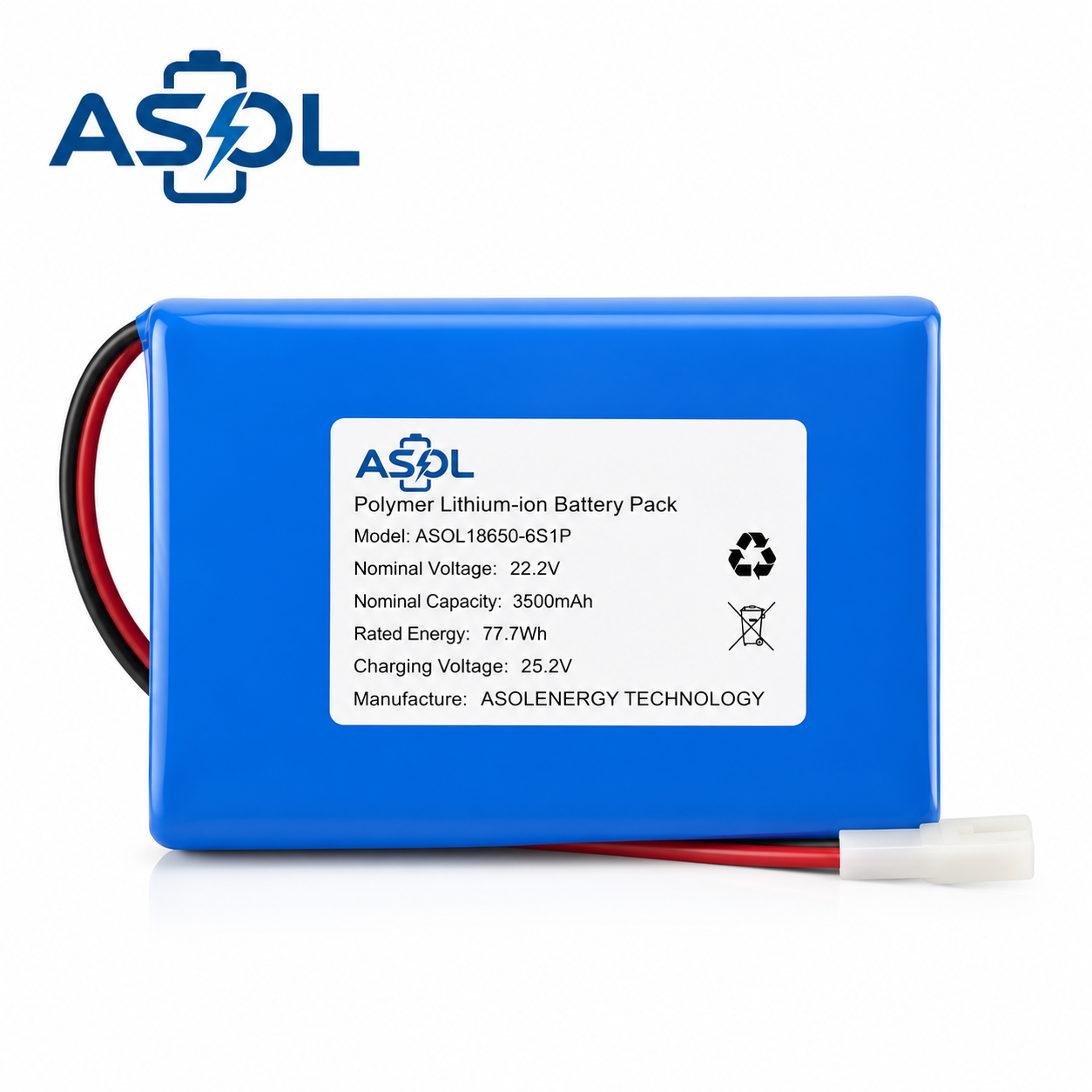

The ASOL18650-6S1P is a high-voltage Li-ion Polymer battery pack built around a 6S1P architecture — six premium 18650 cylindrical cells in series, wrapped in a polymer casing and delivering 22.2V nominal voltage with 77.7Wh of energy. This elevated voltage platform is the industry standard for medium-to-large industrial drones, 20V/24V-class cordless power tools, and equipment that demands more torque and sustained output than lower-voltage packs can provide.
At the core of every pack is an integrated BMS that continuously monitors cell-level voltage, current, and temperature — providing multi-layer protection against overcharge, over-discharge, overcurrent, and short circuit. Safe operation from −20°C to +60°C.
Every unit ships from our ISO-certified production facility after passing full inspection: individual cell voltage matching (±10mV tolerance), complete charge/discharge cycle verification, and BMS functionality testing.
Specifications
| Parameter | Details |
|---|---|
| Chemistry | Li-ion Polymer (18650 cylindrical cells) |
| Model | 18650-6S1P |
| Nominal Voltage | 22.2V |
| Capacity | 3500mAh |
| Energy | 77.7Wh |
| Charging Voltage | 25.2V |
| Configuration | 6S1P (6 Series, 1 Parallel) |
| BMS Protection | Overcharge / Over-discharge / Overcurrent / Short circuit / Temperature monitoring |
| Standard Connector | JST (custom connectors available) |
| Cycle Life | ≥500 cycles @ 80% capacity retention (1C charge/discharge, 25°C) |
| Operating Temperature | −20°C to +60°C (charge: 0°C to +45°C) |
| Dimensions | Approx. 110 × 55 × 22 mm (excluding wires & connector) |
| Weight | Approx. 280g |
| Manufacturer | ASOLENERGY TECHNOLOGY |
Applications
1. Drones
- FPV Drones
- Aerial photography drones
- Industrial drones
- Survey & mapping drones
- Drone ground control stations (GCS)
- UAV telemetry & video transmission systems
Why 6S: 22.2V = standard 6S voltage, ideal for brushless motors, strong power output, high flight efficiency.
2. RC Remote-Control Models
- RC Cars
- RC Trucks
- RC Boats
- RC Airplanes
- RC Helicopters
Why 6S: 6S is the mainstream solution for high-end RC products.
3. Robotics / AGV
- Inspection robots
- AGV (Automated Guided Vehicles)
- Service robots
- Mobile platforms
Why 6S: High motor drive efficiency, stable output.
4. Power Tools / Garden Equipment
- Cordless drills
- Electric blowers
- Garden tools (trimmers, hedge trimmers)
- Small power equipment
5. Underwater Thrusters / Power Equipment
- Underwater thrusters
- Underwater scooters
- Marine power systems
- Portable diving equipment
What Sets Us Apart
- Factory-Direct Pricing — No distributor markups. Competitive B2B rates directly from the manufacturer, with transparent quoting for any order size.
- Full OEM & ODM Flexibility — Connector type, wire gauge & length, heat-shrink or plastic housing, custom labeling, and branded packaging — all configurable to your specs.
- Integrated BMS Safety — Multi-layer electronic protection with cell-level temperature monitoring. Reduces field failures and warranty returns.
- Proven Cycle Durability — Grade-A 18650 cells with matched internal resistance (±5mΩ) deliver ≥500 cycles at 80% capacity retention.
- Fast Sample Turnaround — Custom prototype samples ready in 5–7 business days for mechanical fit, electrical performance, and system integration testing.
- 100% Outgoing Inspection — Every pack individually tested for voltage accuracy, discharge capacity, and BMS function before shipment.
Packaging & Shipping
| Item | Details |
|---|---|
| Individual Packaging | Anti-static bag + foam cushion inside individual box |
| Box Quantity | 20 pcs / carton (customizable) |
| Carton Dimensions | Approx. 42 × 28 × 22 cm (subject to final packing) |
| Carton Weight | Approx. 9–11 kg |
| Shipping Options | Express (DHL / FedEx / UPS), Air freight, Sea freight |
| Shipping Terms | EXW, FOB, CIF, DDP available |
| Certifications | CE, RoHS, UN38.3, MSDS (available upon request) |
Frequently Asked Questions
Can I customize the connector and wire specifications? Yes. We support JST, Molex, JST-PH, XT60, EC5, and other industry-standard connectors. Wire gauge, length, and polarity are all customizable to match your device interface. Just send us your pinout diagram or sample connector.
What is the minimum order quantity (MOQ)? Standard configurations: 50 pcs. Fully custom designs: 100–500 pcs depending on the level of customization. Sample orders of 1–10 pcs are accepted for evaluation purposes.
Do you provide engineering support for device integration? Absolutely. Our engineering team can supply pinout diagrams, charge/discharge characteristic curves, mechanical dimension drawings (2D/3D), and BMS communication protocol documentation.
What certifications are available? All standard packs are shipped with CE, RoHS, UN38.3, and MSDS compliance documentation. Additional certifications (UL, IEC 62133) can be arranged for volume orders upon request.
Contact Us
| Channel | Information |
|---|---|
| info@asol-battery.com | |
| +86 157 7985 8703 | |
| Website | www.asol-battery.com |
| Response Time | Within 24 hours on working days |
Sample lead time: 5–7 business days | Bulk production: 15–25 business days
Need a reliable high-voltage power solution for your equipment? Send us your application scenario, connector requirements, and target quantity — we’ll respond within 24 hours with a factory-direct quote.
