Product Overview
The ASOL 302025 is a compact 3.7V 100mAh lithium polymer battery cell for small electronic devices that require a thin rechargeable power source. The cell dimension is T3 × W20 × L25mm, with 0.37Wh rated energy and 4.2V charging voltage.
This lithium polymer battery cell is suitable for wearable devices, Bluetooth trackers, smart sensors, IoT devices, portable medical instruments, smart tags, compact remote controls and other low-power mini electronics. ASOL can support project review based on device space, voltage, capacity, label and application requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | ASOL302025 |
| Battery Type | Lithium Polymer Battery Cell |
| Cell Type | Pouch Cell |
| Nominal Voltage | 3.7V |
| Rated Capacity | 100mAh |
| Rated Energy | 0.37Wh |
| Charging Voltage | 4.2V |
| Charging Current | 0.1A |
| Discharge Current | 0.1A |
| Cell Dimension | T3 × W20 × L25mm |
| Charging Temperature | 0-45°C |
| Discharge Temperature | -10-60°C |
| Manufacturer | ASOLENERGY TECHNOLOGY |
Note: For product design and battery selection, please confirm the final drawing and project requirements before mass production.
Key Features
Compact 100mAh cell for low-power electronics
T3 × W20 × L25mm cell dimension for compact device spaces.
0.37Wh rated energy for small and low-power rechargeable devices.
Single lithium polymer cell chemistry for compact electronic products.
Specified charge and discharge current for suitable device matching.
Suitable for smart bands, smart rings and compact sensor devices.
Applicable to wireless modules, IoT terminals and data logger designs.
Model marking and label requirements can be reviewed for qualified orders.
ASOL can check size, electrical and application requirements before quotation.

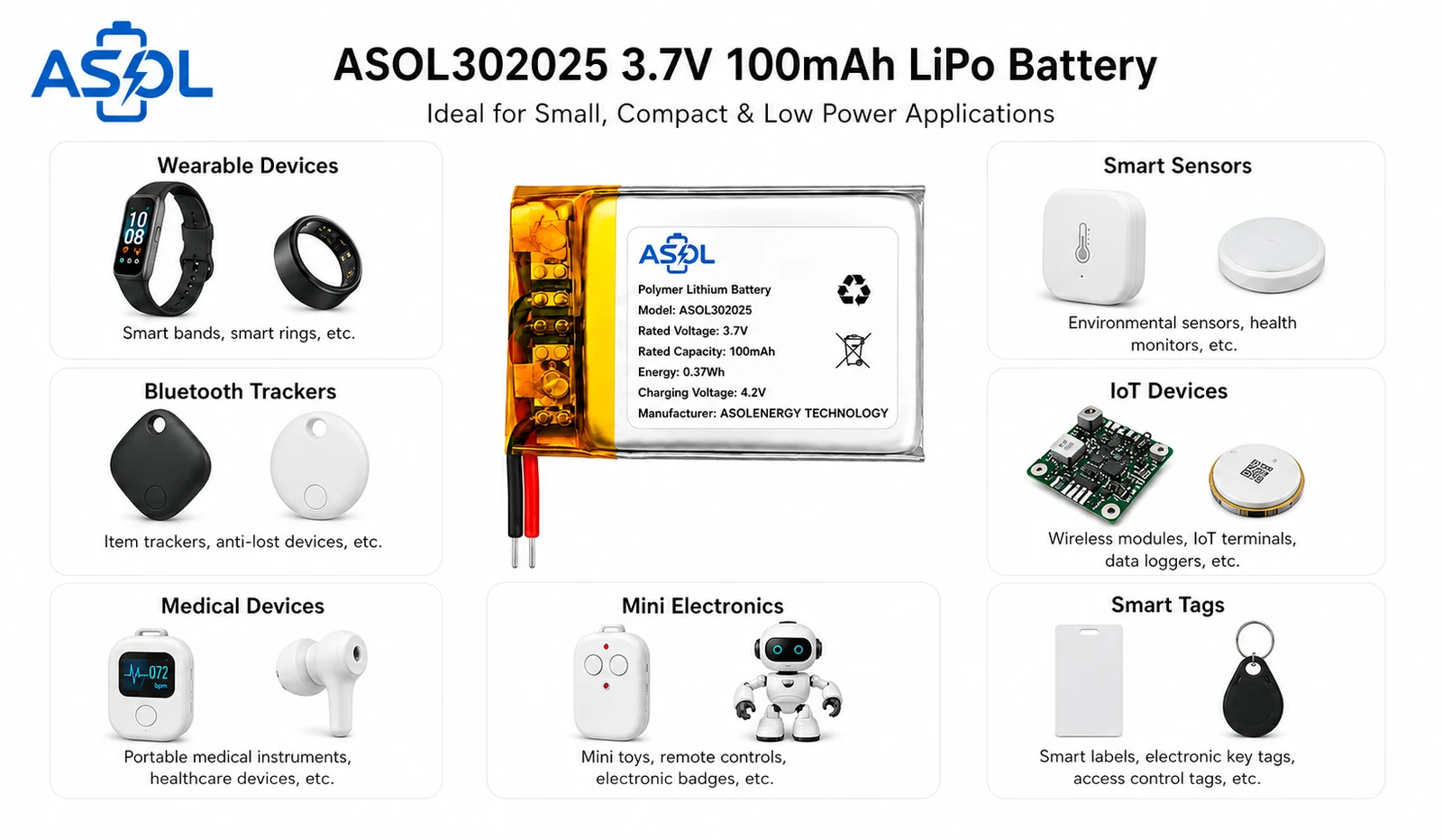

Applications
Where the 302025 is used
Smart bands, smart rings, health monitors and wearable sensors.
Item trackers, anti-lost devices and compact wireless tags.
Portable medical instruments and low-power healthcare devices.
Environmental sensors, health monitors and compact sensing modules.
Wireless modules, IoT terminals, data loggers and control modules.
Mini toys, small remote controls, electronic badges and compact devices.
Smart labels, electronic key tags and access control tags.
Available Custom Configurations
ASOL 302025 is supplied as a lithium polymer battery cell for OEM product integration. Project suitability should be confirmed by reviewing the device space, voltage, capacity, discharge current, label requirements and estimated quantity.
- Dimension review: Confirm T3 × W20 × L25mm cell space and installation direction before production.
- Electrical matching: Confirm 3.7V nominal voltage, 100mAh capacity, 4.2V charging voltage and 0.1A charge/discharge requirement.
- Application review: Share target device type and operating environment for suitability evaluation.
- Labeling: Product label content, model marking and customer branding can be reviewed for qualified OEM projects.
Frequently Asked Questions
What are the key specifications of the ASOL 302025 3.7V 100mAh Lithium Polymer Battery Cell?
The ASOL 302025 is a 3.7V 100mAh lithium polymer pouch cell with 0.37Wh rated energy and T3 × W20 × L25mm cell dimension.
Is ASOL 302025 a lithium polymer battery cell?
Yes. ASOL 302025 is listed as a lithium polymer battery cell for compact electronic devices and OEM product integration.
What applications is the ASOL 302025 cell suitable for?
It is suitable for wearable devices, Bluetooth trackers, smart sensors, IoT devices, portable medical instruments, smart tags and other low-power mini electronics.
What information should I provide for a quotation?
Please share the device application, required quantity, cell space, voltage, capacity, discharge current, label requirement and destination market for project review.
