Product Overview

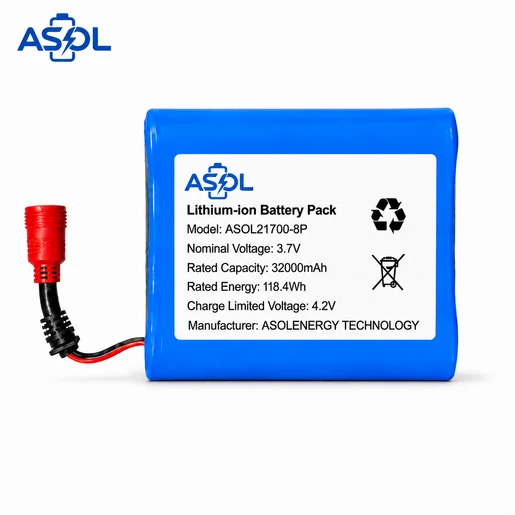

The ASOL 21700-8P is a high-capacity cylindrical lithium-ion battery pack using 21700 cells in an 8P configuration. Designed for applications requiring reliable power output and extended operating time, it is suitable for professional LED lighting equipment, video equipment, portable electronics and industrial handheld devices.
This pack provides 3.7V nominal voltage, 32000mAh capacity and 118.4Wh rated energy, with 16A charge and discharge current capability. ASOL can support project review based on device space, connector requirement, working current, label and application requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Type | Lithium-ion Battery Pack |
| Model | ASOL21700-8P |
| Cell Type | 21700 Cylindrical Cell |
| Configuration | 8P |
| Nominal Voltage | 3.7V |
| Rated Capacity | 32000mAh |
| Rated Energy | 118.4Wh |
| Charge Limited Voltage | 4.2V |
| Charge Current | 16A |
| Discharge Current | 16A |
| Dimension | T43 × W64 × L71mm |
| Weight | 550g |
| Charging Temperature | 0-45°C |
| Discharge Temperature | -10-60°C |
| Manufacturer | ASOLENERGY TECHNOLOGY |
Note: For product design and battery selection, please confirm the final drawing, connector requirement and project specification before mass production.
Key Features
High-capacity 21700 lithium-ion battery pack
High-capacity lithium-ion battery pack for equipment requiring long runtime.
Uses 21700 cylindrical cells in an 8P pack configuration.
Single-voltage pack design for compatible professional electronic equipment.
Suitable for professional lighting, video and handheld industrial applications.
16A charge current and 16A discharge current for suitable device matching.
Connector, wire, label and PCM/BMS requirements can be reviewed for qualified projects.
Applications
Where the 21700-8P is used
Camera lights, portable LED lights and professional lighting equipment.
Video devices and on-site photography equipment requiring long runtime.
Portable devices requiring high capacity and stable 3.7V power output.
Handheld instruments, test equipment and industrial portable devices.
Available Custom Configurations
ASOL 21700-8P is supplied as a cylindrical lithium-ion battery pack for OEM product integration. Project suitability should be confirmed by reviewing the device space, voltage, capacity, working current, connector, label requirements and estimated quantity.
- Pack configuration review: Confirm 8P configuration, 3.7V nominal voltage and 32000mAh capacity before production.
- Electrical matching: Confirm charge limited voltage 4.2V, 16A charge current and 16A discharge current requirement.
- Mechanical review: Confirm T43 × W64 × L71mm battery space, wire exit and connector installation.
- Labeling: Product label content, model marking and customer branding can be reviewed for qualified OEM projects.
Frequently Asked Questions
What are the key specifications of the ASOL 21700-8P battery pack?
The ASOL 21700-8P is a 3.7V 32000mAh lithium-ion battery pack using 21700 cylindrical cells in an 8P configuration. It has 118.4Wh rated energy, 4.2V charge limited voltage and 16A charge / discharge current.
What applications is the ASOL 21700-8P suitable for?
It is suitable for professional LED lighting equipment, video and photography equipment, portable electronic devices and industrial handheld equipment.
Can ASOL customize this cylindrical lithium-ion battery pack?
Yes. ASOL can review connector, wire length, label, PCM/BMS and packaging requirements according to the device design and project requirements.
What information should I provide for quotation?
Please share the target application, required quantity, working current, battery space, connector requirement, destination market and any label or packaging requirements.
