Wall-Mounted LiFePO4 ESS Battery

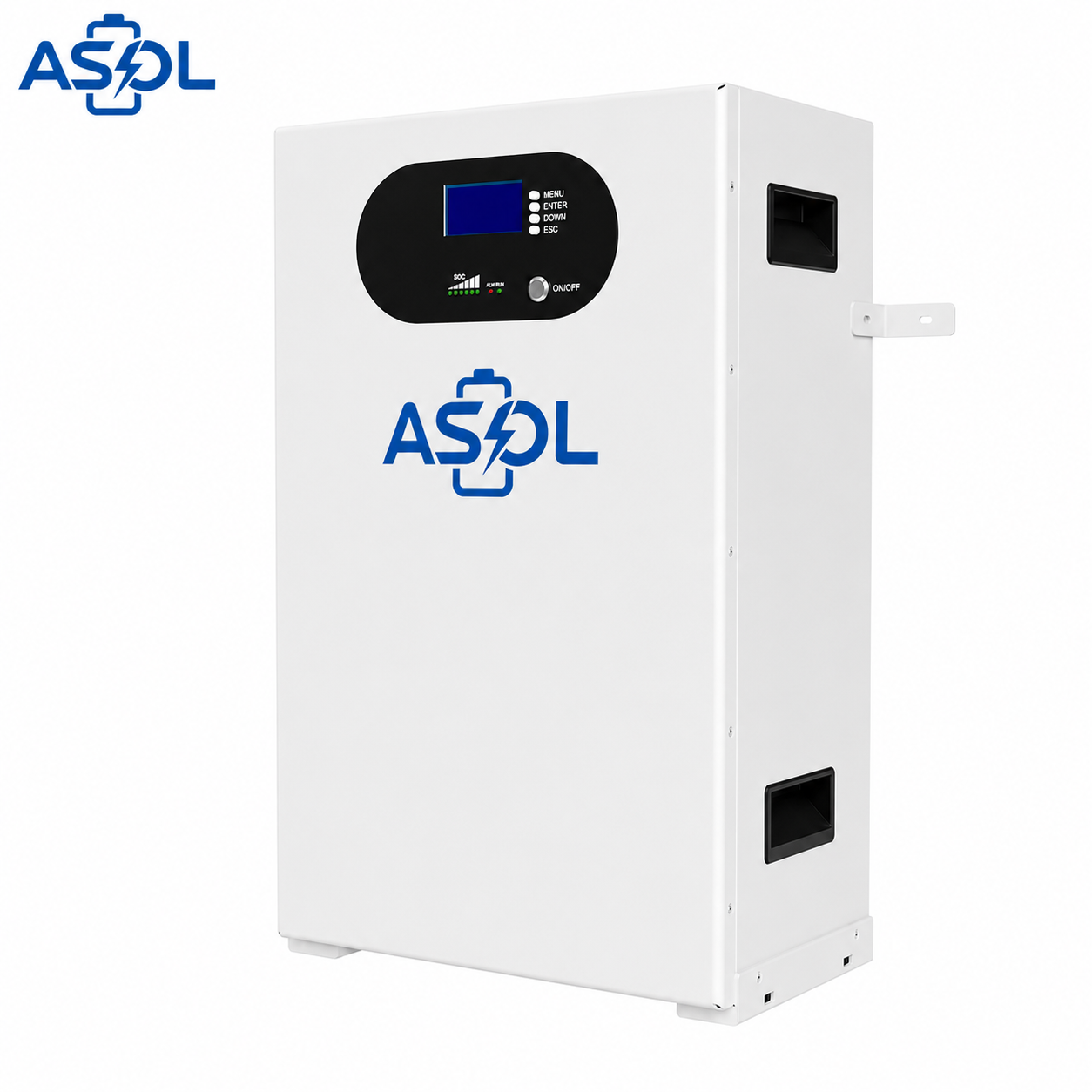

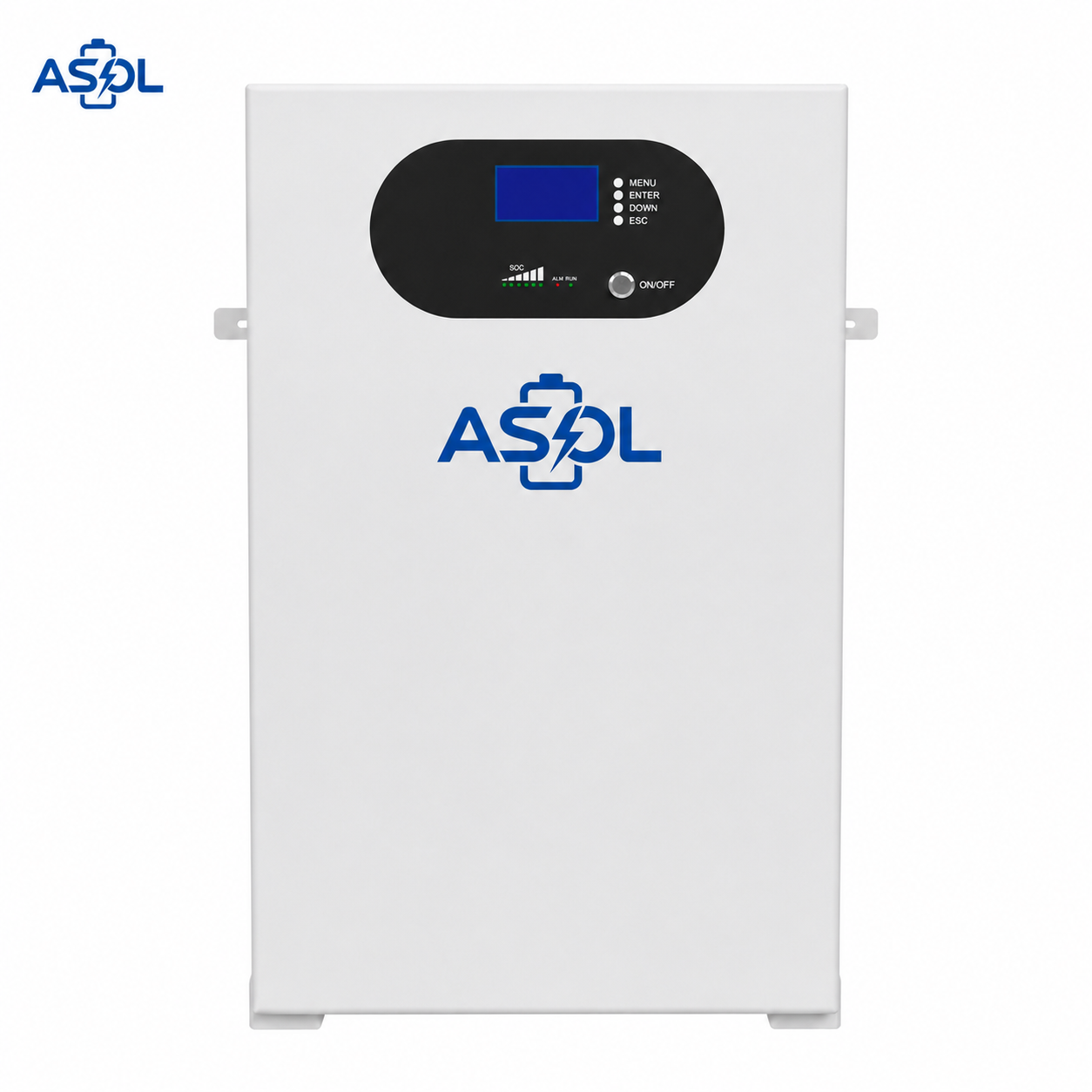

ASOL Wall-Mounted LiFePO4 ESS Battery System
Flexible 25.6V / 48V / 51.2V Battery Solution for Backup and Solar Storage Projects. A wall-mounted or floor-mounted LiFePO4 ESS battery solution for selected industrial, commercial and backup energy storage projects, with 100Ah/200Ah capacity options, CAN/RS485 communication and inverter matching review.
Wall-Mounted ESS Applications
Industrial Backup Power
Wall-mounted battery solution for selected industrial backup projects.
Solar Energy Storage
Battery storage solution for PV inverter matching review.
Commercial & Industrial ESS
LiFePO4 battery for selected small business backup applications.
Telecom / Monitoring Backup
Backup battery option where voltage and communication are confirmed.
Remote Industrial Sites
Battery storage for remote industrial sites and off-grid equipment systems.
OEM/ODM Energy Projects
Casing, label, communication and installation requirements can be reviewed.
Wall-Mounted ESS Highlights
Wall-Mounted Structure
Designed for wall-hanging or floor-mounted installation projects.
Flexible Voltage Options
25.6V, 48V and 51.2V series options can be reviewed.
100Ah / 200Ah Options
Capacity options for selected backup and solar storage projects.
CAN / RS485 Communication
Communication options for inverter and system integration review.
Technical Specifications — Standard Configuration
| Item | Specification |
|---|---|
| Battery Chemistry | LiFePO4 |
| Series Options | 25.6V / 48V / 51.2V |
| Capacity Options | 100Ah / 200Ah |
| Communication | CAN / RS485 |
| Parallel Support | Project-dependent |
| Cycle-life basis | Expected performance is confirmed in the project datasheet and quotation. |
| Operating Temperature | Charge: 0°C to +50°C / Discharge: -20°C to +60°C |
| Protection Class | IP21 |

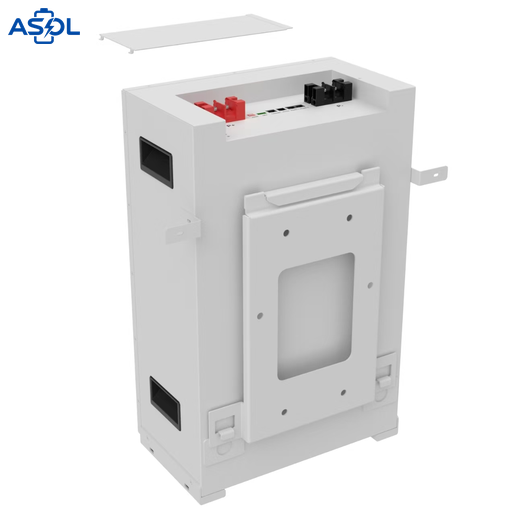

| Installation | Wall hanging / floor mounting |
| Certification | UN38.3 |
Project Configuration Options
The specifications above describe the standard wall-mounted ESS configuration shown on this page. Project changes can be reviewed against inverter, installation and communication requirements.
Available project options may include:
- Capacity and BMS current requirements
- Inverter and communication compatibility
- Wall mounting and installation clearances
- Enclosure, terminal and cable arrangement
- Low-temperature charging protection where required
- Application-specific mechanical configuration
Final specifications depend on the selected battery configuration, inverter compatibility, mounting conditions and project validation.
Need a different configuration?
Share your required voltage, capacity, installation space, continuous discharge current and application. We can evaluate a project-specific battery configuration.
REQUEST PRICINGWall-Mounted ESS Project Support
ASOL can review wall-mounted ESS requirements including voltage, capacity, communication, inverter compatibility, mounting structure and shipping documents.
Voltage & Capacity
Custom voltage and capacity requirements can be reviewed by project.
Inverter Matching
Solar inverter matching and communication needs can be discussed.

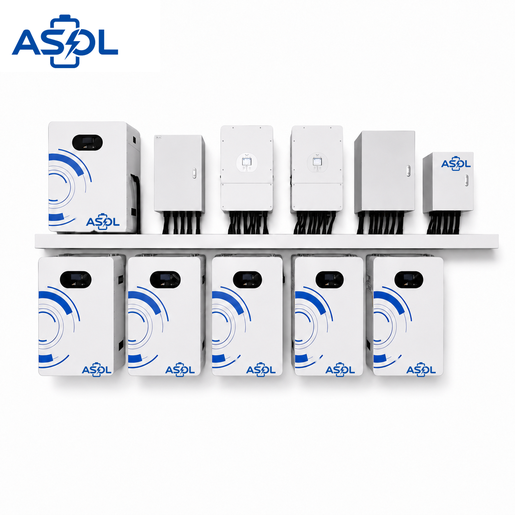

Installation Structure
Wall-hanging or floor-mounted installation details can be checked before quotation.
Project Documents
Destination country, shipping and certification documents can be reviewed.
Frequently Asked Questions
What voltage options are available for this wall-mounted ESS battery?
The current series options include 25.6V, 48V and 51.2V. Custom voltage requirements can also be reviewed by project.
What capacity options are available?
The page lists 100Ah and 200Ah capacity options. Other capacity requirements can be discussed according to project needs.
Can ASOL match this battery with solar inverters?
Yes. Inverter communication and compatibility can be reviewed before quotation.
What communication options are supported?
CAN and RS485 communication options are listed for this wall-mounted ESS battery system.
Can I order one unit first?
Yes. A single-unit initial order can be accepted and will be handled as a sample order. Final configuration, inverter compatibility, pricing, lead time and shipping arrangements are confirmed according to the project requirements and delivery destination.
What information is needed for a quotation?
Please provide target voltage, capacity, inverter model, communication requirements, installation method, quantity and destination country.
ESS PROJECT INQUIRY
Wall-Mounted ESS Requirements
Please provide your required energy capacity, inverter information, application, installation method and destination country so we can confirm a suitable wall-mounted battery solution.
ASOL will review your wall-mounted ESS requirements and recommend a suitable battery configuration.
