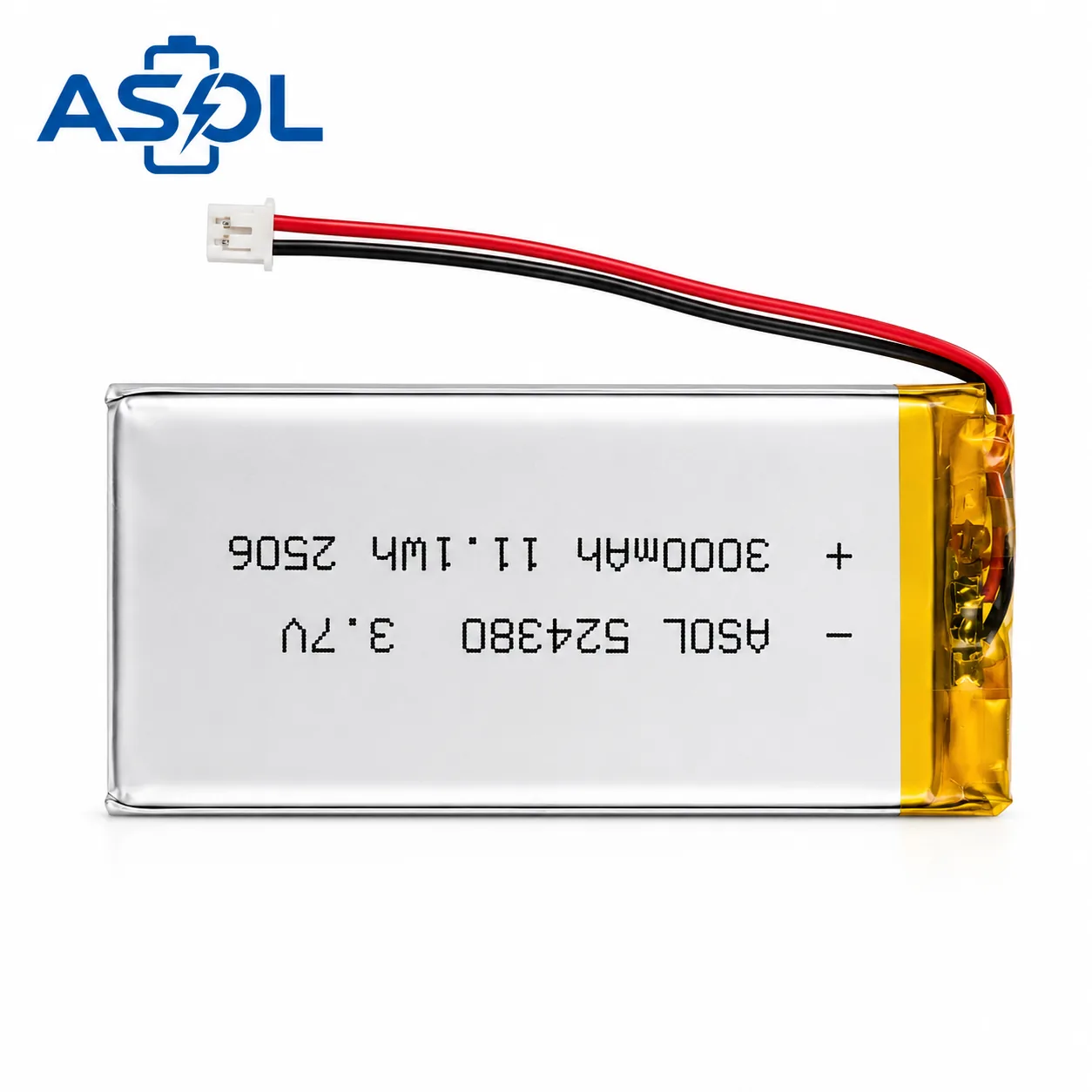

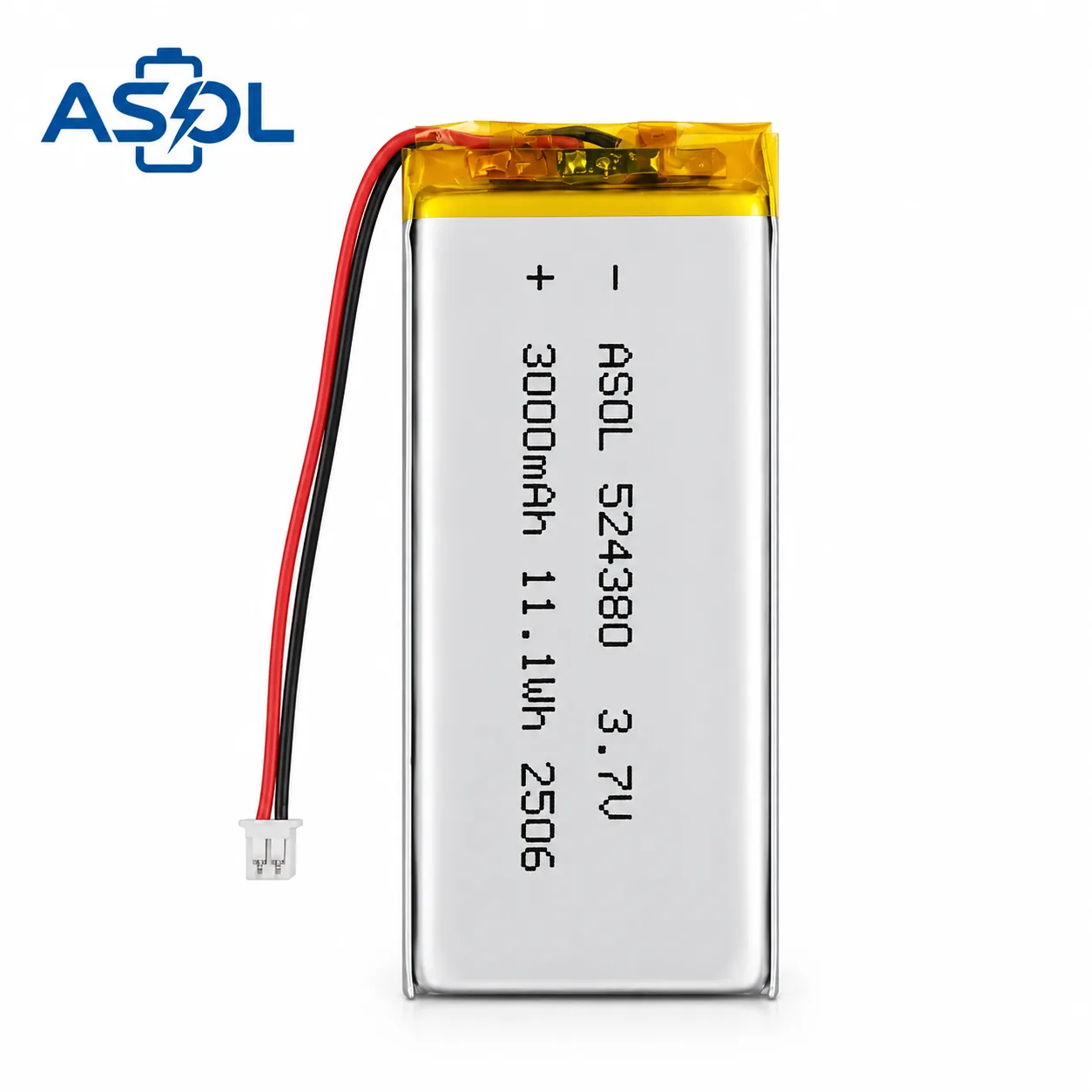

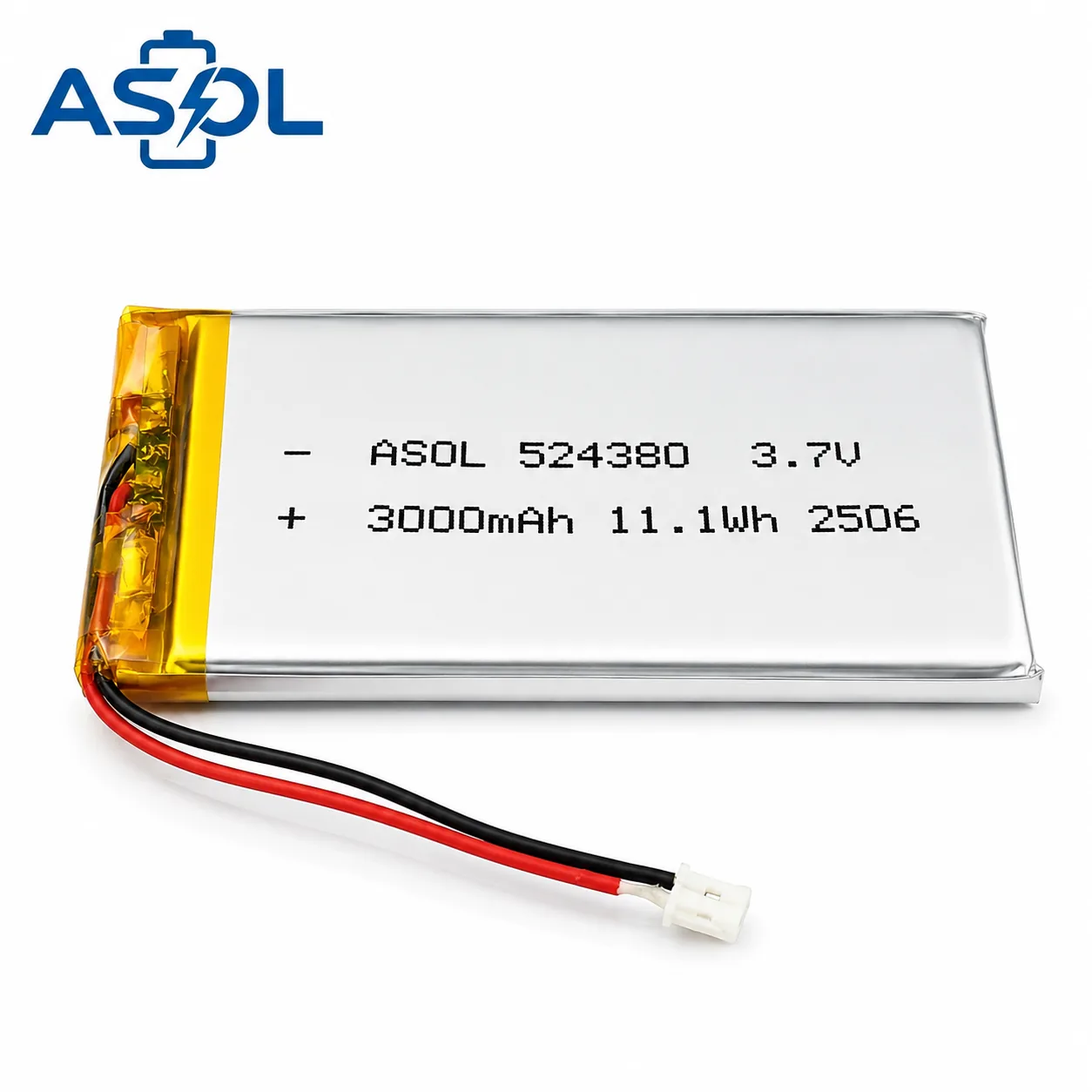

- ASOL 524380 Lithium Polymer Battery — A 3000mAh soft-pack Lithium Polymer cell delivering 11.1Wh nominal energy with nominal bare-cell dimensions of 5.2×43×80mm.Key advantages at a glance:
- 3000mAh Nominal Capacity — 11.1Wh nominal energy in a lithium polymer pouch-cell format
- 5.2mm Nominal Bare-Cell Thickness — Final protected-pack thickness depends on the PCM, insulation and assembly design
- 43×80mm Bare-Cell Footprint — Installation space must be checked against the final protected-pack drawing
- 3000mA (1C) Max Discharge — Powers speakers, cameras, screens, and smart home actuators
- ~55g Ultra-Lightweight — Minimal impact on handheld device ergonomics
- ≥500 Cycle Life — Reliable long-term performance
- Certified — Safety documentation for global product compliance
- OEM/ODM Ready — Custom tabs, wires, connectors, PCM protection circuits
Engineered for handheld game consoles, mini thermal printers, e-readers, GPS devices, and medical detection devices.
Compact Pouch-Cell Format
The 524380 provides 3000mAh nominal capacity and 11.1Wh nominal energy with nominal bare-cell dimensions of 5.2×43×80mm. A PCM typically adds approximately 2–3mm to the length, giving a reference length of about 82–83mm; final protected-pack dimensions must be confirmed against the approved assembly drawing.
Key Features
Ultra-slim power for handhelds
3000mAh / 11.1Wh High CapacityActual runtime depends on device load, operating mode and system design.
5.2×43×80mm Bare CellNominal bare-cell dimensions before adding the protection board, wiring and insulation.
PCM Length AllowanceA PCM typically adds about 2–3mm in length; the complete pack drawing must be confirmed.
3000mA (1C) Max DischargeDrives speakers, motors, screens and wireless modules at once.
≥500 Cycle LifeReliable long-term performance at 100% DOD, 0.2C, 25°C.
Wide Temperature RangeCharge 0~45°C, discharge -20~60°C.
Compliance & DocumentationSafety documentation for global product compliance.
~55g Ultra-LightweightMinimal impact on handheld device weight and balance.
OEM/ODM ReadyCustom tabs, wires, connectors & PCM protection circuits.
Applications
Where the 524380 is used
Handheld Game ConsoleCompact format for applications with matching voltage, dimensions and discharge requirements.
Gaming ControllerBattery integration should be evaluated against the target controller design.
Mini Thermal PrinterSuitable for portable printing applications subject to system load requirements.
E-ReaderSlim pouch-cell format for compatible e-reader designs.
GPS TrackerRuntime depends on reporting frequency, device load and operating conditions.
Medical DevicesIntegration requires confirmation against the target device specification.
Technical Specifications
Parameter Specification Chemistry Lithium Polymer (Lithium Polymer) Nominal Voltage 3.7V Nominal Capacity 3000mAh / 11.1Wh Bare Cell Dimensions 5.2 × 43 × 80 mm Approx. Length with PCM 82–83 mm, depending on PCM and assembly configuration PCM Available according to project requirements Weight Approx. 55g Max Continuous Discharge 3000mA (1C) Max Continuous Charge 1500mA (0.5C) Cycle Life ≥500 cycles (100% DOD, 0.2C, 25°C) Operating Temp (Discharge) -20°C ~ 60°C Operating Temp (Charge) 0°C ~ 45°C Storage Temperature -20°C ~ 45°C (<3 months) Certifications CE, MSDS Dimensional note: Final protected battery pack dimensions, including thickness, width and length, are subject to the approved protection board, wiring, insulation and assembly design.
Quality Assurance
Test Item Standard Result Appearance No damage, no leakage ✓Pass Open Circuit Voltage 3.85V ± 0.05V ✓Pass Overcharge Protection 4.225V ± 0.025V cutoff ✓Pass Overdischarge Protection 2.75V ± 0.1V cutoff ✓Pass Short Circuit Protection <1ms response, auto-recover ✓Pass Drop Test 1m drop, no fire/no explosion ✓Pass Thermal Shock 75°C →-40°C cycling ✓Pass Frequently Asked Questions
What are the key specifications of the ASOL 524380 3.7V 3000mAh Lithium Polymer Battery Cell?
The ASOL 524380 is a 3.7V 3000mAh / 11.1Wh lithium polymer battery with nominal bare-cell dimensions of 5.2 × 43 × 80 mm. Adding a PCM typically increases the length by about 2–3 mm to approximately 82–83 mm. Final protected-pack thickness, width and length must be confirmed against the approved assembly drawing.
What is the maximum discharge current of the ASOL 524380 3.7V 3000mAh Lithium Polymer Battery Cell?
The ASOL 524380 3.7V 3000mAh Lithium Polymer Battery Cell supports a maximum continuous discharge current of 3000mA.
How many charge cycles does the ASOL 524380 3.7V 3000mAh Lithium Polymer Battery Cell last?
The ASOL 524380 3.7V 3000mAh Lithium Polymer Battery Cell is rated for ≥500 cycles, retaining strong capacity across its service life.
What safety certifications does the ASOL 524380 3.7V 3000mAh Lithium Polymer Battery Cell have?
It is supported by existing CE documentation; MSDS safety documentation is available, and full test reports can be provided on request.
Does ASOL offer OEM/ODM customization for the ASOL 524380 3.7V 3000mAh Lithium Polymer Battery Cell?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 524380 3.7V 3000mAh Lithium Polymer Battery Cell?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
