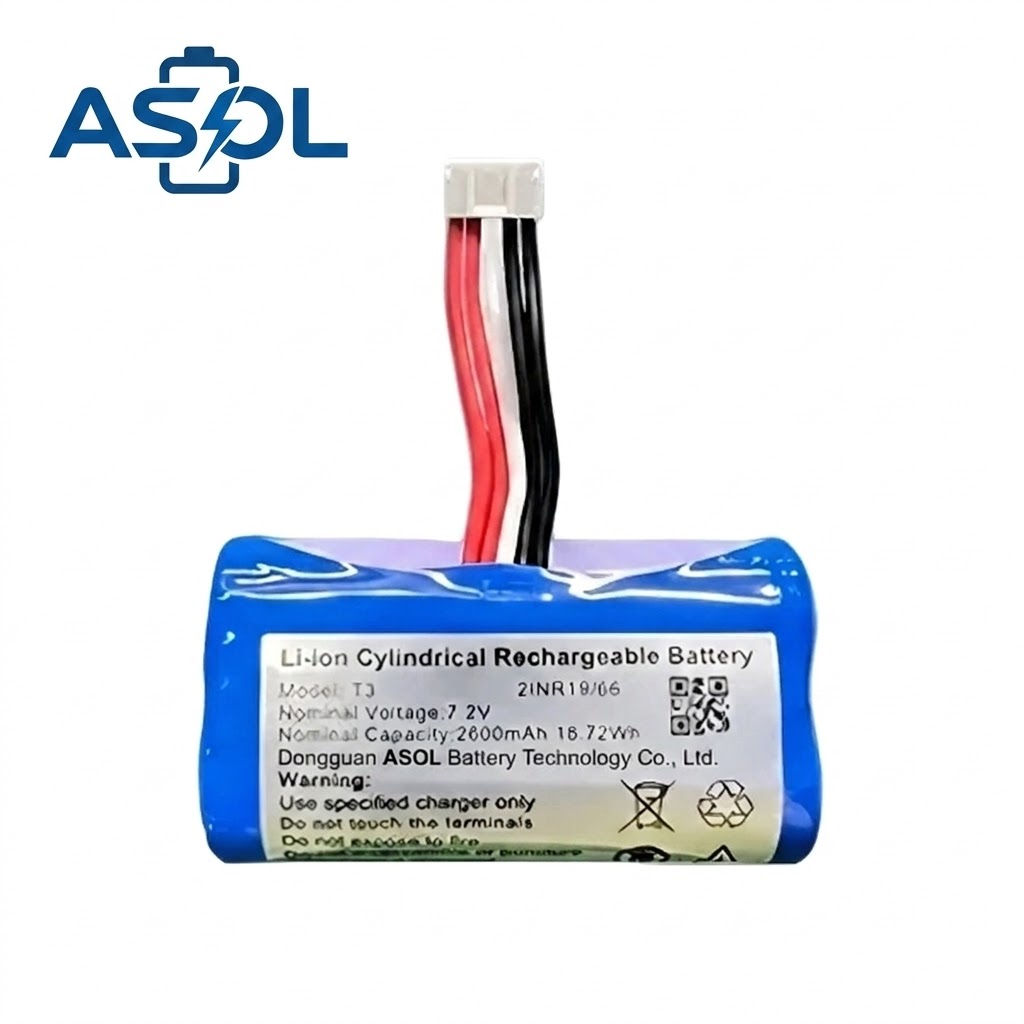

The ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device packs 7.2V / 2600mAh (18.72Wh) into a compact lithium battery pack in a 2S1P configuration measuring 67 × 38 × 22 mm and weighing 100g. It is engineered to power POS Terminal Mobile Payment Device and similar devices, with a stable discharge curve and dependable cycle life. On-board protection covers overcharge, over-discharge, and short circuit, while connector, wiring, and labeling can all be customized for your product.
Key Features
Compact POS power, built to last
Powers POS terminals 8–12 hours on a single charge.
Handles peak loads from printers, readers, and wireless modules.
Drop-in for Ingenico, Verifone, PAX, Newland & Sunmi.
Over-charge, over-discharge, over-current, short-circuit, over-temperature.
80% capacity retention after 500 full cycles.
67 × 38 × 22 mm, only 100g.
Meets international safety and environmental standards.
Product Specifications
| Specification | Details |
|---|---|
| Brand | ASOL |
| Model | 2S1P 18650-2600mAh |
| Nominal Voltage | 7.2V |
| Capacity | 2600mAh |
| Configuration | 2S1P (2 Series, 1 Parallel) |
| Cell Type | 18650-2600mAh |
| Dimensions | 67 × 38 × 22 mm |
| Weight | 100g |
| Max Discharge Current | 5A |
| Connector | PH-5P (5-pin, pre-wired) |
| Protection | Over-Charge / Over-Discharge / Over-Current / Short-Circuit / Over-Temperature |
| Cycle Life | ≥500 cycles |
| Charging Temperature | 0°C ~ 45°C |
| Discharging Temperature | -20°C ~ 60°C |
| Certifications | CE · RoHS · UN38.3 · MSDS |
Compatible POS Brands and Devices
This ASOL 2S1P 7.2V battery is compatible with or directly replaces batteries in the following POS brands and device types:
- Ingenico — Desk and portable POS terminal series
- Verifone — VX, MX, and P series payment terminals
- PAX — A-series and related POS terminal models
- Newland — Handheld POS and payment devices
- Sunmi — T-series and compatible handheld terminals
- Universal — Any 2S1P 18650 POS device requiring 7.2V power
Need to confirm compatibility? Contact us with your device model and we will verify fit, connector, and voltage match before you order.
Applications
Where the 2S1P POS Battery is used
Countertop terminals & checkout systems for all-day use.
Handheld card readers & portable payment devices.
Handheld scanners & inventory terminals on the floor.
Delivery & route scanning devices in the field.
Why Choose ASOL?
ASOL Battery Co., Ltd. is a professional lithium battery manufacturer with years of experience supplying OEM and wholesale batteries to global markets. Every battery is individually tested before shipment to ensure consistent quality, stable voltage, and reliable performance across batches.
When you choose ASOL, you get:
- Consistent batch-to-batch quality control
- Competitive wholesale pricing from 50 units
- Free technical support for battery integration and compatibility
- Reliable global shipping from Shenzhen
- CE, RoHS, UN38.3, MSDS certification documentation included
Start with a sample evaluation. Scale up with confidence.
Frequently Asked Questions
What are the key specifications of the ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device?
The ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device is a 7.2V 2600mAh lithium battery, built in a 2S1P configuration, measuring 67 × 38 × 22 mm, weighing 100g.
What is the ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device used for?
The ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device is designed to power POS Terminal Mobile Payment Device and similar devices. ASOL can also tailor the battery pack to other applications on request.
What connector does the ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device use?
It ships pre-wired with a PH-5P connector. ASOL can customize the connector type, wire length, and labeling to match your device.
What is the maximum discharge current of the ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device?
The ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device supports a maximum continuous discharge current of 5A.
How many charge cycles does the ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device last?
The ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device is rated for ≥500 cycles, retaining strong capacity across its service life.
What safety certifications does the ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device have?
It is certified to CE, RoHS, UN38.3, MSDS, and full test reports can be provided on request.
Does ASOL offer OEM/ODM customization for the ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 2S1P Lithium Battery Pack for POS Terminal Mobile Payment Device?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
