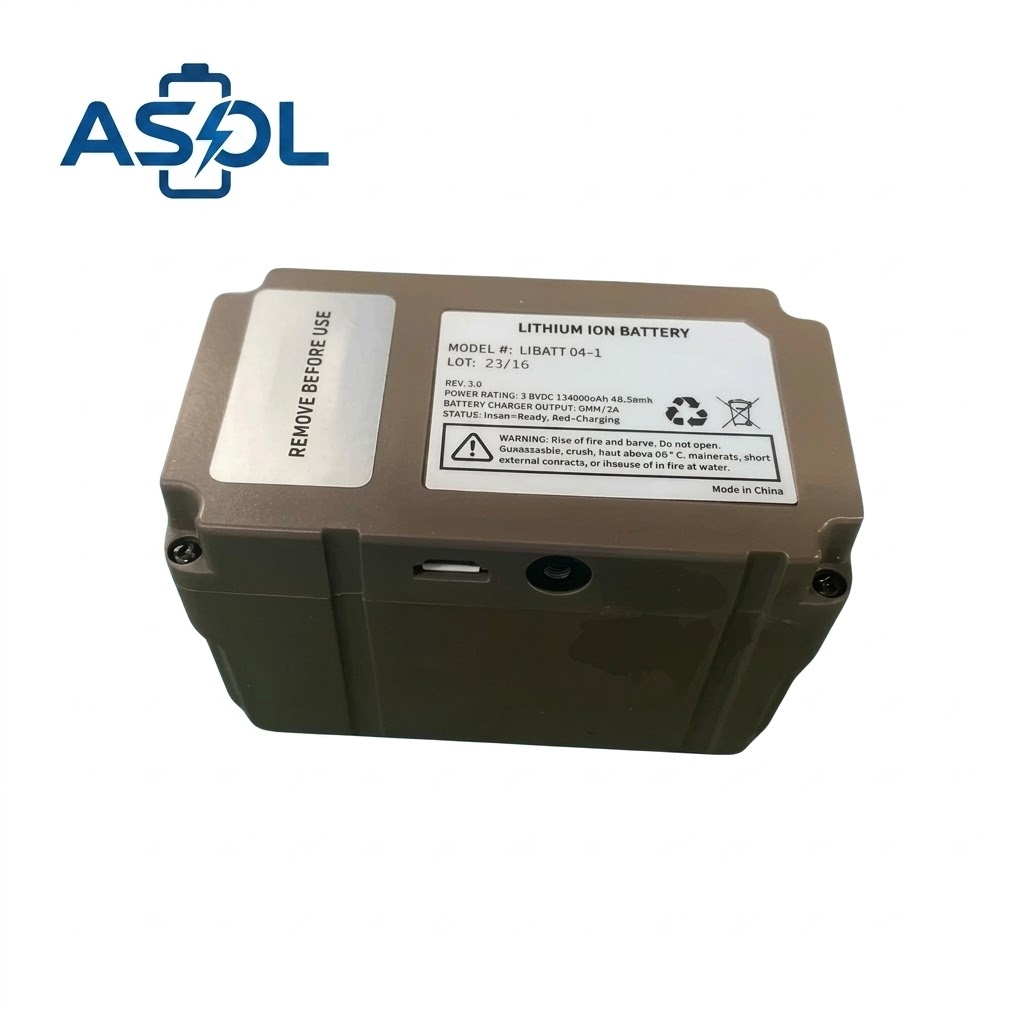

The ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment is a lithium battery rated at 3.6V / 13400mAh (48.24Wh) in a 1S4P configuration measuring 80.25 × 45.1 × 53.2 mm and weighing 300g. It is engineered to power Hunting Equipment and similar devices, with a stable discharge curve and dependable cycle life. An integrated protection circuit guards against overcharge, over-discharge, and short circuit, and full OEM/ODM customization is available.
Key Features
Field-ready power for the hunt
4× a standard 18650 cell for extended field sessions.
Consistent output for night vision, trail cameras, and flashlights.
Four matched 18650-3350mAh cells in compact 3.6V parallel output.
Guards against over-charge, over-current, short-circuit, and over-temperature.
Reliable long-term performance rated for 300 full cycles.
80.25 × 45.1 × 53.2 mm, 300g, field-ready build.
Compliant with international safety and transport standards.
Product Specifications
| Specification | Details |
|---|---|
| Brand | ASOL |
| Model | 1S4P 18650-13400mAh |
| Nominal Voltage | 3.6V |
| Capacity | 13400mAh (13.4Ah) |
| Configuration | 1S4P (1 Series, 4 Parallel) |
| Cell Type | 18650-3350mAh |
| Dimensions | 80.25 × 45.1 × 53.2 mm |
| Weight | 300g |
| Max Discharge Current | 4A |
| Protection | Over-Charge / Over-Discharge / Over-Current / Short-Circuit / Over-Temperature |
| Cycle Life | ≥300 cycles |
| Charging Temperature | 0°C ~ 45°C |
| Discharging Temperature | -20°C ~ 60°C |
| Certifications | CE · RoHS · UN38.3 · MSDS |
Applications
Where the 1S4P is used
Sustained high-capacity power for digital optics on dawn & night hunts.
Months of standby runtime; fewer battery swaps in the field.
Reliable 4A output drives high-lumen LEDs for extended use.
Powers GPS trackers, rangefinders & wireless hunting sensors.
Why Choose ASOL
- Factory-Tested Every Unit — Each pack undergoes individual capacity, voltage, and internal resistance testing before shipping
- Consistent Cell Matching — Cells matched within tight tolerances for balanced discharge across all 4 parallel cells
- Built-In BMS — Battery Management System ensures safe charging and discharging, protecting your valuable hunting equipment
- UN38.3 Certified — Approved for international air and ground shipping
- OEM/ODM Ready — Custom connector, housing, and branding available for hunting equipment manufacturers
Frequently Asked Questions
What are the key specifications of the ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment?
The ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment is a 3.6V 13400mAh lithium battery, built in a 1S4P configuration, measuring 80.25 × 45.1 × 53.2 mm, weighing 300g.
What is the ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment used for?
The ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment is designed to power Hunting Equipment and similar devices. ASOL can also tailor the battery pack to other applications on request.
What is the maximum discharge current of the ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment?
The ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment supports a maximum continuous discharge current of 4A.
How many charge cycles does the ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment last?
The ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment is rated for ≥300 cycles, retaining strong capacity across its service life.
What safety certifications does the ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment have?
It is certified to CE, RoHS, UN38.3, MSDS, and full test reports can be provided on request.
Does ASOL offer OEM/ODM customization for the ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 18650 1S4P 3.6V 13400mAh Lithium-ion Battery Pack for Hunting Equipment?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
