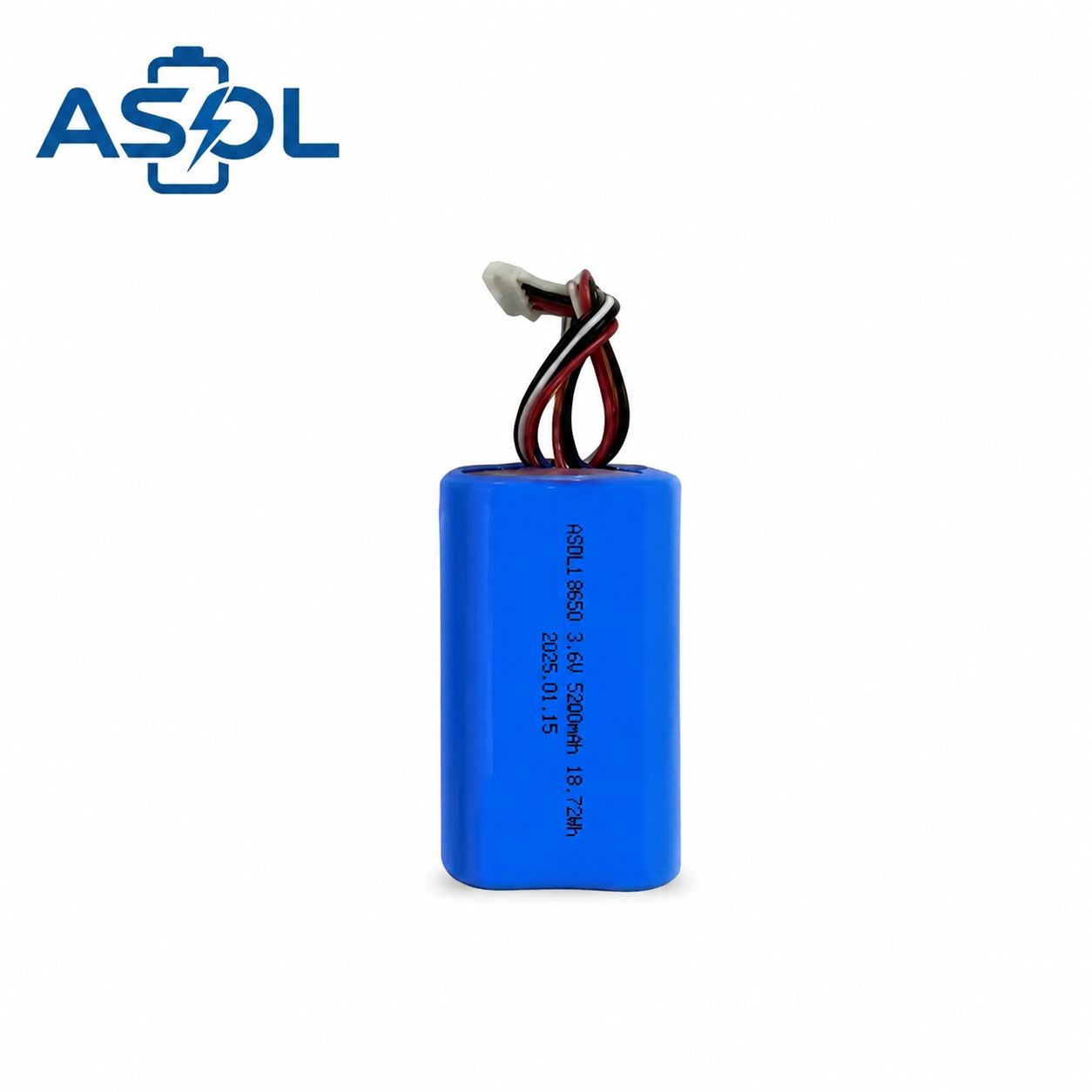

The ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders packs 3.6V / 5200mAh (18.72Wh) into a compact lithium battery in a 1S2P configuration measuring 66.5 × 37 × 19.5 mm and weighing 100g. It is engineered to power Automatic Pet Feeder and similar devices, with a stable discharge curve and dependable cycle life. On-board protection covers overcharge, over-discharge, and short circuit, while connector, wiring, and labeling can all be customized for your product.
Key Features
Compact power for smart feeders
Powers automatic pet feeders 30-0 days per charge.
Consistent power for precise feeding and smart features.
Direct replacement for popular brands, no soldering needed.
Guards against over-charge, discharge, current, short, and heat.
80% capacity retention after 500 full charge cycles.
66.5 × 37 × 19.5 mm, only 100g, fits slim designs.
Compliant with international safety and environmental standards.
Product Specifications
| Specification | Details |
|---|---|
| Brand | ASOL |
| Model | 1S2P 18650-5200mAh |
| Nominal Voltage | 3.6V |
| Capacity | 5200mAh |
| Configuration | 1S2P (1 Series, 2 Parallel) |
| Cell Type | 18650-2600mAh |
| Dimensions | 66.5 × 37 × 19.5 mm |
| Weight | 100g |
| Max Discharge Current | 2A |
| Connector | PHS-3P (3-pin, pre-wired) |
| Protection | Over-Charge / Over-Discharge / Over-Current / Short-Circuit / Over-Temperature |
| Cycle Life | ≥500 cycles |
| Charging Temperature | 0°C ~ 45°C |
| Discharging Temperature | -20°C ~ 60°C |
| Certifications | CE · RoHS · UN38.3 · MSDS |
Compatible Pet Feeder Brands and Devices
This ASOL 1S2P 3.6V battery is compatible with or directly replaces batteries in the following pet feeder brands and device types:
- Automatic Cat Feeders — Smart dispensers with scheduled feeding
- Automatic Dog Feeders — Large-capacity pet feeding stations
- Smart Pet Dispensers — WiFi/Bluetooth connected feeding devices
- Timed Pet Feeders — Programmable meal dispensers
- Travel Pet Feeders — Portable feeding solutions for trips
- Universal — Any 1S2P 18650 pet feeder requiring 3.6V power
Need to confirm compatibility? Contact us with your device model and we will verify fit, connector, and voltage match before you order.
Applications
Where the 1S2P pet feeder battery is used
Scheduled meal dispensing for cats on a timer.
Timed feeding for small to medium dogs.
Automated aquarium feeding for daily routines.
WiFi-connected monitoring & feeding devices.
Why Choose ASOL?
ASOL Battery Co., Ltd. is a professional lithium battery manufacturer with years of experience supplying OEM and wholesale batteries to global markets. Every battery is individually tested before shipment to ensure consistent quality, stable voltage, and reliable performance across batches.
When you choose ASOL, you get:
- Consistent batch-to-batch quality control
- Competitive wholesale pricing from 50 units
- Free technical support for battery integration and compatibility
- Reliable global shipping from Shenzhen
- CE, RoHS, UN38.3, MSDS certification documentation included
Start with a sample evaluation. Scale up with confidence.
Frequently Asked Questions
What are the key specifications of the ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders?
The ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders is a 3.6V 5200mAh lithium battery, built in a 1S2P configuration, measuring 66.5 × 37 × 19.5 mm, weighing 100g.
What is the ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders used for?
The ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders is designed to power Automatic Pet Feeder and similar devices. ASOL can also tailor the battery pack to other applications on request.
What connector does the ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders use?
It ships pre-wired with a PHS-3P connector. ASOL can customize the connector type, wire length, and labeling to match your device.
What is the maximum discharge current of the ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders?
The ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders supports a maximum continuous discharge current of 2A.
How many charge cycles does the ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders last?
The ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders is rated for ≥500 cycles, retaining strong capacity across its service life.
What safety certifications does the ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders have?
It is certified to CE, RoHS, UN38.3, MSDS, and full test reports can be provided on request.
Does ASOL offer OEM/ODM customization for the ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 18650 1S2P 3.6V 5200mAh Lithium-ion Battery Pack for Automatic Pet Feeders?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
