Wireless surveillance cameras may seem outwardly simple. Yet the power system behind a “battery camera” is where most field failures (and Armadas) originate: misleading runtime expectations, erratic charging behavior, and compliance paperwork arriving frustratingly late.
This buyer’s guide targets procurement and engineering teams sourcing a 3.7V battery pack for wireless surveillance camera designs—specifically when you require USB charging, solar charging, or a hybrid of both.
3.7V battery pack for wireless surveillance camera: what “3.7V” really means
A “3.7V battery pack” typically signifies a single-cell (1S) lithium-ion system:
- * Nominal voltage: ~3.6–3.7V
- * Full-charge voltage: ~4.2V
- * Cutoff behavior: dictated by your protection circuit and system requirements
This voltage range dictates:
- * Whether your camera runs directly from the pack or requires regulation
- * What charger profile you need
- * How USB/solar power must be managed under load
The three critical failure modes you must avoid
If you’re sourcing packs for a camera product line, prioritize these outcomes:
- **Runtime misses:** A pack appears “big enough” in Ah, but real duty cycles, conversion losses, and temperature effects drastically reduce usable energy.
- **Charging instability:** The camera browns out or reboots during charging (common with USB input limits or weak solar).
- **Compliance gaps:** Transport and safety documentation isn’t ready when your shipment deadline looms.
Needs assessment: 6 vital questions engineering must answer for procurement
Procurement can’t effectively evaluate a battery pack spec sheet in isolation. These six inputs create a precise target for suppliers:
- 1. **Average load and peak load:** Peaks often surge during Wi-Fi transmit bursts, IR illumination, siren/spotlight activation, or rapid wake cycles.
- 2. **Duty cycle assumptions:** Motion events per day, clip length, and your “worst day” scenario.
- 3. **Minimum operating temperature:** Outdoor products transform temperature range into a critical sourcing constraint.
- 4. **Charge input options:** USB-only, solar-only, or hybrid.
- 5. **Mechanical envelope + connector standard:** Cell format (pouch vs cylindrical), harness constraints, connector type, strain relief.
- 6. **Your acceptable risk posture:** Which protections and documents are mandatory versus “nice to have.”
Choose your charging architecture (USB-only vs solar-only vs hybrid)
Option A: USB-only charging
- * **Best when:** Cameras are primarily indoor or easily accessible for periodic charging, and you can assume a stable 5V input.
- * **What to watch:** USB sources are often current-limited. If the camera draws load while charging, the system demands a clear plan for current splitting.
Option B: Solar-only charging
* **Best when:** The camera is truly off-grid, and you can meticulously size the panel for your duty cycle.
* **What to watch:** Small panels behave like high-impedance sources—voltage can plummet under sudden load. Texas Instruments describes solar/energy-harvesting power management ICs designed to extract power from photovoltaic sources without collapsing them, including input regulation and MPPT concepts (see <a href=””></a>TI’s BQ25570 overview).
Option C: Hybrid USB + solar
* **Best when:** You need solar to extend runtime, but require USB as a reliable fallback.
* **What to watch:** Hybrid designs expose load sharing and charge termination issues rapidly. You need a robust power path strategy, not merely “a charger plus a panel.”

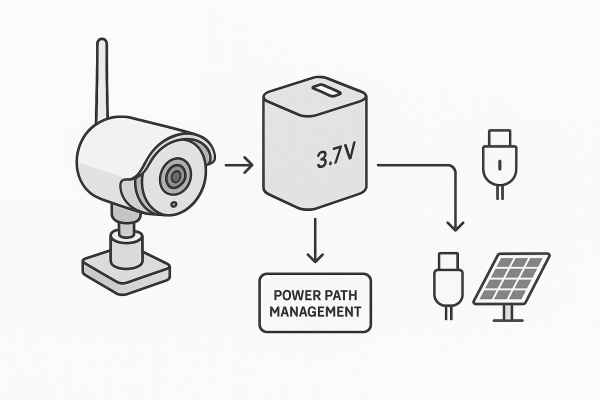

Power path management: why cameras brown out while charging
A common, frustrating failure pattern unfolds like this:
- 1. The camera connects to USB or a small solar panel.
- 2. A motion event triggers a significant current peak.
- 3. The input source can’t deliver the peak demand.
- 4. System voltage plummets.
- 5. The camera resets—or charging fails to terminate cleanly—leading to poor user experience and accelerated battery degradation.
This critical vulnerability is why sophisticated designs employ charger/power solutions with explicit power path management (load sharing).
Texas Instruments describes “Dynamic Power Path Management (DPPM)” as a way to power the system while simultaneously charging the battery, reducing charge current when the input current limit would otherwise pull the system output down, helping supply the system load while monitoring charge current separately (see TI’s DPPM explanation on the BQ24072 product page). This is also why procurement teams will often see requirements phrased as power path management battery charger support in RFCs for USB/solar camera designs.
For procurement: you don’t need to pick a charger IC in a supplier RFQ. You do need to ensure the pack and the system power design are evaluated together—because a “great cell” won’t fix a power-path problem.
Size the pack in Ah first (then translate to Ah)
Capacity is often quoted in ah, but engineering decisions become clearer in Ah.
Step 1: estimate daily energy consumption
Back-of-napkin:
- Ah/day ≈ Average power (W) × 24
If you only have current:
- Power (W) ≈ Voltage (V) × Current (A)
For a 1S system, you can use 3.7V for first-pass estimates.
Step 2: decide your autonomy target
Ask: “How many days should the camera run with zero solar input?”
- Solar-assist products often target 2–5 days.
- Solar-primary expectations usually require longer autonomy and realistic duty-cycle constraints.
Step 3: translate Ah to ah
- Capacity (Ah) ≈ Required Ah ÷ 3.7 V
- Capacity (ah) ≈ (Required Ah ÷ 3.7 V) × 1000
Pro Tip: Ask suppliers to size your USB charging lithium-ion battery pack in Ah against your duty-cycle assumptions, then quote the resulting Ah. It prevents “ah inflation” discussions that don’t translate to real runtime.
What to require from the battery pack (beyond headline capacity)
A camera battery pack is not just cells. It’s a safety and reliability subsystem.
1) Pack protection circuit requirements (PCM)
Your RFQ should specify the required battery protection circuit (PCM) for 1S Li-ion pack behavior, including at minimum:
- overcharge protection
- over-discharge protection
- over-current protection
- short-circuit protection
- over-temperature strategy (often via NTC + system policy)
Also confirm:
- continuous discharge current rating and peak current handling
- How protection thresholds are defined and verified
2) Temperature sensing strategy
Outdoor charging creates hard constraints. Make these explicit:
- NTC presence and placement
- temperature window for charge enable/disable
- behavior out of range (stop charge vs reduce current)
3) Mechanical + harness robustness
Field failures often come from:
- cable strain
- connector fretting
- Water ingress into the pack cavity
Procurement questions that reduce surprises:
- connector family and mating cycles
- cable gauge and strain relief
- enclosure assumptions (and any sealing recommendations)
Solar charging in practice: how to avoid a “works in the lab” design
Solar is attractive because it makes the camera feel set-and-forget. In reality, many systems are energy-limited.
1) Panel sizing must follow your energy budget
Instead of asking “can we add a panel?”, ask:
- “Does average daily harvest exceed average daily consumption with margin?”
If the answer is “sometimes,” your options are:
- increase panel size
- reduce average load (more sleep time, fewer uploads, shorter clips)
- increase battery autonomy
2) Intermittent input makes load sharing essential
When clouds pass or the sun angle changes, panel output can drop quickly. If the camera loads the input without a proper power path, brownouts become routine.
This is why solar discussions often intersect with power management concepts like input regulation and MPPT (again, per I’s overview of the BQ25570 energy-harvesting PMIC).
Compliance and shipping: procurement questions to ask on day one
Even when a battery is “inside equipment,” lithium battery transport and safety expectations can block shipments if you don’t have the right documents.
UN 38.3 and test summaries
PHMSA (US DOT) explains that lithium batteries offered for transport must pass the UN Manual of Tests and Criteria Section 38.3, and notes that manufacturers must make test summaries available upon request (effective Jan 21, 2022). See PHMSA’s guidance on transporting lithium batteries.
What to ask suppliers:
- Do you have the UN 38.3 test summary for this exact cell/pack design?
- Can you provide it on request for our shipping lanes and 3PL partners?
For US shipping requirements, PHMSA references the Hazardous Materials Regulations; the lithium battery-specific section is 49 CFR 173.185.
Safety standards (portable lithium systems)
UL notes that the UL 62133 family includes UL 62133-2 for lithium systems and that it is harmonized with IEC 62133-2:2017 (see UL’s overview of the UL 62133 family standards).
