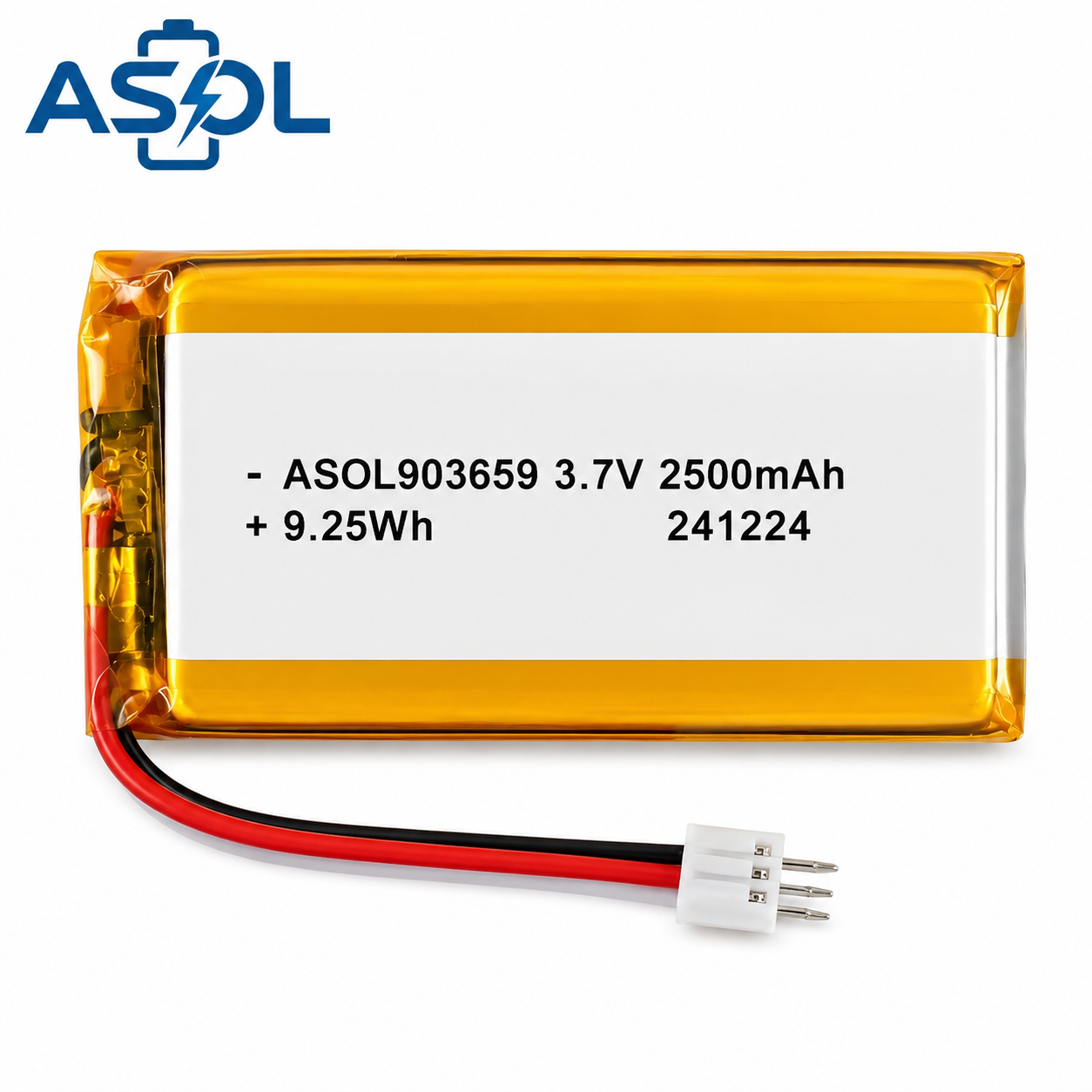

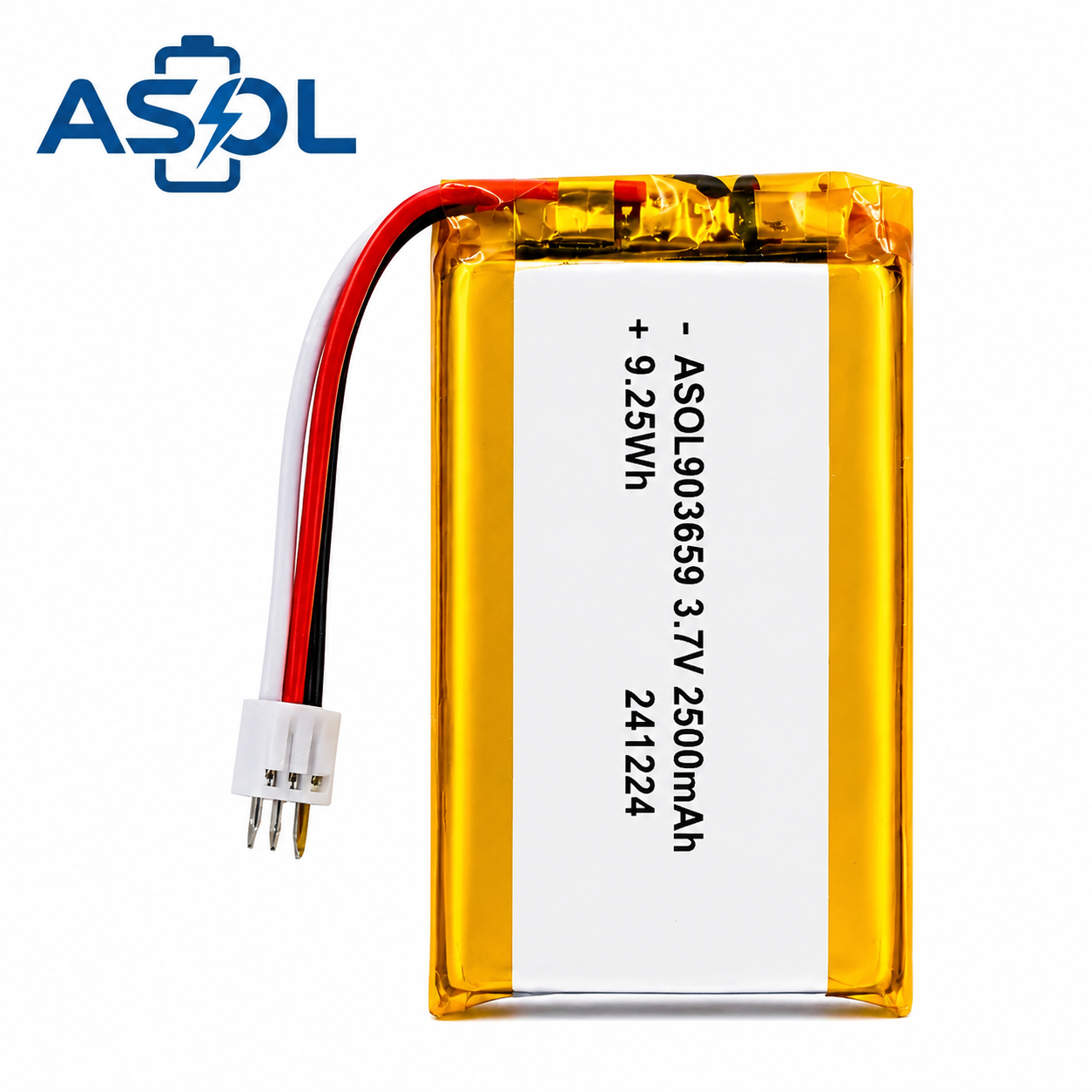

ASOL 903659 Lithium Polymer Battery — A wide-temperature 2500mAh (9.25Wh) soft-pack Li-Po battery engineered for smart home security and outdoor monitoring applications. The -20°C to +60°C operating range covers extreme conditions that defeat standard consumer batteries — outdoor winter security monitoring, summer sun-exposed cameras, and year-round smart home devices. The compact 9.0×36×62mm rectangular footprint fits wireless security camera battery packs, smart video doorbell housings, solar camera enclosures, smart bird feeder camera compartments, and smart door lock battery compartments.
Why Wide Temperature -20°C to +60°C?
| Environment | Standard Battery (0~45°C) | ASOL 903659 (-20~60°C) |
|---|---|---|
| Outdoor Security Camera (Winter) | ❌ Fails below 0°C | ✅ Works at -20°C |
| Dashcam in Parked Car (Summer) | ❌ Fails above 45°C | ✅ Works at +60°C |
| Outdoor GPS Tracker (Winter) | ❌ Fails below 0°C | ✅ Works at -20°C |
| Smart Video Doorbell (All Season) | ❌ Limited to mild climates | ✅ -20°C to +60°C |
Standard consumer LiPo batteries are rated for 0°C to +45°C charging and 0°C to +60°C discharging. The 903659’s -20°C lower limit extends deployment into outdoor winter security monitoring, cold-weather GPS tracking, and year-round smart home installations.
Key Features
- 🌡️ Wide Temp -20°C to +60°C — Engineered for wireless security cameras, smart video doorbells, solar cameras, smart bird feeder cameras, and smart door locks
- 🔋 2500mAh / 9.25Wh Capacity — High capacity for extended outdoor deployment and smart home backup
- 📐 Compact 9.0×36×62mm — Fits security camera battery compartments, doorbell housings, solar camera enclosures, and smart door lock battery compartments
- 🔄 ≥500 Cycle Life — Long-term reliability for embedded applications
- 🛡️ 6 Global Certifications — UL, CB, KC, PSE, UN38.3, CQC
- ⚡ 1C (2500mA) Discharge — Supports high-drain device startup
- 🔌 3-Pin JST Connector — Customizable
- 🔒 Built-in PCM Protection
Specifications
| Parameter | Value |
|---|---|
| Model | 903659 |
| Chemistry | Lithium Polymer (Li-Po) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 2500mAh |
| Nominal Energy | 9.25Wh |
| Dimensions (T×W×H) | 9.0×36×62mm |
| Weight (Approx.) | ~50g |
| Impedance | ≤150mΩ |
| Charge Voltage | 4.2V |
| Standard Charge Current | 500mA (0.2C) |
| Max Charge Current | 2500mA (1C) |
| Standard Discharge Current | 500mA (0.2C) |
| Max Discharge Current | 2500mA (1C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 3.0V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C |
| Cycle Life | ≥500 cycles (80% capacity retention) |
| Certifications | UL1642, CB, KC, PSE, UN38.3, CQC |
| Protection | Built-in PCM |
| Connector | 3-Pin JST (Customizable) |
Applications
📹 Wireless Security Camera
- WiFi Battery-Powered Security Cameras — 2500mAh provides 2–4 weeks continuous recording or 2–3 months motion-triggered recording for indoor/outdoor surveillance
- Wire-Free Outdoor Cameras — Wide temp -20°C to +60°C handles outdoor winter/summer extremes without performance degradation
- Home Security Camera Systems — Backup battery for main security cameras during power outages
- Motion-Activated Cameras — Efficient power draw extends standby to 3–5 months for low-activity monitoring
- Rental & Airbnb Security Cameras — Easy battery-powered installation without wiring
🔔 Smart Video Doorbell
- WiFi-Connected Video Doorbells — 2500mAh provides 3–5 months standby or 1–2 months active use with motion detection, live view, and two-way audio
- Battery-Powered Doorbell Cameras — Wide temp handles outdoor winter/summer extremes (-20°C to +60°C)
- Wireless Doorbell Chime Units — Battery backup for chime receivers
- Intercom Doorbell Systems — Powers two-way communication doorbells
- Apartment & Rental Property Doorbells — No-wiring installation for flexible placement
☀️ Solar Camera
- Solar-Powered Security Cameras — 2500mAh provides 3–5 months standby as backup power for solar panel setups during low-sun periods
- Solar Trail Cameras — Extended deployment in remote outdoor locations with solar + battery hybrid power
- Solar Wildlife Cameras — Reliable year-round operation in varying sunlight conditions
- Off-Grid Solar Cameras — Independent power for remote property monitoring without grid connection
- Solar Camera Kits — Matched battery capacity for popular 3W–5W solar panel configurations
🐦 Smart Bird Feeder Camera
- Bird Feeder Cameras with AI Recognition — 2500mAh provides 1–2 months of continuous bird-watching and species identification recording
- Outdoor Feeder Cameras — Wide temp handles outdoor garden exposure from winter frost to summer heat
- Wildlife Garden Cameras — Compact 9.0×36×62mm fits inside decorative feeder housings
- Motion-Activated Bird Cams — Efficient standby extends battery life to 2–3 months between charges
- Backyard Nature Observation Cameras — Quiet battery power won’t disturb birds and wildlife
🔐 Smart Door Lock
- Battery-Powered Smart Locks — 2500mAh provides 6–12 months of typical use with fingerprint, keypad, or app unlocking
- WiFi/Bluetooth Smart Door Locks — Reliable power for connected locks with remote access features
- Outdoor Smart Locks — Wide temp -20°C to +60°C ensures reliable operation on exterior doors in all seasons
- Rental & Airbnb Smart Locks — Long battery life reduces maintenance visits for property managers
- Fingerprint & Keypad Locks — Supports high-drain unlock cycles (motor + LED + WiFi burst) with 1C discharge capability
Why Choose ASOL 903659?
Wide temperature = real-world reliability — The 903659’s -20°C to +60°C operating range is essential for wireless security cameras, smart video doorbells, solar cameras, smart bird feeder cameras, and smart door locks deployed in exposed outdoor locations where temperatures regularly exceed or fall below standard battery ratings. Standard consumer batteries fail in these environments; the 903659 delivers reliable power year-round.
6 global certifications — The 903659 carries UL, CB, KC, PSE, UN38.3, and CQC certifications, covering North America, Europe, Korea, Japan, China, and global air transport. This is the most comprehensive certification coverage in its class for smart home security device manufacturers.
Compact form for smart home security devices — The 9.0×36×62mm footprint is optimized for wireless security camera battery compartments, smart video doorbell housings, solar camera enclosures, smart bird feeder camera compartments, and smart door lock battery compartments, where internal space is limited and temperature resilience matters.
Wholesale Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 100–499 pcs | Contact us | — |
| 500–999 pcs | Contact us | 8% off |
| 1,000–4,999 pcs | Contact us | 15% off |
| 5,000+ pcs | Contact us | 20%+ off |
📌 Sample orders and custom specifications welcome. Full certification documentation provided.
