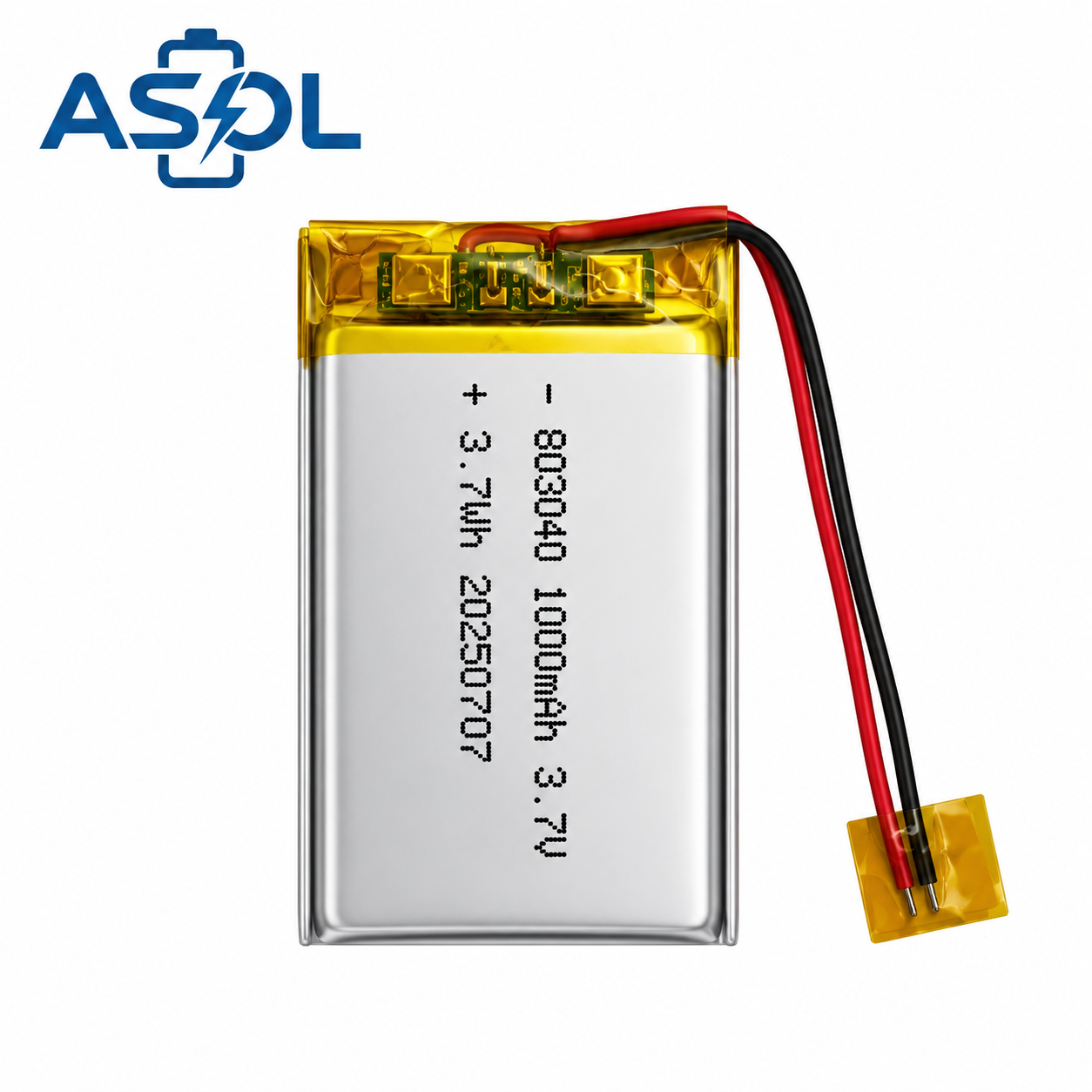

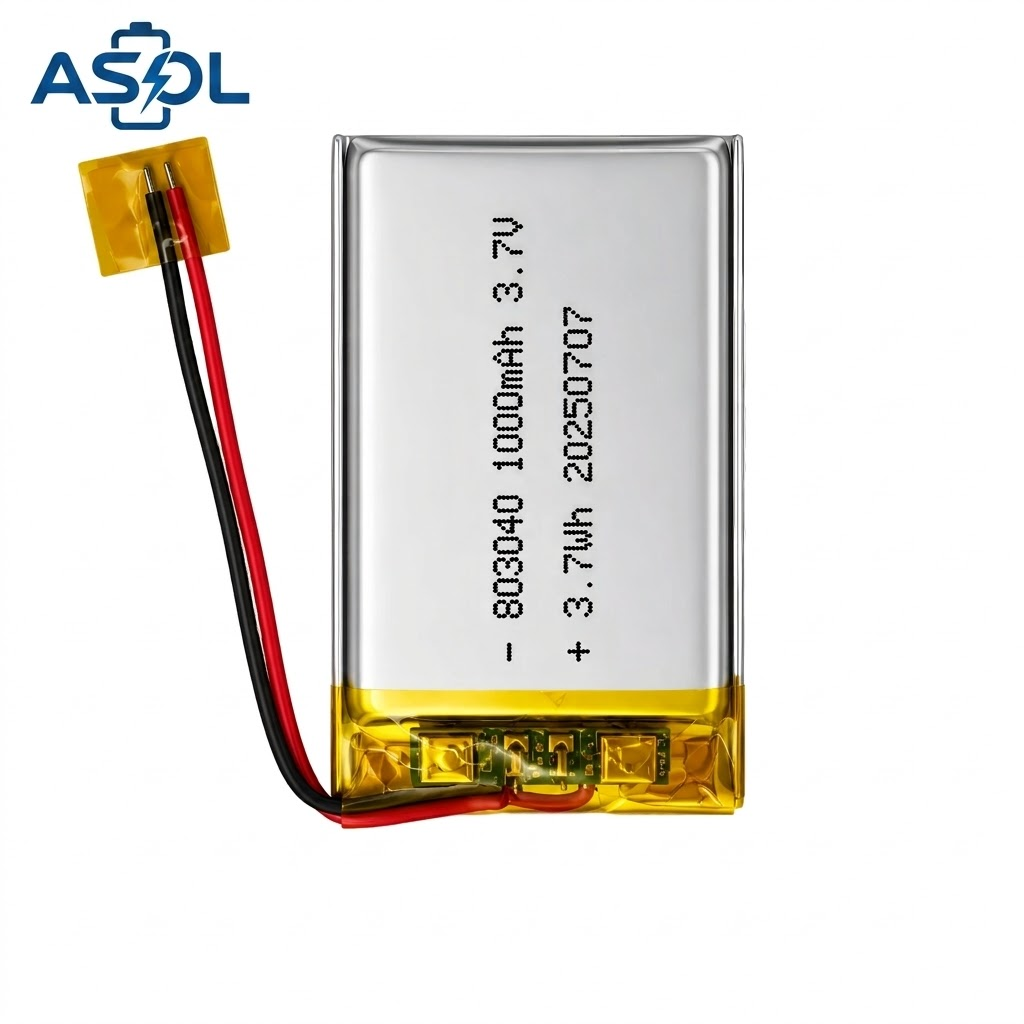

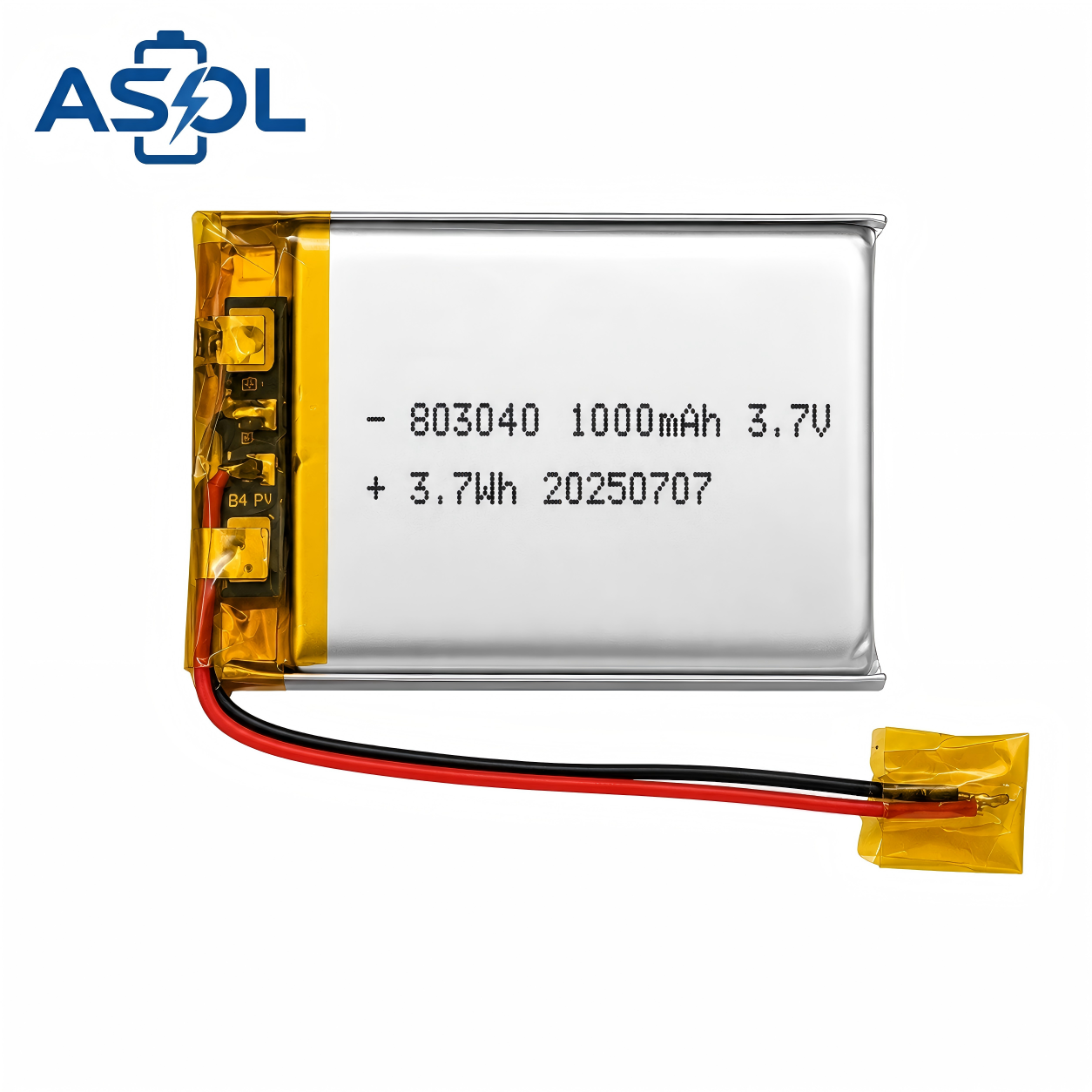

ASOL 803040 Lithium Polymer Battery — A versatile 1000mAh soft-pack Li-Po delivering 3.7Wh energy in a slim 8.0mm profile with a 30×42mm rectangular footprint. This is a proven mid-range form factor used in a wide variety of compact consumer and professional devices — ideal for POS terminals, barcode scanners, handheld fans, portable speakers, beauty devices, GPS devices, handheld game consoles, and medical devices.
Why 803040 Form Factor — Common Use Case Comparison
| Battery Model | Thickness | Width | Length | Common Applications |
|---|---|---|---|---|
| ASOL 803040 | 8.0mm | 30mm | 42mm | ⭐ Versatile mid-range |
| ASOL 503040 | 5.0mm | 30mm | 42mm | Ultra-slim version |
| ASOL 803050 | 8.0mm | 30mm | 50mm | Longer version |
| ASOL 803048 | 8.0mm | 30mm | 48mm | Slightly longer |
The 803040 is one of ASOL’s most versatile mid-range sizes — the 8.0mm thickness, 30mm width, and 42mm length match the internal cavity dimensions of hundreds of compact handheld devices on the market.
Why Lithium Polymer?
- 📐 8.0mm Slim × 30mm Wide — Matches the most common compact handheld device cavity dimensions
- 📏 30×42mm Rectangular Footprint — Proven form factor across many device categories
- 🔋 1000mAh in Compact Form — Sufficient for a full day of typical handheld device use
- ⚡ 1000mA Continuous Discharge — Supports medium-load devices including POS and scanners
- 🪶 Featherweight Soft Pack — Aluminum-laminated construction minimizes device weight
- 🔧 Flexible Integration — Adapts to a wide variety of compact enclosures
- 🏭 OEM-Friendly — Custom tabs, wires, connectors, and PCM available
Key Features
- 🔋 1000mAh / 3.7Wh Compact Power — Reliable energy for compact handheld devices
- 📐 8.0mm Slim Profile — Fits slim compact device enclosures
- 📏 30×42mm Rectangular Footprint — Proven mid-range form factor
- ⚡ 1000mA Max 1C Discharge — Continuous power delivery for medium-load devices
- 🔄 ≥500 Cycle Life — Reliable long-term performance with minimal degradation
- 🌡️ Wide Temperature Range — Discharge -20
60°C, charge 045°C - 🛡️ UN38.3 Certified — Safe for global air transport
- 🔧 OEM/ODM Ready — Custom tabs, wires, connectors, protection circuits
Specifications
| Parameter | Value |
|---|---|
| Model | 803040 |
| Chemistry | Lithium Polymer (Li-Po) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1000mAh |
| Nominal Energy | 3.7Wh |
| Dimensions (T×W×H) | 8.0×30×42mm |
| Charge Voltage | 4.2V |
| Standard Charge Current | 200mA (0.2C) |
| Max Charge Current | 1000mA (1C) |
| Standard Discharge Current | 200mA (0.2C) |
| Max Discharge Current | 1000mA (1C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 2.5V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C (recommended) |
| Cycle Life | ≥500 cycles (100% DOD, 0.2C, 25°C) |
| Weight (Approx.) | ~22g |
| Certifications | UN38.3 |
Applications
🖨️ POS & Scanning (Top Match)
- POS Terminal — 1000mAh supports full-shift operation; 8.0mm slim fits compact payment terminals
- Barcode Scanner — 30mm wide fits most handheld scanner battery compartments
- Handheld Data Collector
- Inventory Scanner
💨 Consumer Electronics (Top Match)
- Handheld Fan — 1000mAh provides hours of cooling; compact form fits personal fan enclosures
- Portable Speaker — 30mm wide fits compact speaker enclosures; 1000mAh for extended playback
- Portable Audio Players
✨ Beauty & Personal Care
- Beauty Devices
- Skincare Devices
- Hair Removal Devices
- Electric Toothbrush
📍 Navigation & Location
- GPS Device — Compact form for portable GPS and cycling computers
- Vehicle GPS (compact)
- Outdoor GPS Device
🎮 Gaming & Entertainment

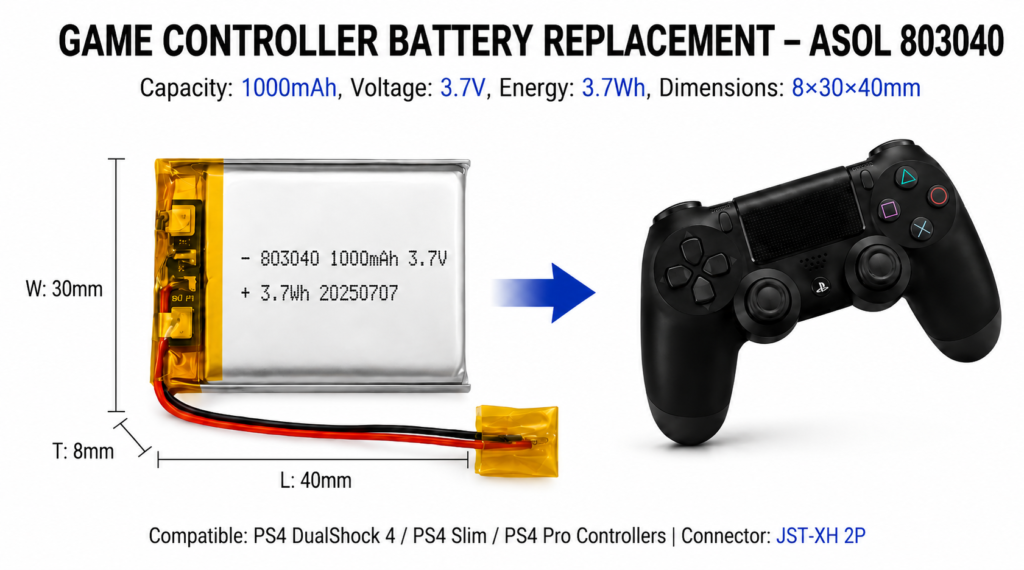

- Gamepad / Game Controller — 1000mAh fits compact wireless gamepad; 8.0mm slim profile for ergonomic controller design
- Handheld Game Console
- Portable Gaming Device
- TV Remote Controls
🏥 Medical & Health
- Medical Devices (compact)
- Portable Health Monitors
- Digital Thermometers
Why Choose ASOL 803040?
Versatile proven power — The ASOL 803040 delivers 1000mAh (3.7Wh) in an 8.0mm slim profile with a 30×42mm footprint — one of the most versatile mid-range battery sizes for compact handheld devices. The 803040 form factor is compatible with hundreds of compact device models, making it the ideal drop-in replacement or OEM power solution.
UN38.3 certified for global logistics — The 803040 is UN38.3 certified, ensuring safe air transport worldwide. ASOL’s OEM/ODM team supports custom tabs, wire harnesses, connectors, and PCM protection circuit integration.
