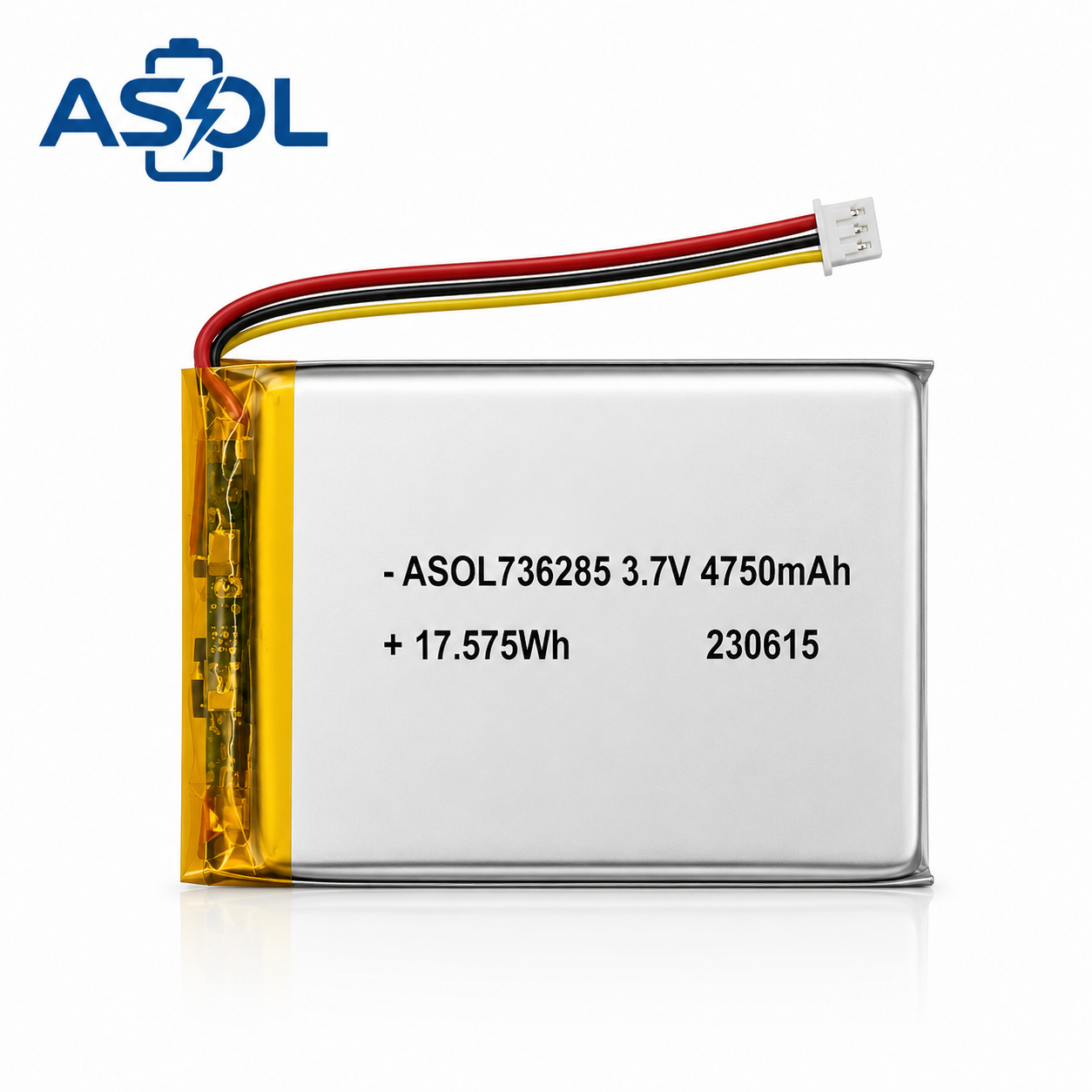

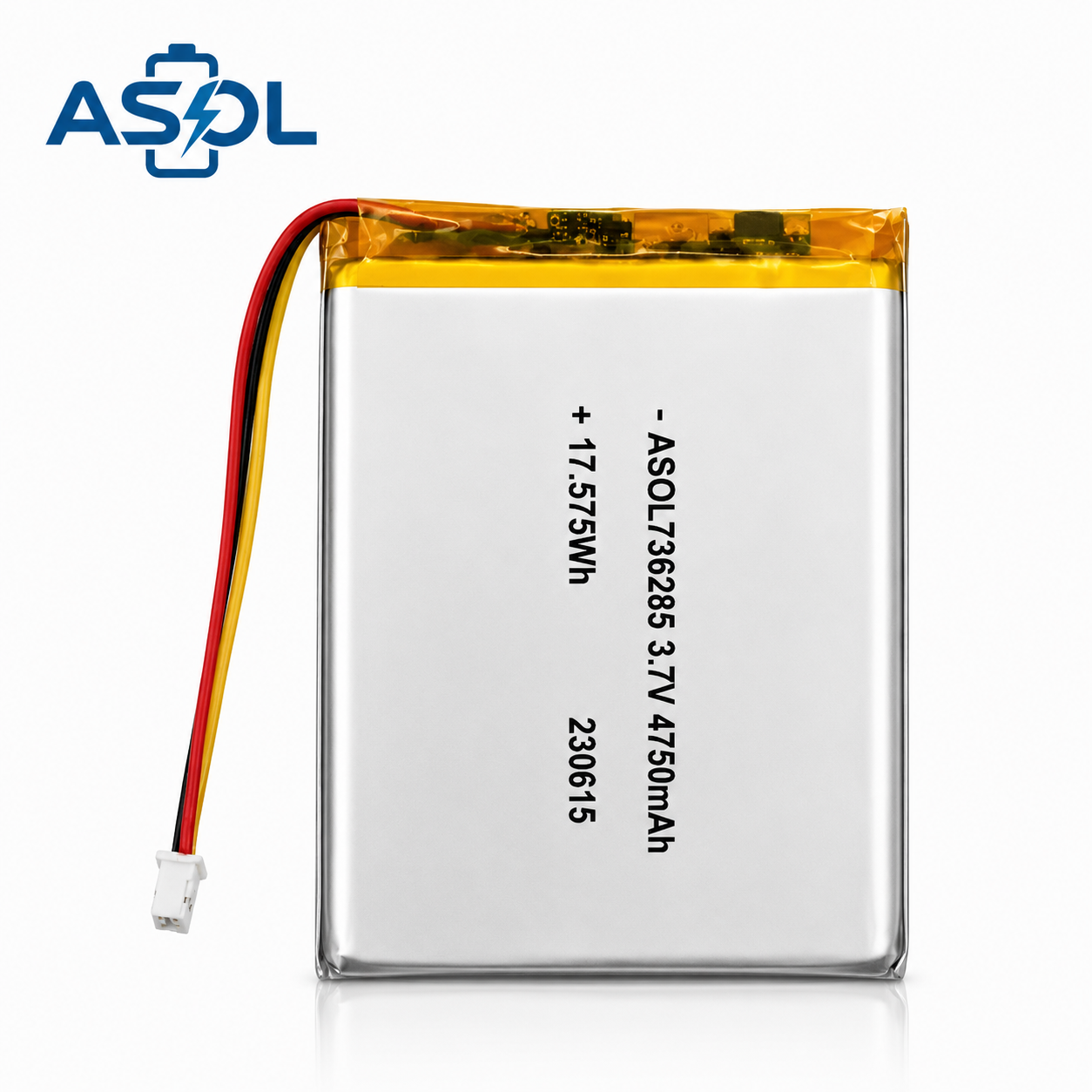

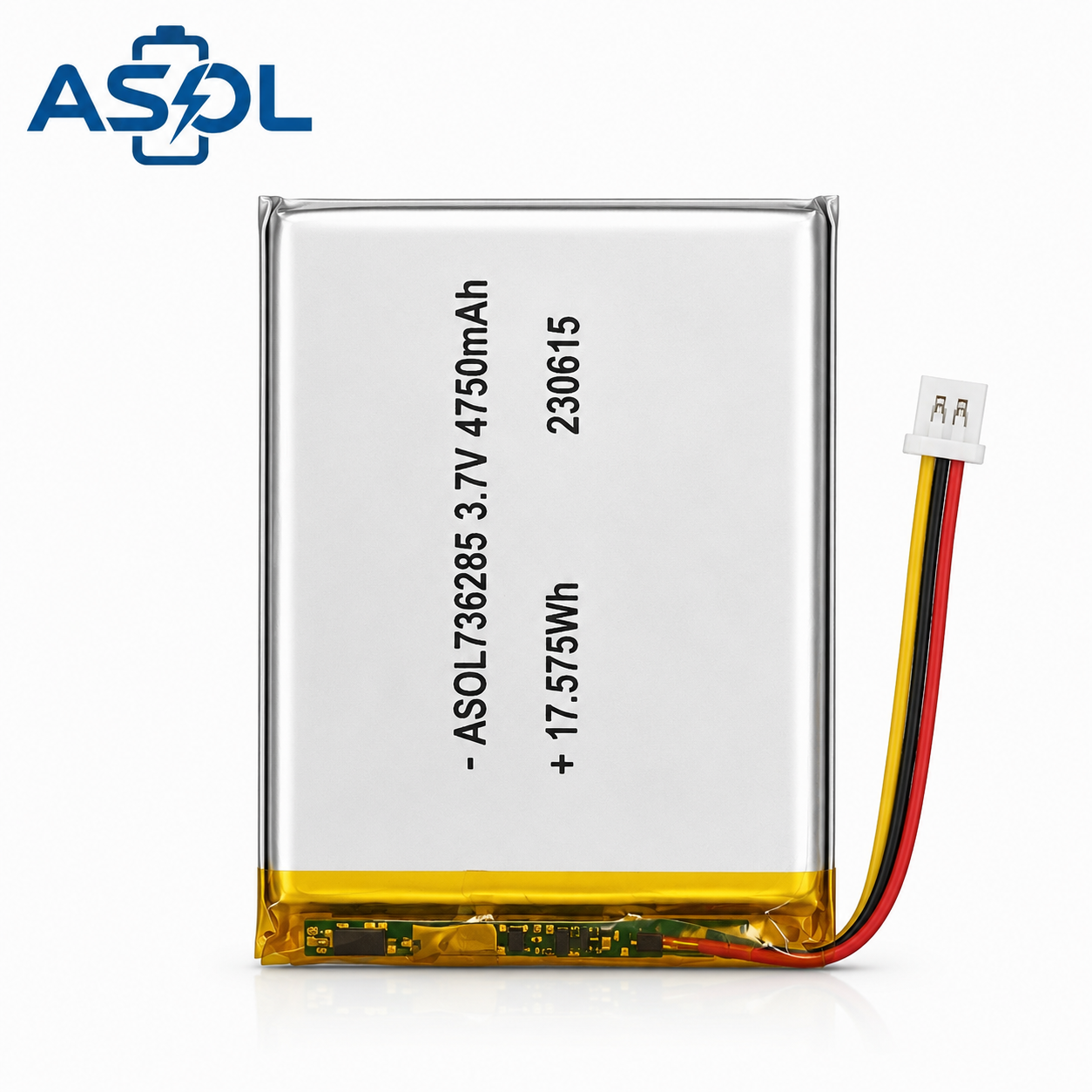

ASOL 736285 Lithium Polymer Battery — A high-capacity 4750mAh (17.575Wh) soft-pack Li-Po battery featuring an ultra-slim 4.8mm profile with a narrow 62.5mm width and elongated 88mm length. The narrow-rectangular form factor is specifically designed for compact display and control devices — tablets, portable monitors, smart control panels, and mini projectors — where the internal battery compartment is long and slim. The 4.8mm ultra-slim profile is also thinner than most 2500mAh batteries, making it exceptionally energy-dense for space-constrained consumer electronics.
Why Narrow 62.5mm Width for Compact Display Devices?
| Device Type | Typical Battery Width | 736285 Advantage |
|---|---|---|
| Small Tablets | 55~70mm | ⭐ 62.5mm fits slim tablet frames |
| Portable Monitors | 50~70mm | ⭐ 62.5mm narrow body design |
| Smart Control Panels | 55~75mm | ⭐ 62.5mm matches slim wall-mount designs |
| Mini Projectors | 50~65mm | ⭐ 62.5mm fits compact projector chassis |
The 62.5mm narrow width enables slim display and control devices without sacrificing battery capacity. The 736285’s 4750mAh is achieved through the elongated 88mm length, making it the ideal high-capacity solution for narrow-form consumer electronics.
Key Features
- 🔋 4750mAh / 17.575Wh Capacity — Extended runtime for tablets, monitors, and projectors
- 📐 Ultra-Slim 4.8mm Profile — Thinner than most 2500mAh batteries
- 📏 Narrow 62.5mm Width — Fits slim display device enclosures
- 🔄 ≥300 Cycle Life — Long-term reliability for consumer electronics
- 🛡️ Global Certifications — CB, KC, PSE, UN38.3 for major markets
- 🌡️ Wide Temp Range — Discharge: -20~60°C
- 🔧 OEM/ODM Ready — Custom tabs, wires, connectors, PCM protection
Specifications
| Parameter | Value |
|---|---|
| Model | 736285 |
| Chemistry | Lithium Polymer (Li-Po) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 4750mAh |
| Nominal Energy | 17.575Wh |
| Dimensions (T×W×H) | 4.8×62.5×88mm |
| Impedance | ≤150mΩ |
| Charge Voltage | 4.2V |
| Standard Charge Current | 950mA (0.2C) |
| Max Charge Current | 2500mA |
| Standard Discharge Current | 950mA (0.2C) |
| Max Discharge Current | 2500mA |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 3.0V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C |
| Cycle Life | ≥300 cycles (80% capacity retention) |
| Certifications | CB, KC, PSE, UN38.3 |
| Protection | Built-in PCM (optional) |
Applications
📱 Tablet Device
- Compact Tablets & E-Readers — 4750mAh provides 6–10 hours of mixed-use runtime for 7–8 inch tablets; 4.8mm ultra-slim profile fits inside thin tablet chassis
- Educational Tablets
- Industrial Tablets
- POS Tablets
- Portable Media Players
🖥️ Portable Monitor
- Portable Displays & Monitors — 4750mAh powers 13–15 inch portable monitors for 2.5–4 hours of continuous use; narrow 62.5mm width matches slim monitor housing
- USB-C Portable Monitors
- Travel Displays
- Secondary Laptop Screens
- Field Monitoring Displays
💳 Smart POS Terminal
- Smart POS Terminals — 4750mAh supports full-day payment processing (8+ hours); narrow form fits slim payment device designs
- Portable Payment Terminals
- Handheld Order Devices
- Restaurant POS Devices
- Mobile POS Units
🎛️ Smart Control Panel
- Smart Home Control Panels — 4750mAh provides 5–7 days of standby or 10–15 hours of active touchscreen use; slim profile fits wall-mount designs
- Home Automation Controllers
- Security System Panels
- HVAC Control Displays
- Smart Intercom Controllers
📽️ Mini Projector
- Compact & Pico Projectors — 4750mAh delivers 1.5–2.5 hours of projection time for portable mini projectors; narrow rectangular form fits projector battery compartments
- Pocket Projectors
- Camping Projectors
- Presentation Projectors
- Home Entertainment Mini Projectors
Why Choose ASOL 736285?
Slim-form high capacity — The 736285’s 4.8mm ultra-slim profile fits inside tablets, portable monitors, and compact projectors where thicker batteries cannot. At 4750mAh (17.575Wh), it delivers extended runtime for display and control devices in space-constrained enclosures.
Narrow-rectangular form factor — The 62.5×88mm footprint is purpose-built for elongated slim devices. Standard batteries in this capacity class are 70~80mm wide; the 736285 achieves 4750mAh in a narrow 62.5mm width through its elongated 88mm length — ideal for tablets and portable monitors.
Reliable all-day power — At 4750mAh, the 736285 reliably powers tablets through a full day of mixed use, portable monitors for several hours of continuous display, and smart POS terminals through an entire work shift without recharging.
Wholesale Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 100–499 pcs | Contact us | — |
| 500–999 pcs | Contact us | 8% off |
| 1,000–4,999 pcs | Contact us | 15% off |
| 5,000+ pcs | Contact us | 20%+ off |
📌 Sample orders and custom specifications welcome. Full certification documentation provided.
