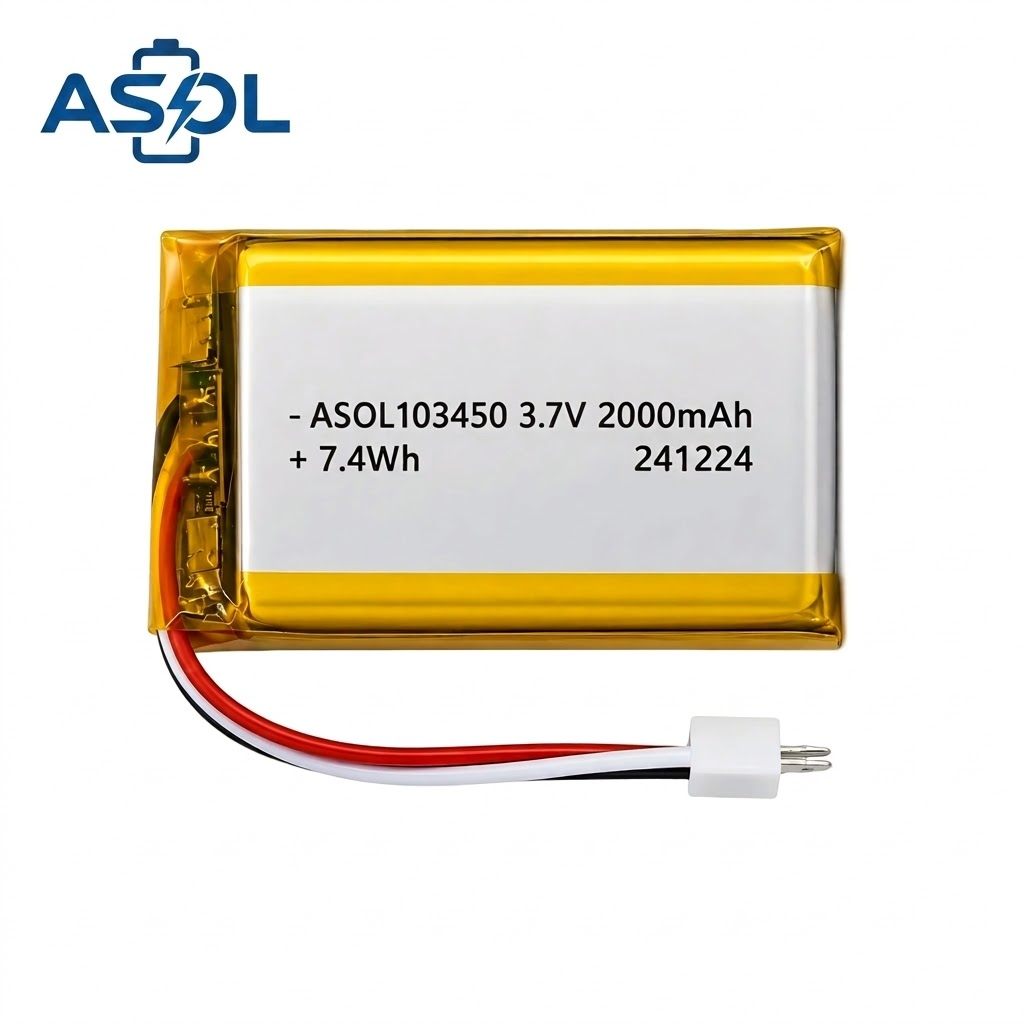

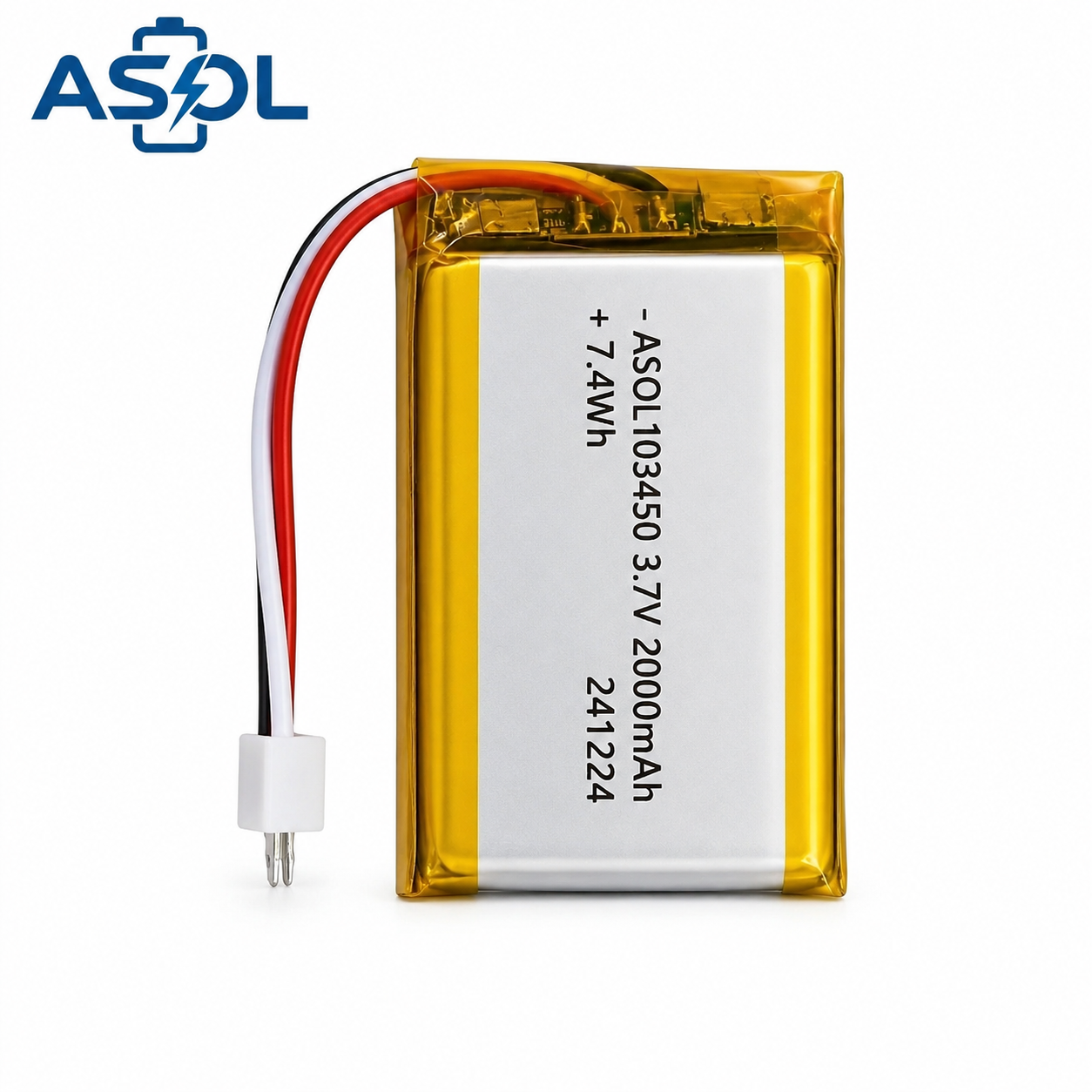

ASOL 103450 Lithium Polymer Battery — A high-capacity 2000mAh soft-pack Li-Po delivering 7.4Wh energy in a slim 10.5mm profile with a 34×50mm wide rectangular footprint. This battery delivers high capacity in a compact wide-form factor — engineered for smart home security, tracking, portable printing, and beauty devices: compact wireless security cameras, GPS trackers, portable thermal printers, facial beauty devices, and smart video doorbells.
Why 10.5mm Slim + 2000mAh — Comparison
| Battery Type | Capacity | Thickness | Width | Best For |
|---|---|---|---|---|
| Standard 2000mAh | 2000mAh | 12~15mm | 30~35mm | Standard devices |
| ASOL 103450 ★ | 2000mAh | 10.5mm | 34mm | ⭐ Slim wide-form devices |
| Standard 1500mAh | 1500mAh | 8~10mm | 32~35mm | Less capacity |
Most 2000mAh batteries are 12~15mm thick. The 103450 delivers the same 2000mAh capacity in just 10.5mm thin — making it the slim choice for wide-form devices that need long runtime without bulk.
Why Lithium Polymer?
- 🔋 2000mAh High Capacity — All-day or multi-day device operation without recharging
- 📐 10.5mm Slim Profile — Thinner than most 2000mAh batteries; comfortable handheld grip
- 📏 34×50mm Wide Rectangular Footprint — Wide form for professional handheld devices
- ⚡ 2000mA Continuous Discharge — Sufficient power for demanding devices
- 🪶 Featherweight Soft Pack — Aluminum-laminated construction minimizes device weight
- 🔧 Flexible Integration — Adapts to wide-form and irregular enclosures
- 🏭 OEM-Friendly — Custom tabs, wires, connectors, and PCM available
Key Features
- 🔋 2000mAh / 7.4Wh High Capacity — High energy for long-runtime devices
- 📐 10.5mm Slim Profile — Thinner than most 2000mAh batteries
- 📏 34×50mm Wide Rectangular Footprint — Wide-form for professional handheld devices
- ⚡ 2000mA Max 1C Discharge — Continuous power delivery for demanding devices
- 🔄 ≥300 Cycle Life — Reliable long-term performance
- 🌡️ Wide Temperature Range — Charge: 0~45°C / Discharge: -20~60°C
- 🛡️ UN38.3 Certified — Safe for global air transport
- 🔧 OEM/ODM Ready — Custom tabs, wires, connectors, protection circuits
Specifications
| Parameter | Value |
|---|---|
| Model | 103450 |
| Chemistry | Lithium Polymer (Li-Po) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 2000mAh |
| Nominal Energy | 7.4Wh |
| Dimensions (T×W×H) | 10.5×34×50mm |
| Charge Voltage | 4.2V |
| Standard Charge Current | 400mA (0.2C) |
| Max Charge Current | 2000mA (1C) |
| Standard Discharge Current | 400mA (0.2C) |
| Max Discharge Current | 2000mA (1C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 2.5V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C (recommended) |
| Cycle Life | ≥300 cycles (100% DOD, 0.2C, 25°C) |
| Weight (Approx.) | ~40g |
| Certifications | UN38.3 |
Applications
📹 Smart Home Security — Compact Wireless Security Camera
- Compact Wireless Security Cameras — 2000mAh supports 6-10 hours continuous recording or 3-5 weeks standby with motion detection; 10.5mm slim profile fits compact camera enclosures; wide 34×50mm footprint provides stable mounting base
- Portable Indoor Security Cameras (small Wi-Fi models)
- Nanny Cams & Baby Monitors (compact)
📍 Tracking & Location
- GPS Trackers — 2000mAh provides 10-14 days of active tracking or 4-6 weeks standby; compact form fits vehicle, asset, and personal tracker housings
- Vehicle GPS Trackers
- Asset Trackers
- Pet GPS Collars
🖨️ Portable Office & Field Equipment
- Portable Thermal Printers — 2000mAh supports 400-600+ print jobs per charge; 10.5mm slim fits portable printer designs; ideal for mobile receipt printing, field service, and delivery logistics
- Mobile Label Printers
- Bluetooth Receipt Printers
- Compact POS Printers (portable)
✨ Beauty & Personal Care
- Facial Beauty Devices — 2000mAh powers facial cleansing brushes, LED facial masks, and microcurrent devices for 10-15 sessions per charge; wide-form fits handheld beauty tool grips
- Professional Skincare Devices (compact)
- Facial Massage Devices
- Compact Hair Removal Devices
🔔 Smart Home & IoT
- Smart Video Doorbells — 2000mAh supports 3-5 months standby with regular motion-triggered recording; 10.5mm slim fits narrow doorbell enclosures without protruding
- Wireless Smart Doorbells
- Smart Home Sensors (high-capacity models)
- Portable Security Camera Backup Power
Why Choose ASOL 103450?
Smart security & IoT power — The ASOL 103450 delivers 2000mAh (7.4Wh) in a 10.5mm slim profile with a 34×50mm wide footprint — purpose-built for compact wireless security cameras, GPS trackers, portable thermal printers, facial beauty devices, and smart video doorbells. Its 1C discharge handles Wi-Fi camera streaming and thermal printing bursts while maintaining long standby life for security and tracking devices.
UN38.3 certified for global logistics — The 103450 is UN38.3 certified, ensuring safe air transport worldwide. ASOL’s OEM/ODM team supports custom tabs, wire harnesses, connectors, and PCM protection circuit integration.
Wholesale Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 100–499 pcs | Contact us | — |
| 500–999 pcs | Contact us | 8% off |
| 1,000–4,999 pcs | Contact us | 15% off |
| 5,000+ pcs | Contact us | 20%+ off |
📌 Wholesale Note: Sample orders and custom specifications welcome. Full certification documentation provided with shipment.
