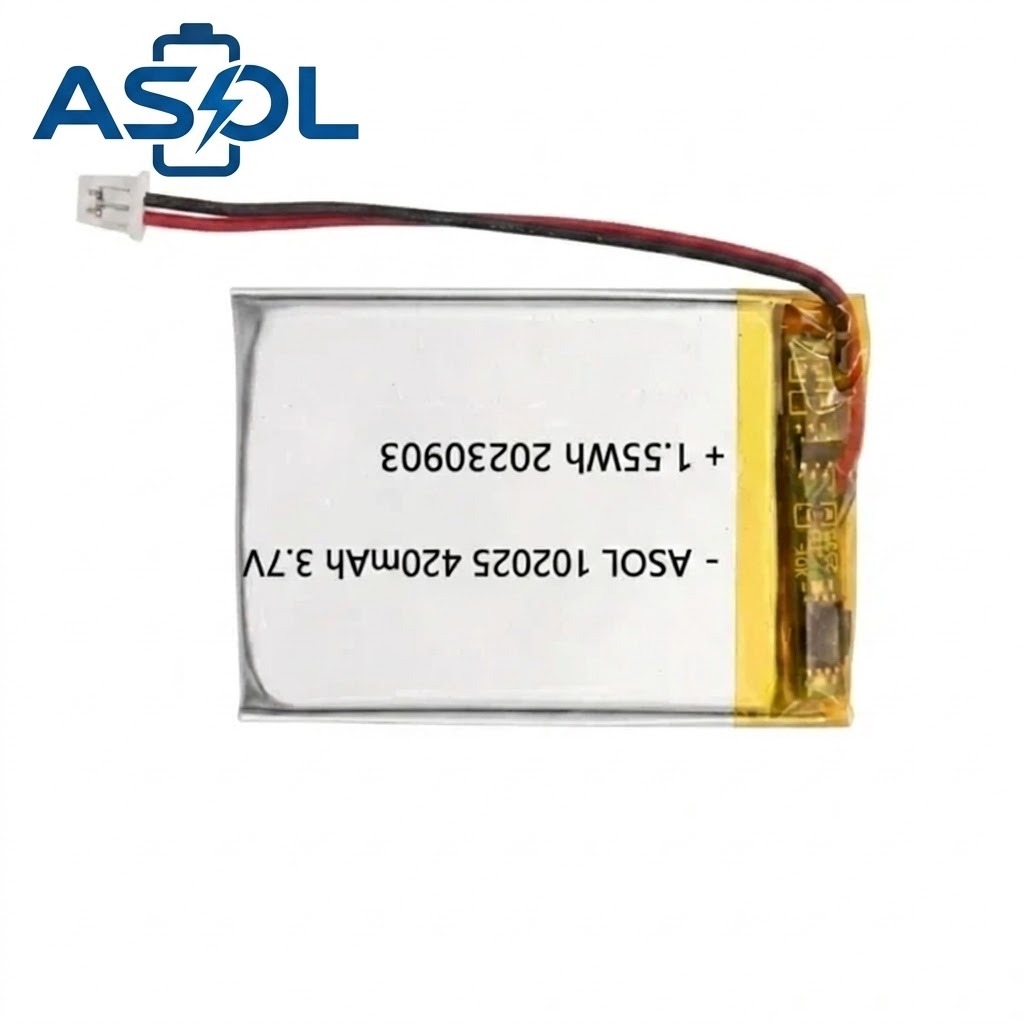

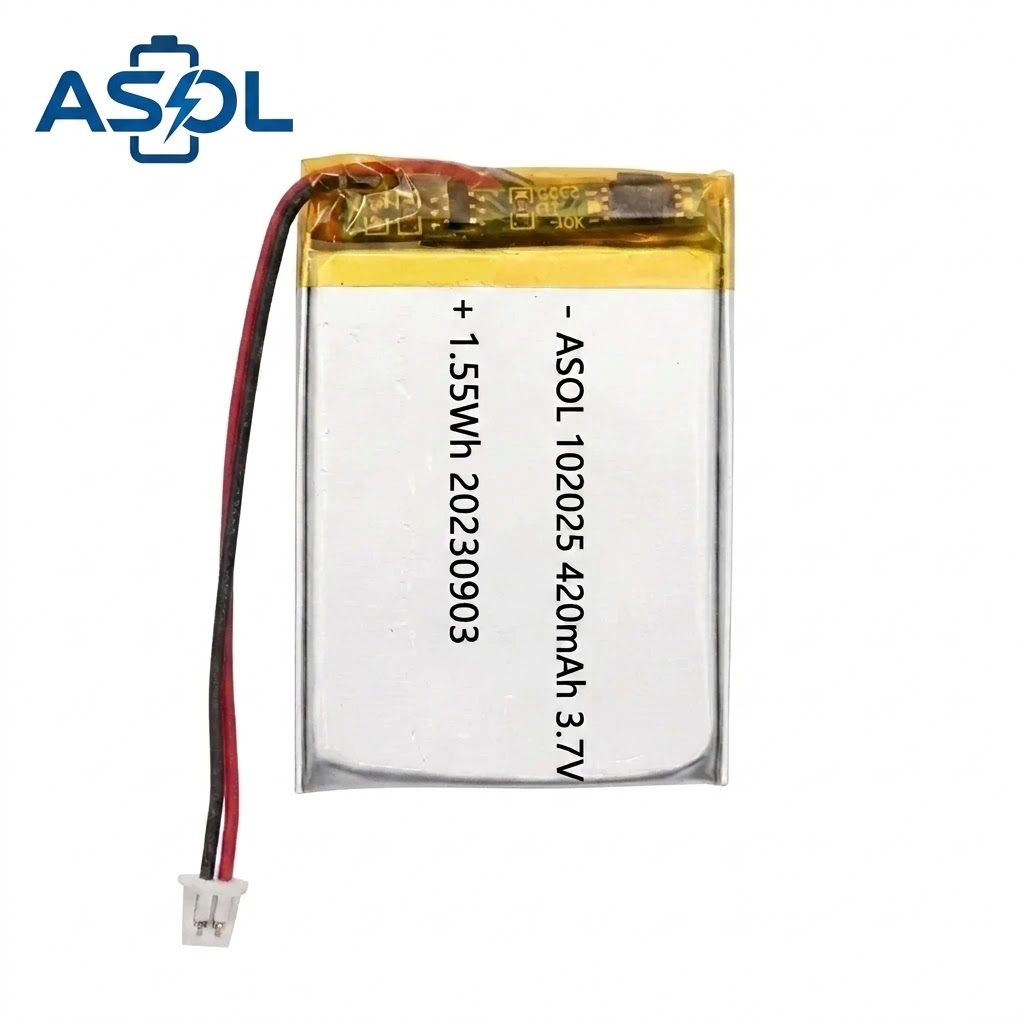

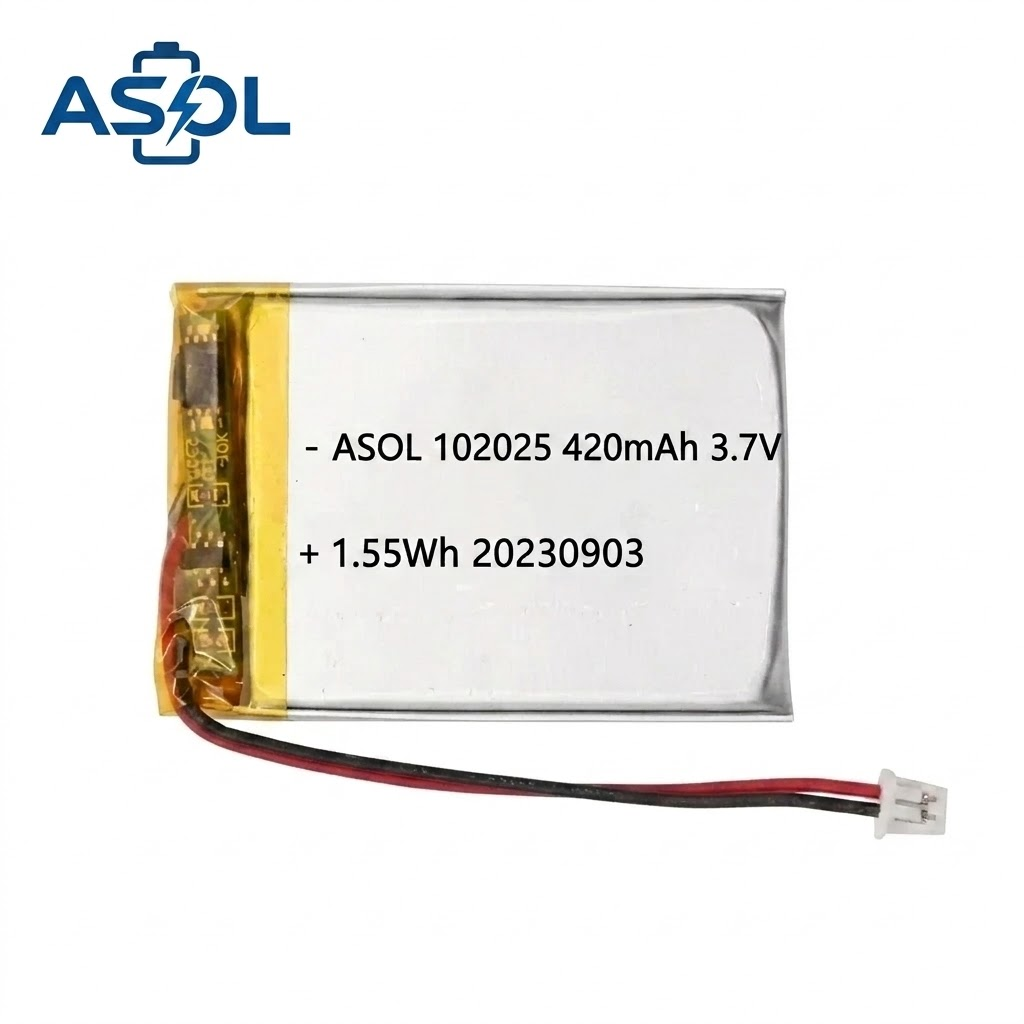

ASOL 102025 Lithium Polymer Battery — A high-rate 420mAh soft-pack Li-Po delivering 1.554Wh energy with a 3C discharge rate (1260mA peak). Compared to standard 1C batteries limited to 420mA, the 102025 delivers 3× more peak current for stable voltage under load — the ideal choice for Bluetooth trackers, key finders, wallet trackers, pet trackers, TWS earbuds charging cases, and voice recorders.
Why 3C vs Standard 1C — Discharge Rate Comparison
| Battery Type | Max Discharge Current | BT Tracker BLE Burst | TWS Case Charging | Voice Recorder Peak | Verdict |
|---|---|---|---|---|---|
| Standard 1C | 420mA | ⚠️ Marginal | ❌ Slow charge output | ❌ Too weak | Cannot sustain peak load |
| 102025 — 3C ★ | 1260mA | ✅ Stable advertising | ✅ Fast recharge cycle | ✅ Clean audio | Best choice |
Bluetooth trackers, TWS charging cases, and voice recorders all draw brief peak currents that exceed 1C ratings. The 102025’s 3C capability ensures stable BLE advertising power, fast earbuds recharging, and clean voice recording without voltage sag.
Why Lithium Polymer vs Cylindrical?
- ⚡ 3C High Discharge Rate — 1260mA peak current vs standard 1C’s 420mA ceiling
- 📐 Compact 10.5×20.5×28mm — Fits compact handheld device enclosures
- 🔋 420mAh in Compact Form — Sufficient capacity for a full day of device operation
- 📏 Stable Voltage Under Load — No sag during TWS music peaks, POS printing, or fan boost
- 🪶 Featherweight Soft Pack — Aluminum-laminated construction minimizes device weight
- 🔧 Flexible Integration — Adapts to compact and irregular enclosures
- 🏭 OEM-Friendly — Custom tabs, wires, connectors, and PCM available
Key Features
- 🔋 420mAh / 1.554Wh Compact Power — High energy density with high discharge capability
- ⚡ 3C (1260mA) Peak Discharge — 3× more power than standard 1C batteries
- 📐 Compact 10.5×20.5×28mm — Fits compact handheld device enclosures
- 📏 Stable Voltage Under Load — No sag during peak power draws
- 🔄 ≥500 Cycle Life — Reliable long-term performance with minimal degradation
- 🌡️ Wide Temperature Range — Charge: 0~45°C / Discharge: -20~60°C
- 🛡️ UN38.3 Certified — Safe for global air transport
- 🔧 OEM/ODM Ready — Custom tabs, wires, connectors, protection circuits
Specifications
| Parameter | Value |
|---|---|
| Model | 102025 |
| Chemistry | Lithium Polymer (Li-Po) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 420mAh |
| Nominal Energy | 1.554Wh |
| Dimensions (T×W×H) | 10.5×20.5×28mm |
| Max Discharge Rate | 3C (1260mA) |
| Charge Voltage | 4.2V |
| Standard Charge Current | 84mA (0.2C) |
| Max Charge Current | 420mA (1C) |
| Standard Discharge Current | 84mA (0.2C) |
| Max Discharge Current | 1260mA (3C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 3.0V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C (recommended) |
| Cycle Life | ≥500 cycles (100% DOD, 0.2C, 25°C) |
| Weight (Approx.) | ~9.5g |
| Certifications | UN38.3 |
Applications
📡 Bluetooth & Item Tracking (Top Match)
- Bluetooth Tracker — 3C burst handles BLE advertising peak current; 420mAh provides 6-12 months standby for UWB/BLE trackers (e.g. Apple AirTag-compatible, Samsung SmartTag-compatible); 10.5×20.5×28mm compact form fits ultra-thin tracker card enclosures
- Key Finder — 420mAh sustains long-standby BLE beacon operation; 3C discharge ensures instant loud-buzzer alert response without voltage drop; compact 10.5mm thickness fits keychain-style finders
- Wallet Tracker — Ultra-compact form fits card-shaped wallet tracker designs; 420mAh supports 6+ months daily BLE ping; 3C handles peak current during lost-item alert activation
- Pet Tracker (GPS + BLE) — 420mAh powers continuous GPS + BLE dual-mode tracking for 12-24 hours per charge; 3C discharge supports GPS cold-start current spike; compact form fits lightweight pet collar attachments
🎧 TWS Earbuds Charging Case
- TWS Earbuds Charging Case — 3C discharge delivers fast recharge cycles to earbuds (up to 1260mA charging current output); 420mAh provides 3-5 full earbud charges (typical TWS earbud battery 60-90mAh); compact 10.5mm thickness fits slim charging case designs
🎙️ Recording & Communication
- Voice Recorder — 420mAh supports 8-12 hours continuous recording; 3C discharge handles microphone preamp + codec peak current cleanly; compact size fits pen-style or clip-on recorder designs
Why Choose ASOL 102025?
3× more peak power — The ASOL 102025 delivers 420mAh (1.554Wh) with a 3C (1260mA) discharge rate — 3× the peak current of standard 1C batteries. This means stable BLE advertising power for Bluetooth trackers, fast earbud recharging for TWS charging cases, and clean audio capture for voice recorders.
Compact high-rate solution — The 102025 combines high-rate capability with a compact 10.5×20.5×28mm form factor, making it the ideal battery for compact handheld devices that need more power than a standard 1C cell can provide.
UN38.3 certified for global logistics — The 102025 is UN38.3 certified, ensuring safe air transport worldwide. ASOL’s OEM/ODM team supports custom tabs, wire harnesses, connectors, and PCM protection circuit integration.
Wholesale Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 100–499 pcs | Contact us | — |
| 500–999 pcs | Contact us | 8% off |
| 1,000–4,999 pcs | Contact us | 15% off |
| 5,000+ pcs | Contact us | 20%+ off |
📌 Wholesale Note: Sample orders and custom specifications welcome. Full certification documentation provided with shipment.
