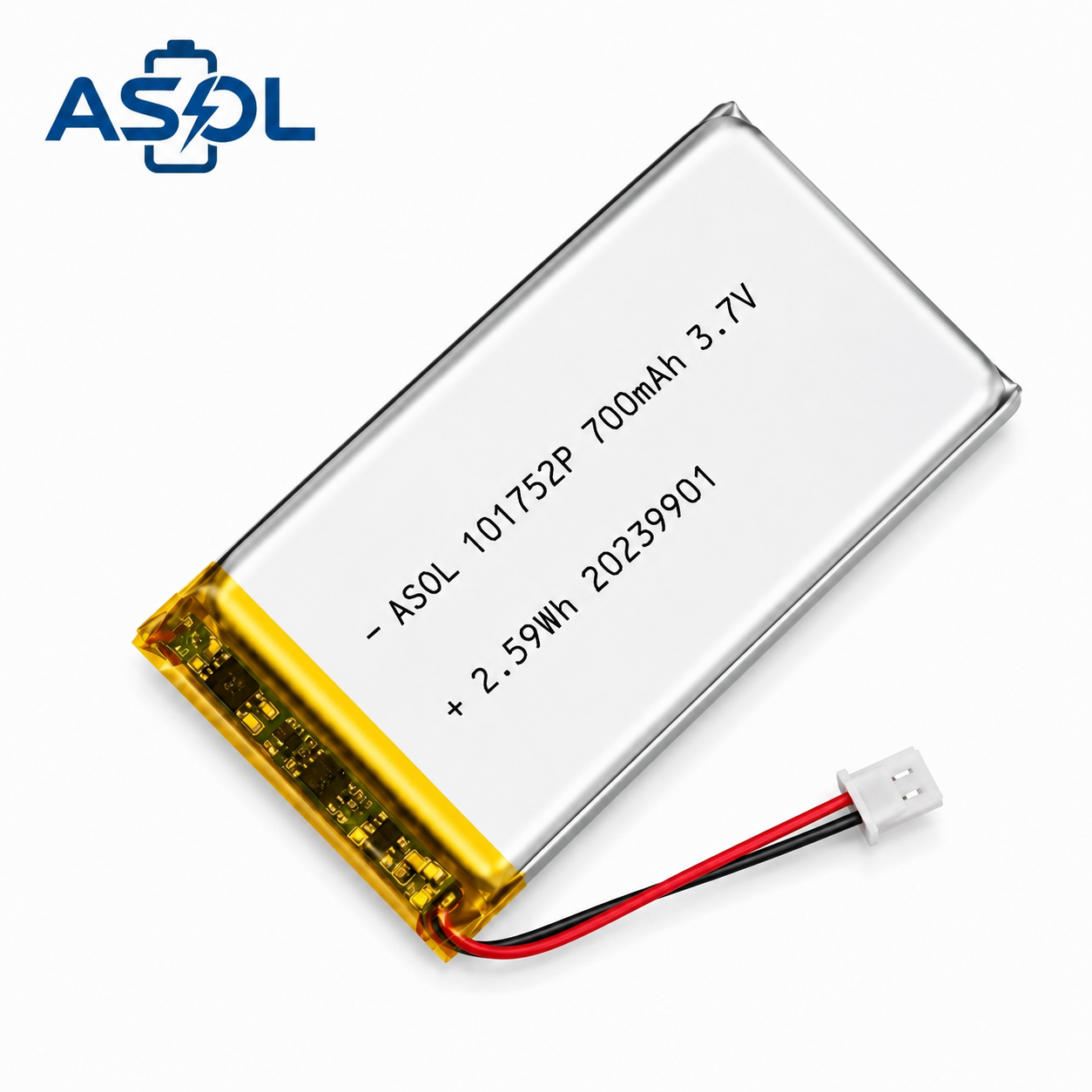

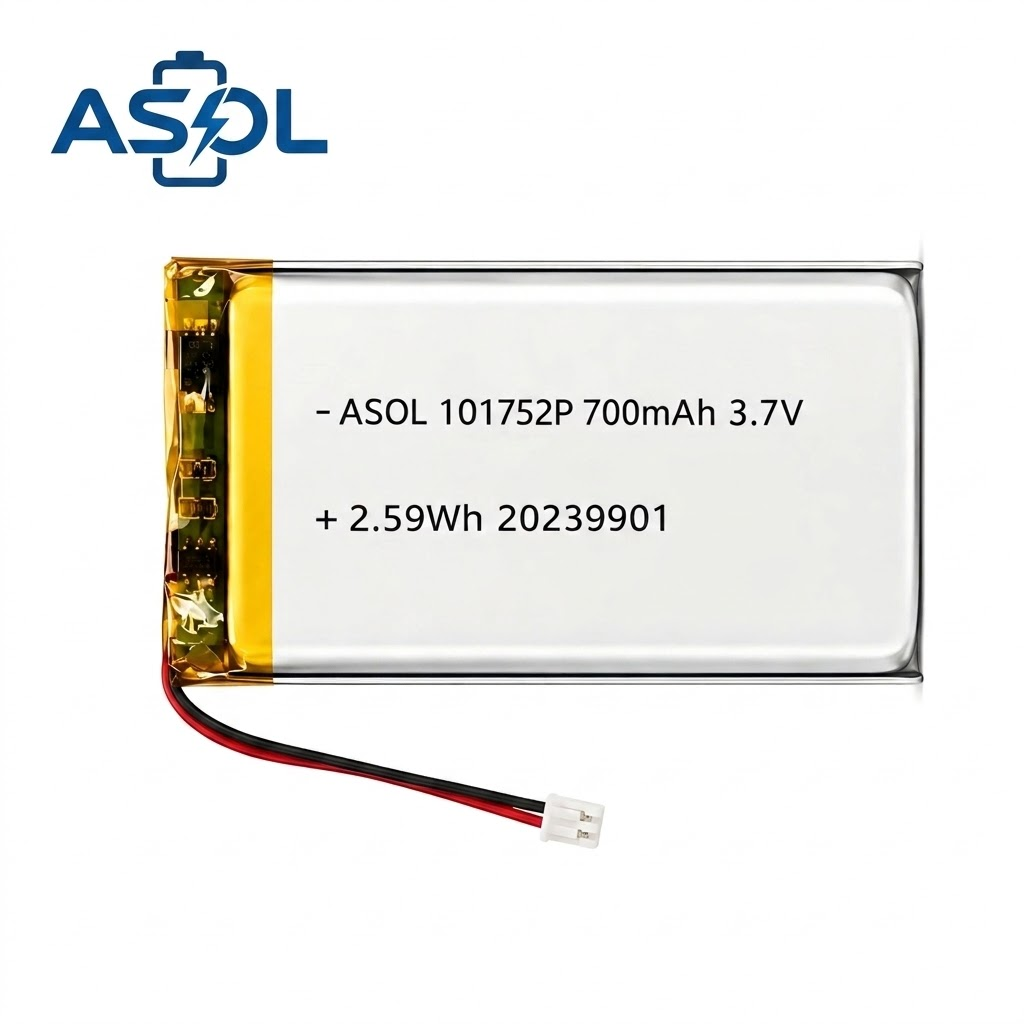

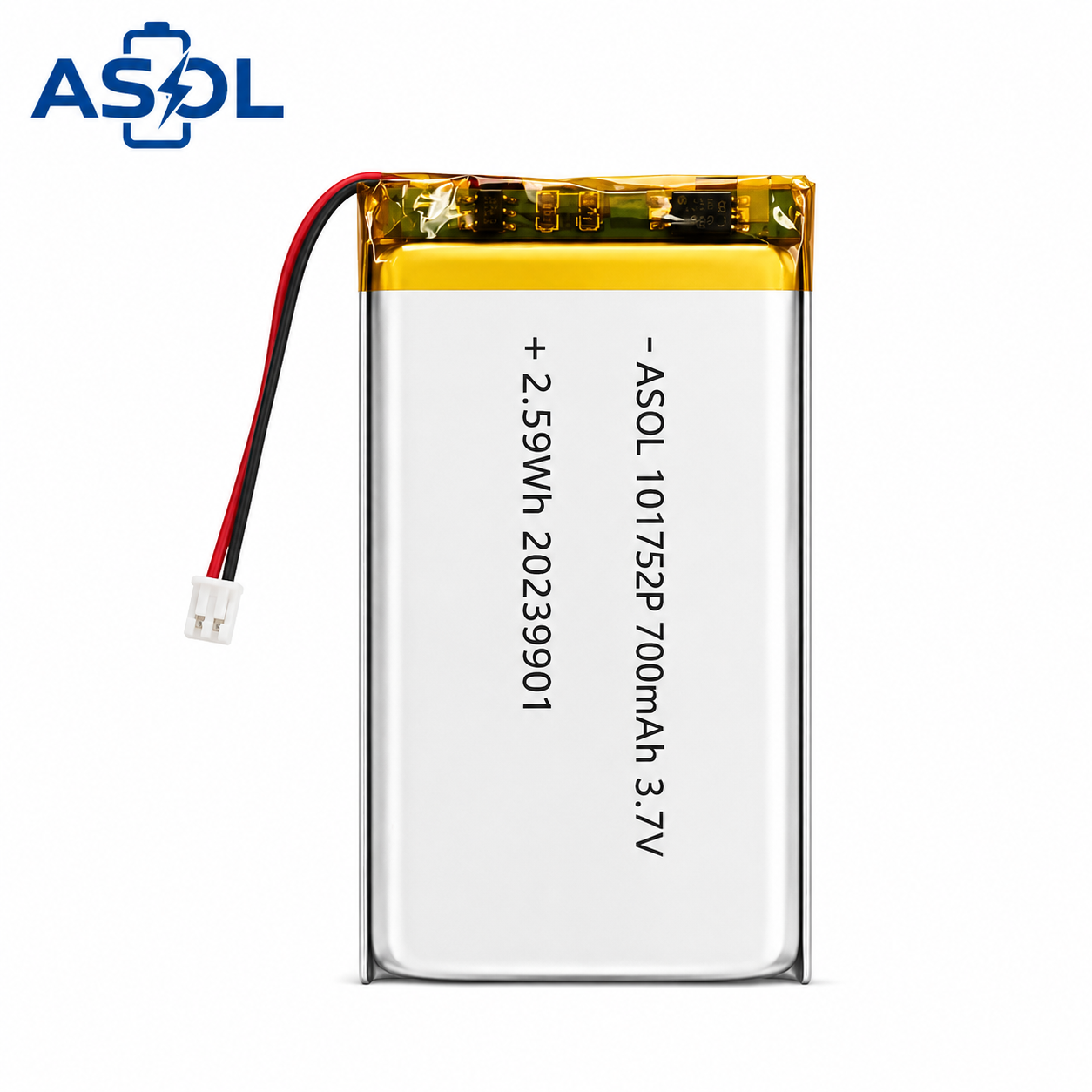

ASOL 101752P Lithium Polymer Battery — A high-rate 700mAh soft-pack Li-Po delivering 2.59Wh energy with an explosive 10C discharge rate (7000mA peak). Built-in PCM protection, 6 global certifications, and a compact 10×17.5×27mm form factor make it the ideal power cell for FPV micro drones, mini quadcopters, RC helicopters, indoor drones, educational robots, DIY electronics projects, and small GPS/asset trackers.
Why 10C vs Standard 1C — FPV Drone Discharge Comparison
| Battery Type | Max Discharge | FPV Suitability | Verdict |
|---|---|---|---|
| Standard 1C LiPo | 700mA | ❌ Too weak | Cannot sustain motor RPM |
| Mid-Rate 3C LiPo | 2100mA | ⚠️ Marginal | Voltage sag on hard maneuvers |
| 101752P — 10C ★ | 7000mA | ✅ Perfect | Instant throttle response |
| High-End 15C LiPo | 10500mA | ✅ Excellent | Overkill for micro builds |
FPV drone and RC helicopter motors draw 5~20A during hard maneuvers. Standard batteries can’t deliver this. The 101752P’s 10C (7000mA) hits the sweet spot for micro FPV, RC helicopters, and indoor drones — enough burst current for aggressive flight without the weight and cost of 15C+ batteries.
Why Lithium Polymer for FPV & RC?
- 🚁 10C Real Discharge Rate — No voltage sag under hard throttle; instant motor response for FPV drones and RC helicopters
- 📐 Compact 10×17.5×27mm — Fits micro whoop frames, tight battery bays, and small robot chassis; leaves room for 2S builds
- 🔋 700mAh for Micro Builds — Sufficient flight time for 3~5 minute FPV sessions, or extended runtime for trackers and robots
- 🛡️ Built-in PCM Protection — Over-charge, over-discharge, and over-current protection built in — safe for students and hobbyists
- 🪶 Aluminum-Laminated Pouch — Lightweight yet durable — ideal for crash-prone FPV and indoor drone use
- 🔄 500+ Cycles — Reliable for repeated race sessions, classroom use, and DIY project prototyping
- 🏆 6 Certifications — UL, CB, KC, PSE, UN38.3, CQC for global compliance
- 🏭 OEM-Friendly — JST PH 2.0 connector standard; plugs into Arduino, Raspberry Pi, and dev boards
Key Features
- 🚁 10C (7000mA) Peak Discharge — The power FPV drones, RC helicopters, and indoor drones actually need
- 🔋 700mAh / 2.59Wh Compact Energy — Sufficient for 3~5 minute micro FPV sessions or extended tracker/robot runtime
- 📐 10×17.5×27mm Compact Form — Fits micro whoop frames, RC heli fuselages, small robots, and tracker enclosures
- 🛡️ Built-in PCM — Over-charge, over-discharge, and over-current protection — safe for students and hobbyists
- 🔄 ≥500 Cycle Life — Reliable for repeated race sessions, classroom use, and DIY prototyping
- 🪶 Lightweight Pouch Construction — ~18g minimizes total drone/robot weight
- 🏆 6 Global Certifications — UL, CB, KC, PSE, UN38.3, CQC
- 🔧 Connector Ready — JST PH 2.0 standard; plugs into Arduino, Raspberry Pi, dev boards
Specifications
| Parameter | Value |
|---|---|
| Model | 101752P |
| Chemistry | Lithium Polymer (Li-Po) Soft Pack |
| Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.2V |
| Discharge Cut-off | 3.0V |
| Nominal Capacity | 700mAh |
| Nominal Energy | 2.59Wh |
| Max Discharge Rate | 10C (7000mA) |
| Max Charge Rate | 1C (700mA) |
| Standard Charge | 0.2C (140mA) |
| AC Internal Resistance | ≤120mΩ |
| Dimensions (T×W×H) | 10×17.5×27mm (±0.5mm) |
| Weight (Approx.) | ~18g |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Cycle Life | ≥500 cycles (80% capacity retention) |
| Shell Material | Aluminum-Laminated Film |
| Connector | JST PH 2.0 / Customizable |
| Built-in Protection | PCM (over-charge, over-discharge, over-current) |
| Certifications | UL1642, CB, KC, PSE, UN38.3, CQC |
Applications
🚁 FPV Micro Drone / Mini Quadcopter
- FPV Micro Racing Drone — 10C discharge (7000mA) handles aggressive motor bursts; compact 10×17.5×27mm fits micro and whoop-class frames
- Mini Quadcopter (whoop-class, 1S/2S) — 700mAh ideal for 2~3S micro builds with 3~5 minute flight time.
- Tiny Whoop & Brushless Micro Drones — Lightweight ~18g minimizes total drone weight for agile flight
- FPV Freestyle Drones — Instant throttle response for acrobatic maneuvers
🚁 RC Helicopter
- Micro RC Helicopters — 10C discharge handles main rotor motor demand; compact form fits narrow fuselage battery bays
- Coaxial RC Helicopters — Dual-rotor designs benefit from burst current for lift
- FPV Helicopter Builds — Compact 10×17.5×27mm fits FPV-equipped micro heli frames
- Indoor RC Helicopters — Safe power for living-room-friendly micro helicopters
🏠 Indoor Drone
- Indoor FPV Drones — 10C power for obstacle-racing and tight-space maneuvering
- Toy Indoor Drones — Reliable power for beginner-friendly indoor quadcopters
- Drone Soccer & Battle Drones — Burst current for competitive indoor drone sports
- Cinematography Drones (indoor) — Smooth power delivery for indoor video shoots
🤖 Educational Robot
- STEM Robotics Kits — 10C discharge powers small robot motors and servos; 700mAh supports extended classroom sessions
- Competition Robots (mini class) — Compact size fits small robot chassis for educational competitions
- Robot Arms & Manipulators — Powers servo-driven mini robot arms in STEM curricula
- Line-Following Robots — Sufficient capacity for long-track robot competitions
- Arduino & Raspberry Pi Robot Projects — Standard JST PH 2.0 connector plugs directly into popular dev boards
🔧 DIY Electronics Project
- Portable Electronics Prototypes — 700mAh (2.59Wh) powers breadboard projects, wearable prototypes, and sensor nodes
- Custom RC Builds — Enthusiasts use the 101752P for scratch-built micro planes, drones, and hovercraft
- LED Wearables & Costumes — High discharge handles LED strip current spikes for costume and art projects
- Handheld Game Consoles & Retro Devices — Powers custom-built portable gaming rigs
- IoT Sensor Nodes — Compact form and built-in PCM make it ideal for portable data collection projects
🛰️ Small GPS Tracker / Asset Tracker
- Personal GPS Trackers — 700mAh provides 5–8 days continuous tracking or 2–4 weeks standby
- Asset Tracking Devices — Compact size fits discreet tracking enclosures for equipment and cargo
- Fleet Management Trackers — Reliable power for vehicle and machinery location monitoring
- Pet & Livestock Trackers — Lightweight for collar-mounted animal tracking
- Hiking & Outdoor Safety Trackers — Backup GPS for outdoor enthusiasts
Why Choose ASOL 101752P for FPV & RC?
The FPV sweet spot — The ASOL 101752P delivers 700mAh (2.59Wh) with a 10C (7000mA) discharge rate — the perfect balance of power and compactness for micro FPV drones, RC helicopters, and indoor drones. Standard 1C batteries can’t sustain motor RPM, and 15C+ batteries add unnecessary weight. The 101752P’s 10C is engineered for real FPV flight performance.
6 certifications for global market — With UL, CB, KC, PSE, UN38.3, and CQC certifications, the 101752P is pre-cleared for deployment in North America, Europe, Korea, Japan, China, and global air transport.
Built-in PCM protection — No need for external protection circuits; the 101752P’s built-in PCM protects against over-charge, over-discharge, and over-current, making it safer for consumer RC, educational robot, and DIY electronics use.
Wholesale Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 100–499 pcs | Contact us | — |
| 500–999 pcs | Contact us | 8% off |
| 1,000–4,999 pcs | Contact us | 15% off |
| 5,000+ pcs | Contact us | 20%+ off |
📌 Wholesale Note: Sample orders and custom specifications welcome. Full certification documentation provided with shipment.
